General Information |
|
Summary |

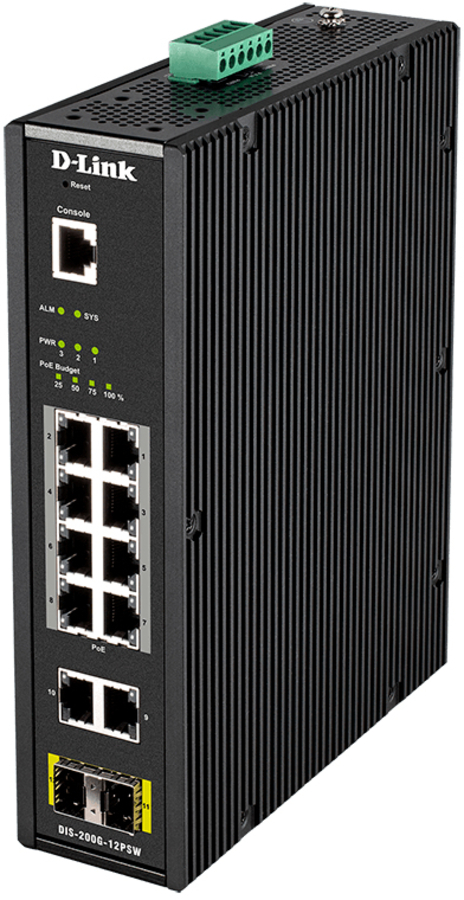

Durable and Reliable Design
The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.
High Redundancy and Reliability

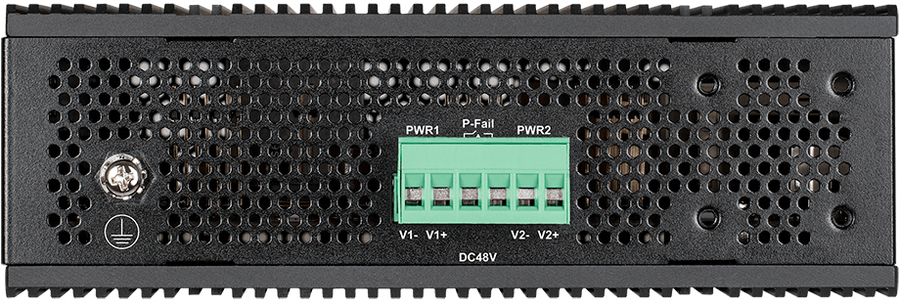

The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
Surveillance Traffic Optimization
The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.
Easy Troubleshooting
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
System event log |
Yes |
|

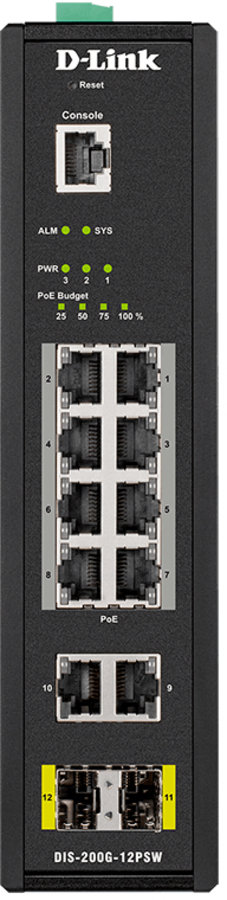

Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
10 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
2 |
|
Installed SFP+ modules quantity |
0 |
|
Gigabit Ethernet (copper) ports quantity |
10 |
|
Console port |
RJ-45 |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
10G support |
No |
|
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
|
Port mirroring |
Yes |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Spanning tree protocol |
Yes |
|
Active link detection |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
Port-based VLAN, Tagged VLAN, Voice VLAN |
|
Optical fiber |
|
Fiber ethernet cabling technology |
1000BASE-X |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
24 Gbit/s |
|
Forwarding rate |
17.856 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9600 |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Security algorithms |
802.1x RADIUS, SSL/TLS |
|
Authentication |
Port-based authentication |
|
Authentication type |
RADIUS |
|
Queue scheduling algorithms |
SPQ, Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
Management protocols |
SNMP v1/v2c/v3, SNTP, Telnet |
|
Design |
|
Rack mounting |
Yes |
|
Stackable |
No |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

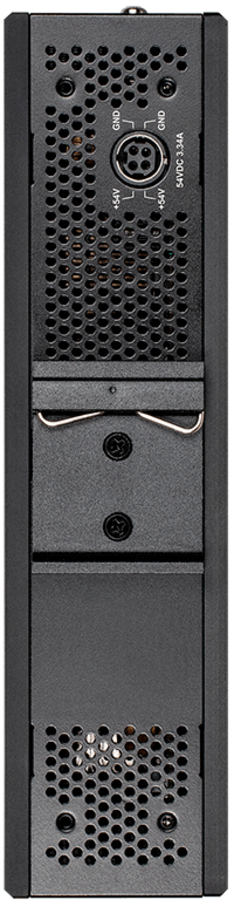

DIN rail mounting |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
156452 h |
|
Power |
|
Power source |
PoE |
|
DC input voltage |
46 - 54 V |
|
Power consumption (typical) |
7.02 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet (PoE) ports quantity |
8 |
|
Power over Ethernet (PoE) voltage |
260 V |
|
Total Power over Ethernet (PoE) budget |
240 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Storage relative humidity (H-H) |
0 - 95% |
|
Operating altitude |
0 - 2000 m |
|
Heat dissipation |
887.16 BTU/h |
|
Weight & dimensions |
|
Width |
171.2 mm |
|
Depth |
53 mm |
|
Height |
210 mm |
|
Weight |
1.76 kg |
|
Certificates |
|
Certification |
CE, FCC, BSMI
EN 61000-4-2 ESD
EN 61000-4-3 RS
EN 61000-4-4 EFT
EN 61000-4-5
EN 61000-4-6 CS
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6 |
