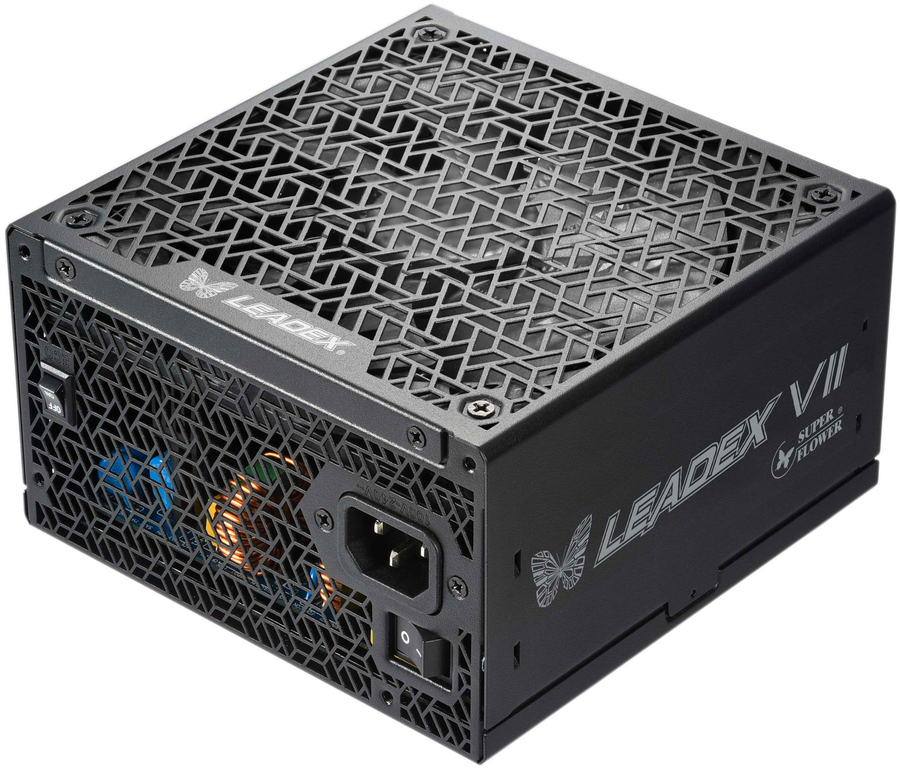

Super Flower Leadex VII XG 1000W 80+ Gold Fully Modular ATX Power Supply
|
|
Regularly: $226.00
On Sale: $198.96
Sale Ends:
August 7th, 2026
Manufacturer:
Super Flower
1000W, ATX 3.1, EPS 2.92, APFC, 14cm FDB, 100V-240V, 60/50Hz, Black, 150 x 150 x 86mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59748496
|
SF-1000F14XG
|
- |
Active
|
Details
|
General Information |
|
Summary |
LEADEX VII XG is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 8-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode. |
|

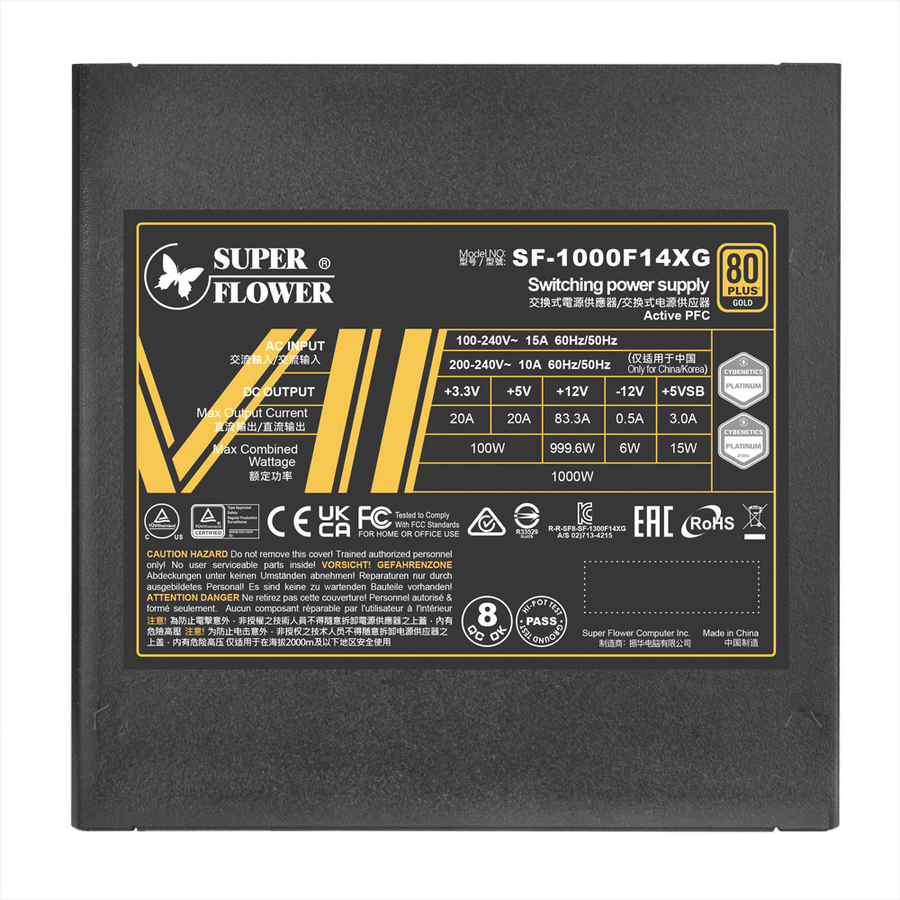

Power |
|
Total power |
1000 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Input current |
15 A |
|
Power Factor Correction (PFC) type |
Active |
|
Combined power (+3.3V) |
100 W |
|
Combined power (+12V) |
999.6 W |
|
Combined power (+5V) |
100 W |
|
Combined power (-12V) |
6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
20 A |
|
Max output current (+12V) |
83.3 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.5 A |
|
Max output current (+5Vsb) |
3 A |
|
Efficiency |
87% |
|
Power protection features |
No load operation, Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
|

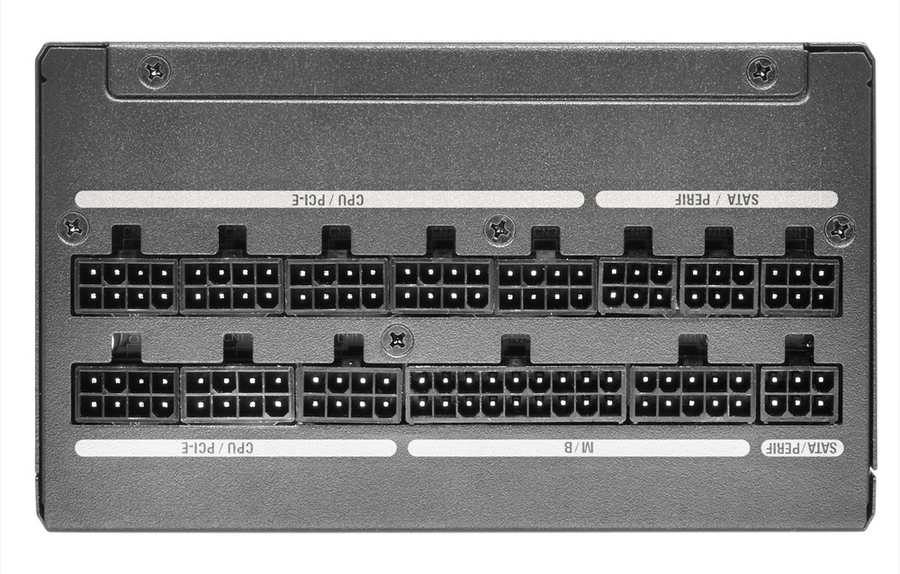

Ports & interfaces |
|
Motherboard power connector |
20+4 pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
4 |
|
Motherboard power cable length |
60 cm |
|
Number of SATA power connectors |
12 |
|
SATA power cable length |
550,680,810,940 mm |
|
Number of SATA power cables |
3 |
|
Peripheral (Molex) power cable length |
550,680,810,940 mm |
|
PCI Express power connectors (6+2 pin) |
4 |
|
PCI Express power connectors (16-pin) |
1 |
|
CPU power connector (4+4 pin) |
Yes |
|
Cabling type |
Fully-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Gold |
|
Cybenetics certification |
Platinum |
|
ATX version |
3.1 |
|
EPS version |
2.92 |
|
Bearing technology |
FDB |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
14 cm |
|
Number of fans |
1 fan(s) |
|
Illumination |
No |
|
On/off switch |
Yes |
|
Certificates |
|
Compliance certificates |
BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), KCC, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
150 mm |
|
Height |
86 mm |
|
Technical details |
|
Doesn't contain |
Cadmium, Lead, Mercury |
|
Logistics data |
|
Country of origin |
China |
|
