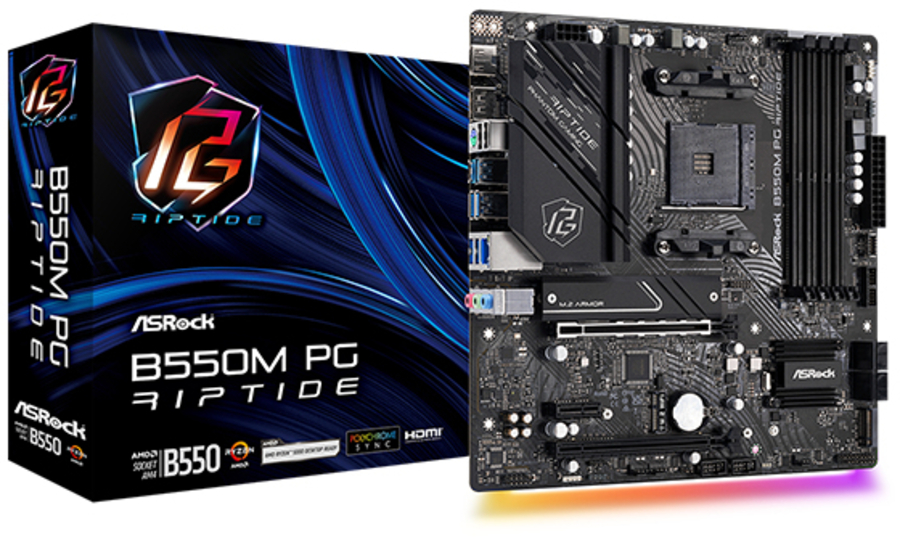

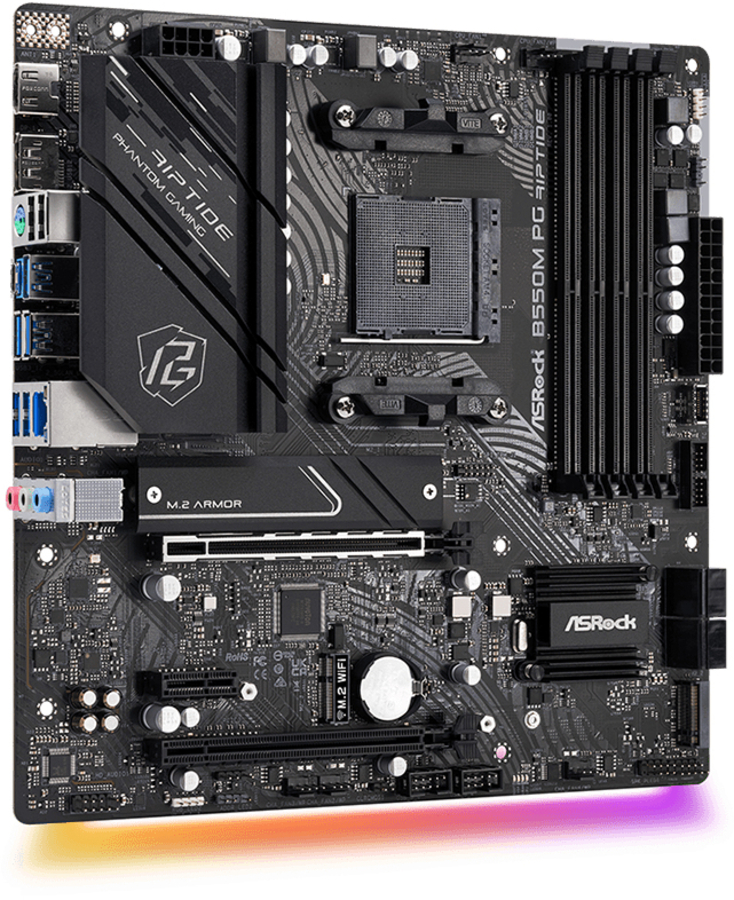

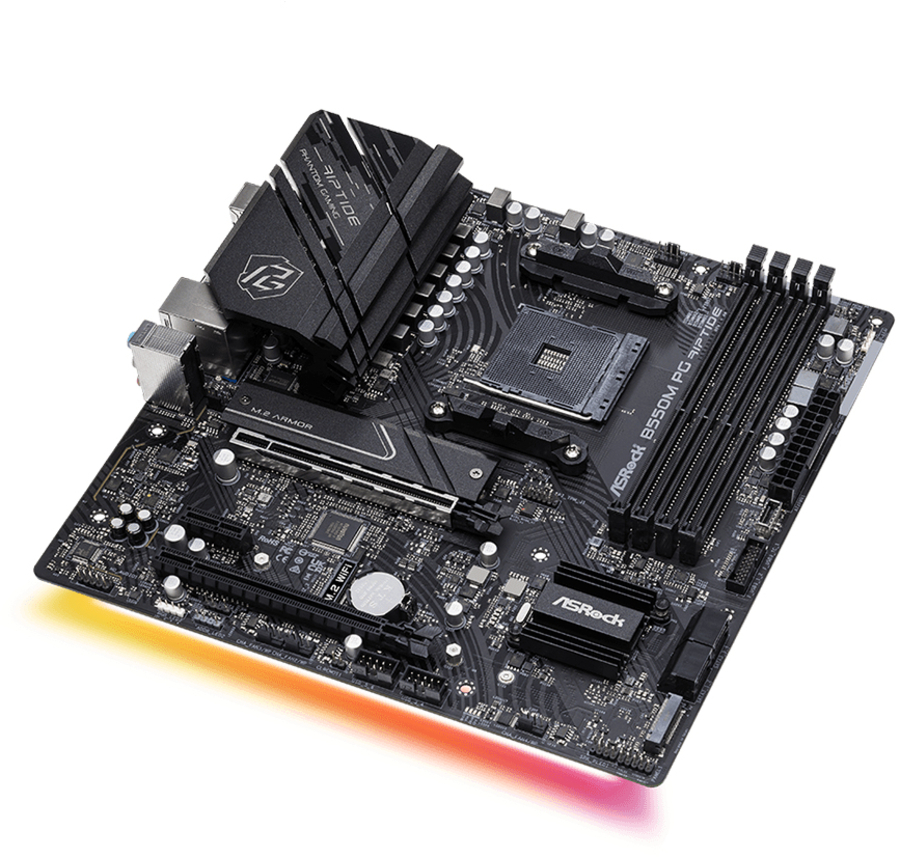

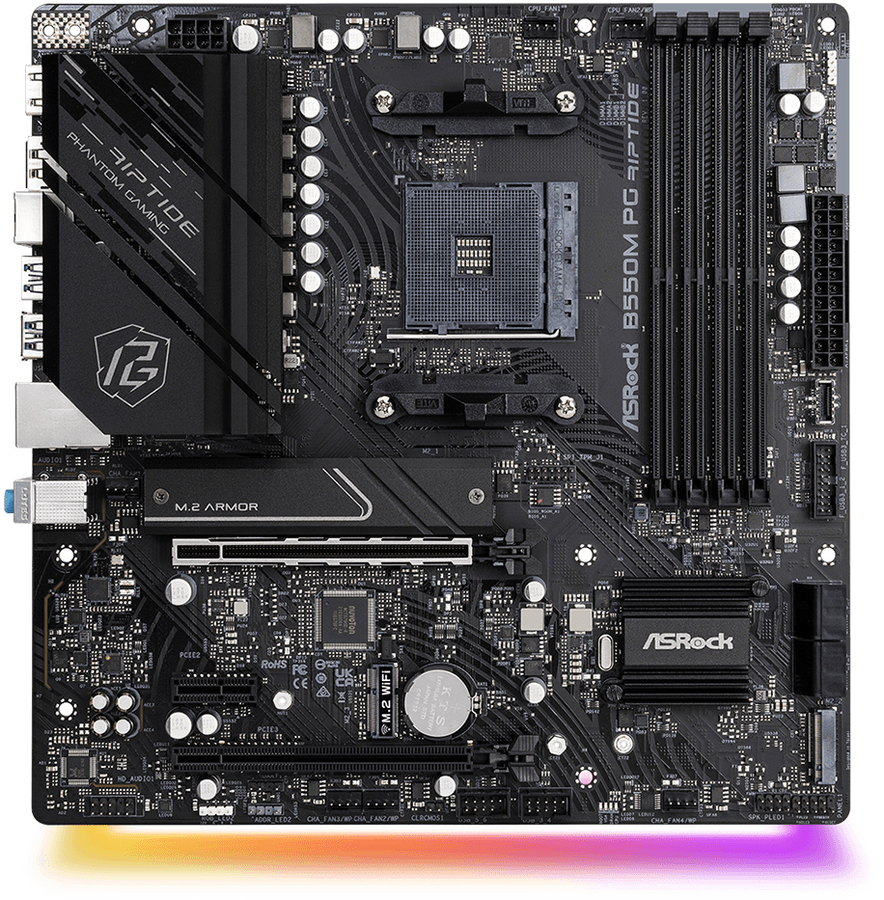

ASRock B550M PG RIPTIDE AM4 mATX Mainboard
|
|
Regularly: $149.00
On Sale: $140.06
Sale Ends:
April 20th, 2025
Manufacturer:
ASRock
AMD B550, 4x DDR4, 2.5G LAN, SATA III, M.2, PS/2, HDMI, DP, USB, Micro ATX, 244x244 mm
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59748512
|
B550M PG RIPTIDE
|
4710483936364 |
Active
|
Details
|
General Information |
|
Summary |
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea’s double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Optimized VRM Design
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Lightning Gaming Ports
Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
Phantom Gaming 2.5 Gb/s LAN
The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.
High Speed M.2 Solution
This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. |
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM4 |
|
Compatible processor series |
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
|
Maximum number of SMP processors |
1 |
|
Memory |
|
Supported memory types |
DDR4-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
128 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
ECC & Non-ECC |
|
Supported memory clock speeds |
2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Graphics |
|
Maximum resolution |
5120 x 2880 pixels |
|
HDCP |
Yes |
|
DirectX version |
12.0 |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
4 |
|
TPM connector |
Yes |
|
12V power connector |
Yes |
|
RGB LED pin header |
Yes |
|

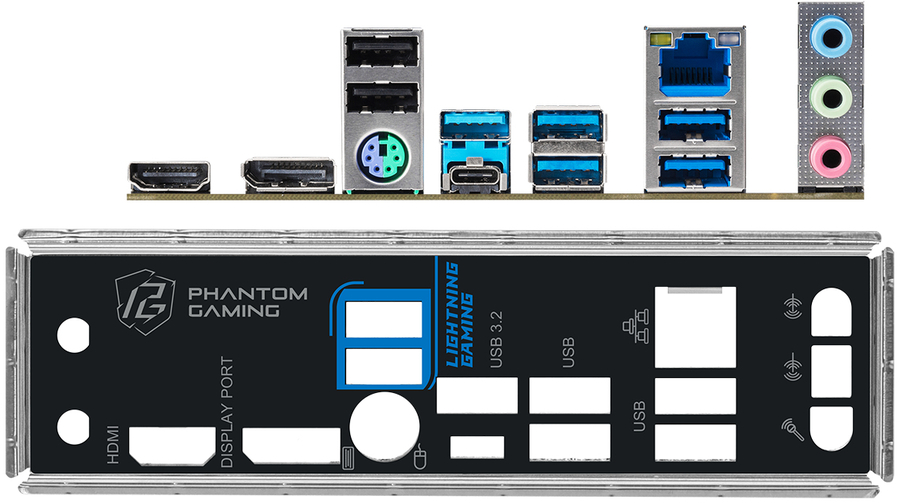

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
PS/2 ports quantity |
1 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
LAN controller |
Dragon RTL8125BG |
|
Wake-on-LAN ready |
Yes |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD B550 |
|
Audio output channels |
7.1 channels |
|
Audio chip |
Realtek ALC897 |
|
PC health monitoring |
CPU, Fan, Temperature, Voltage |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x1 (Gen 3.x) slots |
1 |
|
PCI Express x16 slots |
2 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
128 Mbit |
|
ACPI version |
5.1 |
|
System Management BIOS (SMBIOS) version |
2.3 |
|
Logistics data |
|
Harmonized System (HS) code |
84733020 |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|
Packaging content |
|
Cables included |
SATA |
|
Drivers included |
Yes |
|
