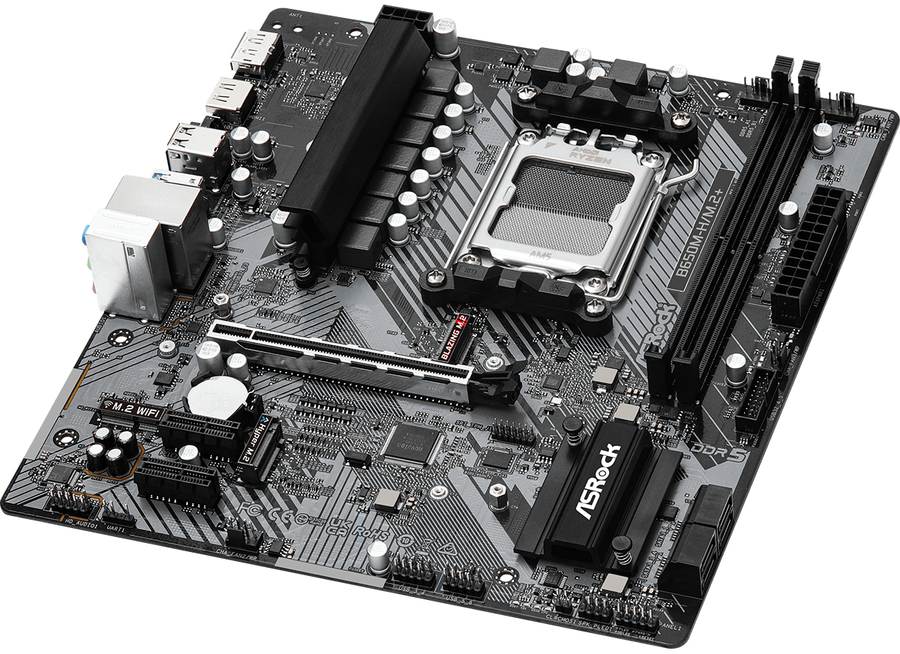

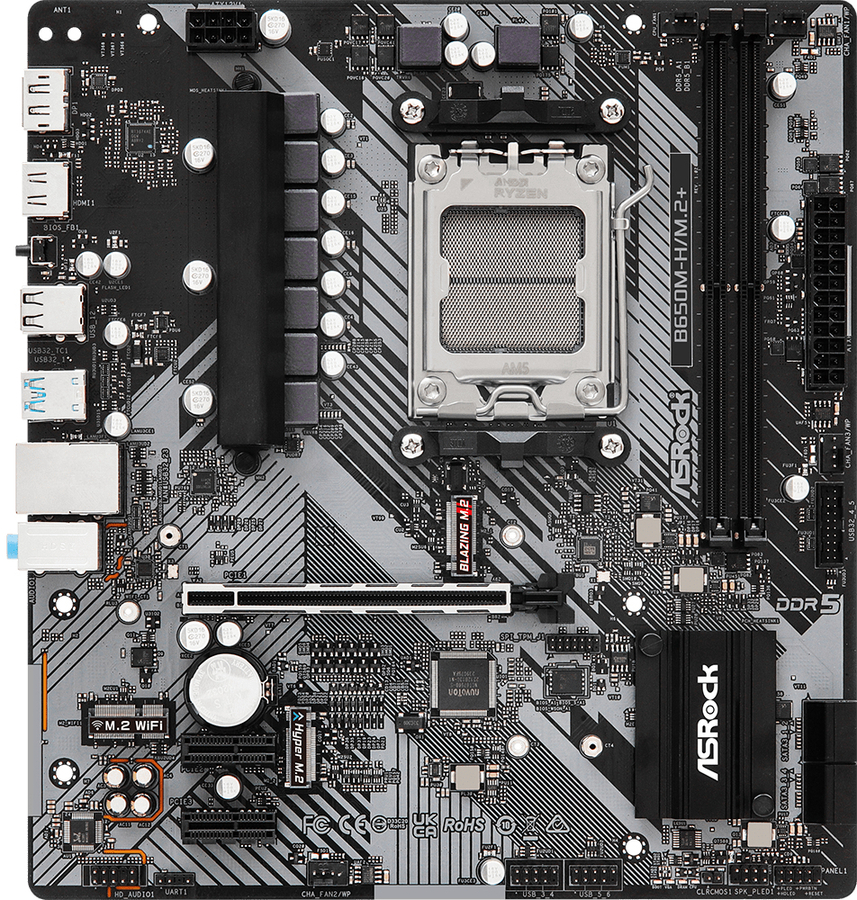

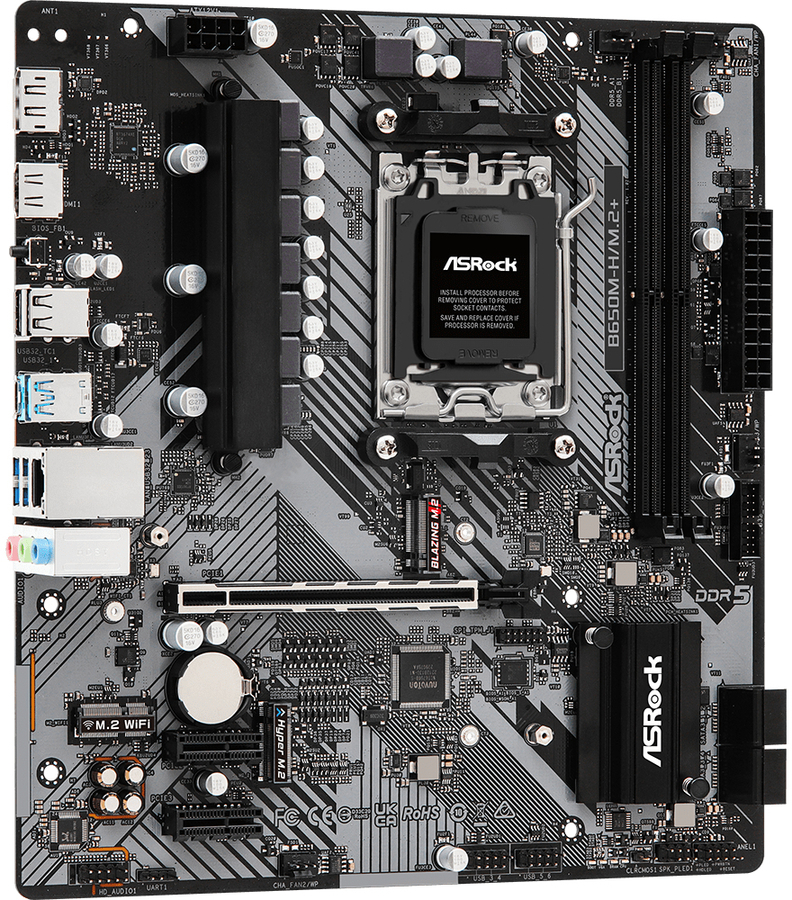

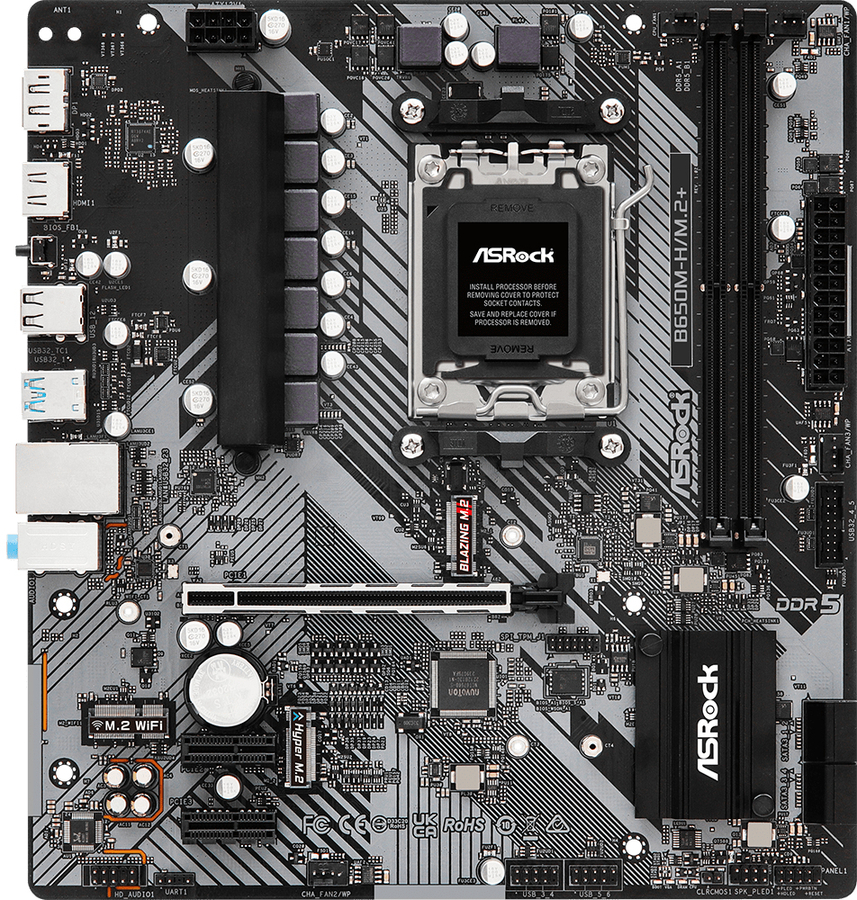

ASRock B650M-H M.2+ AM5 mATX Mainboard
|
|
Price: $149.00
Manufacturer:
ASRock
Socket AM5, AMD B650 Chipset, 2 x DDR5-SDRAM up to 96GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), UEFI AMI, Micro ATX
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59748522
|
B650M-H/M.2+
|
4710483943768 |
Active
|
Details
|
General Information |
|
Summary |
Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.
6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer
Ultimate Gaming Experience
●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. |
|
Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket AM5 |
|
Maximum number of SMP processors |
1 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
2 |
|
Maximum internal memory |
96 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
ECC & Non-ECC |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Number of storage drives supported |
6 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 10 |
|
Graphics |
|
Graphics card family |
AMD |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
4 |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
TPM connector |
Yes |
|

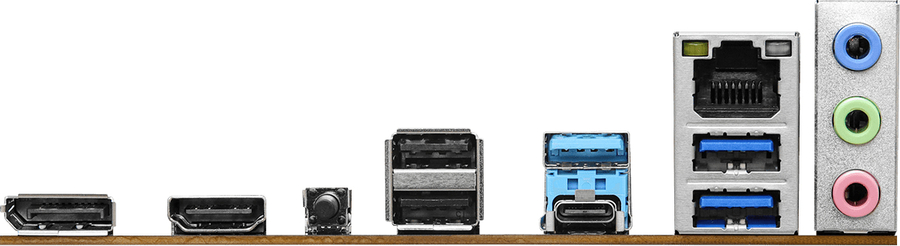

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Line-in |
Yes |
|
Microphone in |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
LAN controller |
Realtek RTL8111H |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Motherboard chipset |
AMD B650 |
|
Audio output channels |
7.1 channels |
|
Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
|
Expansion slots |
|
PCI Express x1 (Gen 4.x) slots |
2 |
|
PCI Express x16 (Gen 4.x) slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
226 mm |
|
