General Information |
|
Summary |

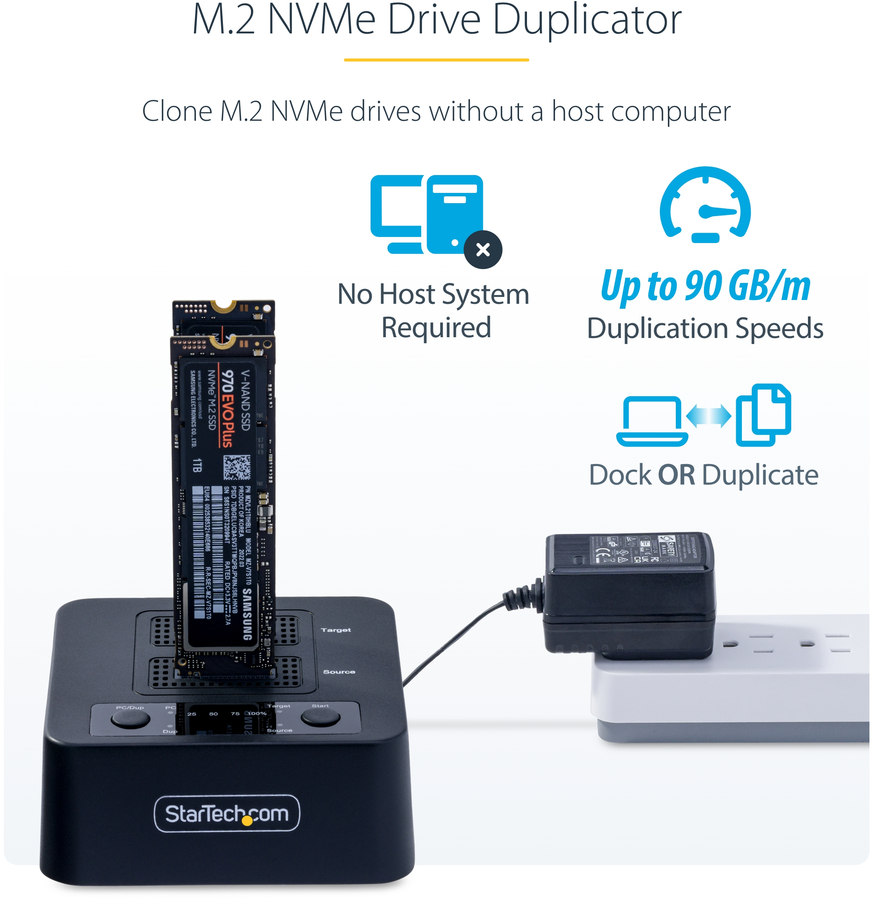

Clone M.2 NVMe drives without a host computer, or access the drives when connected to a computer via USB
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication

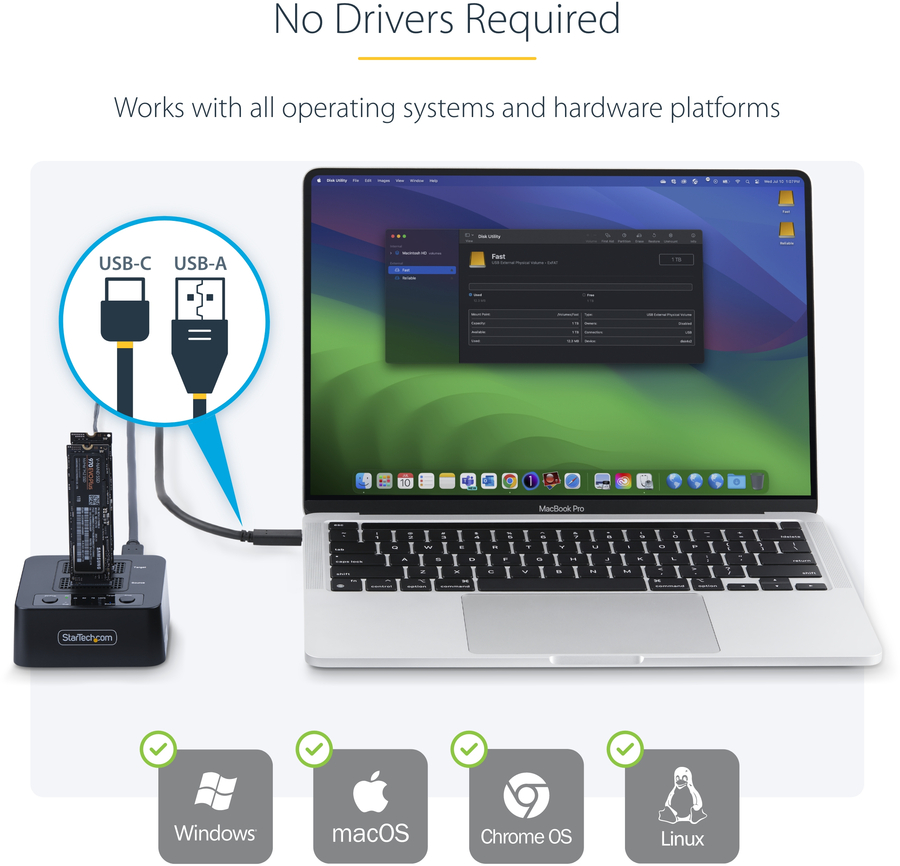

Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

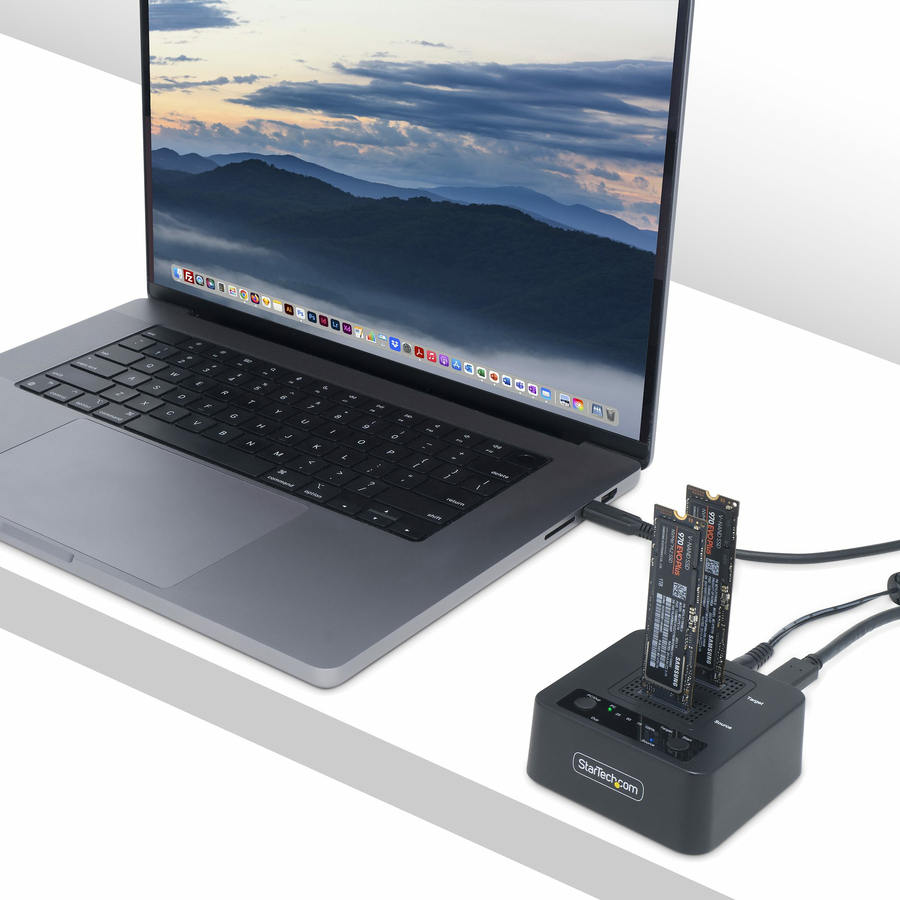

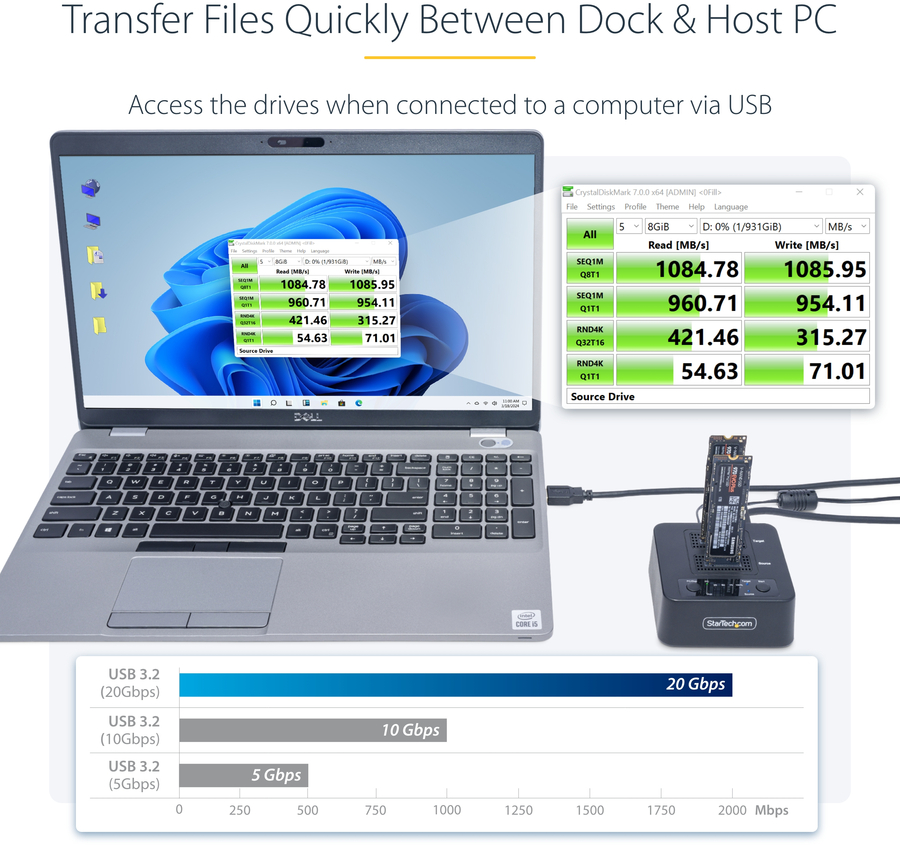

NVMe Drive Access over USB 3.2 Gen2x2

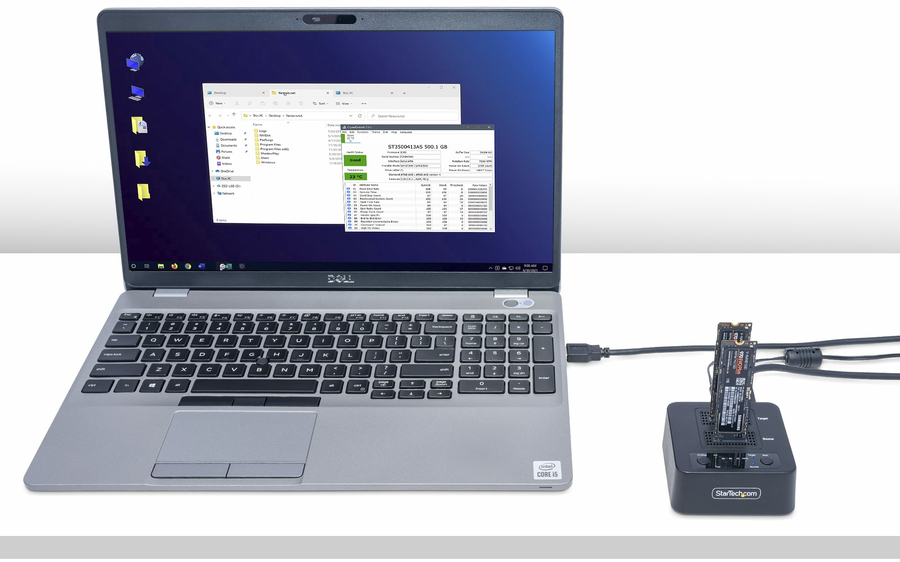

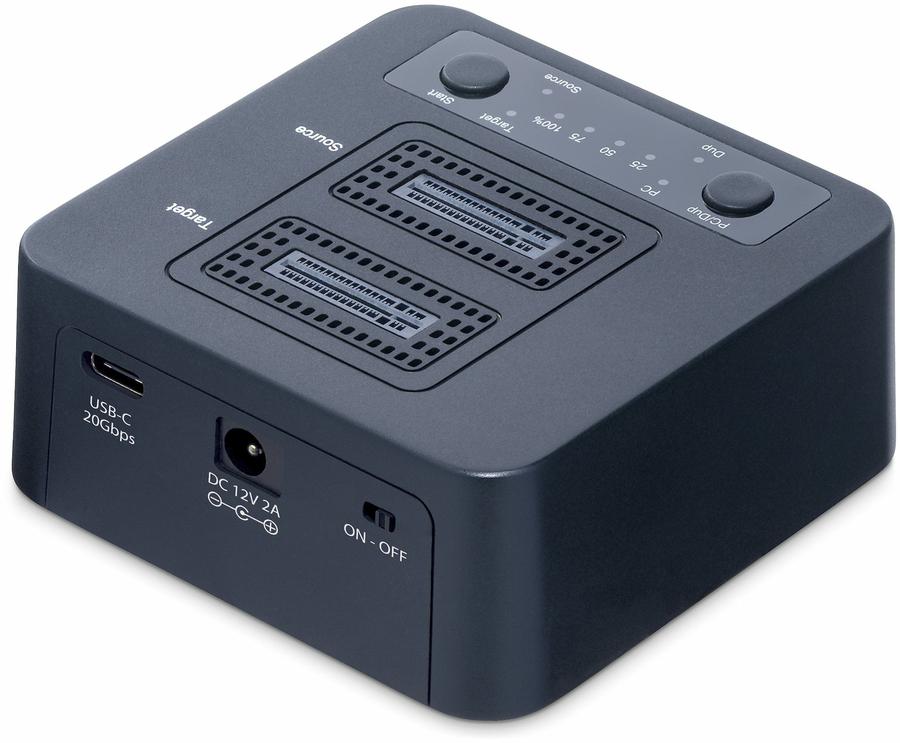

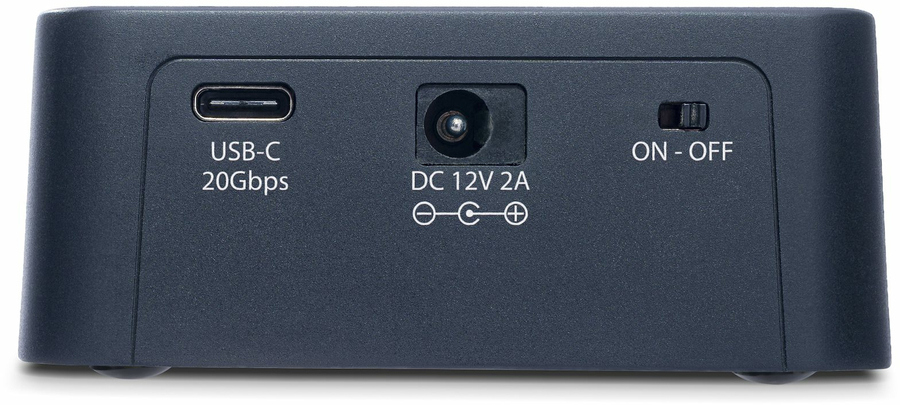

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly

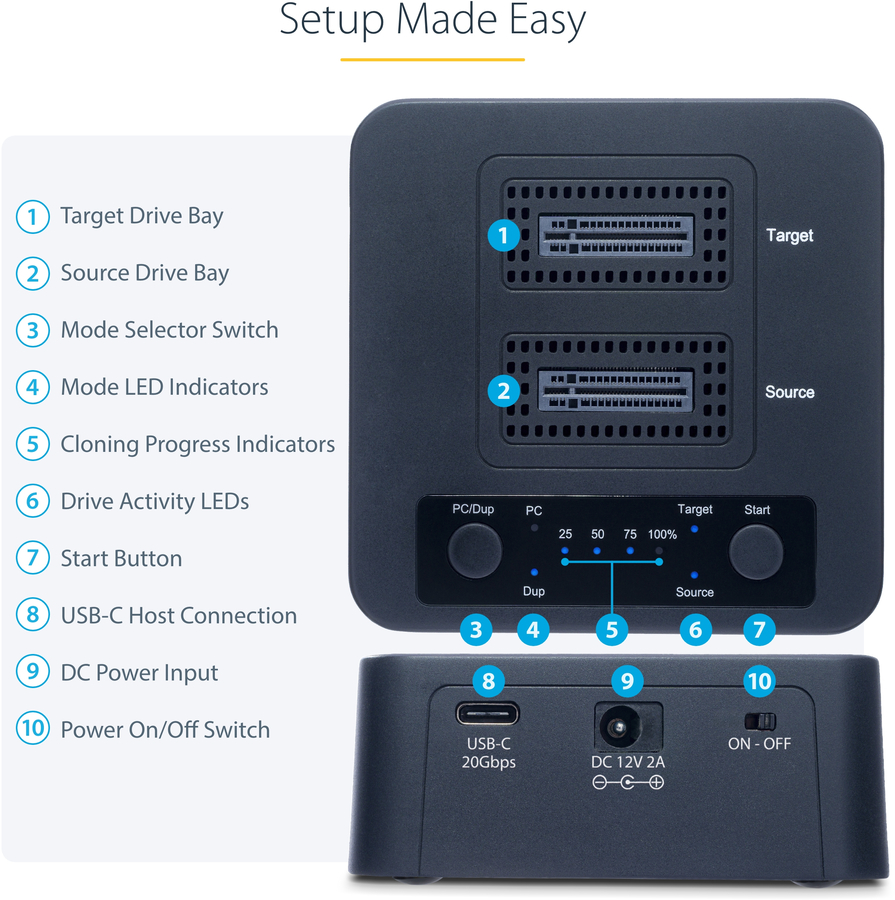

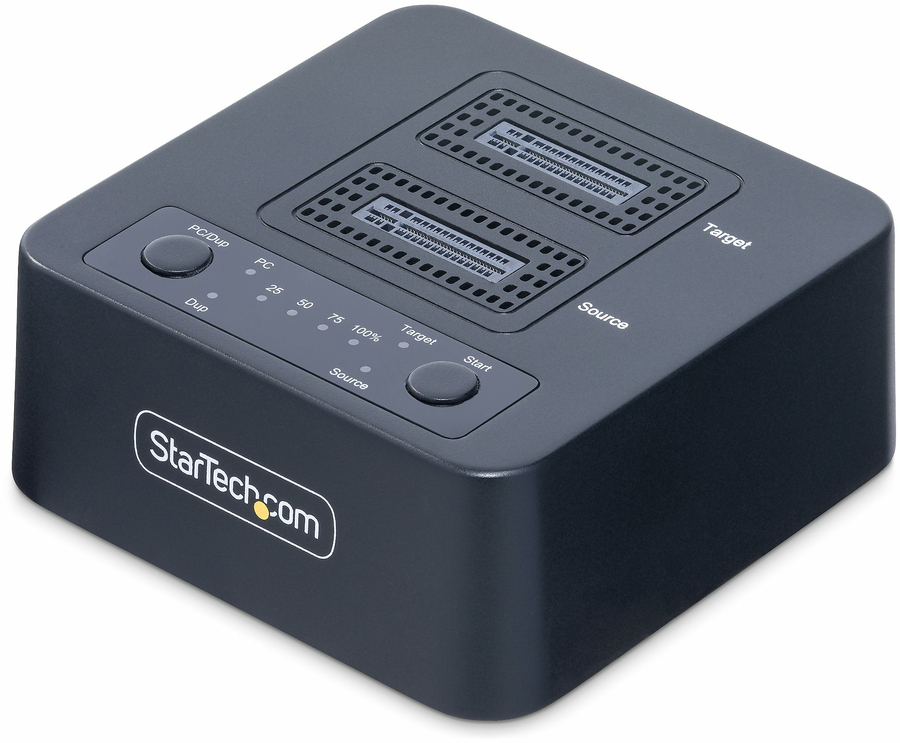

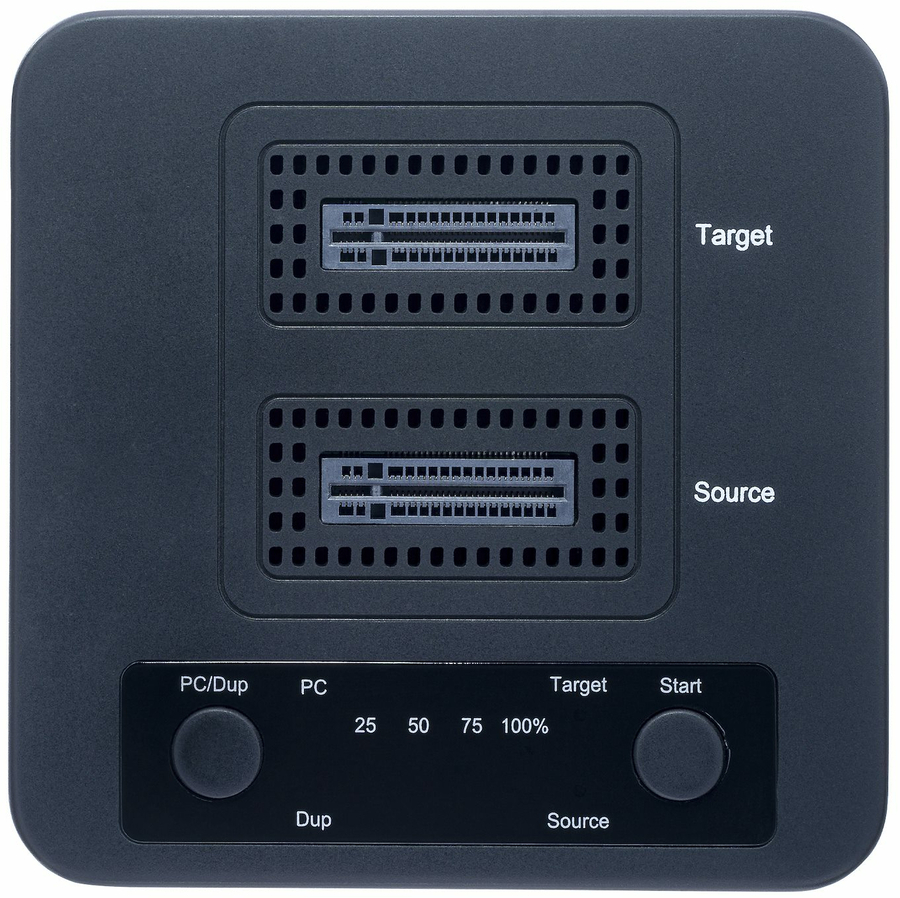

The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

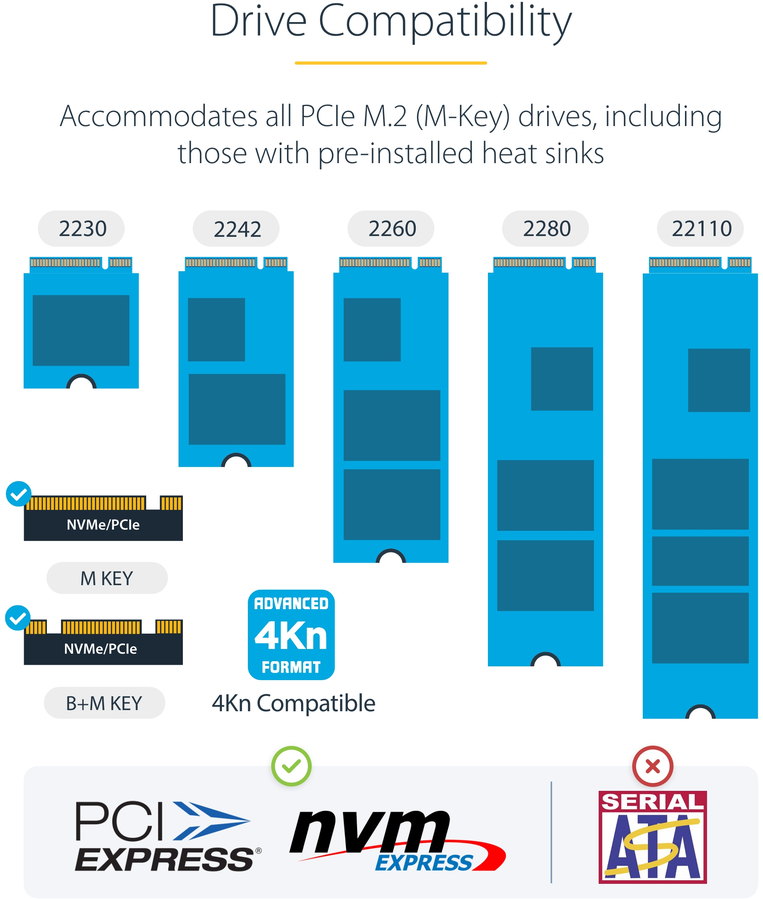

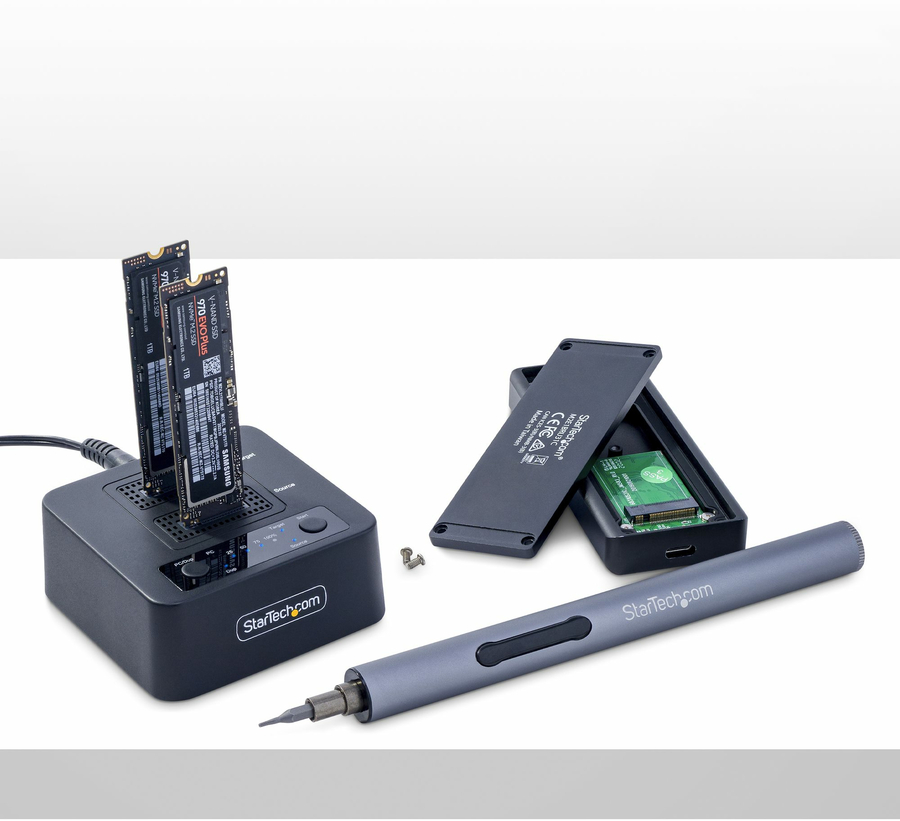

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
The StarTech.com Advantage
|
|
Features |
|
Product type |
HDD/SSD duplicator |
|
Number of simultaneous copies |
1 copies |
|
Interface |
USB 3.2 Gen 2 (3.1 Gen 2) |
|
Product colour |
Black |
|
Housing material |
Plastic |
|
USB connector type |
USB Type-C |
|
Duplicator operating modes |
Copy |
|
Transfer rate |
90 GB/min |
|
Hot-swap drive bays |
No |
|
Plug and Play |
Yes |
|
Chipset |
JMS586U |
|
Number of fans |
1 fan(s) |
|
Fan diameter |
6 cm |
|
LED indicators |
Yes |
|
Hard drive |
|
SSD support |
Yes |
|
SSD interface |
M.2 |
|
Power |
|
Power consumption (typical) |
0.1 W |
|
AC input voltage |
100 - 240 V |
|
Input current |
0.6 A |
|
Output voltage |
12 V |
|
Output current |
2 A |
|
Power plug type |
Type M |
|
Included power plug types |
ANZ, EU, NA, UK |
|
Weight & dimensions |
|
Dimensions (WxDxH) |
77 x 77 x 44 mm |
|
Weight |
129 g |
|
Packaging data |
|
Package width |
160 mm |
|
Package depth |
90 mm |
|
Package height |
95 mm |
|
Package weight |
140 g |
|

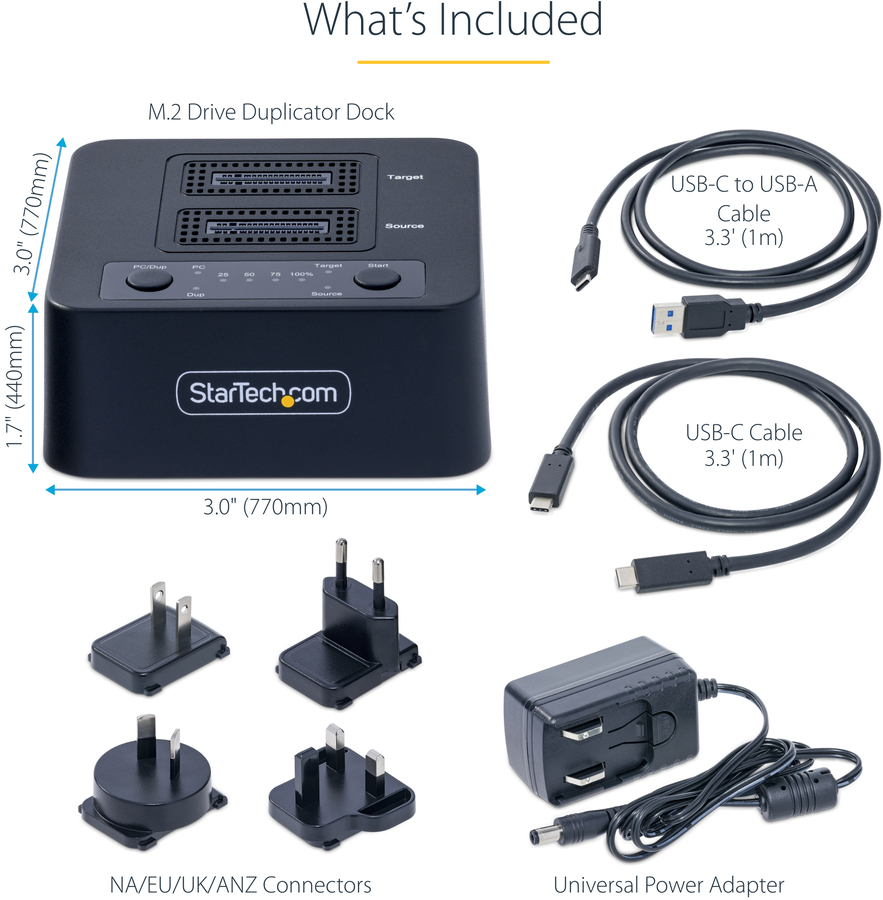

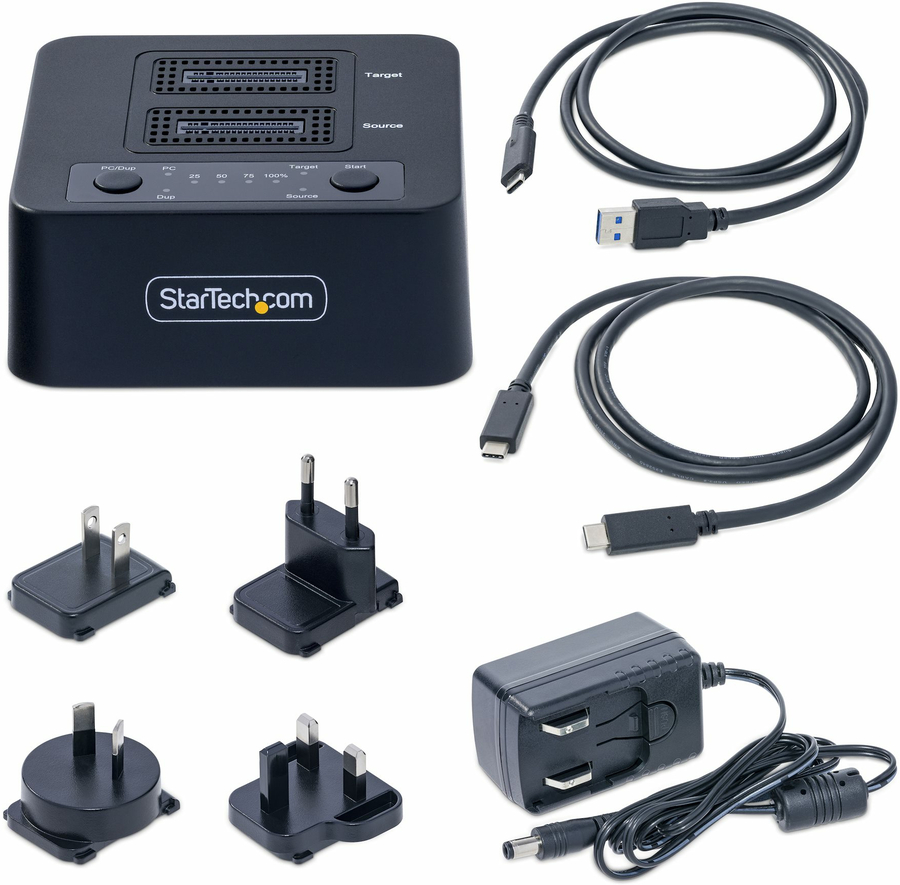

Packaging content |
|
Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
|
AC adapter included |
Yes |
|
Manual |
Yes |
|
Operational conditions |
|
Operating relative humidity (H-H) |
20 - 80% |
|
Operating temperature (T-T) |
5 - 55 °C |
|
Storage temperature (T-T) |
-20 - 55 °C |
|
Technical details |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Master (outer) case length |
338 mm |
|
Master (outer) case width |
500 mm |
|
Master (outer) case height |
220 mm |
|
Products per master (outer) case |
20 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
