Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Xeon® |
|
Supported processor sockets |
LGA 1700 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Memory slots type |
DIMM |
|
Memory voltage |
1.1 V |
|
ECC сompatibility |
ECC |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Internal I/O |
|
USB 2.0 connectors |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
8 |
|
ATX Power connector (24-pin) |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
1 |
|
TPM connector |
Yes |
|

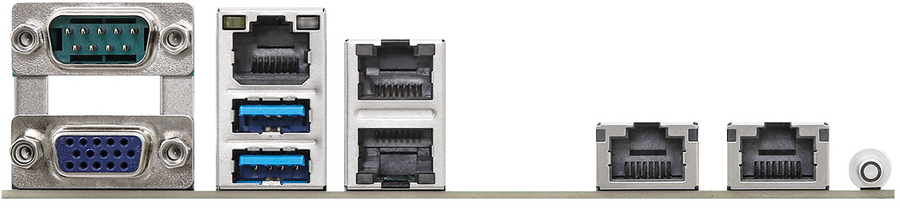

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
4 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
COM ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Features |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel C262 |
|
PC health monitoring |
CPU, Fan |
|
Compatible operating systems |
Microsoft® Windows:
- Windows® Server 2022
- Azure Stack HCI
Linux:
- RHEL 8.5
- SLES 15 SP3
- Ubuntu 21.04 LTS
Hypervisor:
- VMware ESXi 8.0 u1
- Linux KVM (Linux OSes)
- Hyper-V (Windows® Server) |
|
Expansion slots |
|
PCI Express x1 (Gen 4.x) slots |
1 |
|
PCI Express x4 (Gen 4.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
2.8 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
