Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel® Pentium® Gold, Intel® Xeon®, Intel Xeon E |
|
Supported processor sockets |
LGA 1700 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
2 |
|
Maximum internal memory |
32 GB |
|
Memory voltage |
1.1 V |
|
ECC сompatibility |
ECC |
|
Supported memory clock speed (max) |
4800 MHz |
|
Storage controllers |
|
Number of storage drives supported |
9 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2600 |
|
Internal I/O |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
3 |
|
Number of SATA III connectors |
8 |
|
ATX Power connector (24-pin) |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
1 |
|
EPS power connector (8-pin) |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|

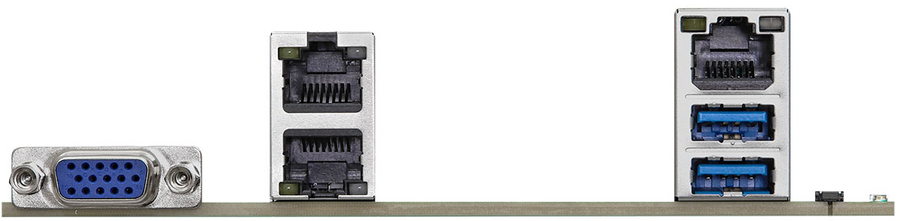

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
Gigabit Ethernet |
|
Top Wi-Fi standard |
Not available |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
mini ITX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel C266 |
|
PC health monitoring |
CPU, Fan |
|
Expansion slots |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
PCI Express OCuLink connectors (NVMe support) |
2 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
2.8 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
170.2 mm |
|
Depth |
170.2 mm |
