Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket SP5 |
|
Compatible processor series |
AMD EPYC 9004 |
|
Supported processor sockets |
Socket SP5 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
8 |
|
Memory voltage |
1.1 V |
|
Supported memory clock speed (max) |
4800 MHz |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2 |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2600 |
|
On-board graphics card memory |
512 MB |
|
Internal I/O |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
10 |
|
Audio connector |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
1 |
|
Number of COM connectors |
1 |
|

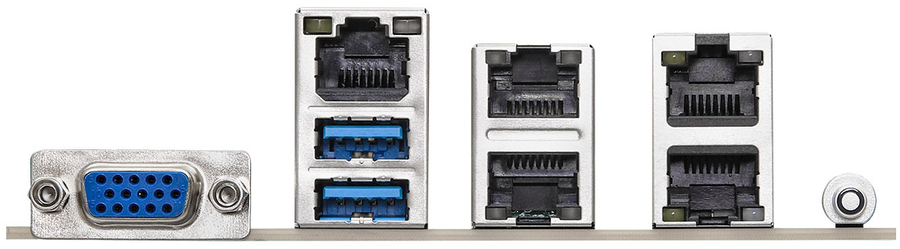

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
4 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
LAN controller |
Intel X710-AT2 |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
SSI CEB |
|
Motherboard chipset family |
AMD |
|
PC health monitoring |
CPU, Fan |
|
Compatible operating systems |
Microsoft Windows:
- Server 2019 (64bit)
- Server 2022 (64 bit)
Linux:
- RedHat Enterprise Linux Server 8.6 (64bit) / Server 8.7 (64bit) / Server 9.0 (64bit) / Server 9.1 (64bit)
- SUSE SLES 15.4(64 bit)
- UBuntu 20.04.5 (64 bit) / 22.04 (64 bit) / 22.10 (64 bit) |
|
Expansion slots |
|
PCI Express x8 (Gen 5.x) slots |
2 |
|
PCI Express x16 (Gen 5.x) slots |
4 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
3.5 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
304.8 mm |
|
Depth |
266.7 mm |
