General Information |
|
Summary |
Performance for any workplace

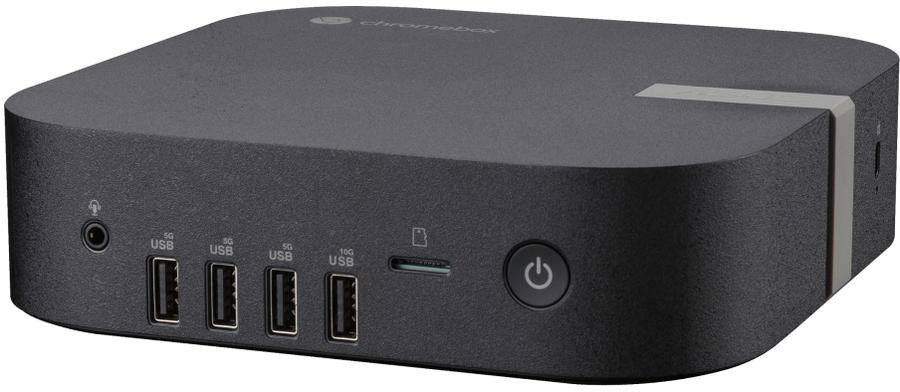

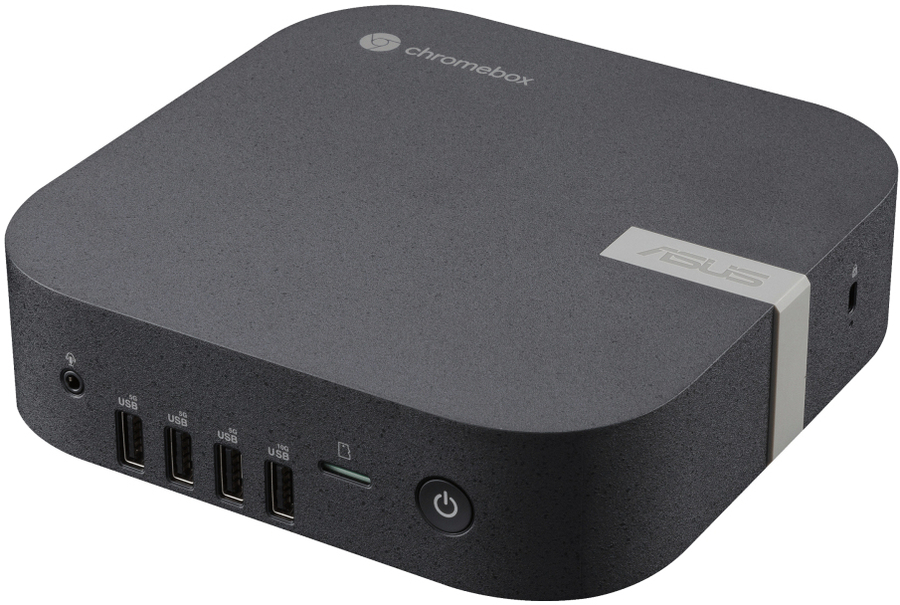

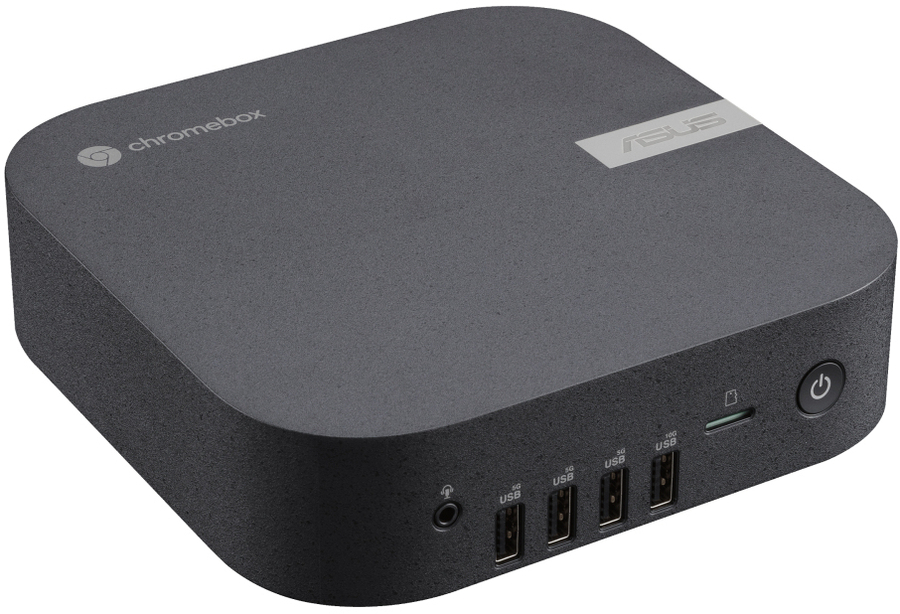

ASUS Chromebox 5a delivers performance and responsiveness to empower users with incredible productivity |
|
Processor |
|
Processor family |
Intel® Core™ i7 |
|
Processor manufacturer |
Intel |
|
Processor model |
i7-1355U |
|
Processor generation |
13th gen Intel® Core™ i7 |
|
Processor cores |
10 |
|
Processor threads |
12 |
|
Processor boost frequency |
5 GHz |
|
Performance cores |
2 |
|
Efficient cores |
8 |
|
Performance-core Max Turbo Frequency |
5 GHz |
|
Efficient-core Max Turbo Frequency |
3.7 GHz |
|
Processor cache |
12 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
15 W |
|
Maximum turbo power |
55 W |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
16 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
3200 MHz |
|
Storage |
|
Total storage capacity |
256 GB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
256 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
256 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash) |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel Iris Xe Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel Iris Xe Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.2 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
2 |
|
HDMI version |
2.1 |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Combo headphone/mic port |
Yes |
|
DC-in jack |
Yes |
|

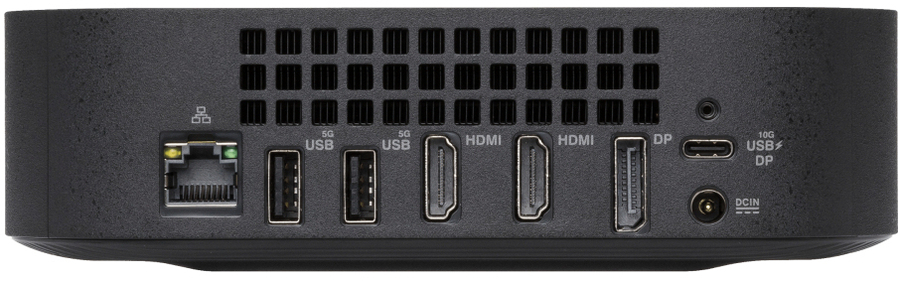

Number of rear USB ports |
3 |
|

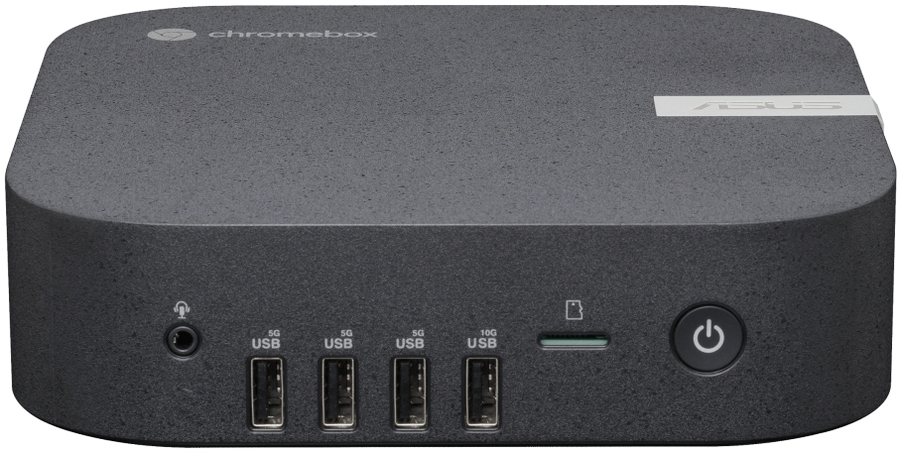

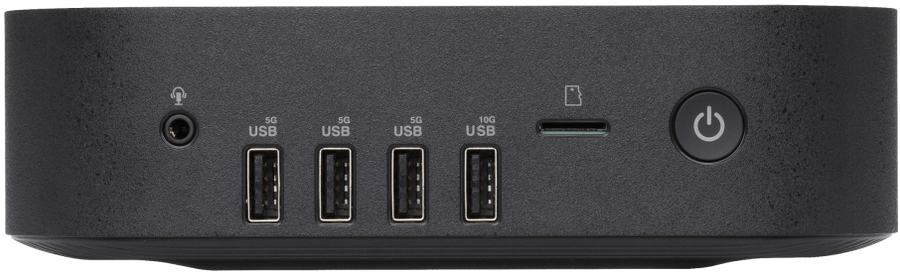

Number of front USB ports |
4 |
|
Number of front audio ports |
1 |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|

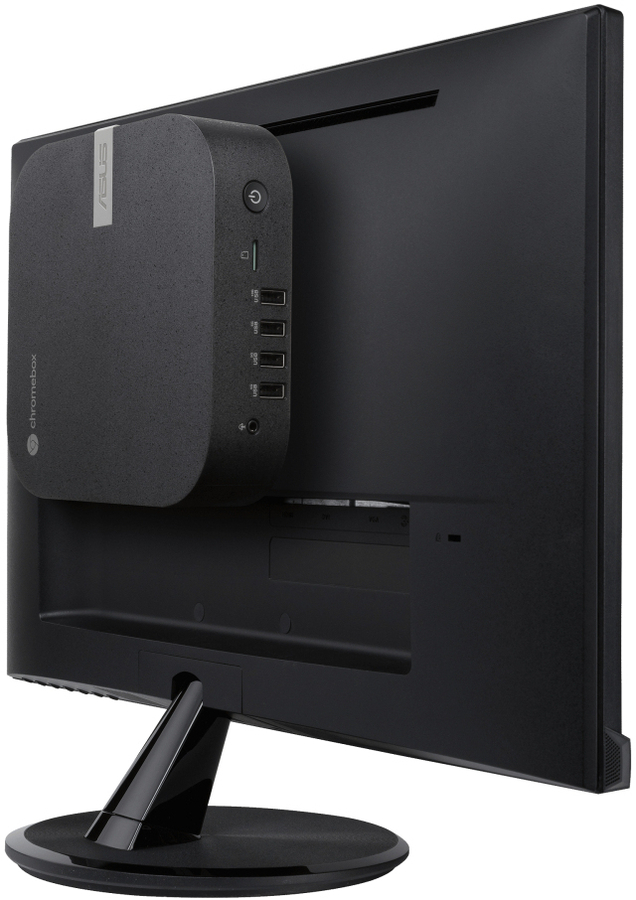

VESA mounting |
Yes |
|
Performance |
|
Product type |
Mini PC |
|
Software |
|
Operating system installed |
ChromeOS |
|
Power |
|
Power supply |
90 W |
|
Power supply input voltage |
19 V |
|
Certificates |
|
Certification |
BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
|
Weight & dimensions |
|
Width |
166.5 mm |
|
Depth |
165.8 mm |
|
Height |
45.9 mm |
|
Weight |
800 g |
|
Packaging content |
|
Cables included |
AC |
|
Manual |
Yes |
|
Display |
|
Display included |
No |
