General Information |
|
Summary |

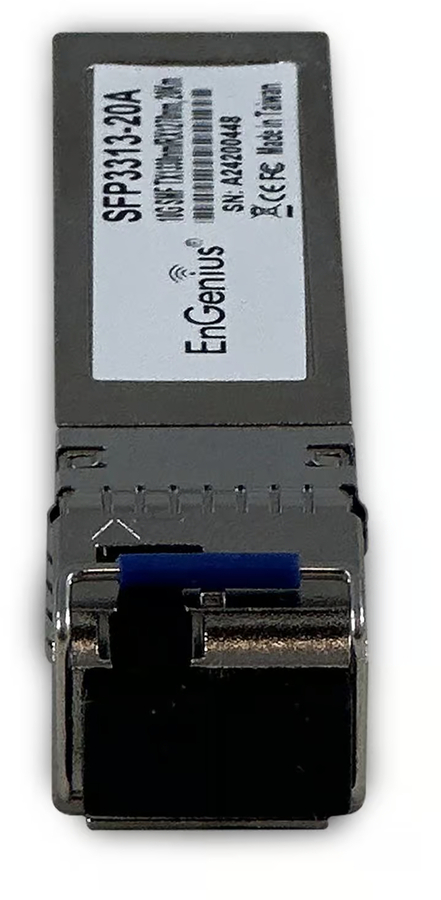

EnGenius SFP3313-20A SFP plus Transceivers are hot-swappable multi-purpose optical modules that support 10 Gigabit Ethernet applications across most switching and routing platforms. The transceivers support operating at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 20,000m, ideally suited for data centers, enterprise and storage area networks.
|
|
Performance |
|
SFP transceiver type |
Fiber optic |
|
Maximum data transfer rate |
10000 Mbit/s |
|
Interface type |
SFP+ |
|
Single-mode fiber (SMF) supported |
Yes |
|
Fiber optic connector |
LC |
|
Maximum transfer distance |
20000 m |
|
Tx wavelength (max) |
1330 nm |
|
Rx wavelength (max) |
1270 nm |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
10 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3az |
|
Features |
|
Product colour |
Grey |
|
Hot-swap |
Yes |
|
Power |
|
Input voltage |
3 - 3.6 V |
|
Maximum voltage |
3.6 V |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Weight & dimensions |
|
Width |
14 mm |
|
Depth |
57.5 mm |
|
Height |
10.8 mm |
|
Weight |
25 g |
|
Packaging data |
|
Package width |
119 mm |
|
Package depth |
25 mm |
|
Package height |
72 mm |
|
Package weight |
40 g |
|
Logistics data |
|
Master (outer) case net weight |
4.8 kg |
|
Master (outer) case width |
148 mm |
|
Master (outer) case length |
138 mm |
|
Harmonized System (HS) code |
85176990 |
|
Master (outer) case height |
125 mm |
|
Master (outer) case gross weight |
460 g |
|
Products per master (outer) case |
120 pc(s) |
