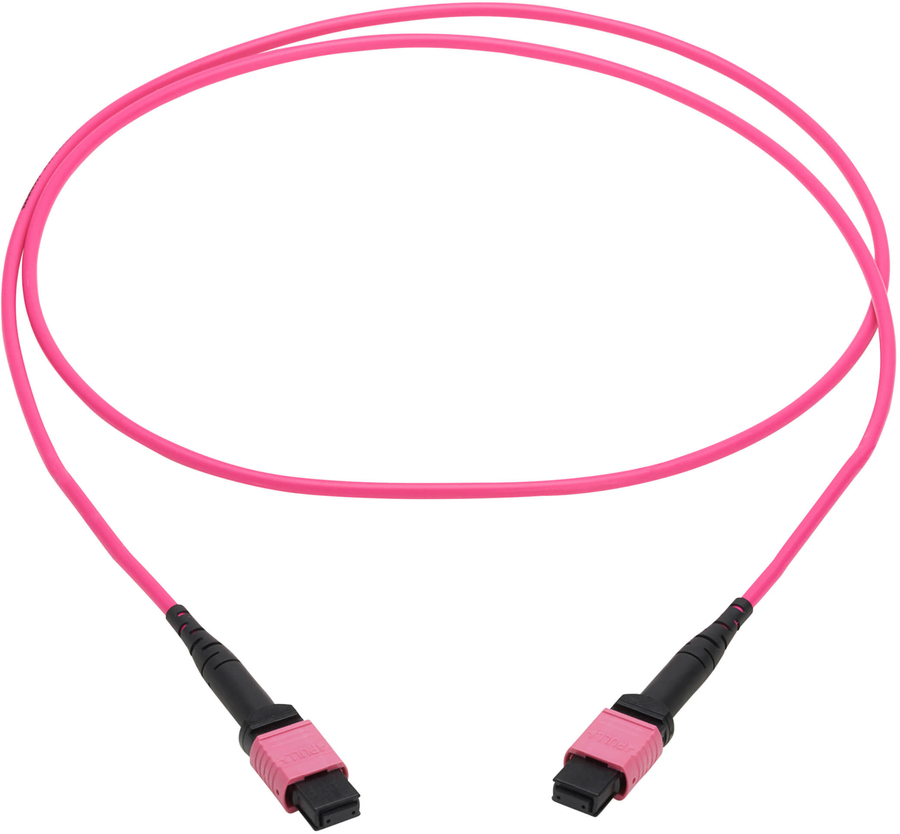

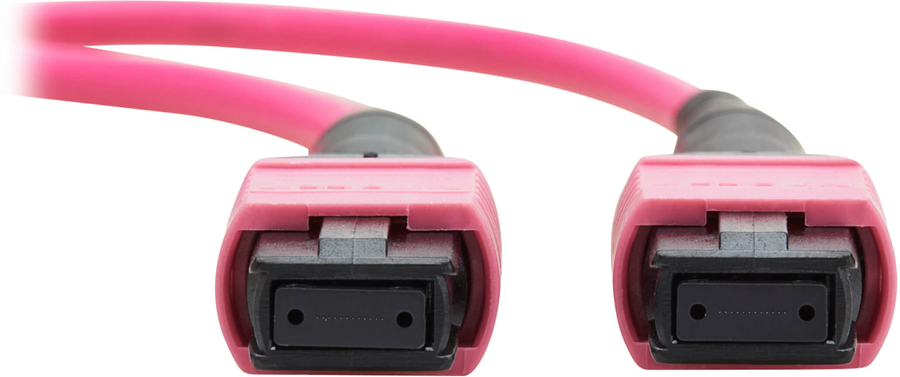

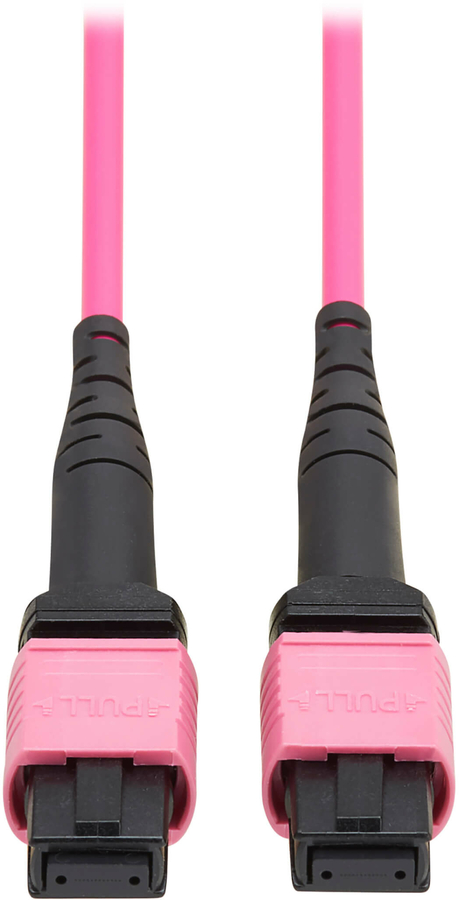

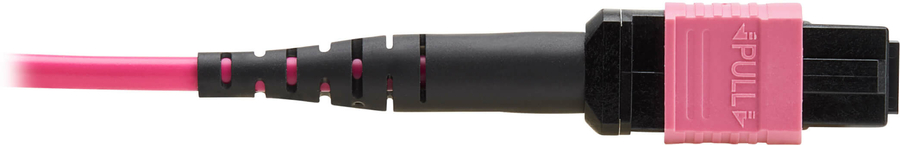

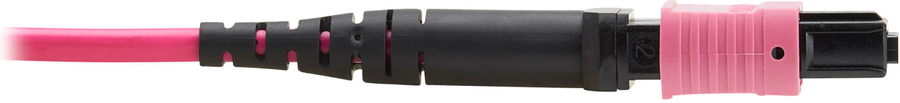

Tripp Lite 3.3-foot 100G Multimode 50/125 OM4 Fiber Optic Cable (12F MTP/MPO-PC F/F), OFNP Magenta
|
|
Price: $163.00
Manufacturer:
Tripp Lite
100G Multimode 50/125 OM4 Fiber Optic Cable (12F MTP/MPO-PC F/F), OFNP, Magenta, 1 m (3.3 ft.), TAA
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59761018
|
N845B-01M-12MTA
|
37332286208 |
Active
|
Details
|
General Information |
|
Summary |
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors’ slim boots allow easy one-handed installation and removal of the cable.
TAA-Compliant for GSA Schedule Purchases
The N845B-05M-12MTA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
|
Features |
|
Cable length |
1 m |
|
Cable type |
OFNP |
|
Connector 1 |
MPO/MTP |
|
Connector 2 |
MPO/MTP |
|
Connector 1 gender |
Female |
|
Connector 2 gender |
Female |
|
Product colour |
Magenta |
|
Jacket material |
Polyvinyl chloride (PVC) |
|
Fibre optic type |
OM4 |
|
Cable shape |
Round |
|
Connector polish type |
PC |
|
Core diameter |
50 µm |
|
Cladding diameter |
125 µm |
|
Fiber mode structure |
Multi-mode |
|
Data transfer rate |
100 Gbit/s |
|
Certificates |
|
Compliance certificates |
REACH, RoHS, Trade Agreements Act (TAA) |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Sustainability |
|
Sustainability compliance |
Yes |
|
