General Information |
|
Summary |
Security Never Shuts Down

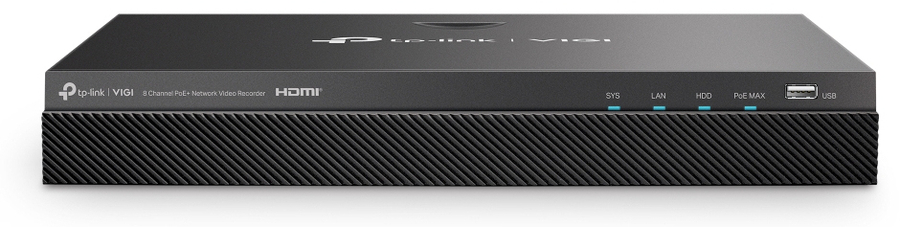

VIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder
Auto Initialize for Quick Configuration
Just click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
|
|
Performance |
|
Video input channels |
8 channels |
|
Maximum resolution |
3840 x 2160 pixels |
|
Supported resolutions |
3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720 |
|
Video motion detection |
Yes |
|
Video loss detection |
Yes |
|
Audio formats supported |
G.711, G.711u, G.726 |
|
Video formats supported |
H.264, H.264+, H.265, H.265+ |
|
Maximum frame rate |
60 fps |
|
Input bandwidth |
80 Mbit/s |
|
Output bandwidth |
60 Mbit/s |
|
Wireless LAN features |
|
Wi-Fi |
No |
|
Hard drive |
|
Number of HDDs installed |
1 |
|
HDD capacity |
2 TB |
|
Maximum storage capacity |
32 TB |
|
HDD interface |
SATA |
|
Number of HDDs supported |
2 |
|
Total installed storage capacity |
2 TB |
|

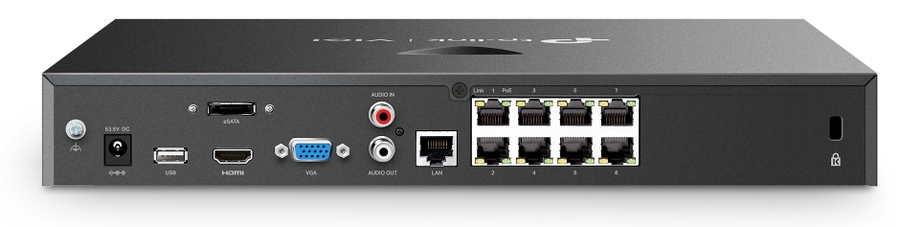

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
9 |
|
Power over Ethernet (PoE) |
Yes |
|
Ethernet LAN data rates |
10,100 Mbit/s |
|
HDMI output |
Yes |
|
HDMI ports quantity |
1 |
|
VGA (D-Sub) output ports |
1 |
|
USB 2.0 ports quantity |
2 |
|
Audio RCA inputs |
1 |
|
Audio RCA outputs |
1 |
|
eSATA ports quantity |
1 |
|
eSATA |
Yes |
|
DC-in jack |
Yes |
|
Features |
|
LED indicators |
Yes |
|
Product colour |
Black |
|
Power |
|
Power consumption (typical) |
35 W |
|
Output current |
2.43 A |
|
Output voltage |
53.5 V |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Total Power over Ethernet (PoE) budget |
93 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 55 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
330 mm |
|
Depth |
285 mm |
|
Height |
45 mm |
|
Weight |
2.1 kg |
|
Package weight |
4.1 kg |
