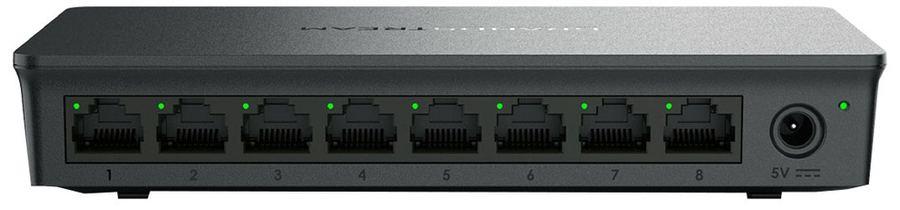

Grandstream GWN7711 Layer 2 Lite 8-port Managed Gigabit Switch
|
|
Price: $31.00
Manufacturer:
Grandstream
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59765089
|
GWN7711
|
6947273704928 |
Active
|
Details
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Cloud-managed |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
8 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Auto-negotiation |
Yes |
|
MAC address auto-learning supported |
Yes |
|
MAC address auto-aging supported |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
16 Gbit/s |
|
Forwarding rate |
11.9 Mpps |
|
Jumbo frames support |
Yes |
|
Security |
|
IGMP snooping |
Yes |
|
MAC address filtering |
Yes |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Form factor |
Desktop/Wall-Mounting |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Activity, Link |
|
Power |
|
Power source |
DC |
|
Power supply included |
Yes |
|
DC input voltage |
48 V |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
60 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
190 mm |
|
Depth |
100 mm |
|
Height |
28 mm |
|
