General Information |
|
Summary |

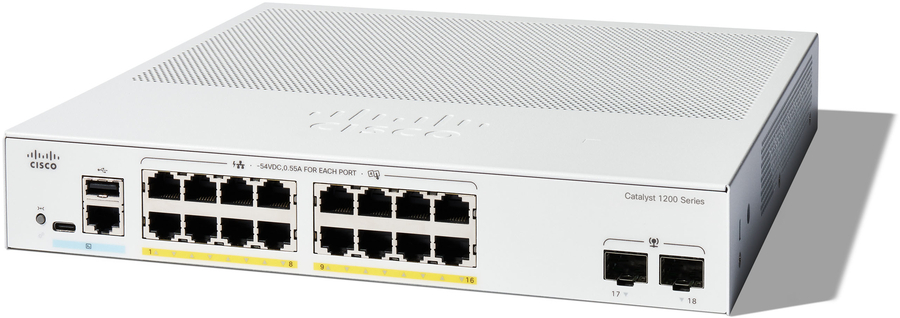

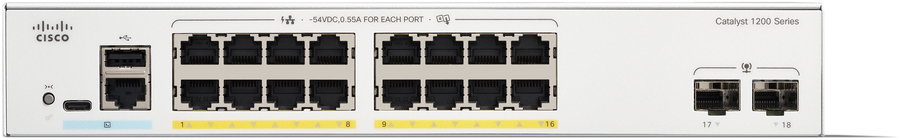

1200 16port GE, PoE, 2x1G SFP |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
16 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
2 |
|
Console port |
RJ-45/USB Type-C |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Port mirroring |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
255 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
36 Gbit/s |
|
Forwarding rate |
26.78 Mpps |
|
Static route |
Yes |
|
Number of static routes |
32 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Packet buffer memory |
1.5 MB |
|
Security |
|
DHCP features |
DHCP client |
|
Access Control List (ACL) |
Yes |
|
IGMP snooping |
Yes |
|
IGMP entries |
255 |
|
SSH/SSL support |
Yes |
|
Loop protection |
Yes |
|
Authentication |
Guest VLAN |
|
Authentication type |
RADIUS |
|
Multicast features |
|
Multicast support |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Grey |
|
LED indicators |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
706983 h |
|
Power |
|
Power source |
AC |
|
AC input voltage |
110 - 220 V |
|
AC input frequency |
50/60 Hz |
|
Power consumption (max) |
156.4 W |
|
Power plug type |
Type C |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Power over Ethernet plus (PoE+) ports quantity |
16 |
|
Total Power over Ethernet (PoE) budget |
120 W |
|
Other features |
|
Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-25 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Heat dissipation |
536.05 BTU/h |
|
Weight & dimensions |
|
Width |
296.9 mm |
|
Depth |
268.2 mm |
|
Height |
43.9 mm |
|
Weight |
2.38 kg |
|
Packaging data |
|
Package width |
414 mm |
|
Package depth |
399 mm |
|
Package height |
108 mm |
|
Package weight |
4.11 kg |
|
Logistics data |
|
Country of origin |
China |
