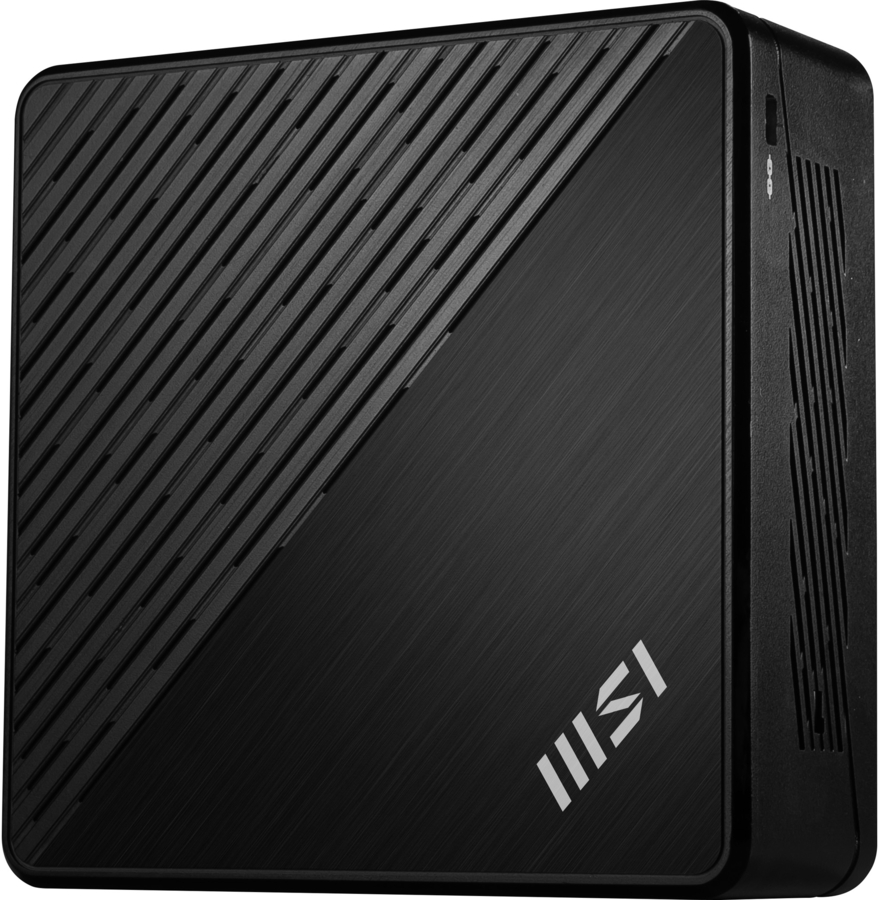

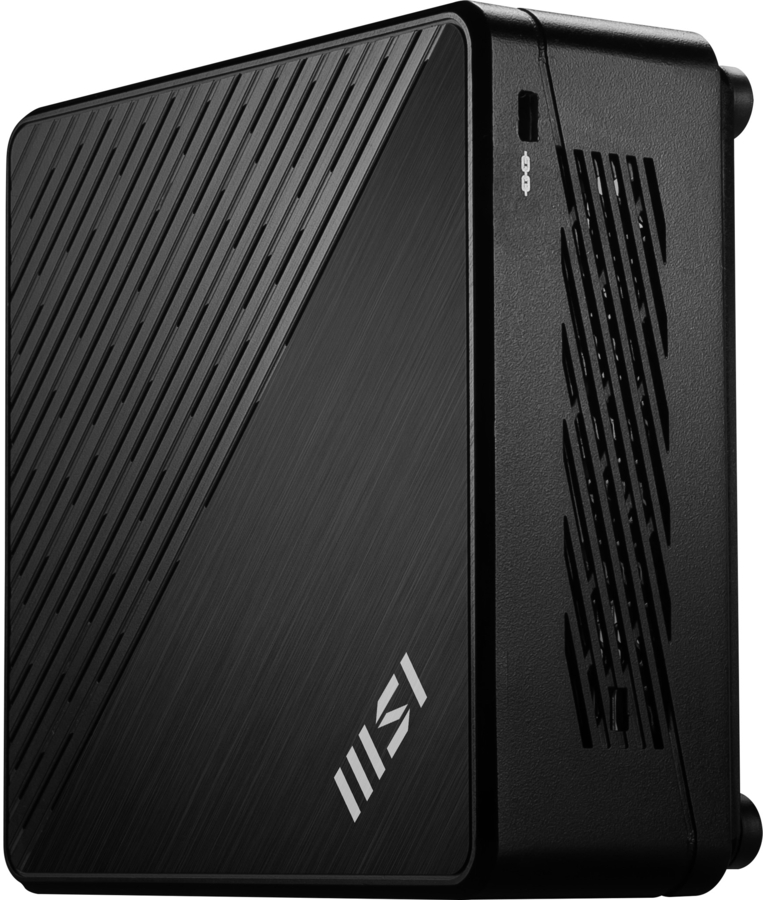

MSI CUBI 5 12M Tiny Desktop PC
|
|
Regularly: $716.00
On Sale: $687.36
Sale Ends:
May 4th, 2025
Manufacturer:
MSI
Intel Core i3-1215U (10MB Cache), 8GB DDR4-SDRAM, 1000GB SSD, Intel UHD Graphics, LAN, WLAN, Bluetooth, Windows 11 Home
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59765265
|
CUBI 5 12M-266US
|
824142346518 |
Active
|
Details
|
General Information |
|
Summary |
Small But Powerful
Bring it home when you need without any inconvenience that it can be your mini PC and your portable storage device.
SUPPORT UP TO 8K RESOLUTION
Cubi 5 allows you to enjoy the best experience of watching movie with your family or attending online conference call while working from home or learning professional tasks at home.
BOLT TO THE NEXT POWER
Thunderbolt™ 4* brings Thunderbolt to USB-C at speeds up to 40 Gbps, creating one compact port that does it all – delivering the fastest, most versatile connection to any dock, display, or data device & NAS.
Embracing a wide array of interface compatibilities so that you can edit, collaborate and share seamlessly
SEE MORE, DO MORE
With HDMI™, DP, and Thunderbolt 4, Cubi 5 allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
MSI Cloud Center
FAST, SECURE & WIRELESS BACKUP
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS device faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resource on your hand to accelerate the performance of those software which you work with everyday.
STABLE & POWERFUL
Equips up to 12th Gen Intel® Core™ i7 processor with 10 cores and 12 threads, delivering computing capability and keeping you in the flow, wherever you go. Also, enjoy more detailed, immersive viewing experience with Intel® Iris® Xe Graphics.
WI-FI 6E TECHNOLOGY
Wi-Fi 6E puts more emphasis on transmission security and improves the signal between the interference problem can also be connected to more devices at the same time, thereby meeting the trend of higher and higher data transmission bandwidth requirements with speed up to 2.4Gbps.

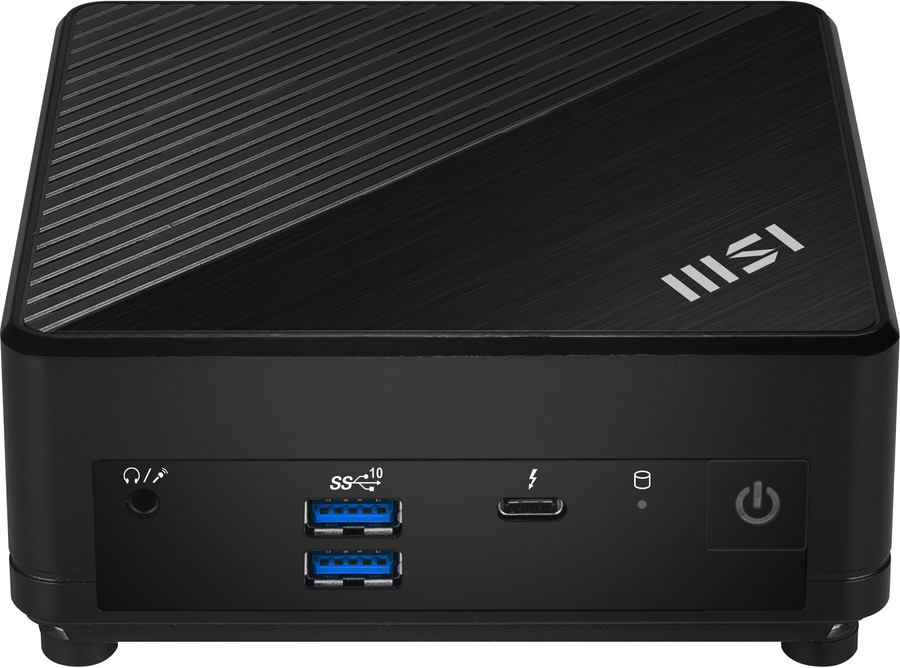

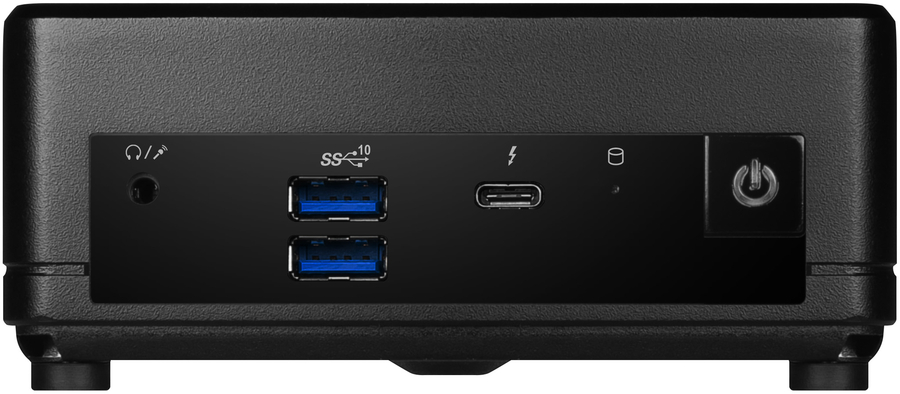

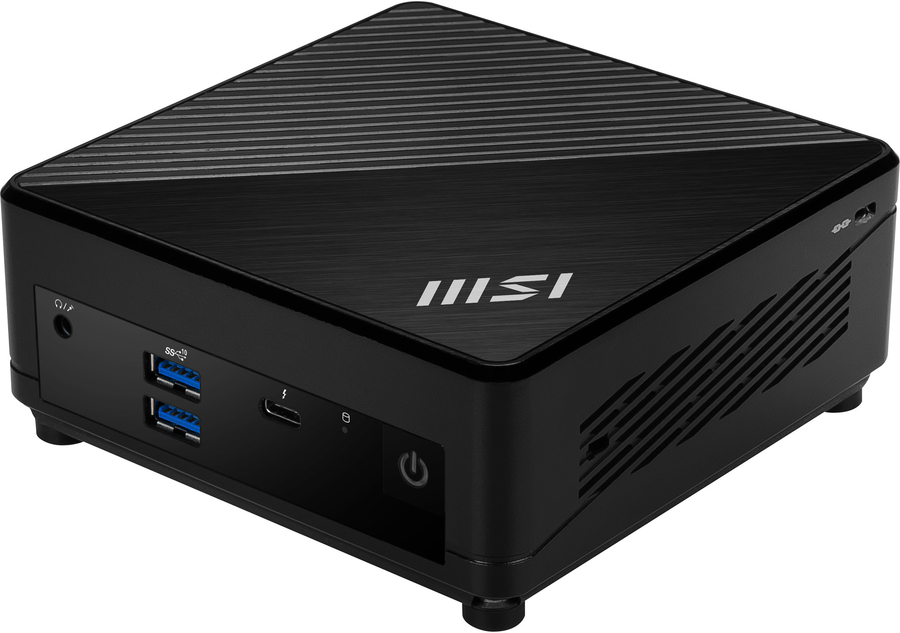

USB 3.2 GEN 2 Type A
With data transfer speeds up to 10Gbps, dual USB 3.2 Gen 2 Type A ports in the front I/O offer twice the bandwidth of the older USB 3.1 Gen 1 Type A ports, effectively halving any data delay or waiting time.

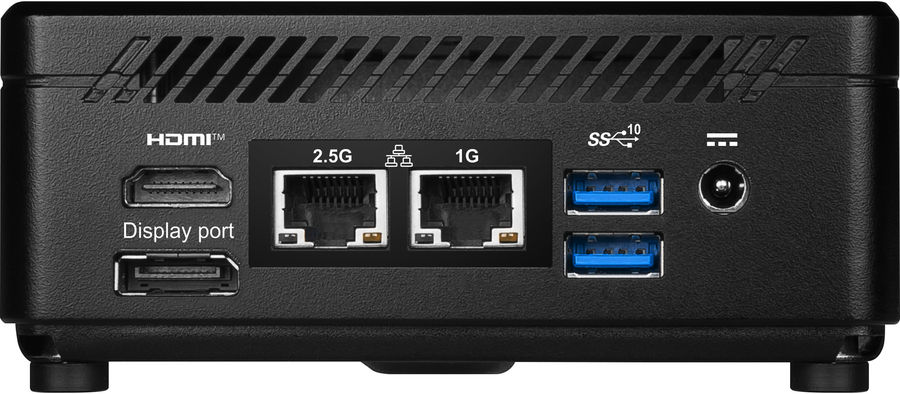

DUAL LAN - SECURITY
More than Dual LAN, the best way to secure your data and prevent the Hacker
FW TPM SUPPORT
FW TPM (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions. You can store your sensitive data & passwords by encryption keys for advanced security.
EASY MAINTENANCE
Users can easily upgrade two SO-DIMM, one M.2 SSD or one 2.5” HDD/SSD by disassembling the cover. Made Cubi 5 an even flexible desktop and also reduce the time wasting on upgrading.

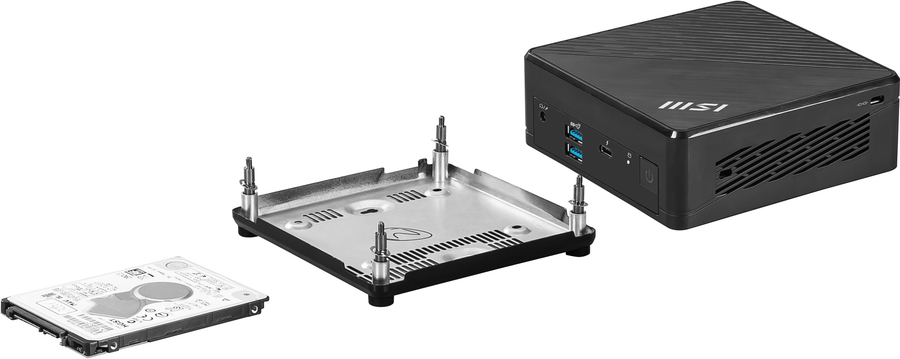

VESA MOUNT SUPPORT
VESA Mountable design allows users to hook Cubi 5 up anywhere you like or mount it with MSI PRO MP243 Series . Not only improve the flexibility of using Cubi 5, but also let users make good use of their space at home or at office.

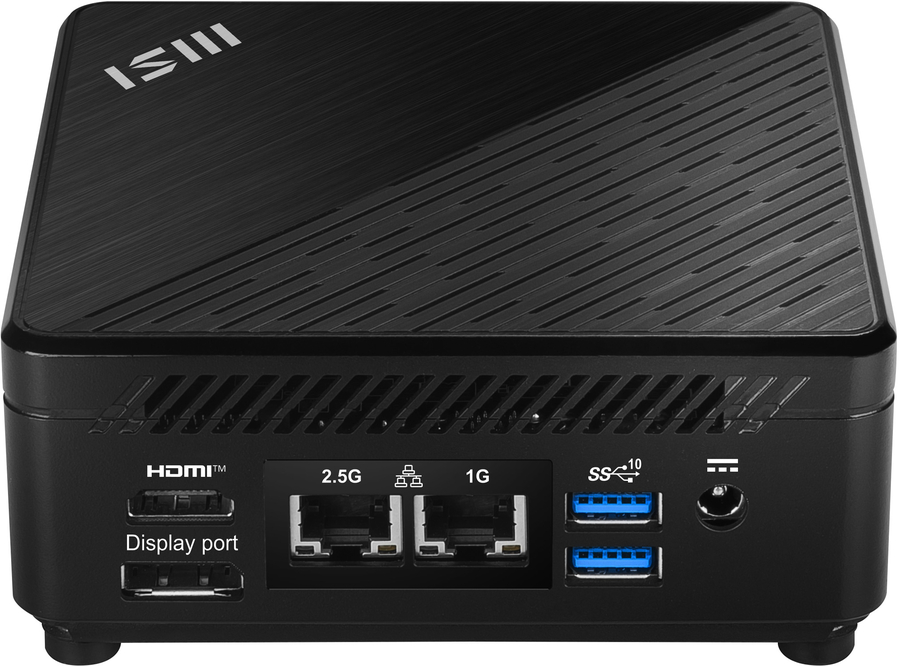

VARIOUS IO PORTS
With a complete array of I/O ports, it can connect all devices you need and connect many devices at the same time so you can multi-task with those devises to make you work more efficiently and of course you won’t need an adaptor or a dock.
Successful & Stylish B2B projects
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
|
|
Processor |
|
Processor family |
Intel® Core™ i3 |
|
Processor manufacturer |
Intel |
|
Processor model |
i3-1215U |
|
Processor generation |
12th gen Intel® Core™ i3 |
|
Processor cores |
6 |
|
Processor threads |
8 |
|
Processor boost frequency |
4.4 GHz |
|
Performance cores |
2 |
|
Efficient cores |
4 |
|
Performance-core Max Turbo Frequency |
4.4 GHz |
|
Efficient-core Max Turbo Frequency |
3.3 GHz |
|
Processor cache |
10 MB |
|
Processor cache type |
Smart Cache |
|
Processor base power |
15 W |
|
Maximum turbo power |
55 W |
|
Memory |
|
Internal memory |
8 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR4-SDRAM |
|
Memory layout (slots x size) |
1 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory clock speed |
3200 MHz |
|
Storage |
|
Total storage capacity |
1 TB |
|
Optical drive type |
No |
|
Storage media |
SSD |
|
Total SSDs capacity |
1 TB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
1 TB |
|
SSD interface |
PCI Express |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
No |
|
Graphics |
|
Discrete graphics card |
No |
|
On-board graphics card |
Yes |
|
Discrete graphics card model |
Not available |
|
On-board graphics card model |
Intel® UHD Graphics |
|
On-board GPU manufacturer |
Intel |
|
On-board graphics card family |
Intel® UHD Graphics |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
|
WLAN controller manufacturer |
Intel |
|
WLAN controller model |
Intel Wi-Fi 6E AX211 |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Thunderbolt 3 ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
Intel® Thunderbolt 4 |
Yes |
|
Thunderbolt 4 ports quantity |
1 |
|
DVI port |
No |
|
HDMI version |
2.0b |
|
DisplayPorts quantity |
1 |
|
DisplayPort version |
1.4 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|
DC-in jack |
Yes |
|
Design |
|
Chassis type |
Mini PC |
|
Product colour |
Black |
|
Volume |
0.66 L |
|
Placement supported |
Horizontal/Vertical |
|
Cable lock slot |
Yes |
|
Performance |
|
Product type |
Mini PC |
|
Market positioning |
Business |
|
Motherboard chipset |
Intel SoC |
|
Audio output channels |
2.1 channels |
|
Software |
|
Operating system installed |
Windows 11 Home |
|
Power |
|
Power supply |
65 W |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 35 °C |
|
Storage temperature (T-T) |
-20 - 60 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Storage relative humidity (H-H) |
0 - 90% |
|
Weight & dimensions |
|
Width |
124 mm |
|
Depth |
124 mm |
|
Height |
53.7 mm |
|
Weight |
590 g |
|
Package width |
221 mm |
|
Package depth |
506 mm |
|
Package height |
469 mm |
|
Package weight |
1.33 kg |
|
Packaging content |
|
Mouse included |
No |
|
Keyboard included |
No |
|
Display |
|
Display included |
No |
|
Other features |
|
Warranty period |
3 year(s) |
|
