General Information |
|
Summary |

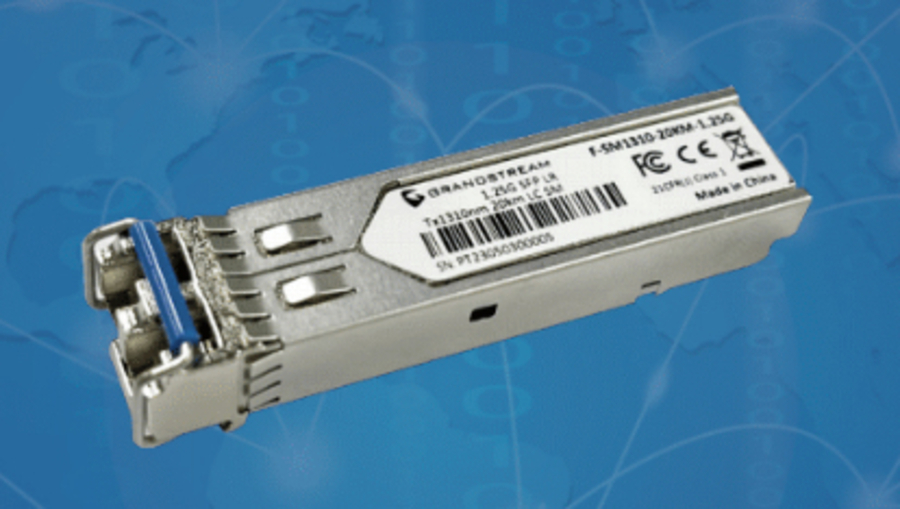

Fiber Modules
SFP/SFP+ Modules
Grandstream Network offers a wide variety of fiber modules. All of them are hot-pluggable small-form factor transceiver modules integrated with the high sensitivity PIN receiver and signal conditioner for 1.25/10 Gigabit Ethernet applications. SFP modules support very low EMI and excellent ESD protection. Featuring low power consumption, these fiber modules are ideal for enterprise LAN networks and other optical links. |
|
Performance |
|
SFP transceiver type |
Fiber optic |
|
Maximum data transfer rate |
1250 Mbit/s |
|
Interface type |
SFP |
|
Single-mode fiber (SMF) supported |
Yes |
|
Fiber optic connector |
LC |
|
Maximum transfer distance |
20000 m |
|
Wavelength |
1310 nm |
|
Tx power (min) |
-9 dBmW |
|
Tx power (max) |
-3 dBmW |
|
Rx power (min) |
-18 dBmW |
|
Rx power (max) |
-1 dBmW |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
1.25 Gigabit Ethernet |
|
Networking standards |
IEEE 802.3z |
|
Digital Diagnostics Monitoring (DDM) |
Yes |
|
Features |
|
Product colour |
Silver |
|
Form factor |
SFP |
|
Power |
|
Input voltage |
3.3 V |
|
Power consumption (typical) |
1 W |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Minimum operating temperature |
0 °C |
|
Maximum operating temperature |
70 °C |
|
Operating temperature (T-T) |
0 - 70 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 85% |
|
Weight & dimensions |
|
Weight |
17.1 g |
