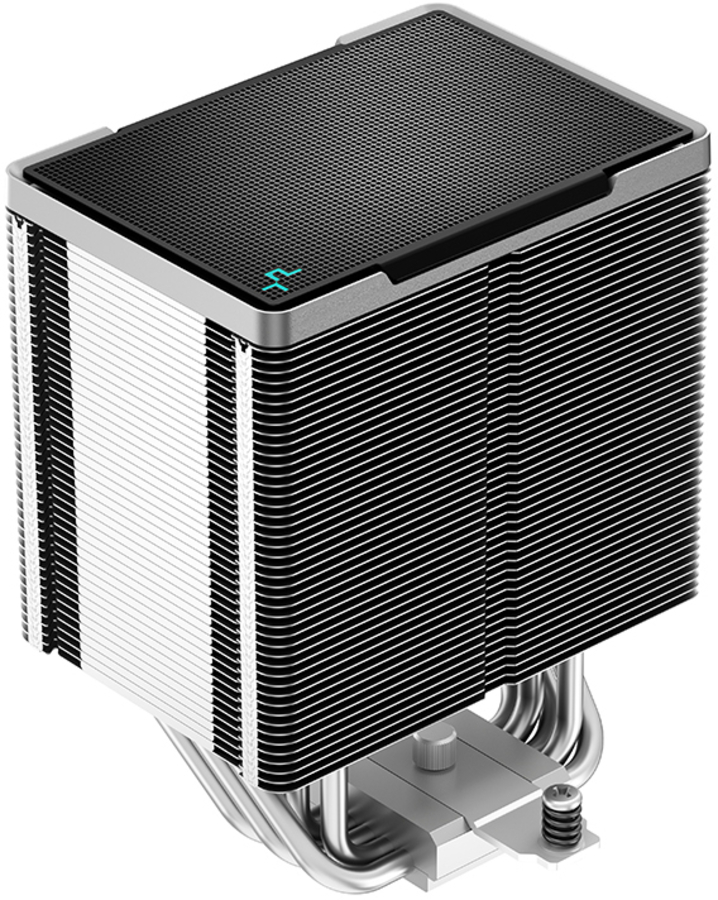

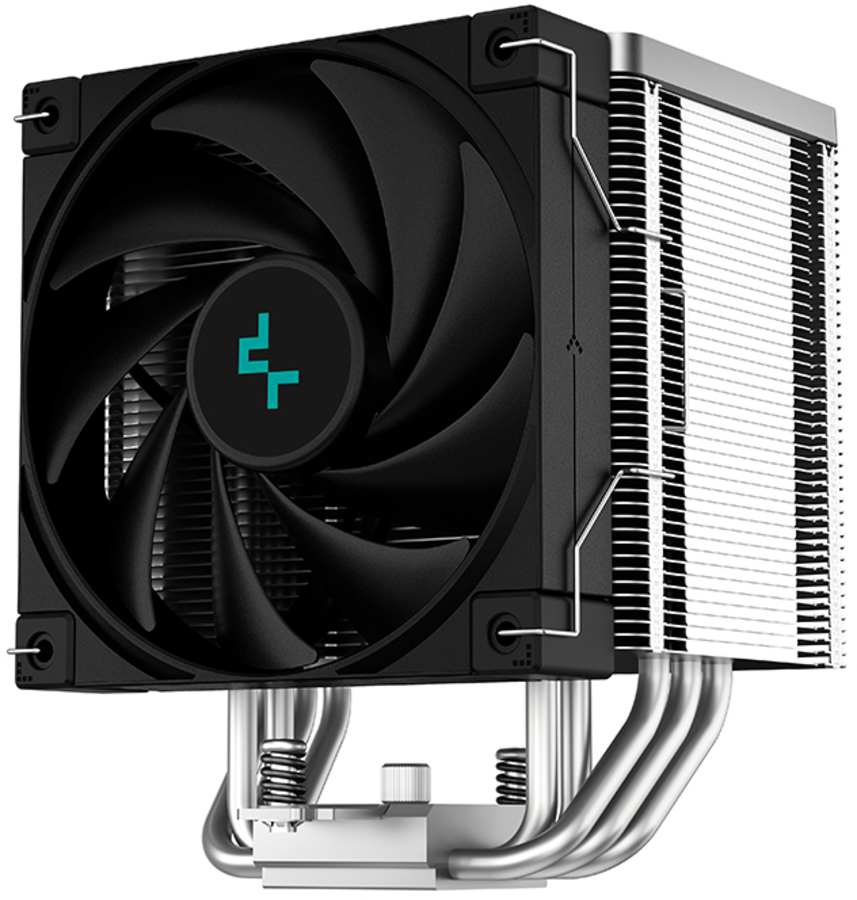

DeepCool AK500 Single-Tower CPU Air Cooler Black
|
|
Price: $61.00
Manufacturer:
DeepCool
Intel LGA2066/2011-v3/2011/1700/1200/1151/1150/1155, AMD AM5/AM4, 1x 120 mm, 500 - 1850 RPM, 31.5 dB(A)
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59767423
|
R-AK500-BKNNMT-G
|
6933412727637 |
Active
|
Details
|
General Information |
|
Summary |

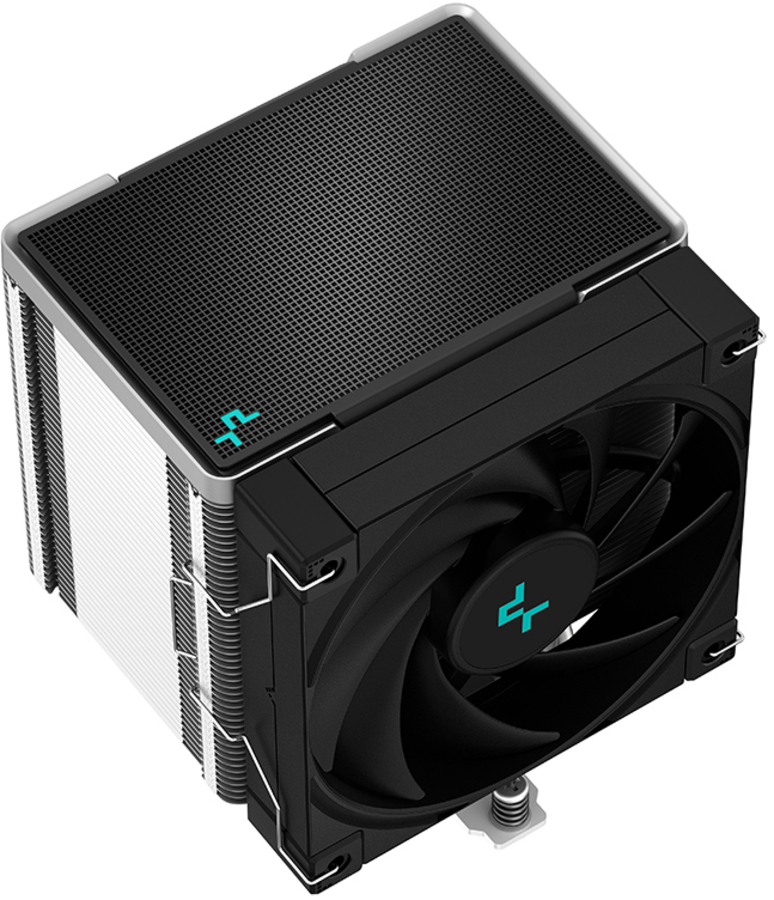

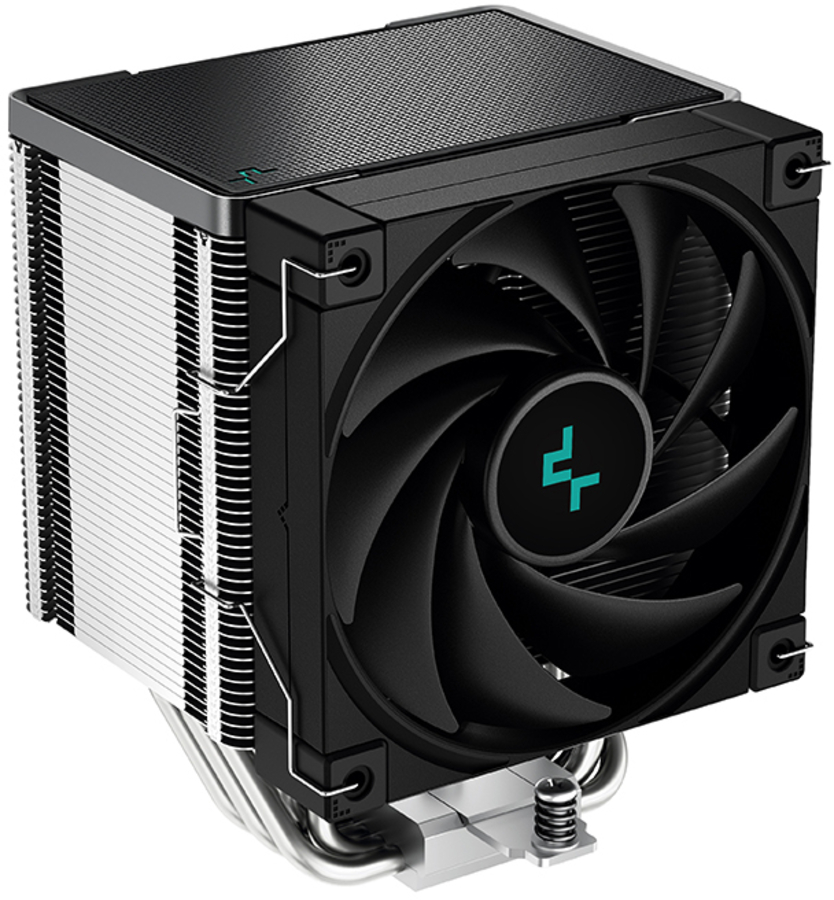

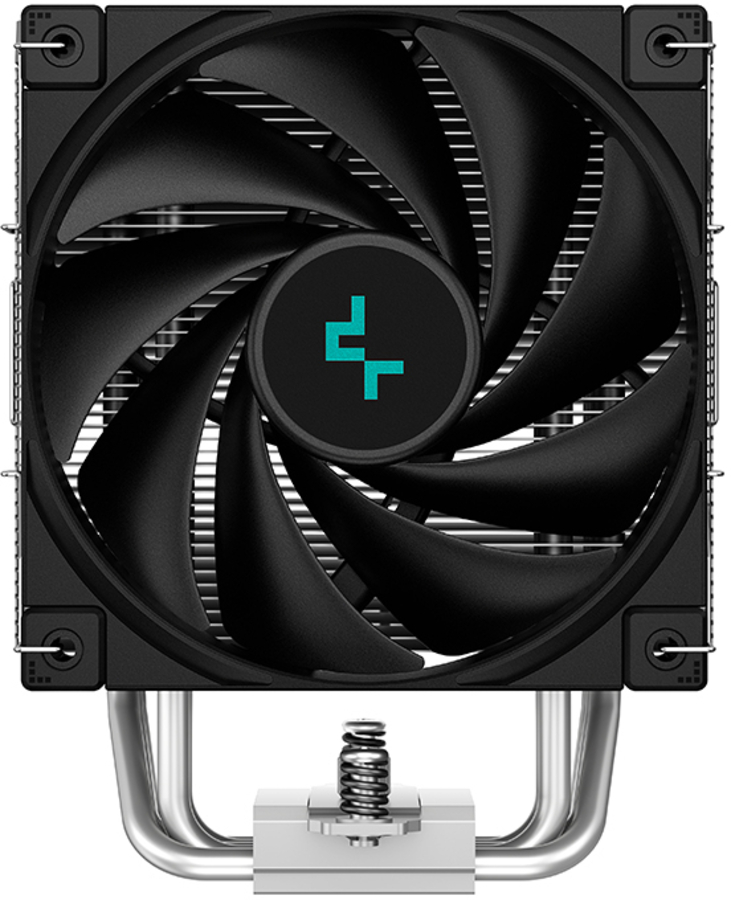

The DeepCool AK500 is a high-performance single tower CPU cooler that maximizes cooling potential with a large heat sink, five advanced heat pipes, and a highly efficient 120mm FDB fan.
PRIME PERFORMANCE
Keep up with massive performance gains thanks to dominant cooling capacity from the AK500 boasting 240W of heat dissipation power to manage next generation processors. Tackle 4K gaming or high processing workloads knowing that your system is sufficiently cooled and performing at its peak.

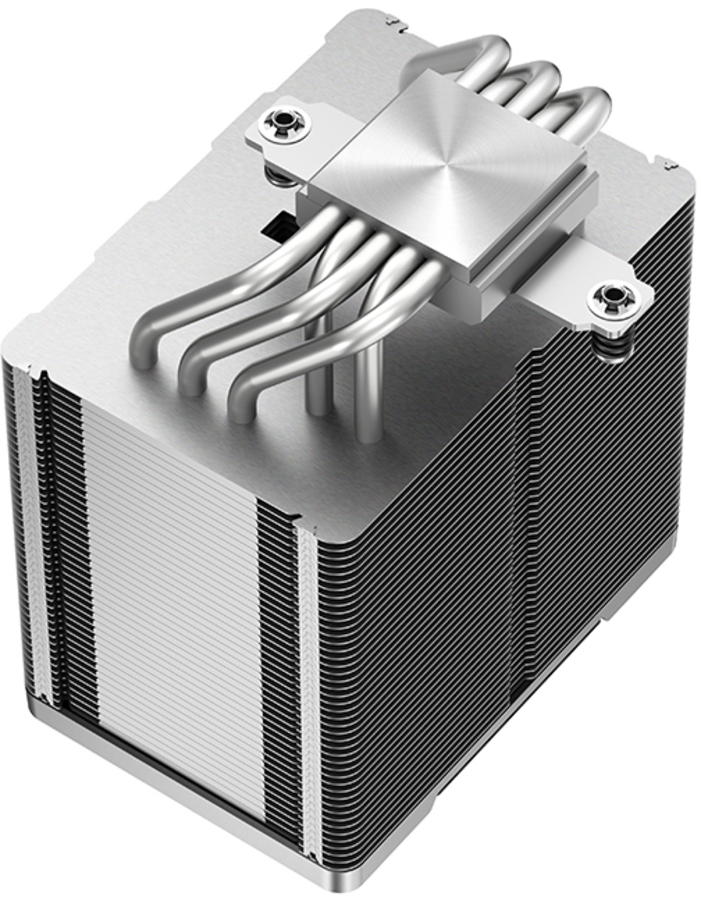

BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, our copper heat pipes achieve the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case.This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance across a wide TDP range.
FULL DRAM COMPATIBILITY

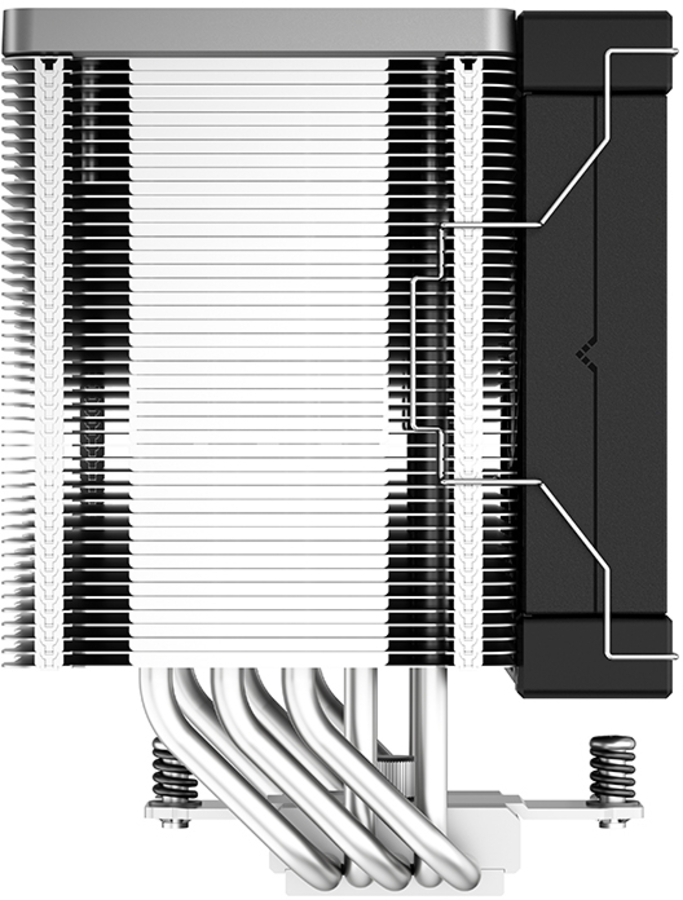

The angled offset heat pipe design offers clear access to your DIMM slots for better compatibility with tall heat spreaders and also shows off any RGB lighting. For quad-channel motherboards, the rear slots have a clearance of 45mm.
COOL,
QUIET,
AND POWERFUL

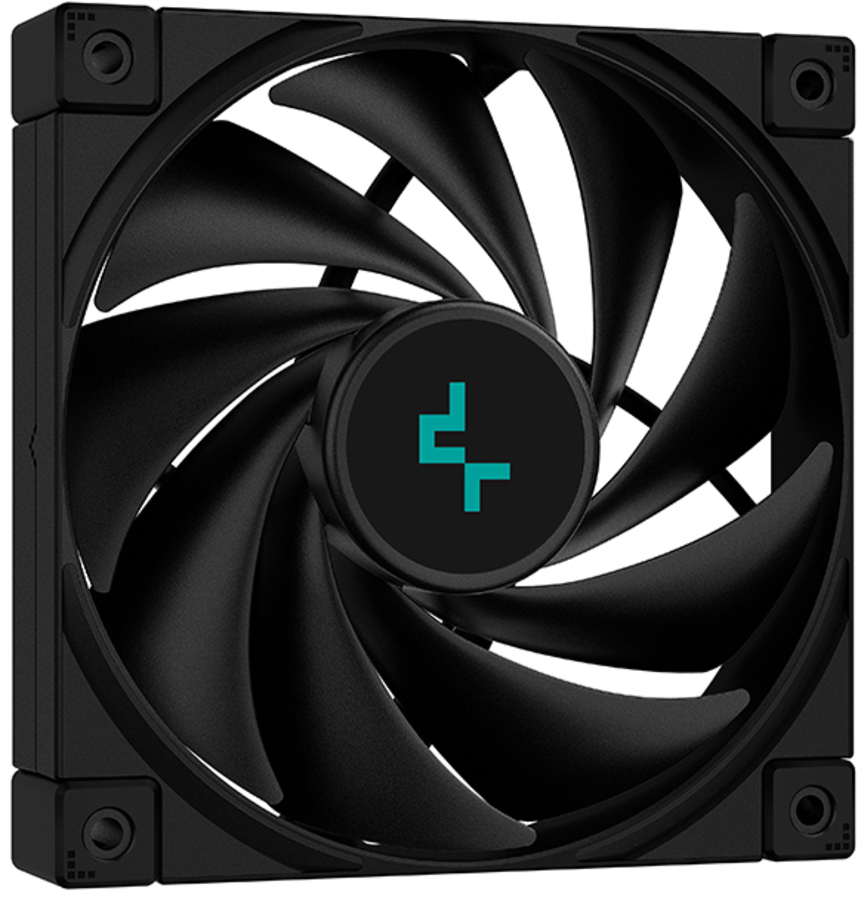

Achieve high-performance cooling with minimal noise levels thanks to the included FK120 fan that maximizes airflow and static pressure when needed and intelligently ramps down for silent efficiency. An optional low-speed adapter and extra fan clips are included for upgrades.
SIMPLE AND SECURE

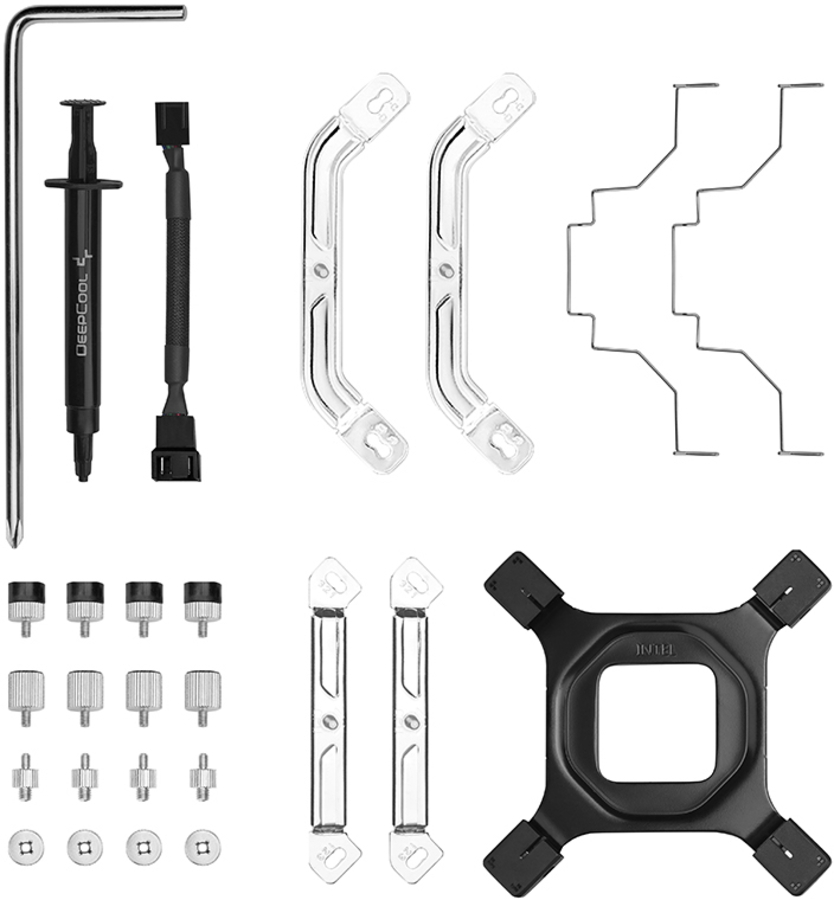

The provided all metal mounting bracket provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. |
|
Performance |
|
Suitable location |
Processor |
|
Type |
Air cooler |
|
Fan diameter |
12 cm |
|
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
|
Rotational speed (min) |
500 RPM |
|
Rotational speed (max) |
1850 RPM |
|
Noise level (high speed) |
31.5 dB |
|
Maximum airflow |
68.99 cfm |
|
Maximum air pressure |
2.19 mmH2O |
|
Bearing type |
Fluid Dynamic Bearing (FDB) |
|
Quantity per pack |
1 pc(s) |
|
Design |
|
Product colour |
Aluminium, Black |
|
Number of fans |
1 fan(s) |
|
Number of fan blades |
9 |
|
Number of heat pipes |
5 |
|
Fan connector |
4-pin |
|
Power |
|
Rated voltage |
12 V |
|
Fan power consumption |
1.44 W |
|
Rated current |
0.12 A |
|
Thermal Design Power (TDP) |
240 W |
|
Weight & dimensions |
|
Width |
127 mm |
|
Radiator width |
12.7 cm |
|
Radiator depth |
9 cm |
|
Radiator height |
15.8 cm |
|
Depth |
117 mm |
|
Height |
158 mm |
|
Weight |
1.04 kg |
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Heat pipes diameter |
6 mm |
|
Packaging content |
|
Package type |
Box |
|
Mounting kit |
Yes |
|
Thermal pad included |
Yes |
|
