General Information |
|
Summary |
No Compromise Performance and Silence

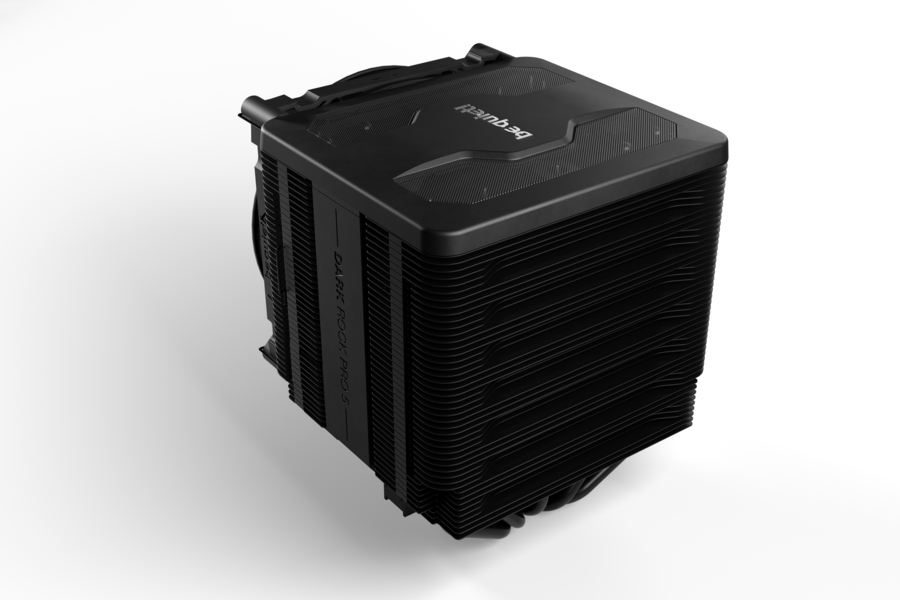

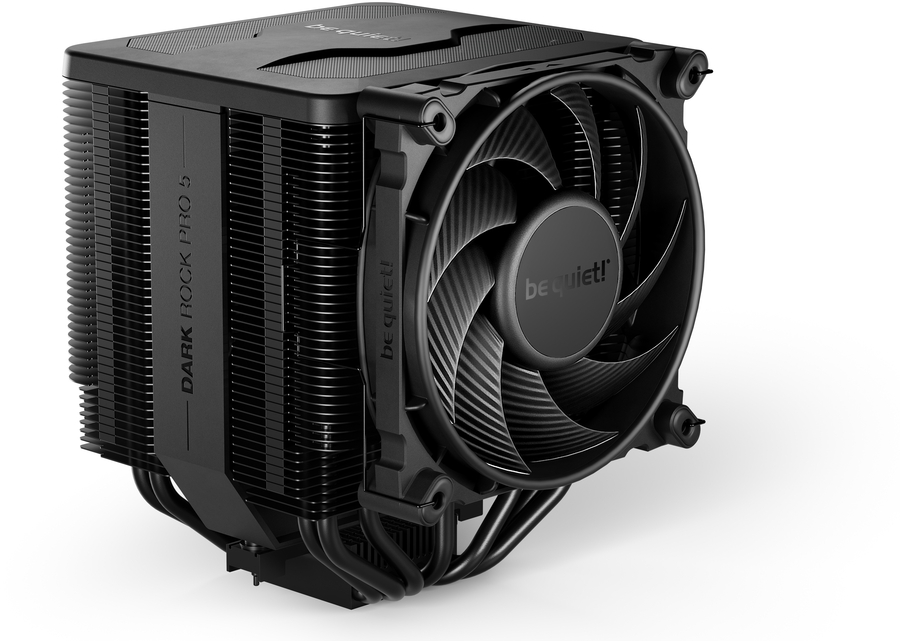

Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations. Dark Rock Pro 5 aims for users that have highest claims on performance but do not want to dispense on virtually inaudible operation at the same time. |
|
Performance |
|
Suitable location |
Processor |
|
Type |
Air cooler |
|
Fan diameter |
120/135 mm |
|
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
|
Noise level (low speed) |
8.9 dB |
|
Noise level (high speed) |
23.3 dB |
|

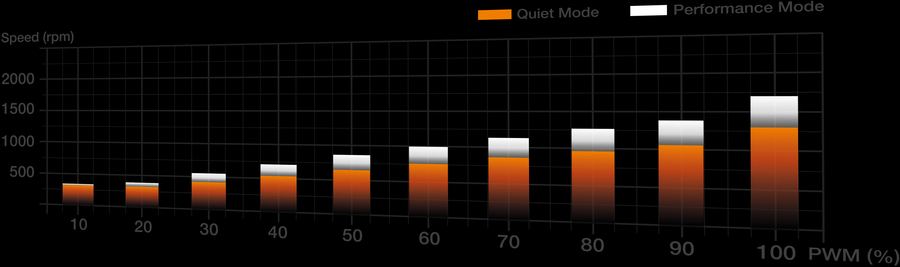

Fan 2 rotational speed (min) |
1700 RPM |
|
Fan 2 rotational speed (max) |
2000 RPM |
|
Pulse-width modulation (PWM) support |
Yes |
|
Fan bearing technology |
Fluid Dynamic Bearing (FDB) |
|
Quantity per pack |
1 pc(s) |
|
Fan speed (min) |
1300 RPM |
|
Fan speed (max) |
1500 RPM |
|
Fan's mean time to failure (MTTF) |
300000 h |
|
Design |
|
Product colour |
Black |
|
Base plate material |
Copper |
|
Number of fans |
2 fan(s) |
|
Fins material |
Aluminium |
|

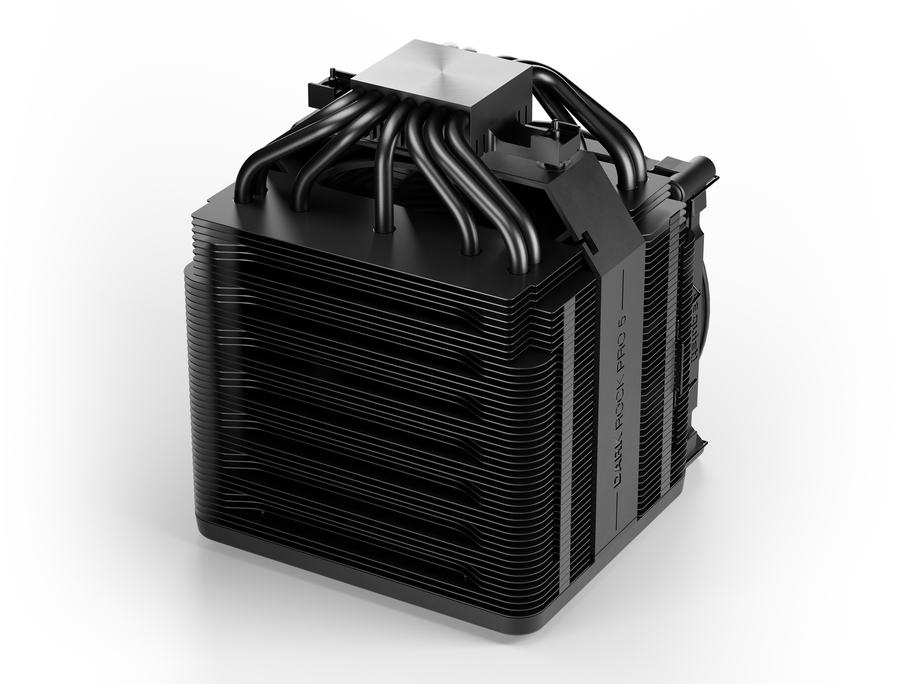

Number of heat pipes |
7 |
|
Fan connector |
4-pin |
|
Power |
|
Thermal Design Power (TDP) |
270 W |
|
Fan voltage |
12 V |
|

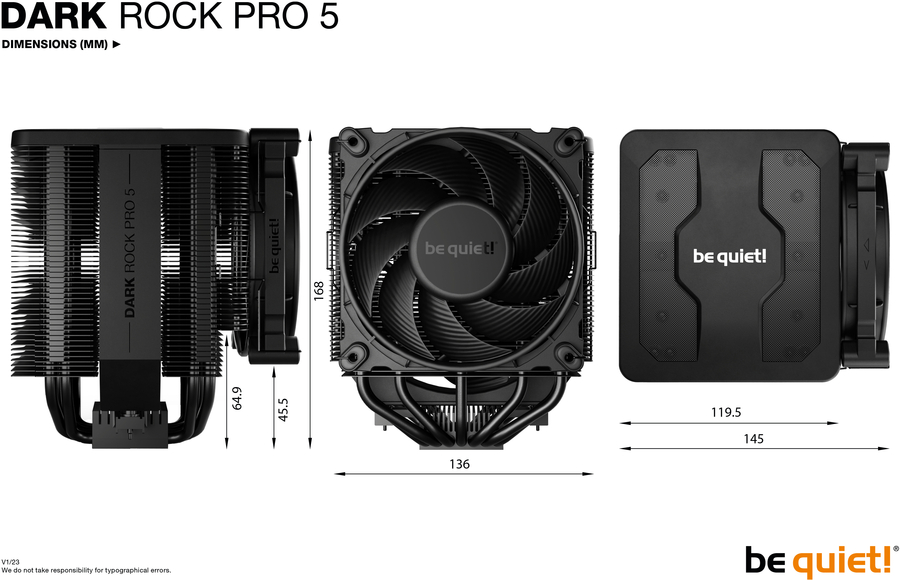

Weight & dimensions |
|
Width |
136 mm |
|
Radiator width |
13.6 cm |
|
Radiator depth |
11.9 cm |
|
Radiator height |
16.8 cm |
|
Depth |
145 mm |
|
Height |
168 mm |
|
Weight |
1.29 kg |
|
Fan dimensions (W x D x H) |
135 x 135 x 25 mm |
|
Fan thickness |
2.5 cm |
|
Fan 2 dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Heat pipes diameter |
6 mm |
|
Package width |
180 mm |
|
Package depth |
202 mm |
|
Package height |
220 mm |
|
Package weight |
1.74 kg |
|
Technical details |
|
Sustainability certificates |
Triman, UL ECOLOGO |
|
Compliance certificates |
CE, RoHS, cTUVus, UKCA, WEEE |
|
Sustainability compliance |
Yes |
|
Logistics data |
|
Products per shipping (inner) case |
12 pc(s) |
|
Shipping (inner) case width |
38 cm |
|
Shipping (inner) case length |
62.5 cm |
|
Shipping (inner) case height |
46.7 cm |
|
Shipping (inner) case gross weight |
22.1 kg |
