General Information |
|
Summary |
Quiet and superior cooling

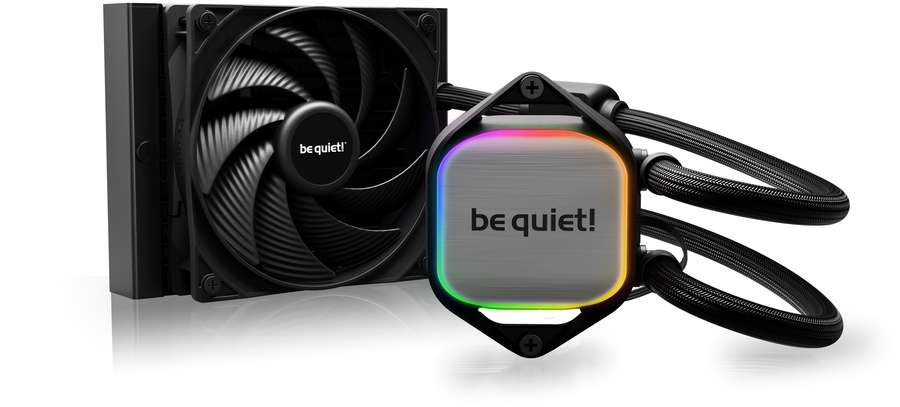

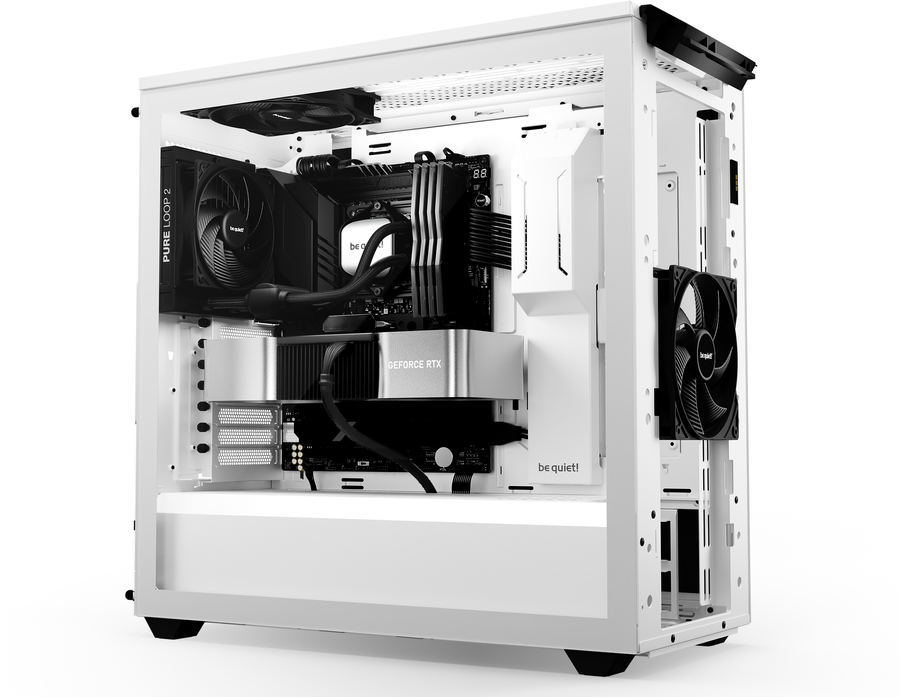

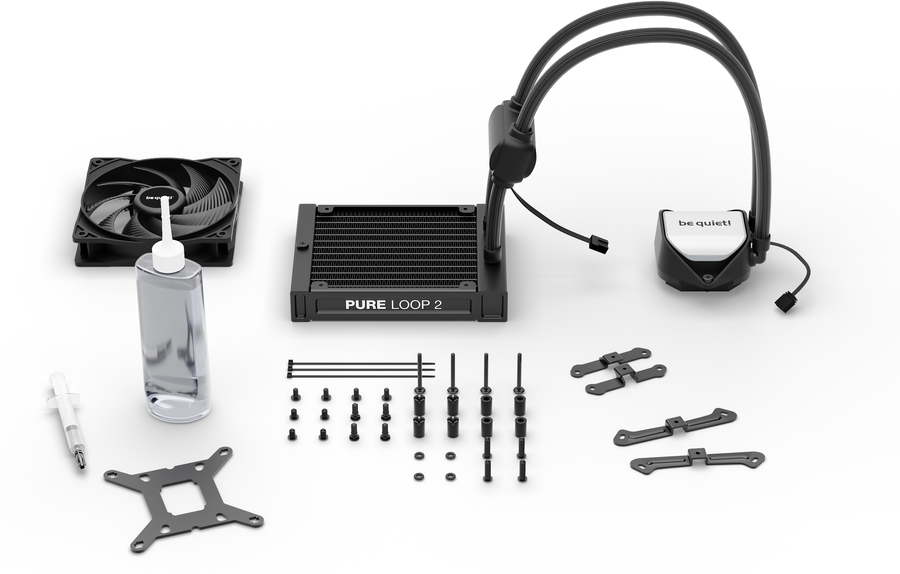

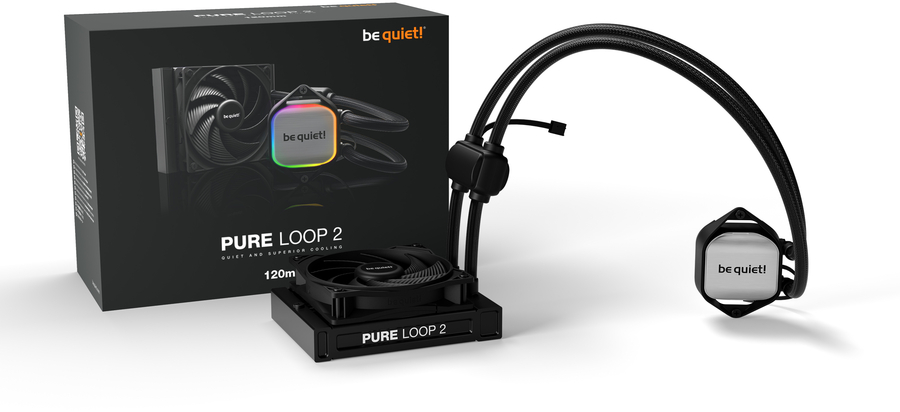

Pure Loop 2 120mm is the high-performing and silent All-in-One water cooling unit of be quiet! with elegant ARGB illumination. Its all-black design and ARGB on the cooling block makes Pure Loop 2 120mm a true eye-catcher in every PC case. Function, style and usability go hand in hand with Pure Loop 2 120mm, as the refill port and included coolant bottle allow easy maintenance for a long lifespan. |
|

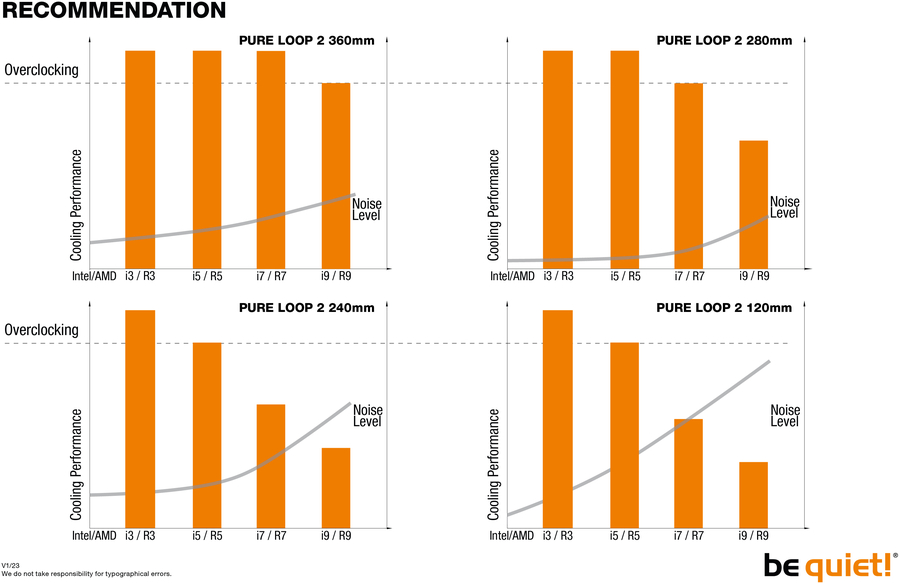

Performance |
|
Suitable location |
Processor |
|
Type |
All-in-one liquid cooler |
|

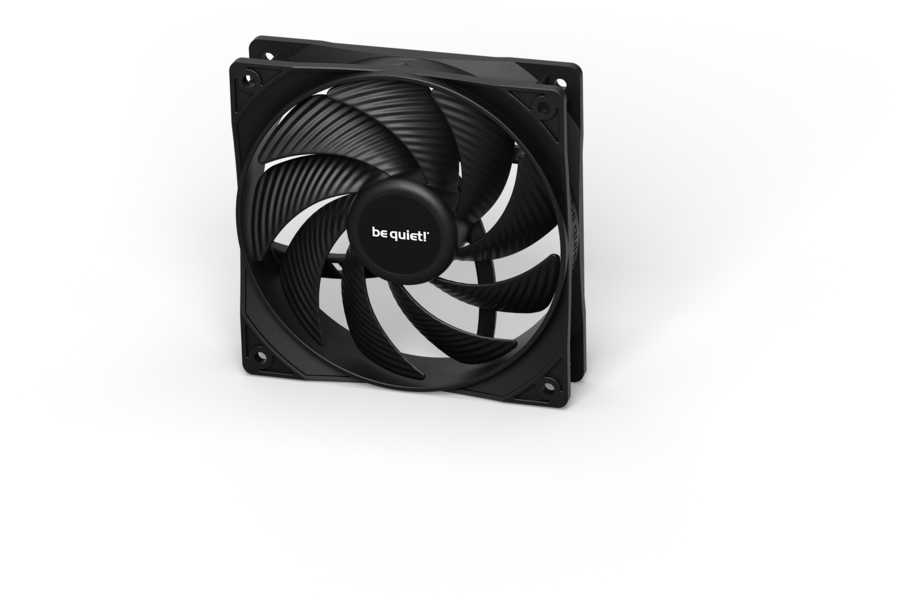

Fan diameter |
12 cm |
|
Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
|
Noise level (low speed) |
13 dB |
|
Noise level (high speed) |
32.1 dB |
|
Pulse-width modulation (PWM) support |
Yes |
|
Pump connector |
4-pin |
|
Quantity per pack |
1 pc(s) |
|
Pump motor speed |
5500 RPM |
|
Pump motor speed (min) |
4000 RPM |
|
Pump motor speed (max) |
5500 RPM |
|

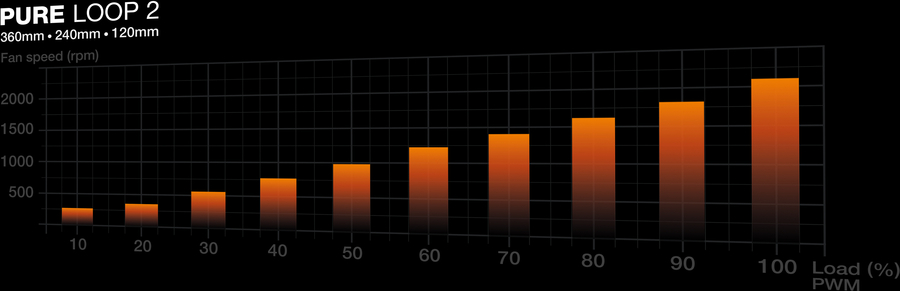

Fan speed (max) |
2100 RPM |
|
Fan's mean time to failure (MTTF) |
80000 h |
|
Design |
|
Product colour |
Black |
|
Radiator material |
Aluminum |
|
Base plate material |
Copper |
|
Number of fans |
1 fan(s) |
|
Illumination LED |
Yes |
|
Illumination colour |
Multi |
|
LED connector type |
3-pin |
|
Fan connector |
4-pin |
|
Power |
|
Fan power consumption |
5.4 W |
|
LED voltage |
5 V |
|
Fan voltage |
12 V |
|
Fan current |
0.45 A |
|

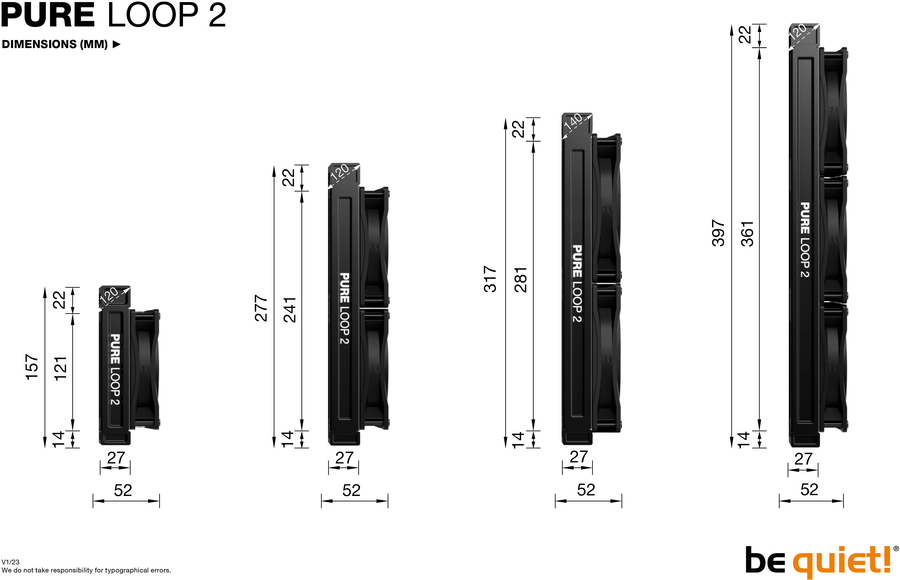

Weight & dimensions |
|

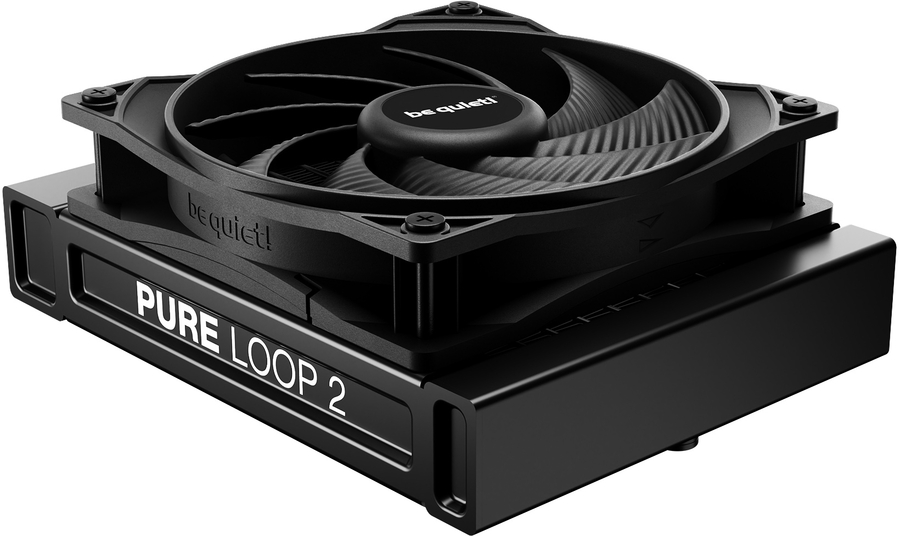

Radiator width |
15.2 cm |
|
Radiator depth |
12 cm |
|
Radiator height |
2.7 cm |
|
Tube length |
40 cm |
|
Waterblock width |
8.3 cm |
|
Waterblock depth |
4.2 cm |
|
Waterblock height |
9.45 cm |
|
Weight |
800 g |
|
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Cable length |
0.5 m |
|
Package width |
240 mm |
|
Package depth |
321 mm |
|
Package height |
140 mm |
|
Package weight |
1.64 kg |
|
Technical details |
|
Sustainability certificates |
Triman, UL ECOLOGO |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
|
Sustainability compliance |
Yes |
|
Logistics data |
|
Products per shipping (inner) case |
8 pc(s) |
|
Shipping (inner) case width |
29.6 cm |
|
Shipping (inner) case length |
65.8 cm |
|
Shipping (inner) case height |
50.8 cm |
|
Shipping (inner) case gross weight |
14.6 kg |
