General Information |
|
Summary |
IMPRESSIVE LIGHTING, SUPERIOR COOLING

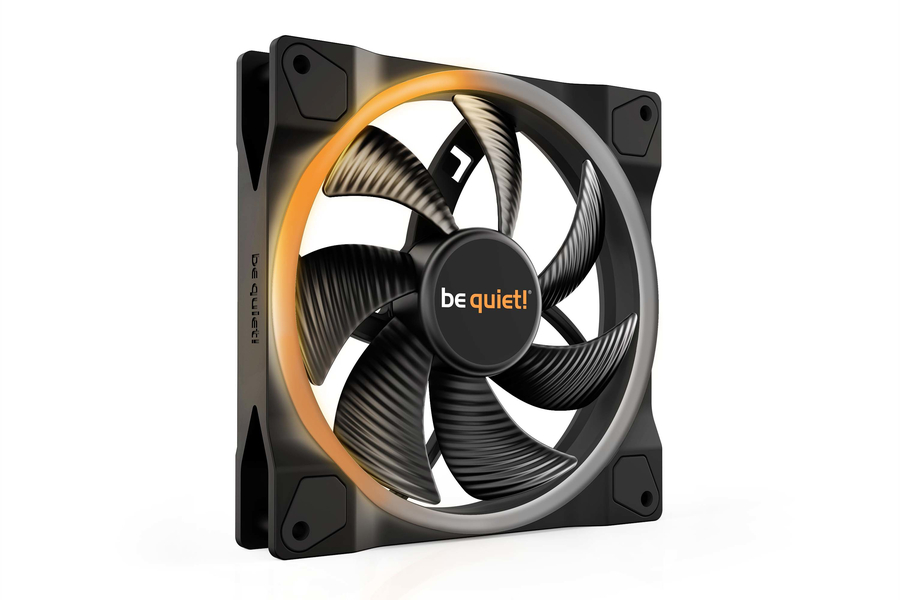

Light Wings 140mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 140mm PWM is your fan of choice. Not only a visual highlight in any PC case, it’s also reliable and performant. This fan hits the sweet spot between performance, noise and ARGB lighting. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
14 cm |
|
Supported processor sockets |
Not supported |
|
Compatible processor series |
Not supported |
|

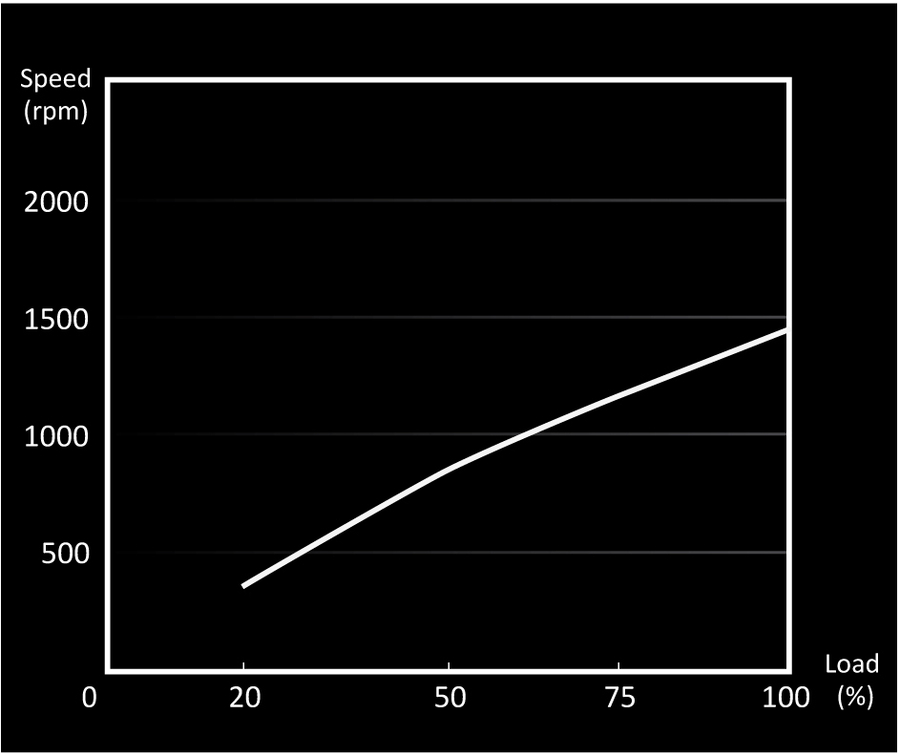

Rotational speed (max) |
1500 RPM |
|
Noise level (high speed) |
23.3 dB |
|
Maximum airflow |
56 cfm |
|
Airflow |
95.14 m³/h |
|
Maximum air pressure |
1.49 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Bearing type |
Rifle bearing |
|
Quantity per pack |
1 pc(s) |
|
Mean time between failures (MTBF) |
60000 h |
|
Design |
|
Product colour |
Black |
|
Illumination LED |
Yes |
|
Illumination colour |
Multi |
|
Fan connector |
4-pin |
|
Power |
|
Power consumption (typical) |
3.84 W |
|
Voltage |
5 - 13.2 V |
|
Rated voltage |
12 V |
|
Rated current |
0.67 A |
|
Safety current |
0.32 Ah |
|
Weight & dimensions |
|
Width |
140 mm |
|
Depth |
140 mm |
|
Height |
25 mm |
|
Weight |
241 g |
|

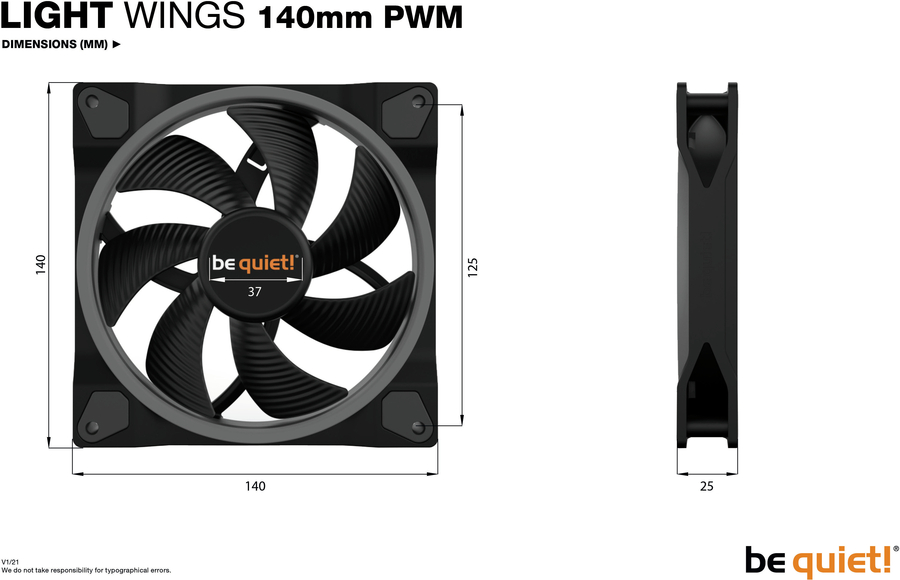

Fan dimensions (W x D x H) |
140 x 140 x 25 mm |
|
Cable length |
0.5 m |
|
Package width |
153 mm |
|
Package depth |
173 mm |
|
Package height |
29.5 mm |
|
Package weight |
325 g |
|
Technical details |
|
Compliance certificates |
CE, RoHS, WEEE |
|
Sustainability compliance |
Yes |
|

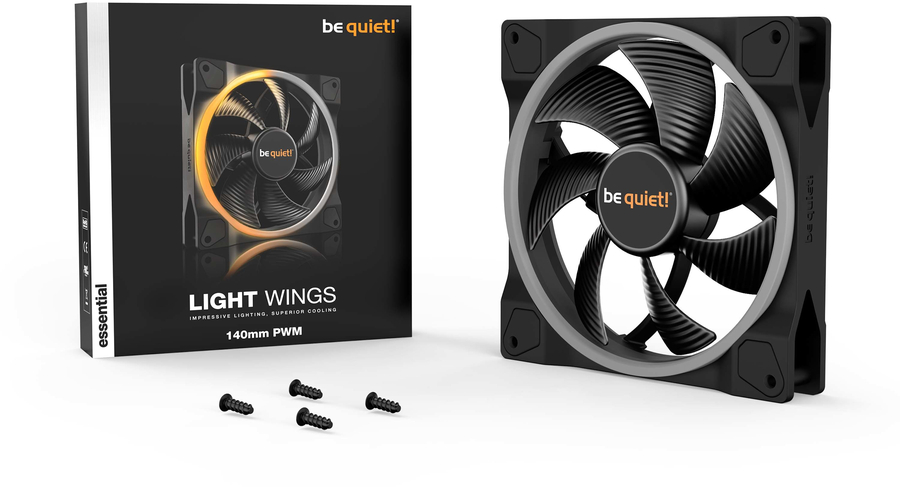

Packaging content |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Other features |
|
Country of origin |
China |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Products per shipping (inner) case |
30 pc(s) |
|
Shipping (inner) case width |
32 cm |
|
Shipping (inner) case length |
47.8 cm |
|
Shipping (inner) case height |
20 cm |
|
Shipping (inner) case gross weight |
10.5 kg |
