General Information |
|
Summary |
IMPRESSIVE LIGHTING, SUPERIOR COOLING

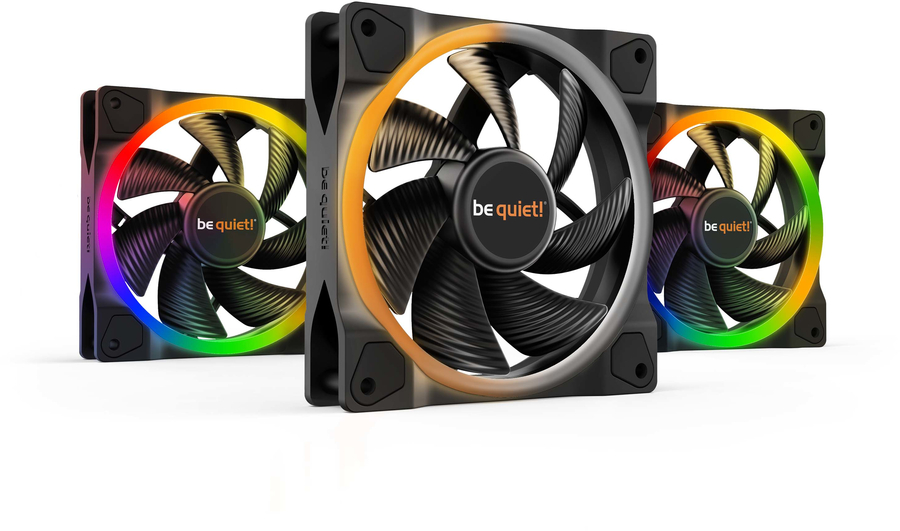

Three Light Wings 120mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
If you are looking for quiet case fans with an impressive look from every angle, these three Light Wings 120mm PWM are your fans of choice. Not only a visual highlight, they’re also reliable and performant. These fans hit the sweet spot between performance, noise and ARGB lighting. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
12 cm |
|
Supported processor sockets |
Not supported |
|
Compatible processor series |
Not supported |
|

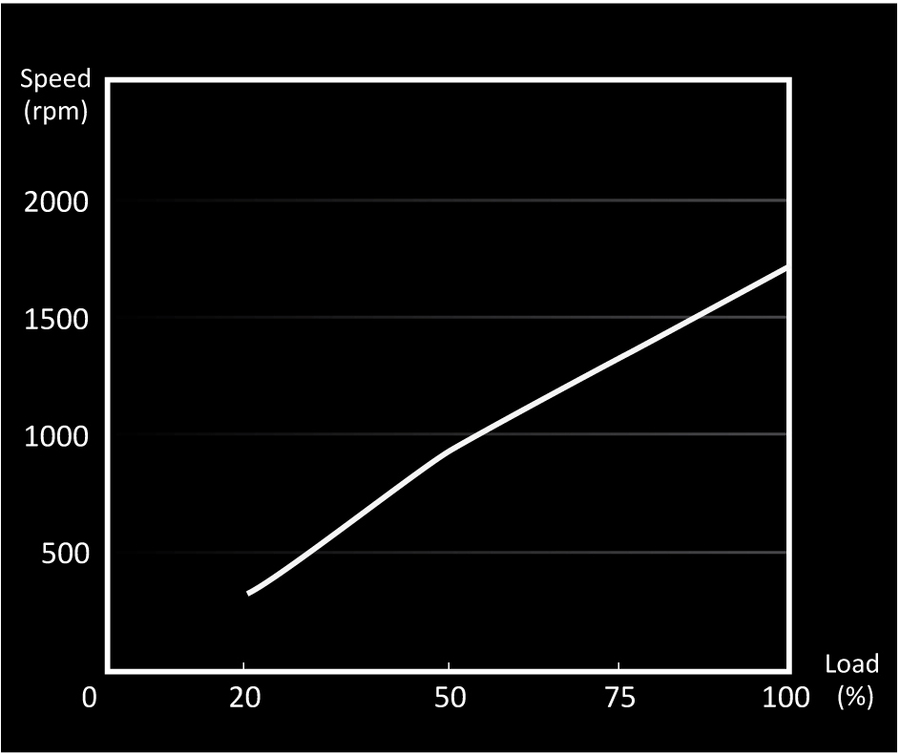

Rotational speed (max) |
1700 RPM |
|
Noise level (high speed) |
20.6 dB |
|
Maximum airflow |
41.51 cfm |
|
Airflow |
70.53 m³/h |
|
Maximum air pressure |
1.66 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Bearing type |
Rifle bearing |
|
Quantity per pack |
3 pc(s) |
|
Mean time between failures (MTBF) |
60000 h |
|
Design |
|
Product colour |
Black |
|
Illumination LED |
Yes |
|
Illumination colour |
Multi |
|
Fan connector |
4-pin |
|
Power |
|
Power consumption (typical) |
4.56 W |
|
Voltage |
5 - 13.2 V |
|
Rated voltage |
12 V |
|
Rated current |
0.07 A |
|
Maximum current |
0.38 A |
|
Safety current |
0.38 Ah |
|
Weight & dimensions |
|
Weight |
200 g |
|

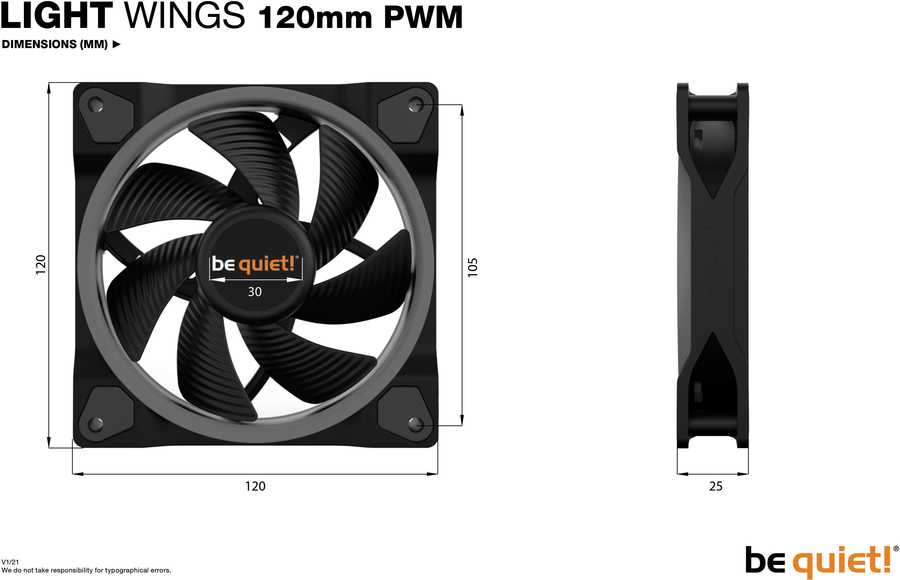

Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
|
Fan weight |
200 g |
|
Cable length |
0.5 m |
|
Package width |
133 mm |
|
Package depth |
172 mm |
|
Package height |
29.5 mm |
|
Package weight |
833 g |
|
Technical details |
|
Compliance certificates |
CE, RoHS, WEEE |
|
Sustainability compliance |
Yes |
|

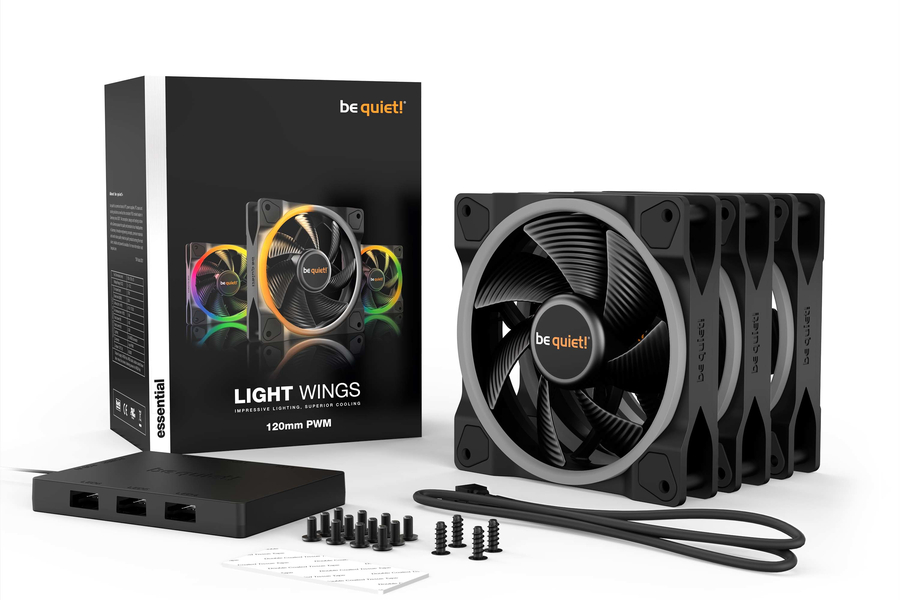

Packaging content |
|
Screws included |
Yes |
|
Number of screws |
16 |
|

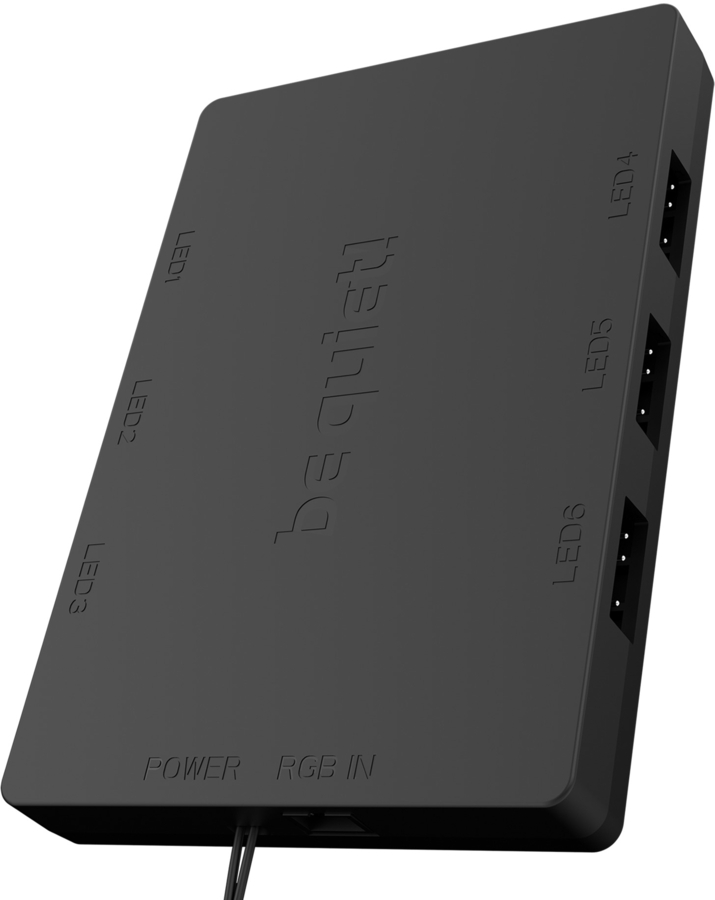

Hub included |
Yes |
|
Other features |
|
Country of origin |
China |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Products per shipping (inner) case |
10 pc(s) |
|
Shipping (inner) case width |
28.3 cm |
|
Shipping (inner) case length |
45.4 cm |
|
Shipping (inner) case height |
20 cm |
|
Shipping (inner) case gross weight |
8.91 kg |
