General Information |
|
Summary |
No compromise silence and performance
Silent Wings 4 120mm combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 120mm the perfect choice for the most demanding applications in high-end systems. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
12 cm |
|
Noise level (high speed) |
18.9 dB |
|
Maximum airflow |
48.7 cfm |
|
Airflow |
82.74 m³/h |
|
Maximum air pressure |
1.79 mmH2O |
|
Bearing type |
Fluid Dynamic Bearing (FDB) |
|
Quantity per pack |
1 pc(s) |
|
Mean time between failures (MTBF) |
300000 h |
|
Design |
|
Product colour |
Black |
|
Fan connector |
3-pin |
|
Certification |
CE / ROHS / RU / UKCA / TÜV / WEEE |
|
Power |
|
Power consumption (typical) |
1.44 W |
|
Voltage |
5 - 13.2 V |
|
Rated voltage |
12 V |
|
Rated current |
0.12 A |
|
Maximum current |
0.13 A |
|

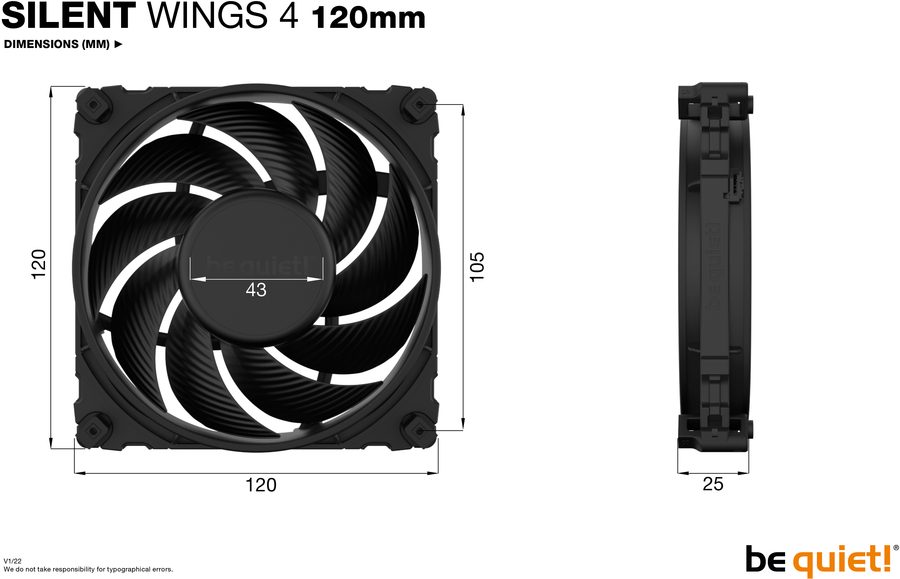

Weight & dimensions |
|
Width |
120 mm |
|
Depth |
120 mm |
|
Height |
25 mm |
|
Weight |
190 g |
|
Cable length |
0.5 m |
|
Package width |
141 mm |
|
Package depth |
192 mm |
|
Package height |
31 mm |
|
Package weight |
349 g |
|
Technical details |
|
Compliance certificates |
CE, RoHS, WEEE |
|

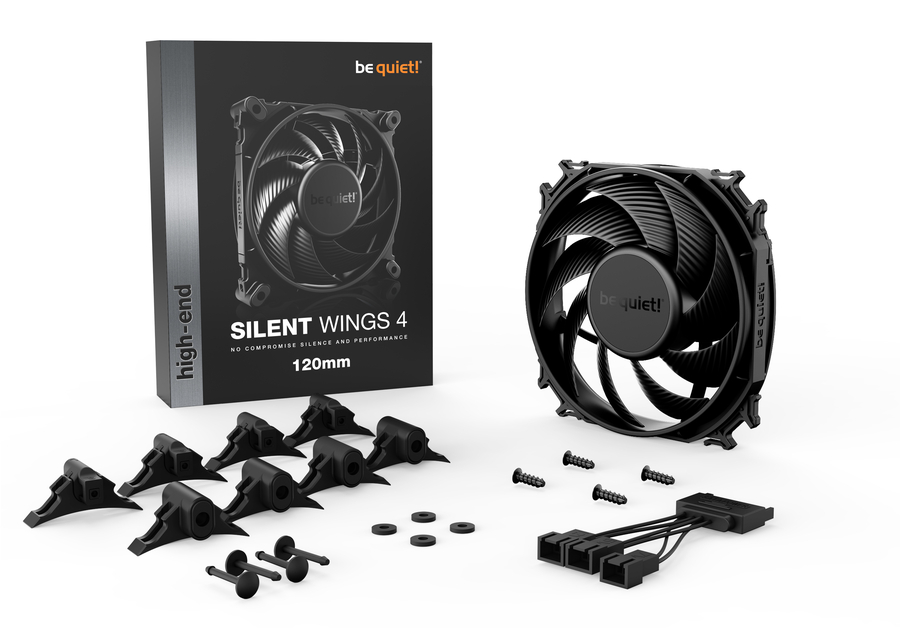

Packaging content |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Number of clips |
4 |
|
Other features |
|
Country of origin |
China |
|
Logistics data |
|
Harmonized System (HS) code |
84733080 |
|
Products per shipping (inner) case |
40 pc(s) |
|
Shipping (inner) case width |
38.7 cm |
|
Shipping (inner) case length |
43.2 cm |
|
Shipping (inner) case height |
37.5 cm |
|
Shipping (inner) case gross weight |
15.2 kg |
