General Information |
|
Summary |
Performant, Progressive, Quiet

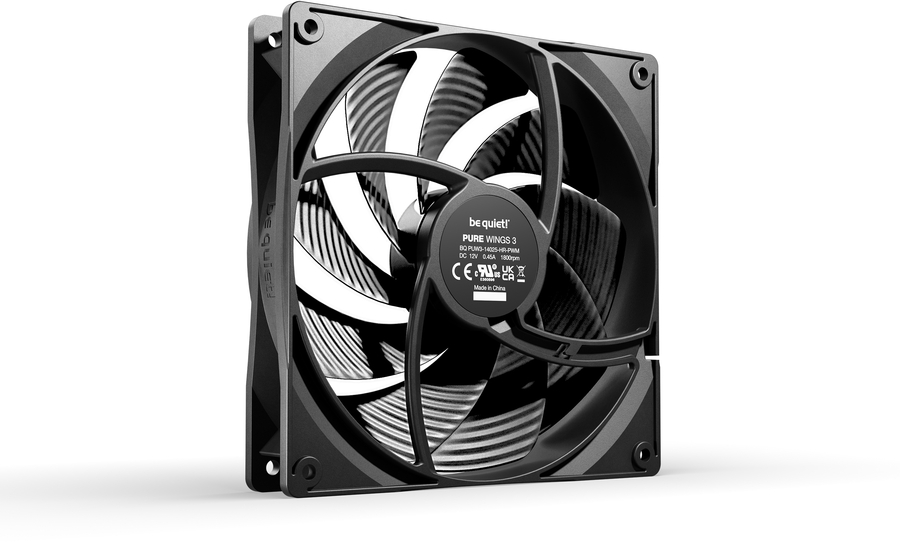

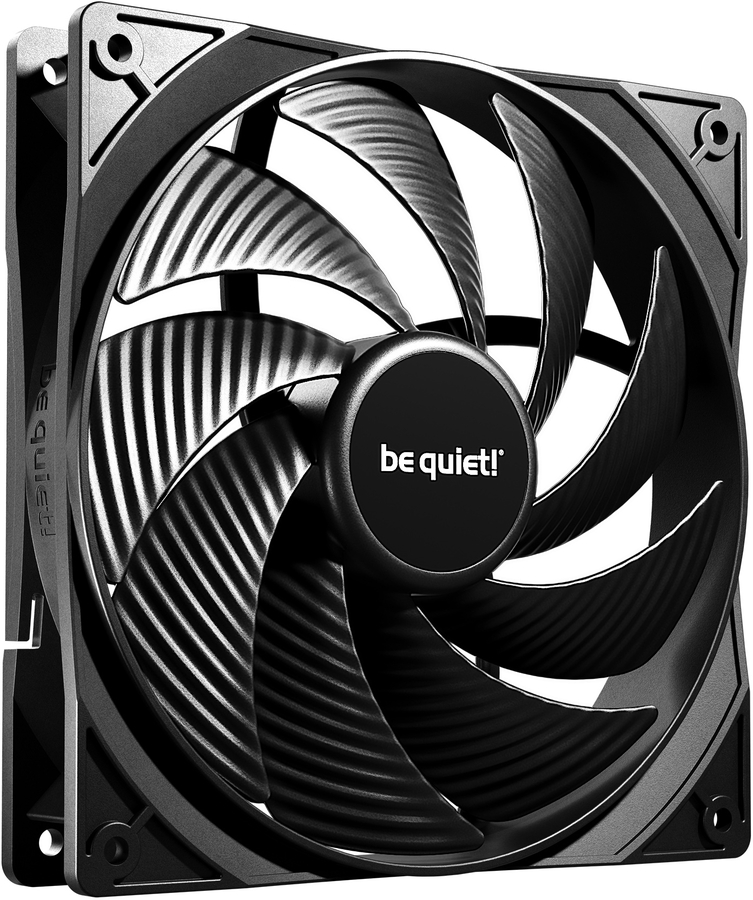

Pure Wings 3 140mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
|
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
14 cm |
|
Rotational speed (max) |
1800 RPM |
|
Noise level (high speed) |
30.5 dB |
|
Maximum airflow |
72.2 cfm |
|
Airflow |
122.6 m³/h |
|
Maximum air pressure |
2.44 mmH2O |
|

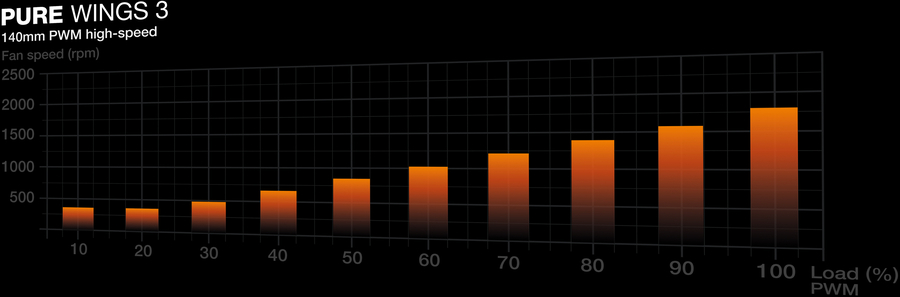

Pulse-width modulation (PWM) support |
Yes |
|
Fan bearing technology |
Rifle bearing |
|
Quantity per pack |
1 pc(s) |
|
Fan's mean time to failure (MTTF) |
80000 h |
|
Design |
|
Product colour |
Black |
|
Number of fans |
1 fan(s) |
|
Fan connector |
4-pin |
|
Power |
|
Voltage |
5 - 13.2 V |
|
Rated voltage |
12 V |
|
Fan power consumption |
6 W |
|
Fan current |
0.12 A |
|

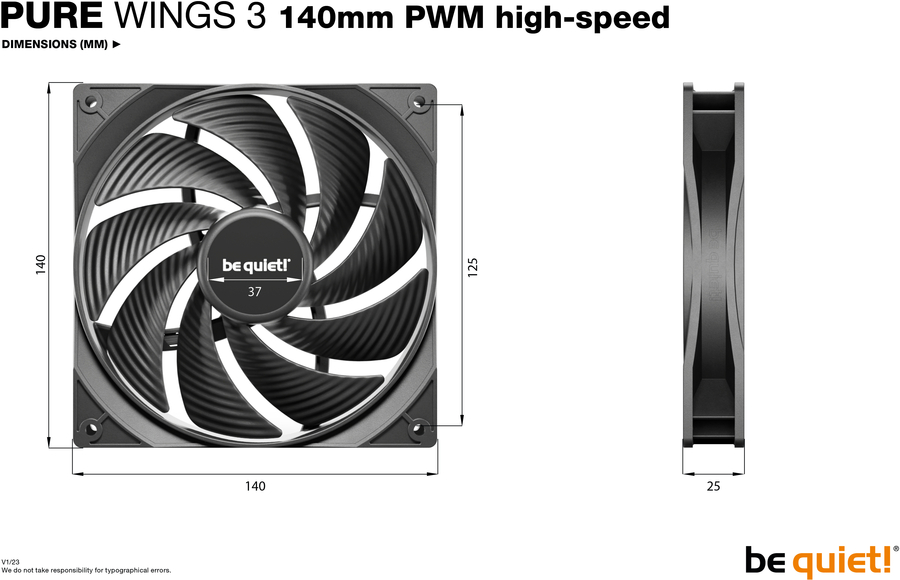

Weight & dimensions |
|
Width |
140 mm |
|
Depth |
140 mm |
|
Height |
25 mm |
|
Weight |
188 g |
|
Cable length |
0.46 m |
|
Package width |
142 mm |
|
Package depth |
174 mm |
|
Package height |
27 mm |
|
Package weight |
221 g |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Compliance certificates |
CE, RoHS, UKCA, WEEE |
|
Sustainability compliance |
Yes |
|

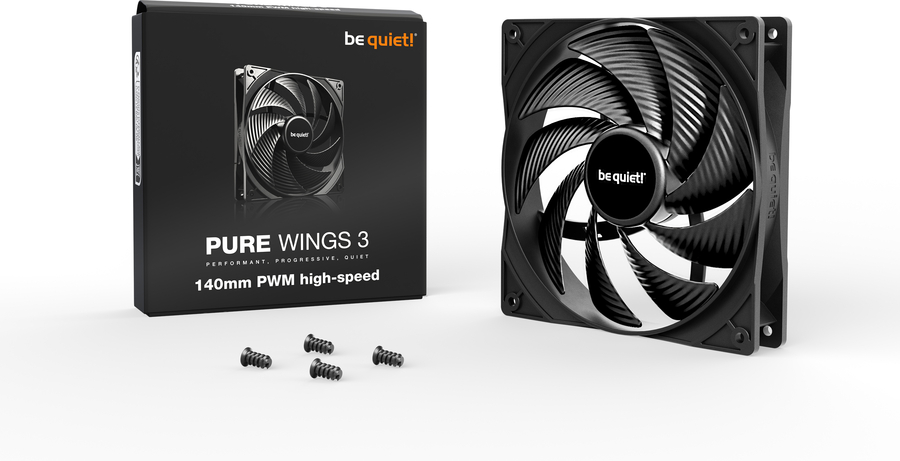

Packaging content |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Logistics data |
|
Products per shipping (inner) case |
72 pc(s) |
|
Shipping (inner) case width |
39.5 cm |
|
Shipping (inner) case length |
48.2 cm |
|
Shipping (inner) case height |
37 cm |
|
Shipping (inner) case gross weight |
17.5 kg |
