General Information |
|
Summary |
No compromise silence and performance

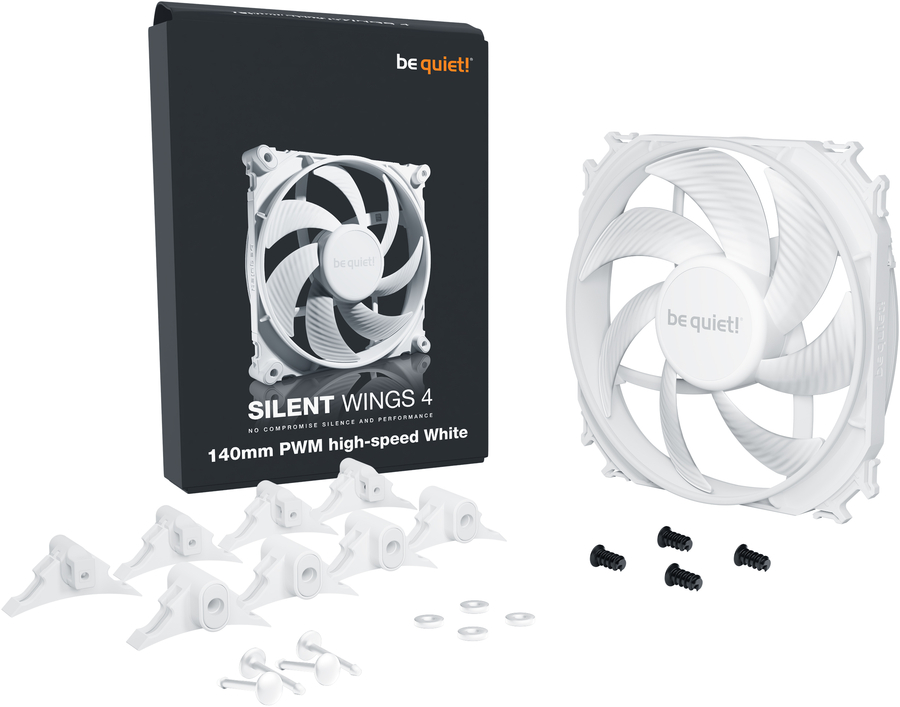

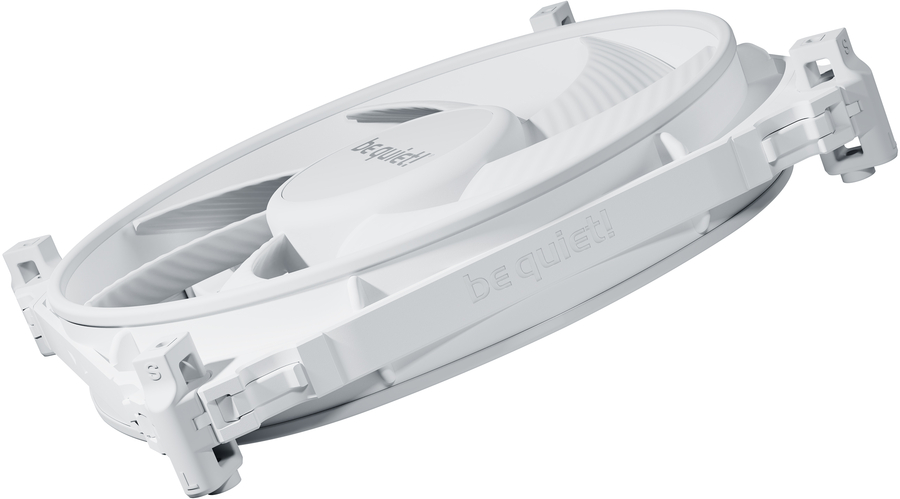

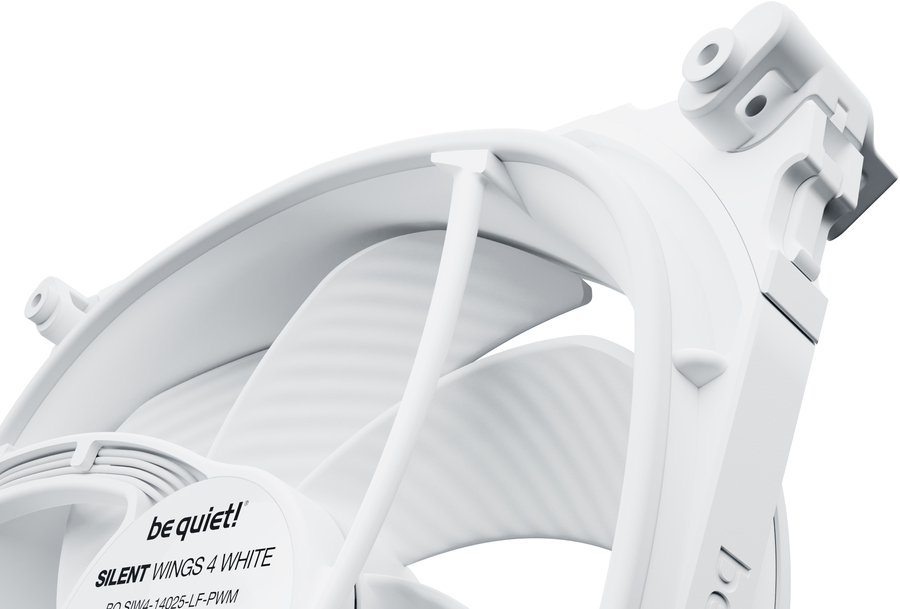

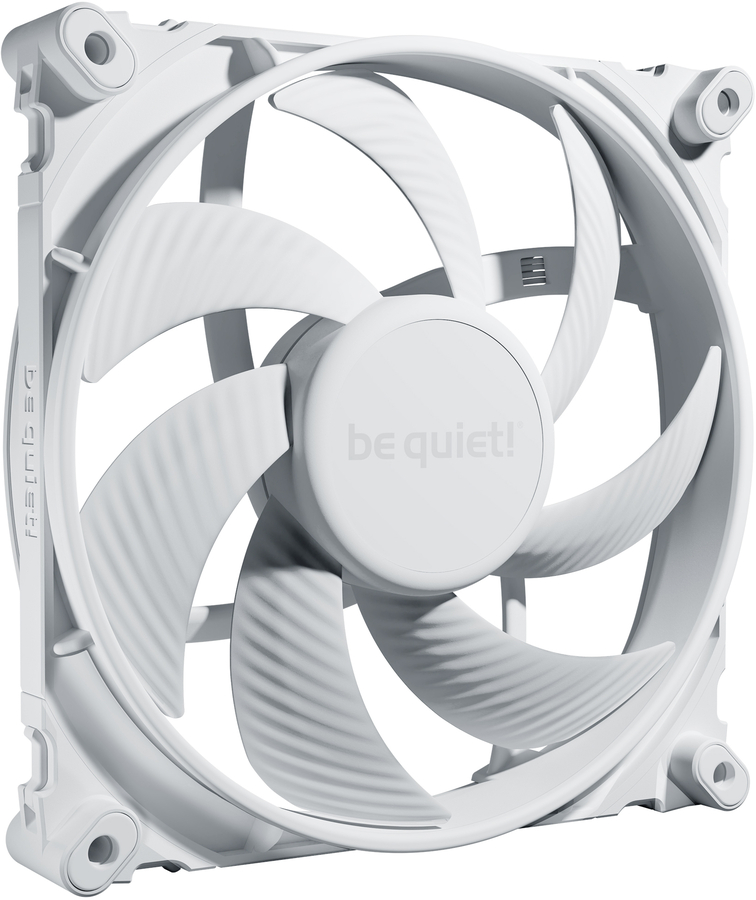

Silent Wings 4 140mm PWM high-speed White combines all features of a virtually inaudible with an extremely performant fan. A 6-pol-motor and anti-vibration mountings combined with fan blades optimized for maximum airflow make Silent Wings 4 140mm PWM high-speed White the perfect choice for the most demanding applications in high-end systems. |
|
Performance |
|
Suitable location |
Computer case |
|
Type |
Fan |
|
Fan diameter |
14 cm |
|
Rotational speed (max) |
1900 RPM |
|
Noise level (high speed) |
29.3 dB |
|
Maximum airflow |
78.4 cfm |
|
Airflow |
133.2 m³/h |
|
Maximum air pressure |
2.36 mmH2O |
|
Pulse-width modulation (PWM) support |
Yes |
|
Bearing type |
Rifle bearing |
|
Quantity per pack |
1 pc(s) |
|
Fan's mean time to failure (MTTF) |
300000 h |
|
Design |
|
Product colour |
White |
|
Fan connector |
4-pin |
|
Power |
|
Voltage |
5 - 13.2 V |
|
Rated voltage |
12 V |
|
Fan power consumption |
4.8 W |
|
Rated current |
0.4 A |
|
Weight & dimensions |
|
Width |
140 mm |
|
Depth |
140 mm |
|
Height |
25 mm |
|
Weight |
220 g |
|
Cable length |
0.5 m |
|
Package width |
156 mm |
|
Package depth |
206.5 mm |
|
Package height |
31 mm |
|
Package weight |
390 g |
|
Technical details |
|
Sustainability certificates |
Triman |
|
Warranty period |
3 year(s) |
|
Compliance certificates |
CE, RoHS, UKCA, WEEE |
|
Sustainability compliance |
Yes |
|
Packaging content |
|
Screws included |
Yes |
|
Number of screws |
4 |
|
Logistics data |
|
Shipping (inner) case width |
31.7 cm |
|
Shipping (inner) case length |
46.3 cm |
|
Shipping (inner) case height |
38.8 cm |
|
Shipping (inner) case gross weight |
13.7 kg |
