StarTech 1-port 2.5 GbE Poe+ Injector
|
|
Price: $72.00
Manufacturer:
StarTech
StarTech.com 1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ (802.3af/802.3at), Multi-Gigabit, Midspan, 30W
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59770754
|
AF212C-POE-INJECTOR
|
65030905787 |
Active
|
Details
|
General Information |
|
Summary |

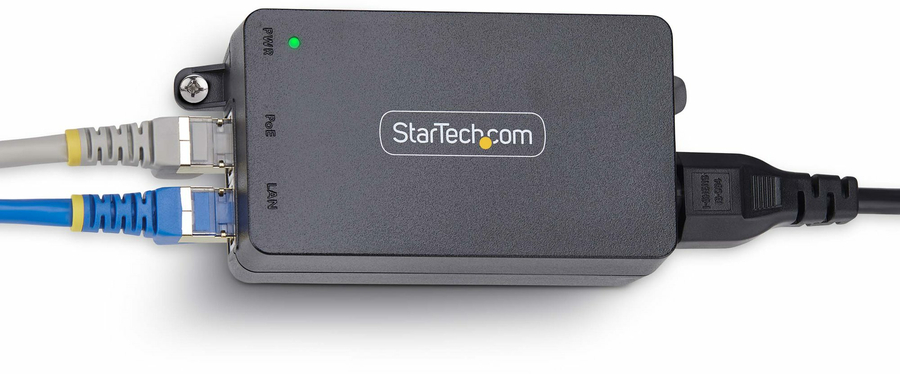

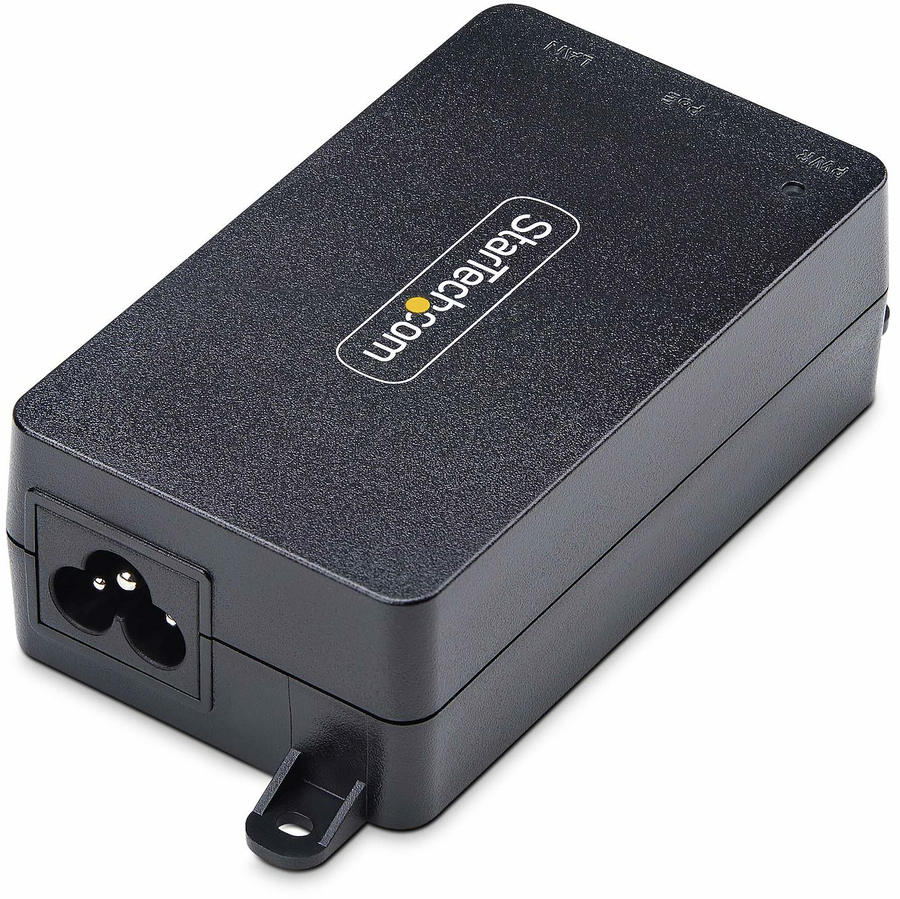

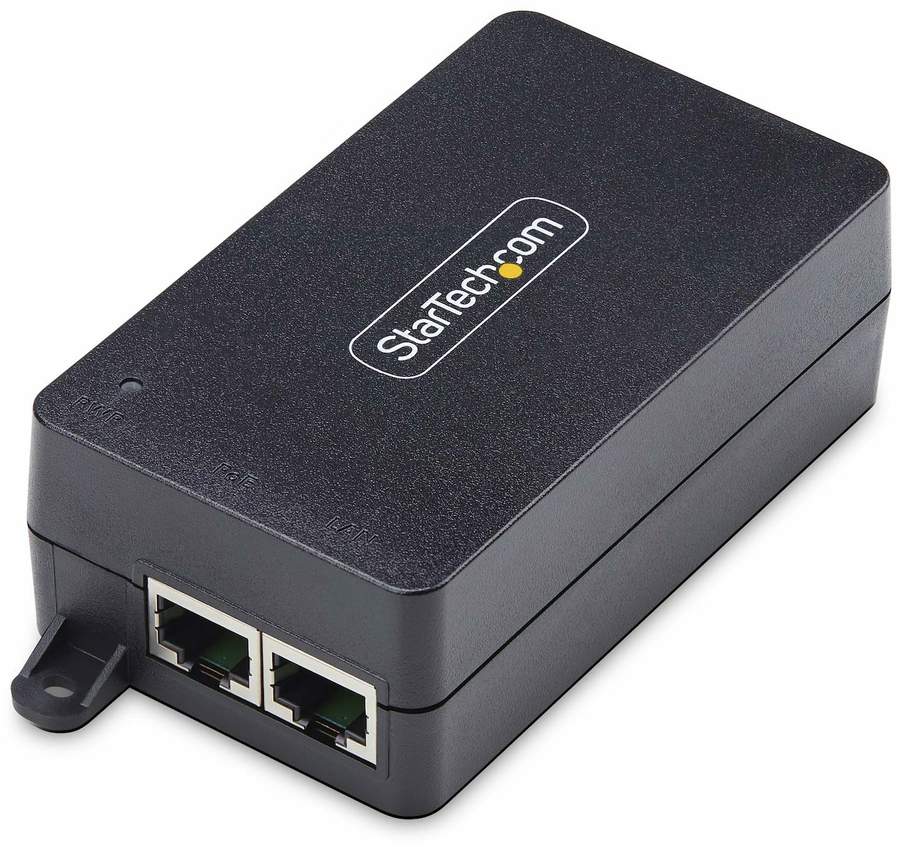

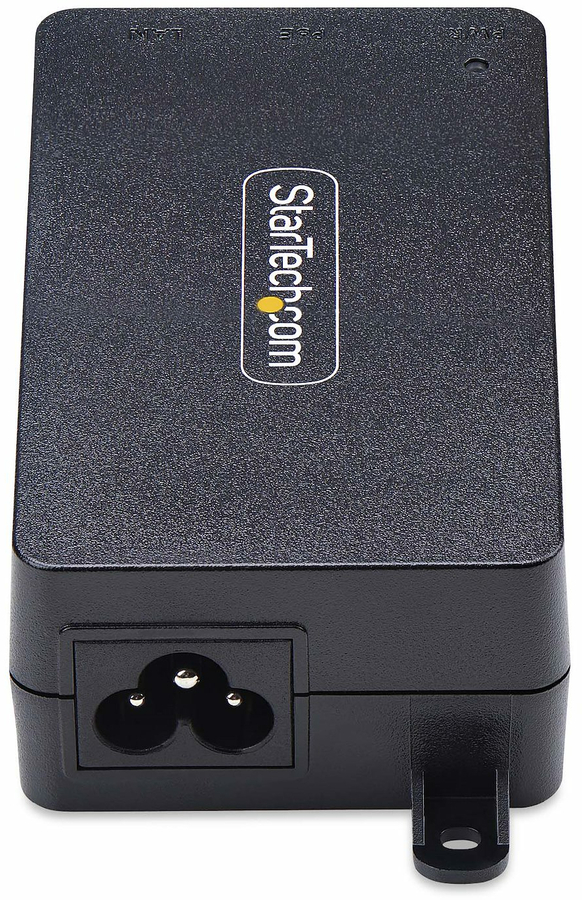

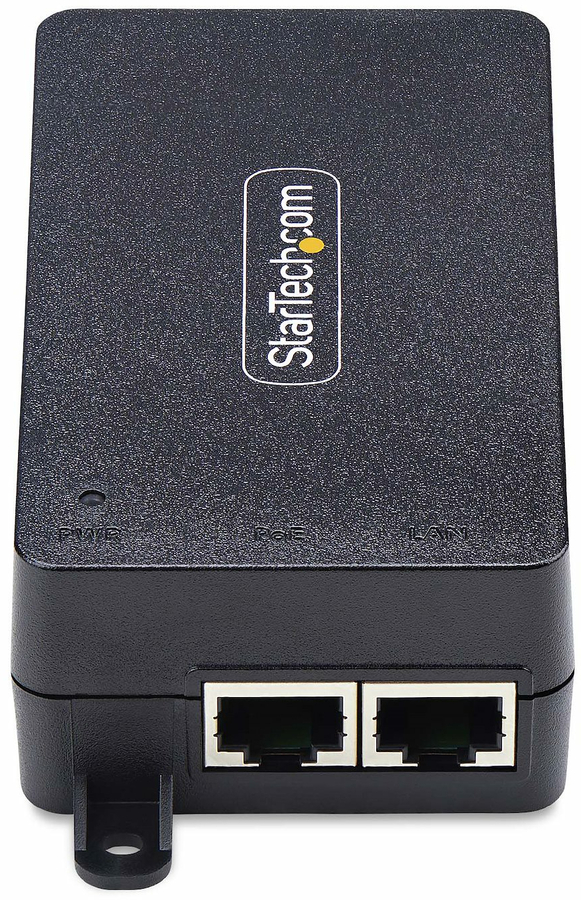

Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector
This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).
Versatile PoE Injector
Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.
Streamlined Cable Management
All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.
The StarTech.com Advantage
|
|
Network |
|
Ethernet interface type |
1.25 Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
|
Power over Ethernet (PoE) |
Yes |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
|
Auto MDI/MDI-X |
Yes |
|
Cable types supported |
Cat5, Cat5e, Cat6, Cat6a |
|
Chipset |
Monolithic Power Systems - MP3924 |
|
Features |
|
Product colour |
Black |
|
Surge protection |
Yes |
|
Maximum operating distance |
100 m |
|
LED indicators |
Power |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Auto-negotiation |
Yes |
|
Ports & interfaces |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
Power |
|
AC adapter input voltage |
100 - 240 V |
|
Input current |
0.8 A |
|
AC adapter output voltage |
54 V |
|
Output current |
0.6 A |
|
Power consumption (typical) |
32.4 W |
|
Power over Ethernet (PoE) power per port |
30 W |
|
Surge protection voltage |
2 kV |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Weight & dimensions |
|
Weight |
100 g |
|

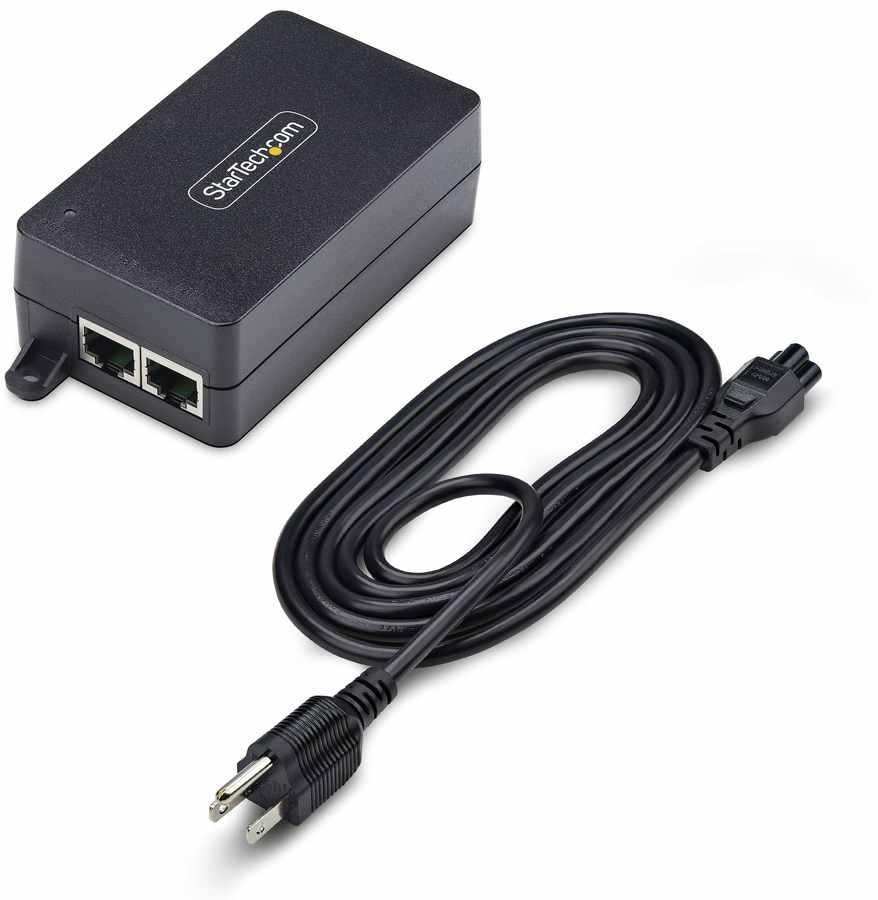

Packaging content |
|
Power cord included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Package width |
124 mm |
|
Package depth |
210 mm |
|
Package height |
51 mm |
|
Package weight |
364 g |
|
Logistics data |
|
Master (outer) case width |
520 mm |
|
Master (outer) case length |
285 mm |
|
Master (outer) case height |
455 mm |
|
Products per master (outer) case |
40 pc(s) |
|
