General Information |
|
Summary |

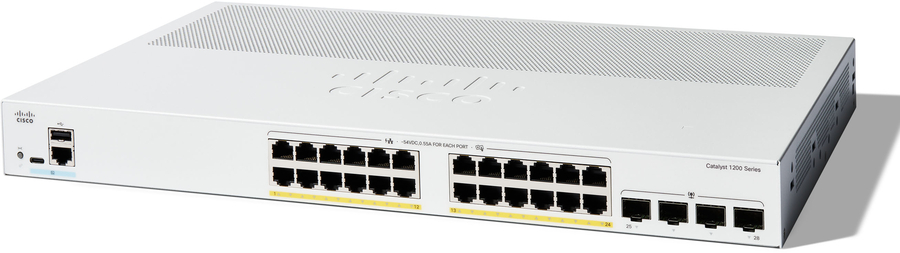

Catalyst 1200 24port GE, PoE, 4x1G SFP |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2 |
|
Quality of Service (QoS) support |
Yes |
|
Web-based management |
Yes |
|
Configuring Location Settings (CLI) |
Yes |
|
MIB support |
Y |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
28 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Installed SFP modules quantity |
0 |
|
Installed SFP+ modules quantity |
0 |
|
SFP module slots quantity |
4 |
|
Console port |
RJ-45/USB Type-C |
|
Network |
|
Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Link aggregation |
Yes |
|
Broadcast storm control |
Yes |
|
Spanning tree protocol |
Yes |
|
Head-of-line (HOL) blocking |
Yes |
|
VLAN support |
Yes |
|
Number of VLANs |
255 |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
56 Gbit/s |
|
Forwarding rate |
41.66 Mpps |
|
Number of queues |
8 |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Packet buffer memory |
1.5 MB |
|
Security |
|
Access Control List (ACL) rules |
512 |
|
Security algorithms |
802.1x RADIUS |
|
Loop protection |
Yes |
|
DoS attack prevention |
Yes |
|
Queue scheduling algorithms |
Weighted Round Robin (WRR) |
|
Multicast features |
|
Multicast support |
Yes |
|
Protocols |
|
GARP VLAN Registration Protocol (GVRP) |
Yes |
|
Design |
|
Rack mounting |
Yes |
|
Form factor |
1U |
|
Product colour |
White |
|
Reset button |
Yes |
|
LED indicators |
Yes |
|
Performance |
|
Built-in processor |
Yes |
|
Processor frequency |
1.4 MHz |
|
Memory type |
DDR4-SDRAM |
|
Internal memory |
1000 MB |
|
Flash memory |
512 MB |
|
Firmware upgradeable |
Yes |
|
Mean time between failures (MTBF) |
698220 h |
|
Power |
|
Power source |
AC |
|
Power supply included |
Yes |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power consumption (typical) |
10.65 W |
|
Power plug type |
Type C |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
Yes |
|
Total Power over Ethernet (PoE) budget |
195 W |
|
Other features |
|
Packaging content |
Switch, power cable, USB Type C cable and mounting hardware |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 50 °C |
|
Storage temperature (T-T) |
-25 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
10 - 90% |
|
Weight & dimensions |
|
Width |
298.7 mm |
|
Depth |
444.5 mm |
|
Height |
43.9 mm |
|
Weight |
3.53 kg |
|
Packaging data |
|
Package width |
430 mm |
|
Package depth |
575.1 mm |
|
Package height |
105.9 mm |
|
Package weight |
5.82 kg |
|
Certificates |
|
Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
|
Logistics data |
|
Country of origin |
China |
