General Information |
|
Summary |
16-Port 10/100Mbps Switch for SOHO/Workgroup

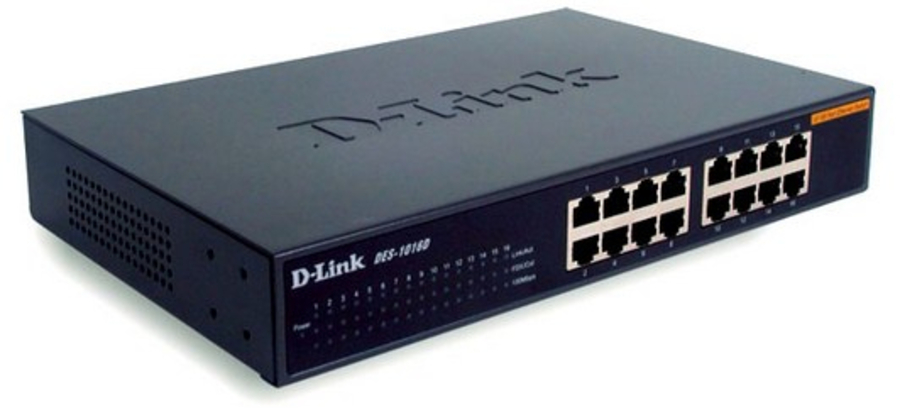

10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.
Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex.
Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network. |
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
16 |
|
Network |
|
Full duplex |
Yes |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Maximum data transfer rate |
0.1 Gbit/s |
|
Design |
|
LED indicators |
Power |
|
Performance |
|
Internal memory |
2 MB |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Other features |
|
Data transfer rate |
100 Mbit/s |
|
Dimensions (WxDxH) |
324 x 231 x 44.5 mm |
|
Connectivity technology |
Wired |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 50 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Packaging data |
|
Package width |
282 mm |
|
Package depth |
376 mm |
|
Package height |
78 mm |
|
Package weight |
1.82 kg |
|
Technical details |
|
Shipping (inner) case height |
31.1 cm |
|
Shipping (inner) case width |
39.2 cm |
|
Shipping (inner) case length |
42 cm |
|
Shipping (inner) case net weight |
9.11 kg |
|
Products per shipping (inner) case |
5 pc(s) |
|
Pallet gross weight (air) |
256.4 kg |
|
Master (outer) cases per pallet (air) |
24 pc(s) |
|
Products per pallet (air) |
120 pc(s) |
|
Pallet gross length |
120 cm |
|
Pallet gross width |
110 cm |
|
Pallet height (air) |
137.9 cm |
|
Pallet gross weight (sea) |
376.1 kg |
|
Master (outer) cases per pallet (sea) |
36 pc(s) |
|
Products per pallet (sea) |
180 pc(s) |
|
Pallet height (sea) |
2.03 m |
|
Shipping (inner) case gross weight |
9.97 kg |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
