General Information |
|
Summary |

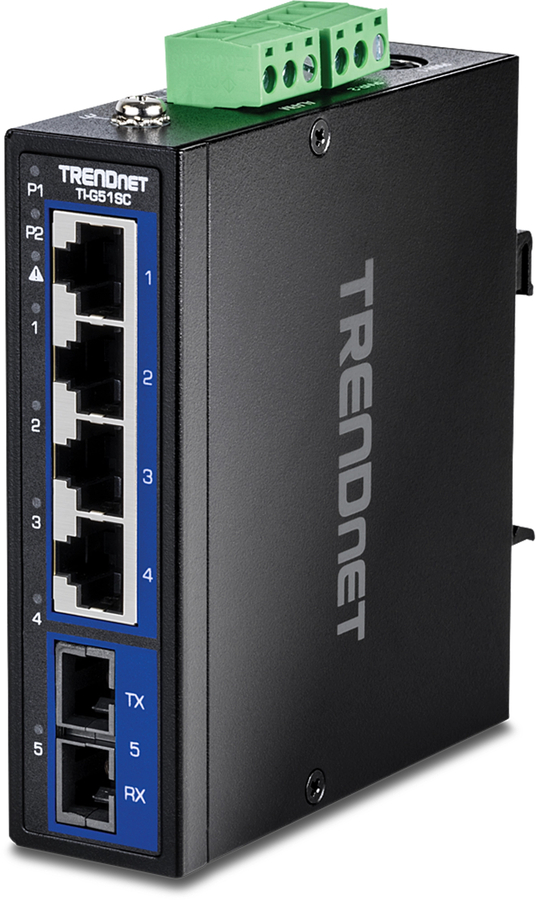

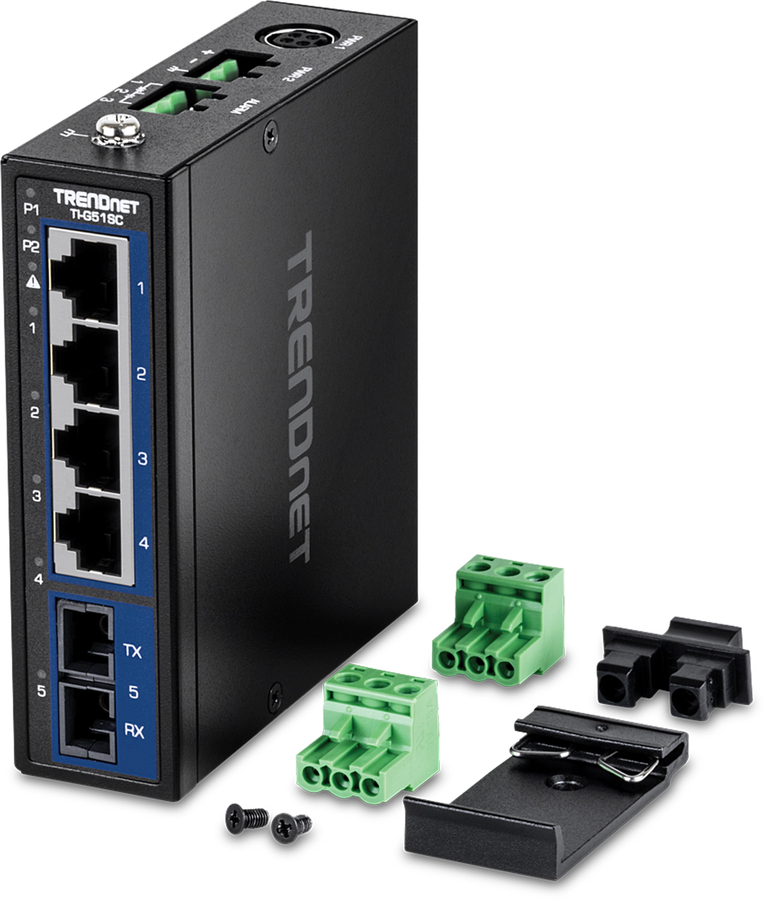

TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within - 40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.
|
|
Management features |
|
Switch type |
Unmanaged |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
4 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Fiber ports quantity |
1 |
|
Fiber optic connector |
SC |
|
Network |
|
Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|
Data transmission |
|
MAC address table |
2000 entries |
|
Switching capacity |
10 Gbit/s |
|
Forwarding rate |
7.44 Mpps |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Design |
|
Rack mounting |
No |
|
Product colour |
Black |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|

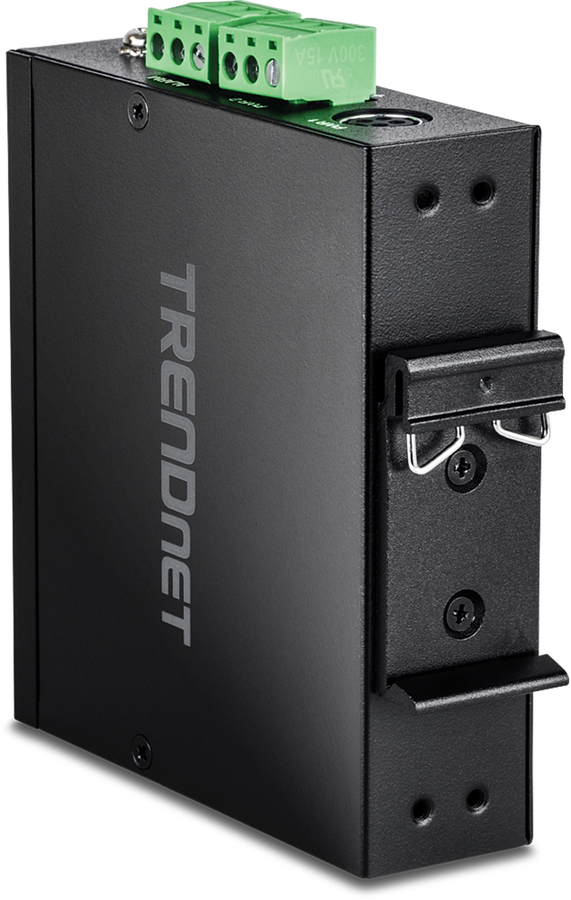

DIN rail mounting |
Yes |
|
Performance |
|
Mean time between failures (MTBF) |
71955 h |
|
Power |
|

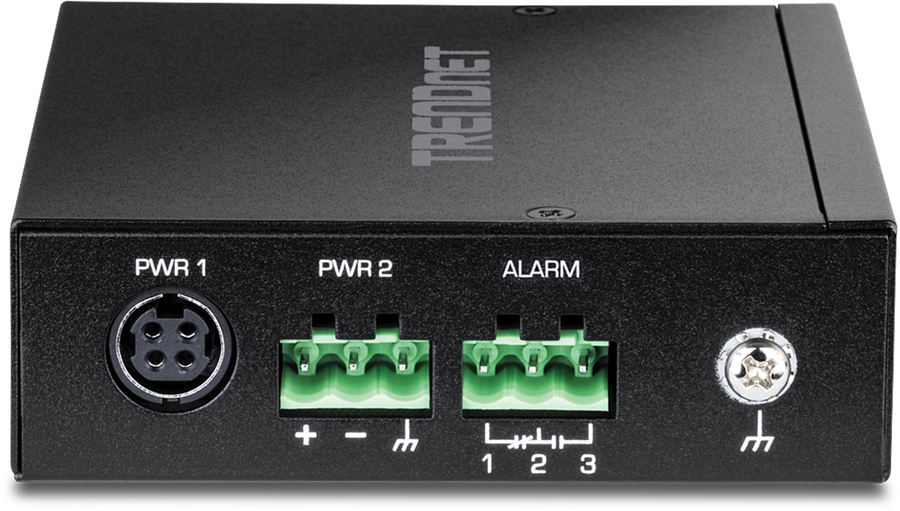

Power source |
DC |
|
DC input voltage |
9 - 60 V |
|
Power consumption (max) |
3.6 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Weight & dimensions |
|
Width |
99 mm |
|
Depth |
90 mm |
|
Height |
28 mm |
|
Weight |
292 g |
|
Certificates |
|
Certification |
CE
FCC
LVD |
