General Information |
|
Summary |
Travel Light. Surf Fast.
AX1500 Wi-Fi 6 Travel Router
Enjoy Flawless Connection Everywhere
TL-WR1502X, with its versatile modes including Router, USB Tethering, 3G/4G USB Modem, Hotspot, Access Point, Range Extender, and Client, enables flexible WiFi setup for homes, hotel stays, and travel.
Impressively Fast. Impossibly Light.

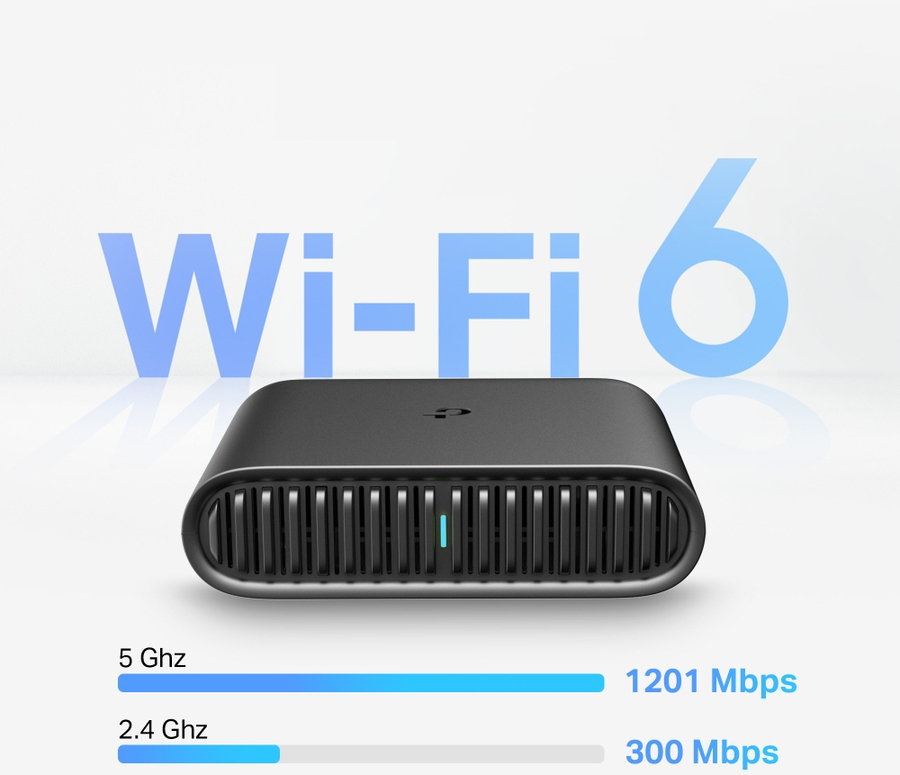

Merging WiFi 6 technology, TL-WR1502X delivers 1.5 Gbps Wi-Fi speeds for uninterrupted video streaming, downloading, and online gaming all at the same time.
24/7 Secure Surfing with VPN Encryption
VPN Clients and Server Supported
Supporting OpenVPN and WireGuard®, TL-WR1502X maintains your network's privacy and security, whether you're working remotely abroad or using public WiFi. This device can simultaneously run a VPN and regular internet connections, offering protection and flexibility.
Your Tacit Companion on the Road
Say Goodbye to Messy Files and Cable Clutter

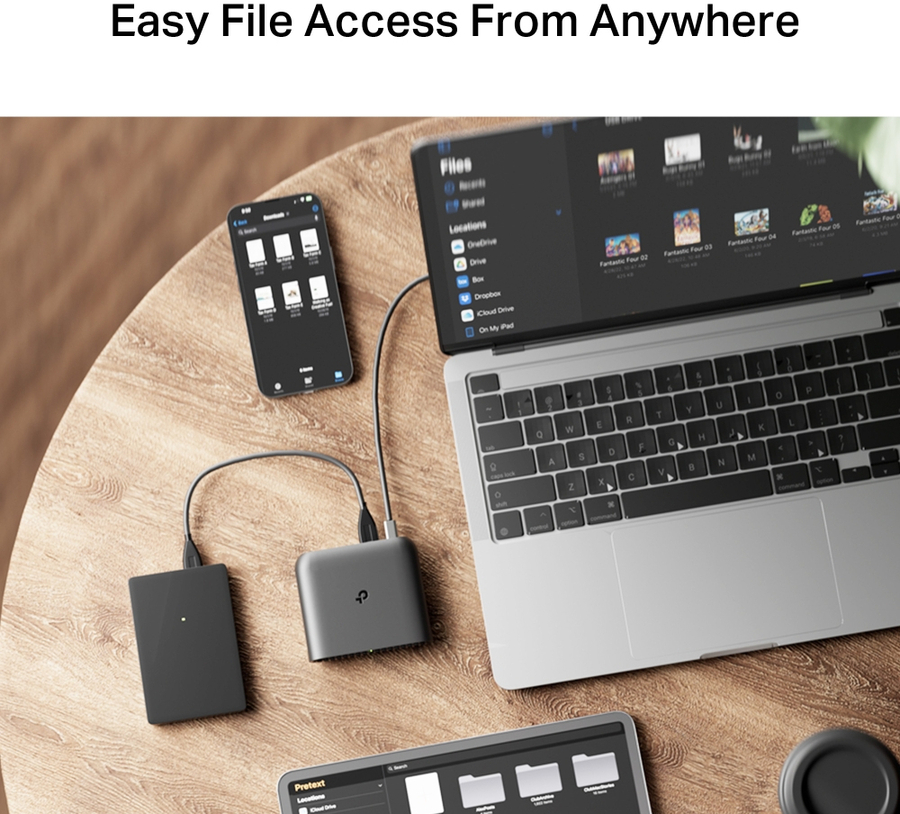

- Your Digital Filing Cabinet
By plugging into an external drive, keep all your important files in one secure hub accessible to every device on your network.

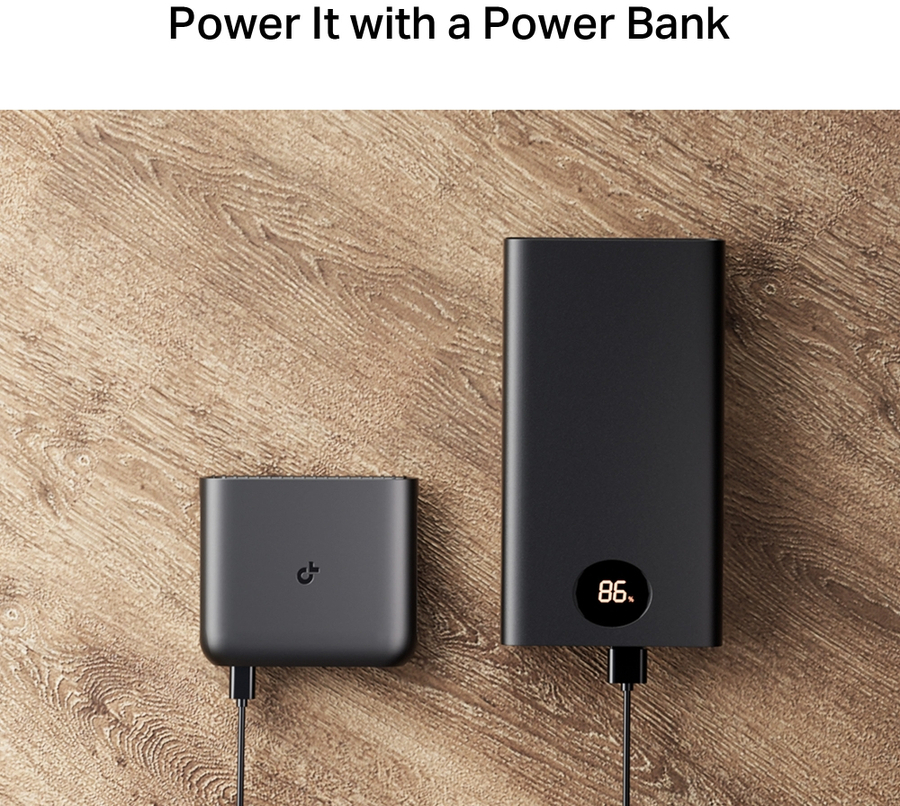

- Your Flexible Mobile Router
The Type-C interface let you flexibly turn it into a mobile router with a power bank. And, you can charge other devices with the same cable you use to charge the router. |
|
WAN connection |
|
Ethernet WAN |
Yes |
|
DSL WAN |
No |
|
3G/4G USB modem compatibility |
Yes |
|
Wireless LAN features |
|
Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
WLAN data transfer rate (max) |
1500 Mbit/s |
|
Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
|
WLAN data transfer rate (first band) |
300 Mbit/s |
|
WLAN data transfer rate (second band) |
1201 Mbit/s |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet LAN interface type |
Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Port forwarding |
Yes |
|
Port triggering |
Yes |
|
Dynamic DNS (DDNS) |
Yes |
|
Number of guest networks (2.4 GHz) |
1 |
|
Number of guest networks (5 GHz) |
1 |
|

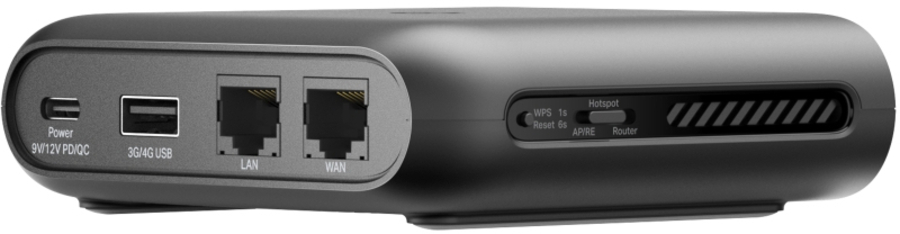

Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB port |
Yes |
|
USB 2.0 ports quantity |
1 |
|
Management features |
|
Web-based management |
Yes |
|
Quality of Service (QoS) support |
Yes |
|
WPS push button |
Yes |
|
Security |
|
Security algorithms |
WPA-Enterprise, WPA2-Enterprise, WPA2-PSK, WPA3-Personal |
|
Firewall |
Yes |
|
Firewall security |
SPI Firewall |
|
Access Control List (ACL) |
Yes |
|
Protocols |
|
DHCP client |
Yes |
|
DHCP server |
Yes |
|
Universal Plug and Play (UPnP) |
Yes |
|
Design |
|
Product type |
Portable router |
|
Product colour |
Black |
|
Indication light |
Yes |
|
Antenna |
|
Antenna design |
Internal |
|
Power |
|
Power source type |
USB |
|
Output voltage |
12 V |
|
Output current |
1.5 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 60 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
104 mm |
|
Depth |
90 mm |
|
Height |
28 mm |
|
Packaging data |
|
Package type |
Box |
