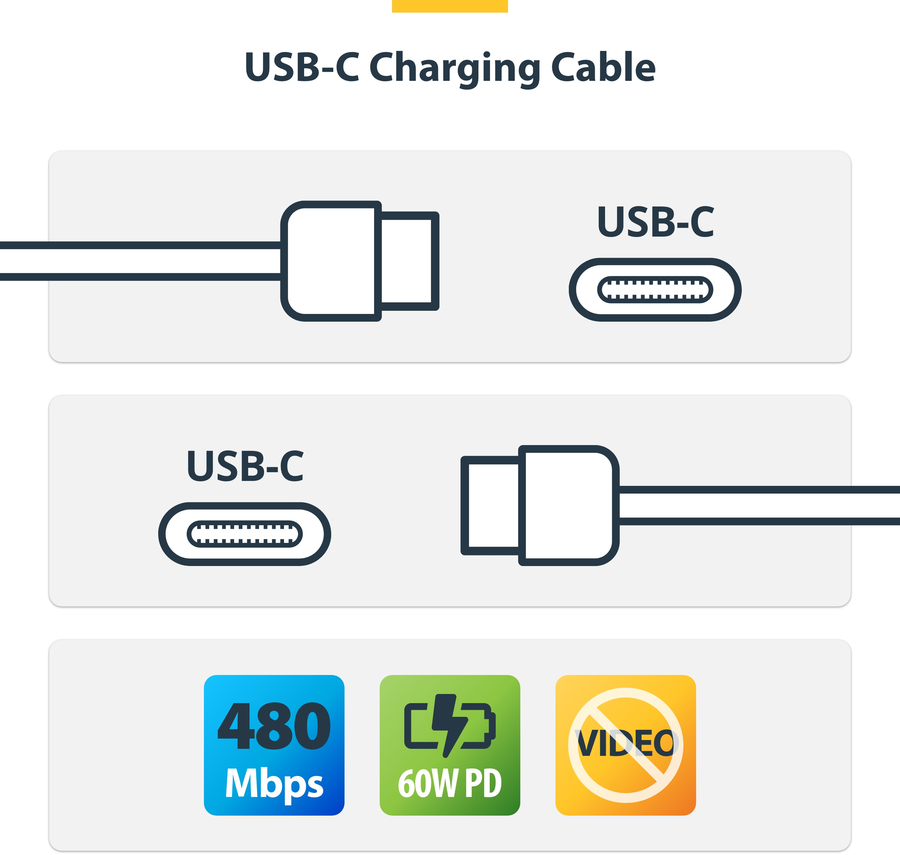

Connect a USB Type-C device to a USB-C wall charger or host computer
Seamlessly charge a USB Type-C mobile device or transfer files to a USB-C host computer with this high-quality USB-C cable. The USB-C charger cord facilitates up to 60W Power Delivery and 3A output for fast charging. It supports USB 2.0 (480Mbps) transfer rates and is suitable for general use.
Quality Construction

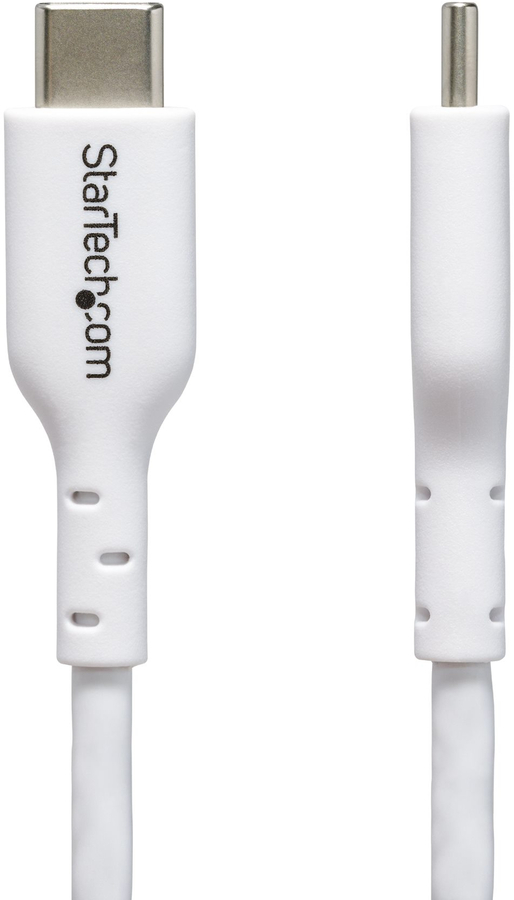

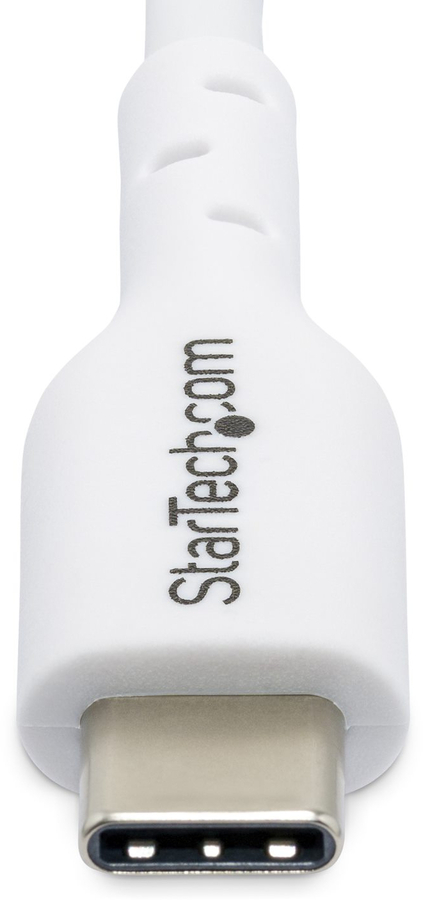

Designed for frequent charging, the USB-C Charger Cable features a rugged TPE outer jacket for increased wear resistance. Its flexible strain relief and nickel-plated connectors are designed to withstand over 10,000 insertion cycles, enhancing its durability and longevity.
Charge Mobile Devices On The Go

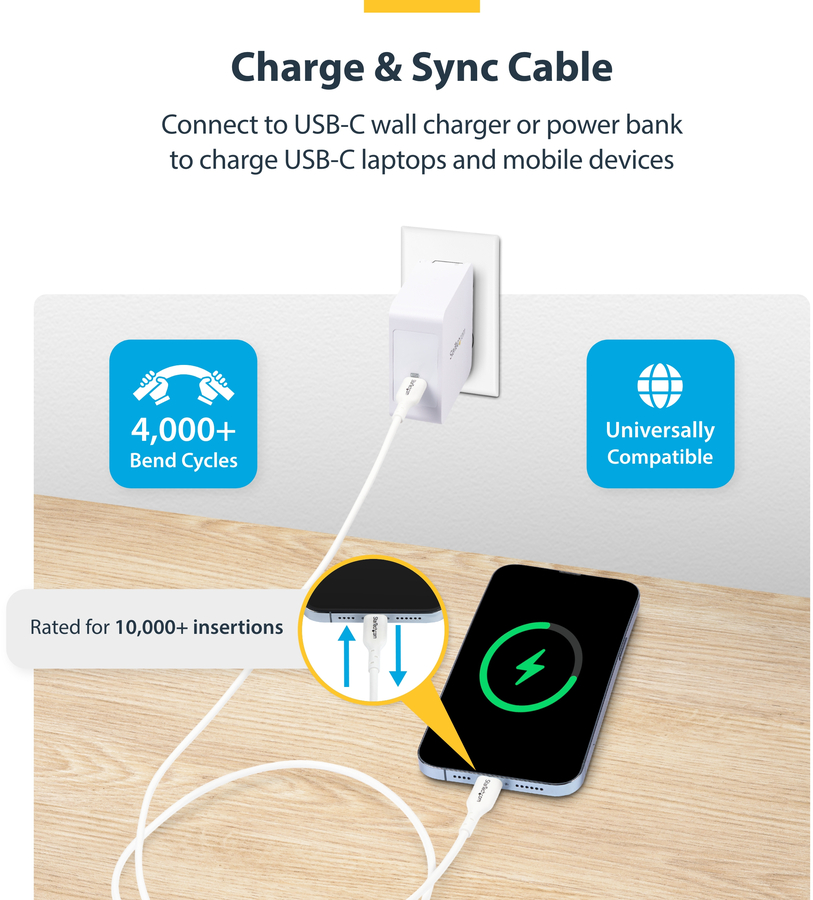

Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 3m (10ft) USB Type-C cable is the ideal length for charging where extra reach is required.
Power a Laptop

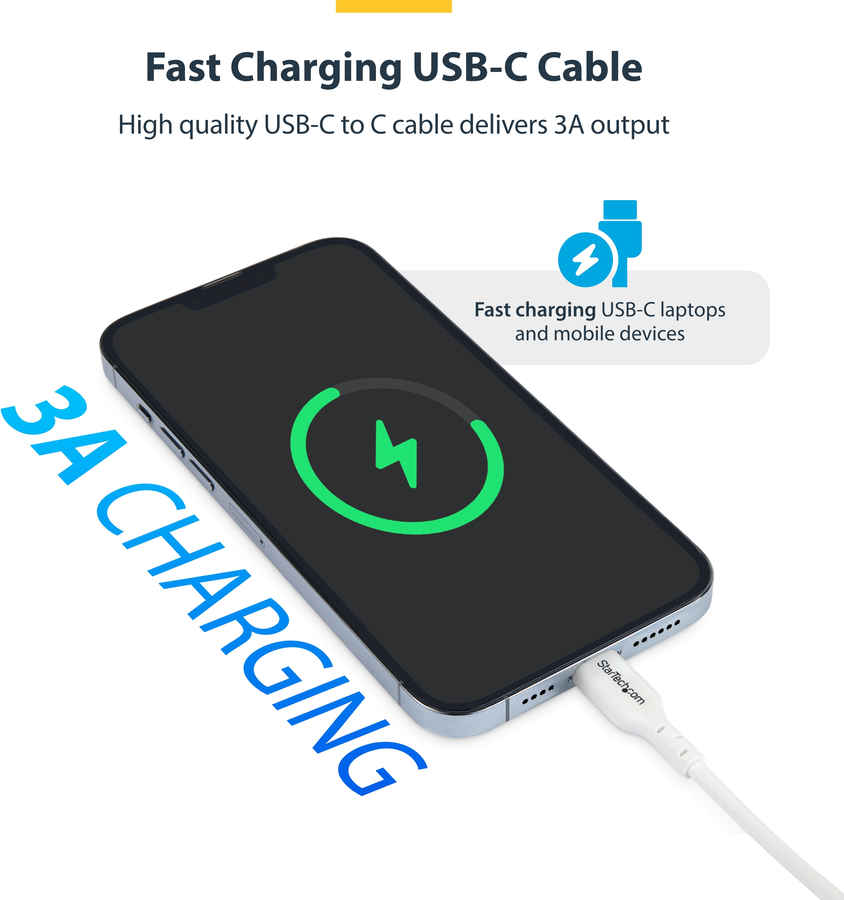

With up to 3A of output, the USB-C Charger Cord supports up to 60W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.
The StarTech.com Advantage
|
|
Features |
|
USB version |
USB 2.0 |
|
Connector 1 |
USB C |
|
Connector 2 |
USB C |
|
Connector 1 gender |
Male |
|
Connector 2 gender |
Male |
|
Product colour |
White |
|
Connector 1 form factor |
Straight |
|
Connector 2 form factor |
Straight |
|
AWG wire size |
24/30 |
|
Connector contacts plating |
Nickel |
|
Cable jacket material |
Thermoplastic elastomer (TPE) |
|
Cable shielding |
Aluminum mylar foil |
|
Maximum data transfer rate |
0.48 Gbit/s |
|
Cable type |
Round cable |
|
Plug and Play |
Yes |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
2.0 |
|
USB Power Delivery up to |
60 W |
|
Power |
|
Input voltage |
20 V |
|
Input current (max) |
3 A |
|
Weight & dimensions |
|

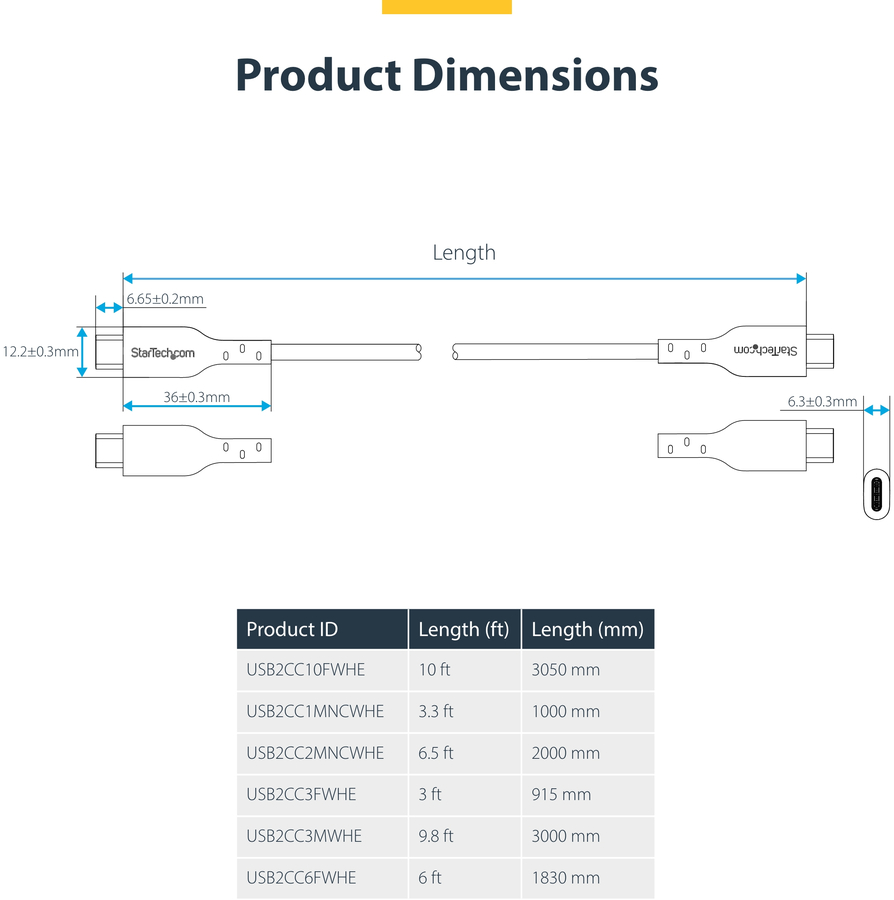

Cable length |
3 m |
|
Cable diameter |
3.5 mm |
|
Bend radius (min) |
8 mm |
|
Packaging data |
|
Package width |
220 mm |
|
Package depth |
200 mm |
|
Package height |
20 mm |
|
Package weight |
90 g |
|
Packaging content |
|
Quantity per pack |
1 pc(s) |
|
Sustainability |
|
Doesn't contain |
Halogen |
|
Operational conditions |
|
Operating temperature (T-T) |
-10 - 60 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Logistics data |
|
Products per master (outer) case |
60 pc(s) |
|
Master (outer) case width |
500 mm |
|
Master (outer) case length |
320 mm |
|
Master (outer) case height |
210 mm |
