General Information |
|
Summary |

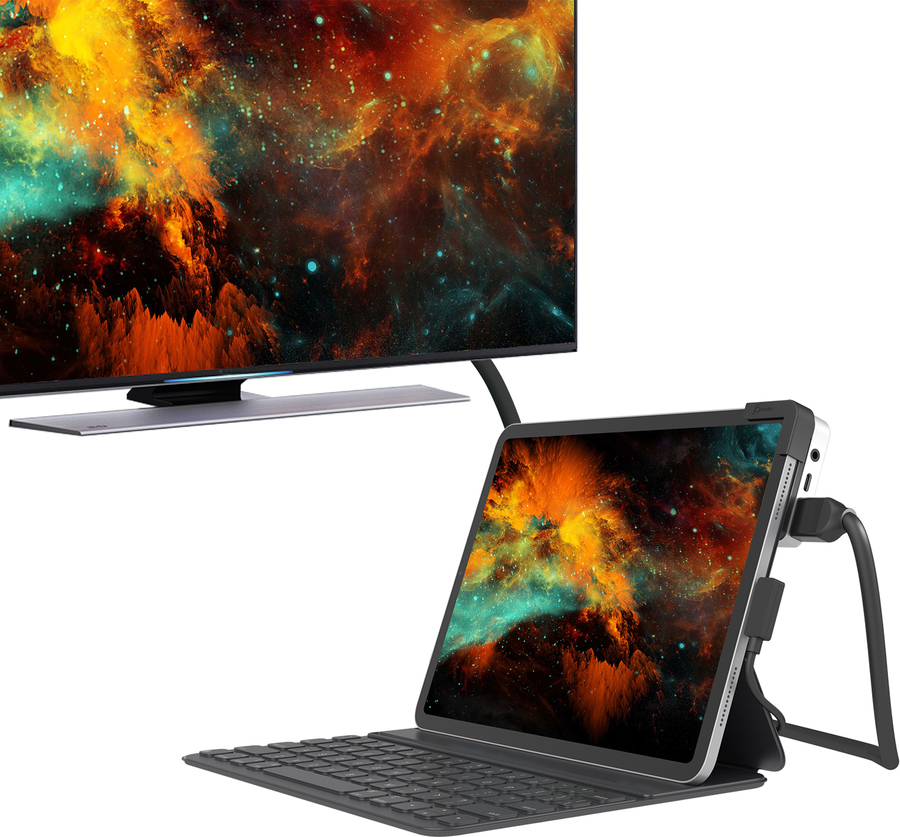

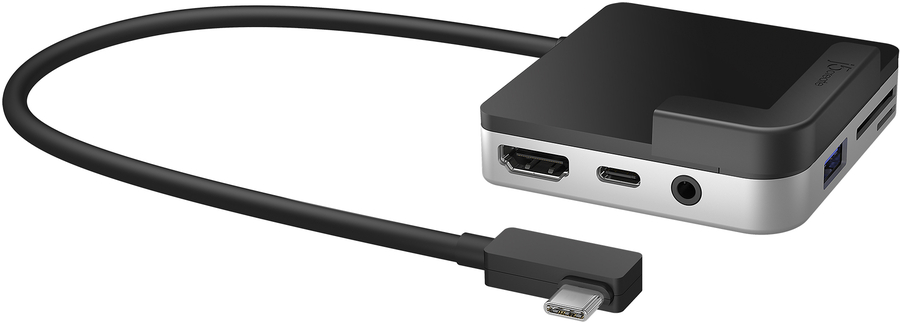

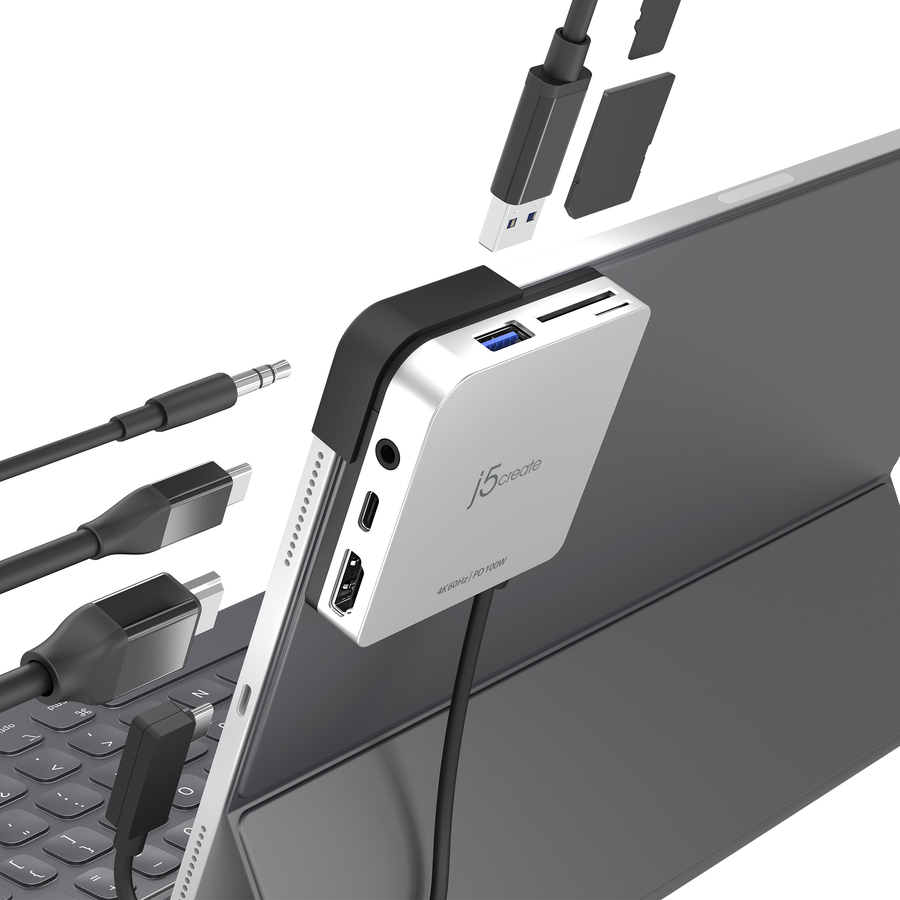

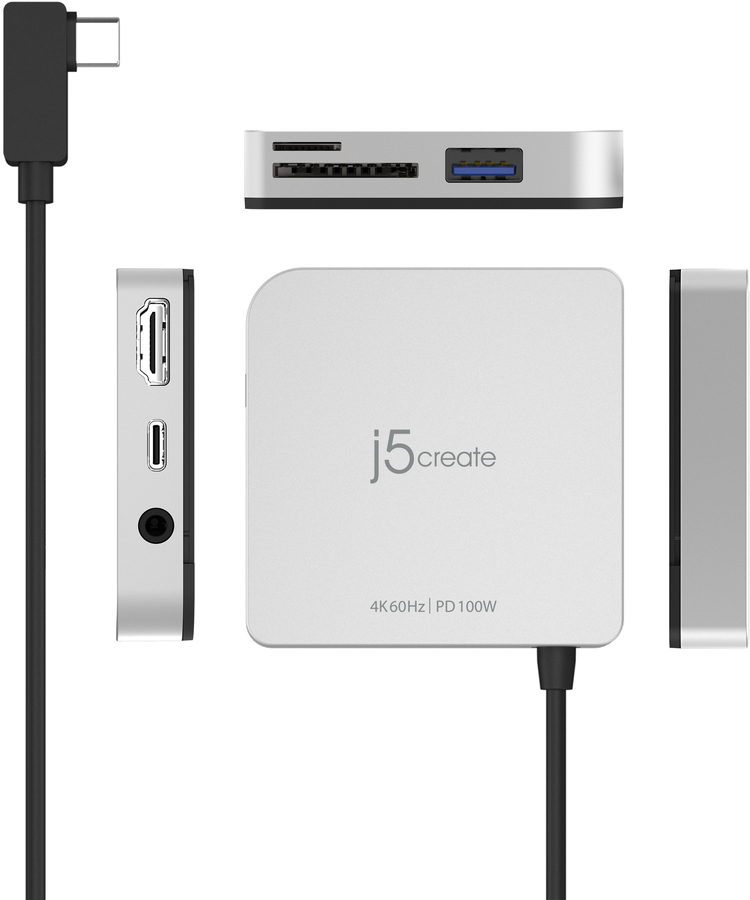

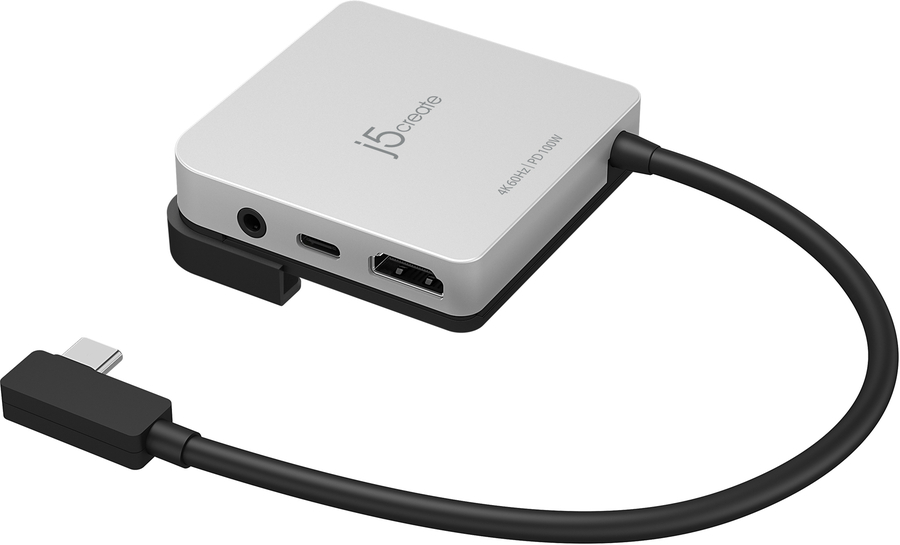

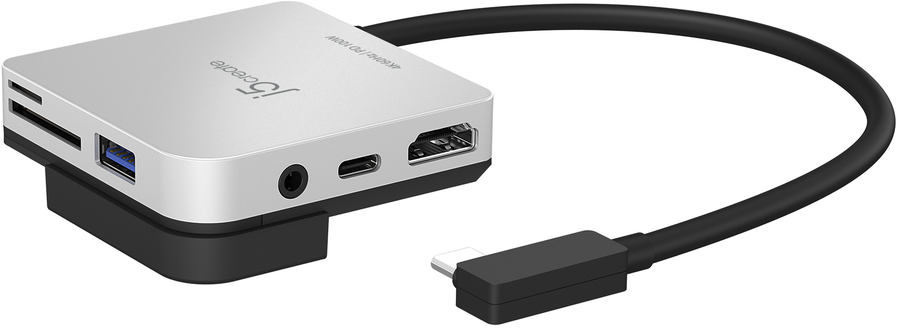

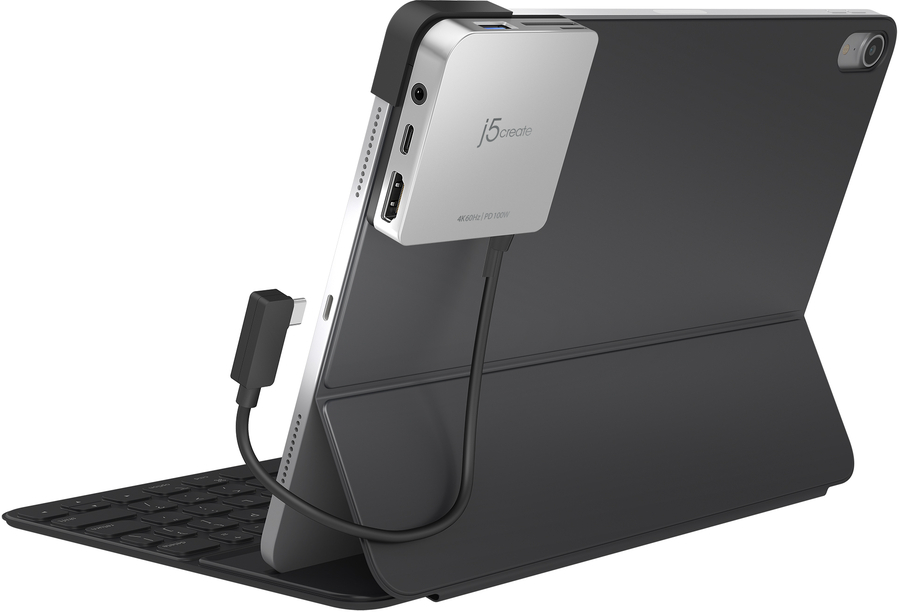

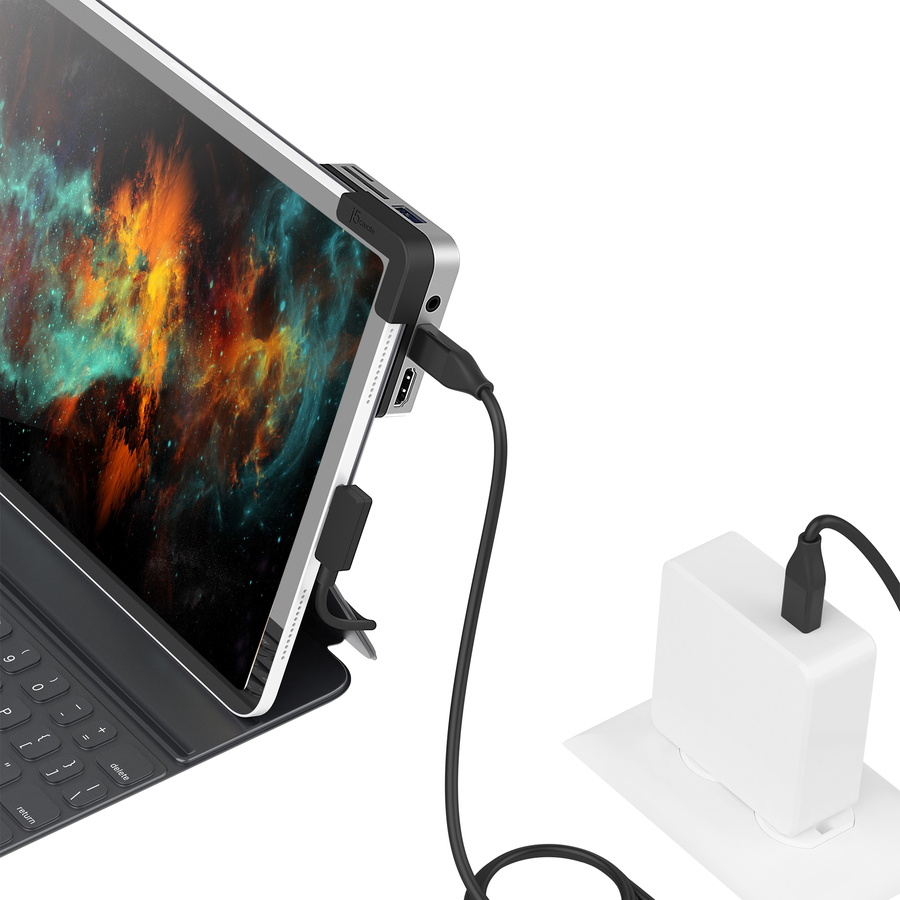

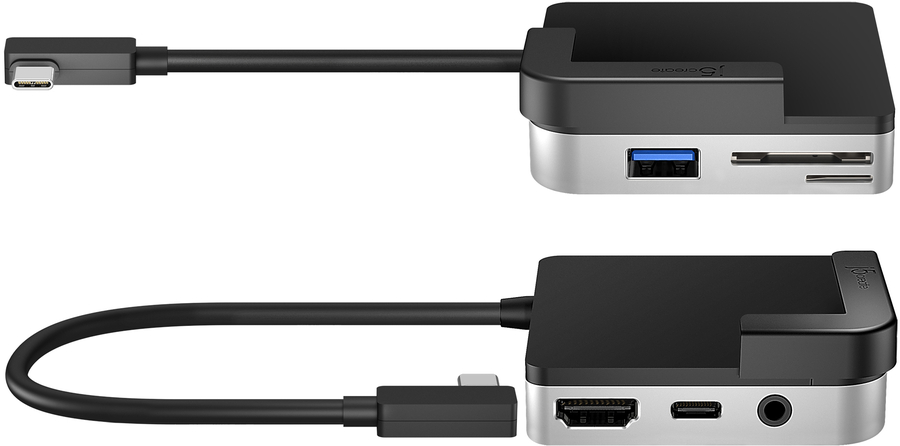

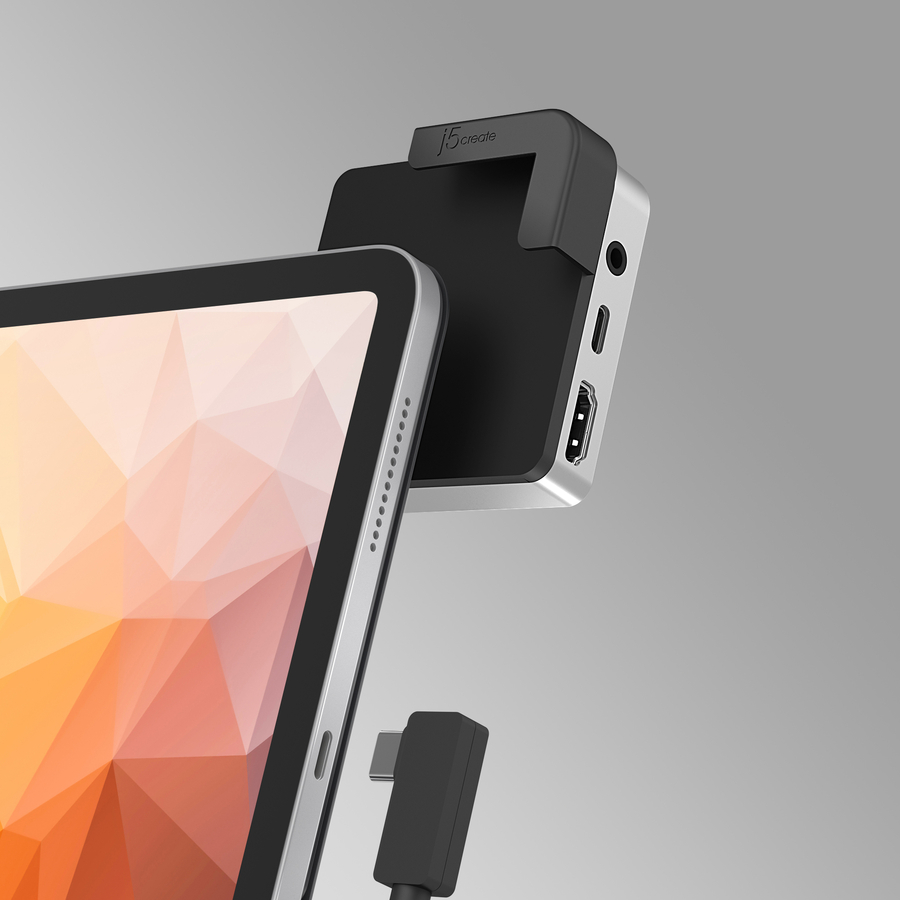

The JCD612 USB-C™ to 4K60 Hz HDMI™ Travel Dock for iPad Pro® provides extra connectivity for your USB-C™ Apple® computer. This pocket-sized multi-adapter allows you to add an additional USB™ 2.0/3.0/3.1 computer peripheral, HDMI™ monitor, SD™ card reader, and a 3.5 mm audio jack through your computer’s USB-C™ port. |
|
Performance |
|
Basic device type |
Tablet |
|
Brand compatibility |
Apple |
|
Compatibility |
iPad Pro® 11
iPad Pro® 12.9" (3rd & 4th Generation)
MacBook Pro® (15" 2017 & later)
iMac® (Retina 5K 27" 2017 & later)
iMac® (Retina 4K 21.5" 2017 & later)
iMac Pro® 2018 |
|
Product colour |
Black, Silver |
|
Material |
Aluminium |
|
Maximum refresh rate |
60 Hz |
|
Maximum resolution |
3840 x 2160 pixels |
|
HD type |
4K Ultra HD |
|
Data transfer rate |
5 Gbit/s |
|
Card reader integrated |
Yes |
|
Compatible memory cards |
MicroSD (TransFlash), SD |
|
Windows operating systems supported |
Yes |
|
Mac operating systems supported |
Yes |
|
Network |
|
Bluetooth |
No |
|
Ports & interfaces |
|
Docking connector type |
USB Type-C |
|
USB hub |
Yes |
|
Audio output |
Yes |
|
HDMI |
Yes |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
|
USB Type-C ports quantity |
1 |
|
USB Power Delivery (USB PD) |
Yes |
|
USB Power Delivery revision |
3.0 |
|
USB Power Delivery up to |
100 W |
|
Combo headphone/mic port |
Yes |
|
HDMI connector type |
Full-size |
|
HDMI ports quantity |
1 |
|
Power |
|
Power source type |
USB |
|
Power consumption (max) |
2.25 W |
|
DC output current |
0.45 A |
|
DC input voltage |
5 V |
|
Weight & dimensions |
|
Width |
66 mm |
|
Depth |
66 mm |
|
Height |
14.3 mm |
|
Weight |
61.5 g |
|
Cable length |
0.211 m |
|
Packaging data |
|
Quantity |
1 |
|
Package weight |
182.5 g |
|
Package type |
Box |
|
Package width |
155 mm |
|
Package depth |
95 mm |
|
Package height |
30.8 mm |
|
Packaging content |
|
Quick start guide |
Yes |
|
Quick start guide language |
Multi |
|
Packaging content |

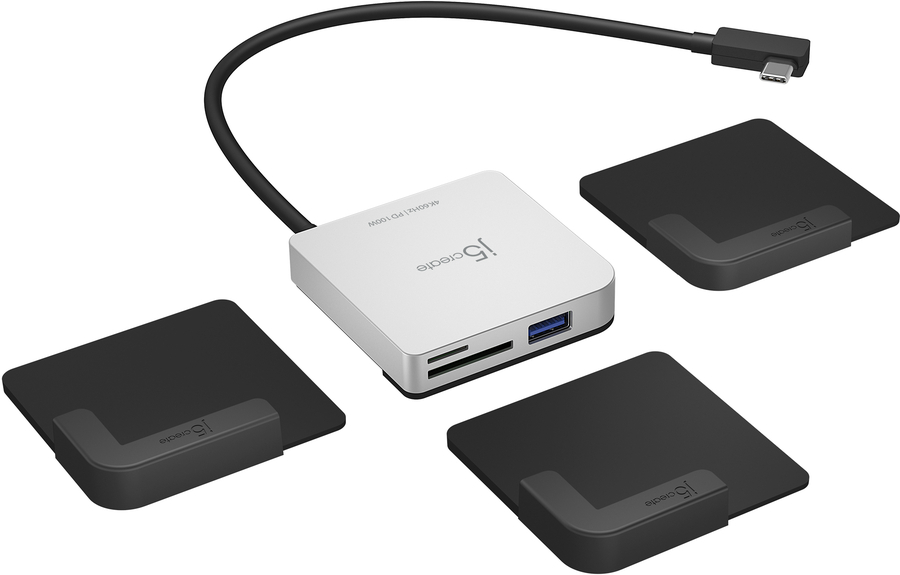

1 x JCD612, 3 x Removeable Pads, 1 x Quick Installation Guide |
|
Accessories included |

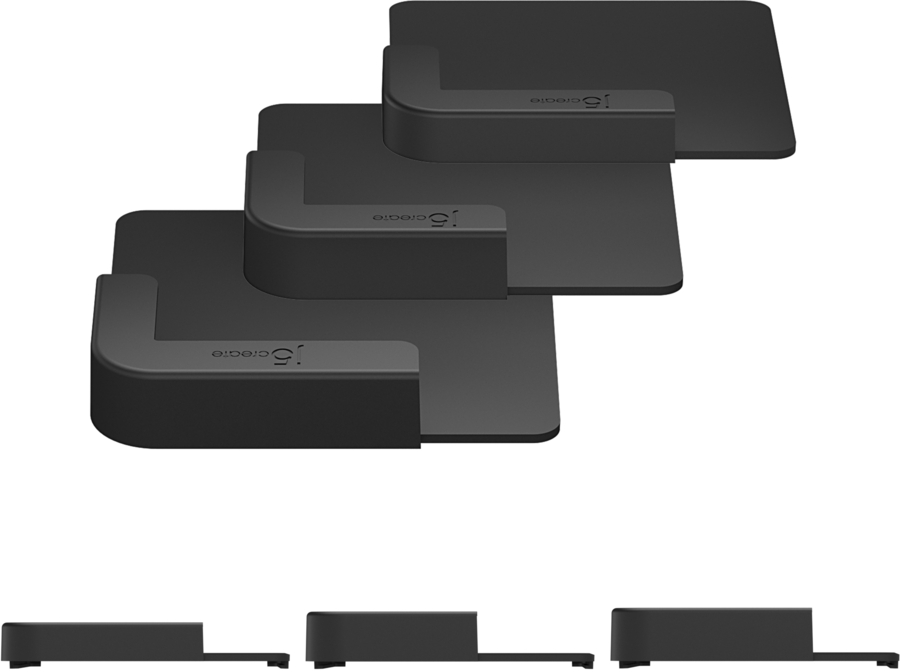

3 x Removable Pads |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-10 - 65 °C |
|
Operating relative humidity (H-H) |
0 - 85% |
|
Technical details |
|
USB ports quantity |
2 |
|
Warranty period |
2 year(s) |
|
Net weight inner carton |
1.1 kg |
|
Logistics data |
|
Master (outer) case GTIN (EAN/UPC) |
24712795085642 |
|
Products per master (outer) case |
24 pc(s) |
|
Master (outer) case width |
230 mm |
|
Master (outer) case length |
435 mm |
|
Master (outer) case height |
190 mm |
|
Master (outer) case gross weight |
5.25 kg |
|
Country of origin |
Taiwan |
|
Products per shipping (inner) case |
6 pc(s) |
|
Shipping (inner) case length |
21.8 cm |
|
Shipping (inner) case width |
10.3 cm |
|
Shipping (inner) case height |
16.5 cm |
|
Export Control Classification Number (ECCN) |
EAR99 |
