General Information |
|
Summary |

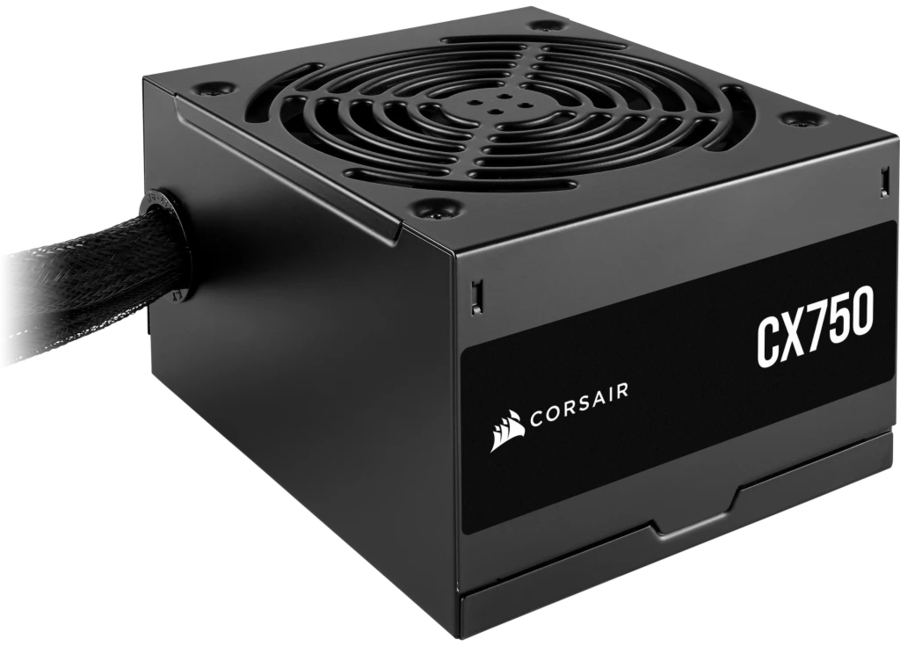

CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case.
80 PLUS BRONZE POWER
Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs.

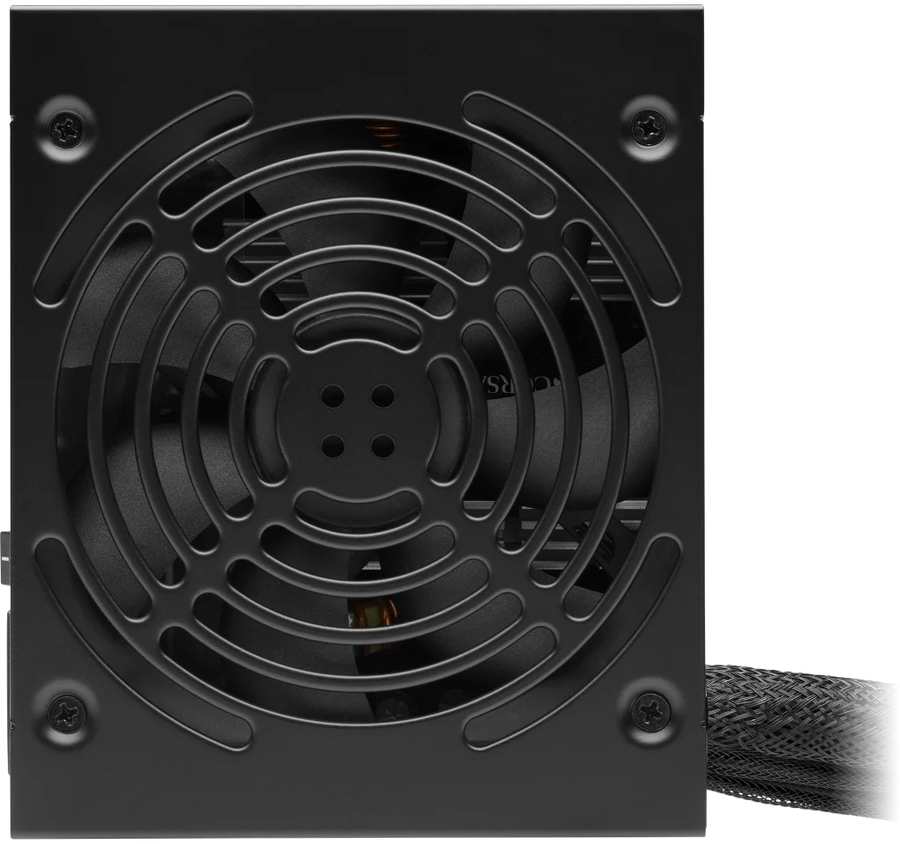

120mm LOW-NOISE FAN
Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads.
AN EASY FIT
A compact 125mm-long casing ensures an easy fit in almost all modern PC cases. |
|
Power |
|
Total power |
750 W |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
47 - 63 Hz |
|
Input current |
10 - 5 A |
|
Combined power (+3.3V) |
130 W |
|
Combined power (+12V) |
624 W |
|
Combined power (+5V) |
130 W |
|
Combined power (-12V) |
3.6 W |
|
Combined power (+5Vsb) |
15 W |
|
Max output current (+3.3V) |
24 A |
|
Max output current (+12V) |
52 A |
|
Max output current (+5V) |
20 A |
|
Max output current (-12V) |
0.3 A |
|
Max output current (+5Vsb) |
3 A |
|
Ports & interfaces |
|
Motherboard power connector |
24-pin ATX |
|
Peripheral (Molex) power connectors (4-pin) |
0 |
|
Motherboard power cable length |
60 cm |
|
Number of SATA power connectors |
8 |
|
Number of PATA power connectors |
2 |
|
EPS power connector (8-pin) |
Yes |
|
PCI Express power connectors (6+2 pin) |
1 |
|
Cabling type |
Non-Modular |
|
Performance |
|
Purpose |
PC |
|
Power supply unit (PSU) form factor |
ATX |
|
80 PLUS certification |
80 PLUS Bronze |
|
Design |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Fan diameter |
12 cm |
|
Number of fans |
1 fan(s) |
|
Fan location |
Top |
|
Weight & dimensions |
|
Width |
150 mm |
|
Depth |
125 mm |
