General Information |
|
Summary |

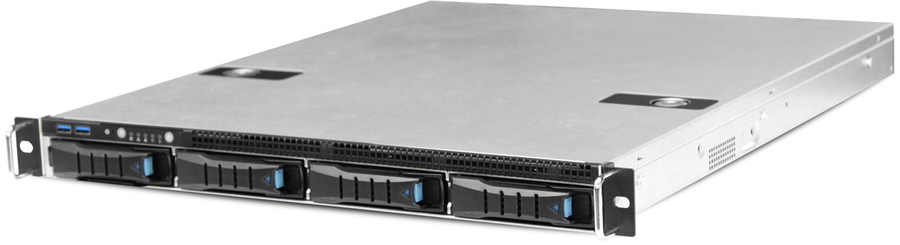

RSC-1DTS is a T-series 1U SAS/SATA storage server chassis supports external 4 x 12G 3.5" hot swap and internal 4 x 2.5" (9mm) drive bays. This environmentally friendly solution features high-efficiency power supply, SGCC pre-plated steel, tool-less ball-bearing mounting rail, easy-swap PWM fans, and overall short depth, offering a cost-effective solution ideally suited for a broad range of applications, and especially space-concerned users. (Power supply is included. Motherboard is not included.)
• Tool-less design supports quick installation and easy maintenance:
- Tool-less 3.5” & 2.5” drive trays
- Tool-less slide rail
• Supports 4 x 12G 3.5” hot swap drive bays
• Supports single and redundant power supplies
• Supports 1 full height expansion slot
• Two front access USB 3.0 ports |
|
Design |
|
Chassis type |
Rack (1U) |
|
Product colour |
Black |
|
Number of fans |
4 fan(s) |
|
Storage |
|
Storage drives installed |
Yes |
|
Installed storage drive type |
SSD |
|
Number of storage drives installed |
4 |
|
Storage drive interface |
Serial ATA, Serial Attached SCSI (SAS) |
|
Total installed storage capacity |
12 GB |
|
Supported storage drive types |
SSD |
|
Number of storage drives supported |
4 |
|
Storage drive size |
2.5" |
|
Power |
|
Number of power supply units |
2 |
|
Number of main power supplies |
1 |
|
Redundant power supply (RPS) support |
Yes |
|
Number of redundant power supplies supported |
1 |
|
Weight & dimensions |
|
Width |
438 mm |
|
Depth |
560 mm |
|
Height |
43.5 mm |
|
Weight |
15.8 kg |
|
Package weight |
580 g |
|
Package depth |
856 mm |
|
Package width |
208 mm |
