General Information |
|
Summary |

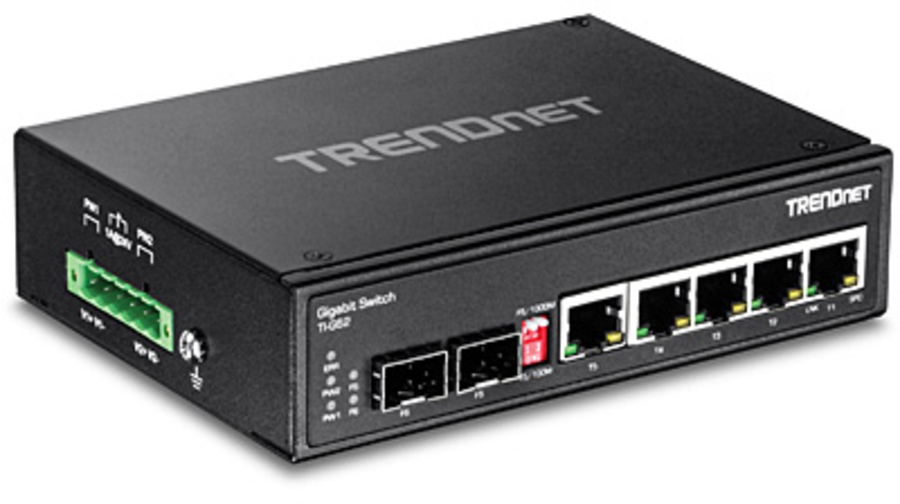

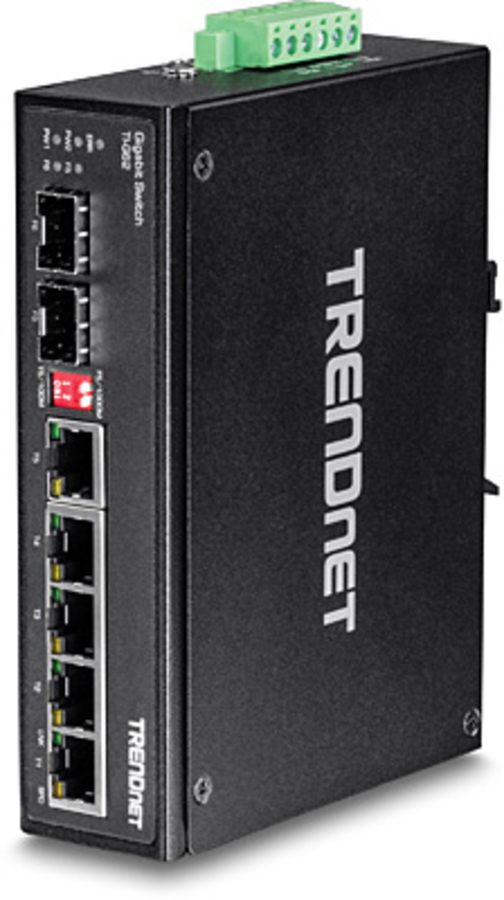

6-Port Hardened Industrial Gigabit DIN-Rail Switch. TRENDnet's TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. |
|
Management features |
|
Switch type |
Unmanaged |
|
Switch layer |
L2 |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Combo SFP ports quantity |
1 |
|
SFP module slots quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab |
|
10G support |
No |
|
Full duplex |
Yes |
|
Flow control support |
Yes |
|
Data transmission |
|
MAC address table |
2048 entries |
|
Switching capacity |
12 Gbit/s |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Design |
|
Product colour |
Black |
|
Housing material |
Metal |
|
LED indicators |
Yes |
|
International Protection (IP) code |
IP30 |
|
Wall mountable |
Yes |
|
Performance |
|
Buffer size |
1024 KB |
|
Mean time between failures (MTBF) |
510304 h |
|
Power |
|
Redundant power supply (RPS) support |
Yes |
|
Power consumption (max) |
3.84 W |
|
Power over Ethernet (PoE) |
|
Power over Ethernet (PoE) |
No |
|
Operational conditions |
|
Operating temperature (T-T) |
-40 - 75 °C |
|
Weight & dimensions |
|
Width |
143 mm |
|
Depth |
104 mm |
|
Height |
36 mm |
|
Weight |
514 g |
|
Packaging content |
|
Quick start guide |
No |
|
Packaging data |
|

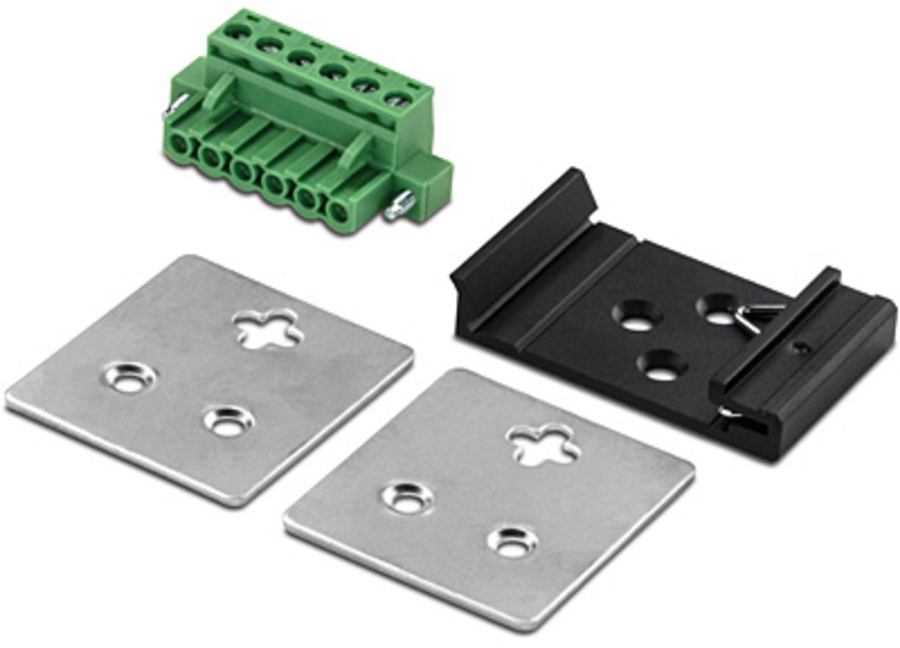

Wall mounting kit |
Yes |
|
Terminal block included |
Yes |
|
Certificates |
|
Certification |
FCC
CE |
|
Logistics data |
|
Harmonized System (HS) code |
85176990 |
