Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1700 |
|
Compatible processor series |
Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen |
|
Supported processor sockets |
LGA 1700 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Memory slots type |
DIMM |
|
Memory voltage |
1.1 V |
|
ECC сompatibility |
Non-ECC |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
|
Number of SATA III connectors |
14 |
|
ATX Power connector (24-pin) |
Yes |
|
Peripheral (Molex) power connectors (4-pin) |
1 |
|
TPM connector |
Yes |
|

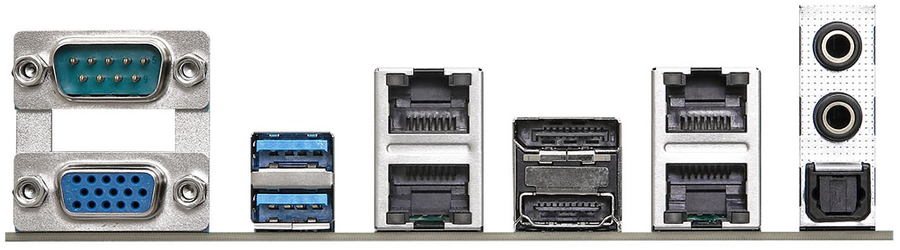

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
4 |
|
HDMI ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
COM ports quantity |
1 |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Features |
|
Motherboard form factor |
ATX |
|
PC health monitoring |
CPU, Fan |
|
Compatible operating systems |
Microsoft Windows
- Windows 10 (64 bit)
- Windows 11 (64 bit)
Linux
- RedHat Enterprise Linux Server 8.5 (64 bit)
- CentOs 8.5 (64 bit)
- SUSE SLES 1502 (64 bit)
- UBuntu 21.10 (64 bit) |
|
Expansion slots |
|
PCI Express x4 (Gen 4.x) slots |
2 |
|
PCI Express x8 (Gen 5.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
2.8 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
305 mm |
|
Depth |
244 mm |
