Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 4677 (Socket E) |
|
Compatible processor series |
Intel® Xeon® |
|
Supported processor sockets |
LGA 4677 (Socket E) |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
16 |
|
Memory voltage |
1.1 V |
|
Supported memory clock speed (max) |
5600 MHz |
|
Graphics |
|
On-board graphics card model |
Aspeed AST2600 |
|
Internal I/O |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
4 |
|
ATX Power connector (24-pin) |
Yes |
|
EPS power connector (8-pin) |
Yes |
|
TPM connector |
Yes |
|

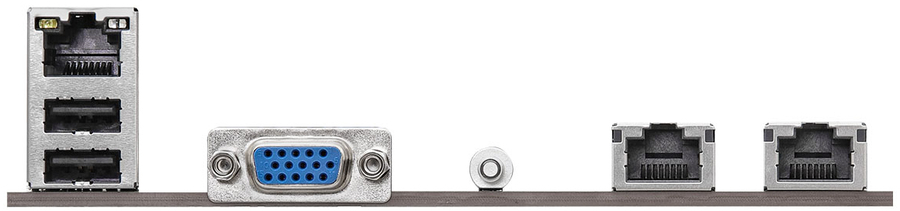

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
Network |
|
Wi-Fi |
No |
|
Ethernet LAN |
Yes |
|
Features |
|
Motherboard form factor |
EEB |
|
Motherboard chipset family |
Intel |
|
Compatible operating systems |
Microsoft® Windows®
- Server 2022 (64 bit)
Linux
- Red Hat Enterprise Linux Server 8.4 ( 64 bit) / 8.5 ( 64 bit)
- SUSE Enterprise Linux Server 15 SP3 ( 64 bit)
- Ubuntu 21.10 (64 bit) / 22.04.2 ( 64 bit)
Hypervisor:
- VMWare® ESXi 7.0 U3g / 8.0 |
|
Expansion slots |
|
PCI Express x8 (Gen 5.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
5 |
|
PCI Express OCuLink connectors (NVMe support) |
3 |
|
Number of M.2 (M) slots |
1 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
512 Mbit |
|
ACPI version |
4.0 |
|
System Management BIOS (SMBIOS) version |
3.4 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
307 mm |
|
Depth |
337.8 mm |
