General Information |
|
Summary |

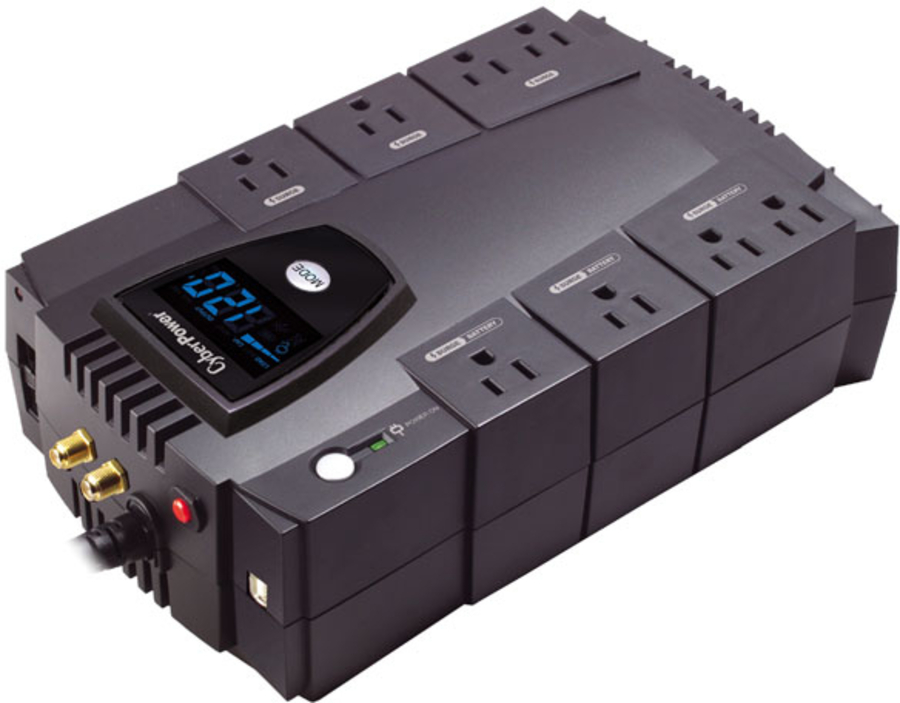

825VA/450W UPS 8 x NEMA 515R OUTLETS, AVR, LCD, 3 YR WTY |
|
Features |
|
UPS topology |
Line-Interactive |
|
Output power capacity |
0.825 kVA |
|
Output power |
450 W |
|
Input frequency |
60 Hz |
|
Surge energy rating |
1030 J |
|
Response time |
4 ms |
|
Audible alarm(s) |
Yes |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
1 |
|
Modem (RJ-11) ports |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
Battery |
|
Battery technology |
Sealed Lead Acid (VRLA) |
|
Typical backup time at full load |
2 min |
|
Typical backup time at half load |
8 min |
|
Battery recharge time |
8 h |
|
Replacement battery cartridge |
BB - HR1234W |
|
Design |
|
Form factor |
Compact |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-15 - 45 °C |
|
Operating relative humidity (H-H) |
0 - 95% |
|
Certificates |
|
Certification |
UL1778, cUL 107.1, FCC DOC Class B |
|
Weight & dimensions |
|
Weight |
6.35 kg |
|
Other features |
|
Output connections |
NEMA 5-15R |
|
Input connection type |
NEMA 5-15P |
|
Dimensions (WxDxH) |
279.4 x 89 x 165 mm |
|
Operating temperature (T-T) |
32 - 95 °F |
|
Weight (imperial) |
6.35 kg (14 lbs) |
|
Dimensions (W x D x H) (imperial) |
279.4 x 88.9 x 165.1 mm (11 x 3.5 x 6.5") |
