General Information |
|
Summary |

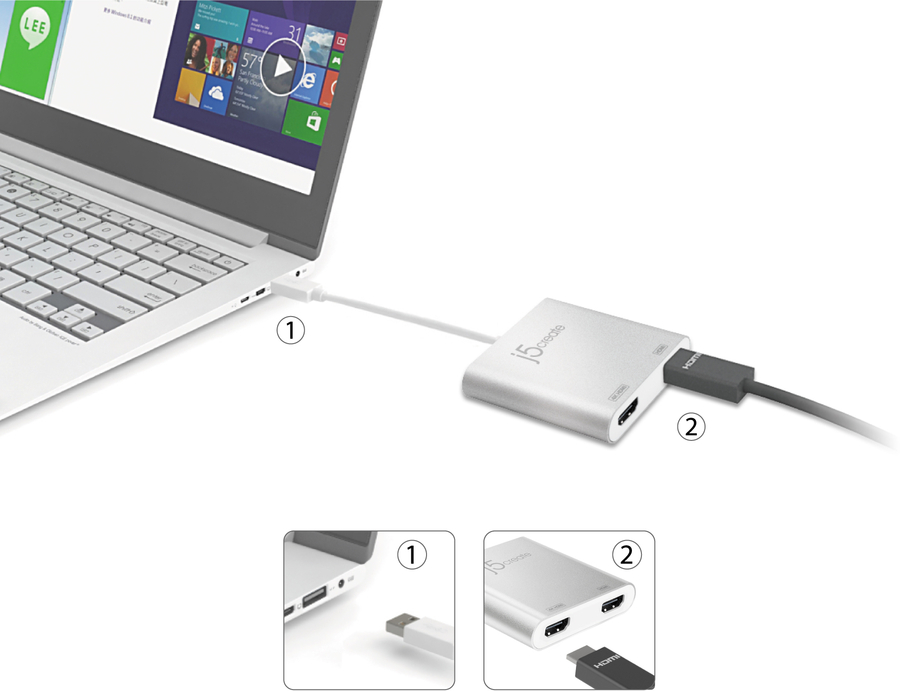

The JUA365 USB 3.0 to Dual HDMI Multi-Monitor Adapter acts as an external video card for your Mac or PC. It allows you to add an additional monitor/display through your USB 3.0 port. There's no need to open your computer to add an expensive video card. With the USB 3.0 to Dual HDMI Multi-Monitor Adapter you simply load the drivers, plug the adapter into the USB port, then plug in the HDMI monitor cable into the adapter and you are ready. The Adapter supports three viewing modes. Primary Mode allows you to have individual applications open on each monitor, vastly improving productivity. Extended Mode allows you to extend your desktop across multiple displays, which is great for spreadsheets. Mirroring mode is used to clone one screen onto another, which is ideal for presentations. With plug-and-play functionality between your computer and second monitor or projector, you will be able to create a new visual environment in seconds.
In addition, j5create has developed this compact design to cater to the sophisticated user who values function as well as elegance. |
|
Performance |
|
USB version |
3.2 Gen 1 (3.1 Gen 1) |
|
DVI output |
No |
|
HDMI output |
Yes |
|
DisplayPort output |
No |
|
Number of displays supported |
2 |
|
USB connector type |
USB Type-A |
|
USB connector gender |
Male |
|
HDMI ports quantity |
2 |
|
Maximum resolution |
3840 x 2160 pixels |
|
Refresh rate at maximum resolution |
30 Hz |
|
Maximum resolution (HDMI) |
3840 x 2160 pixels |
|
Supported video modes |
2160p |
|
Mirror display mode |
Yes |
|
Extended display mode |
Yes |
|
Data transfer rate (max) |
5 Gbit/s |
|
Current |
0.4 A |
|
Resolution at refresh rate |
2K @ 60 Hz
4K @ 30 Hz |
|
Design |
|
Product colour |
Silver |
|
Housing material |
Aluminium |
|
Integrated USB cable |
Yes |
|
Power |
|
Power consumption (max) |
2 W |
|
Output voltage |
5 V |
|
System requirements |
|
Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Yes |
|
Mac compatibility |
Yes |
|
Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
|
Minimum processor speed |
2.8 GHz |
|
Minimum RAM |
2 TB |
|
Weight & dimensions |
|
Width |
68 mm |
|
Depth |
15 mm |
|
Height |
61 mm |
|
Weight |
84 g |
|
USB cable length |
0.2 m |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Packaging data |
|
Package width |
145 mm |
|
Package depth |
95 mm |
|
Package height |
25 mm |
|
Package weight |
126 g |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Batteries included |
No |
|
Packaging content |
1 x JUA365 USB 3.0 to Dual HDMI Multi-Monitor Adapter, 1 x Quick Installation Guide |
|
Technical details |
|
Warranty period |
2 year(s) |
|
Logistics data |
|
Products per master (outer) case |
20 pc(s) |
|
Master (outer) case GTIN (EAN/UPC) |
24712795081255 |
|
Master (outer) case width |
225 mm |
|
Master (outer) case length |
321 mm |
|
Master (outer) case height |
180 mm |
|
Master (outer) case gross weight |
3.2 kg |
|
Products per shipping (inner) case |
5 pc(s) |
|
Shipping (inner) case width |
10.5 cm |
|
Shipping (inner) case length |
15 cm |
|
Shipping (inner) case height |
16 cm |
|
Country of origin |
Taiwan |
|
Export Control Classification Number (ECCN) |
EAR99 |
