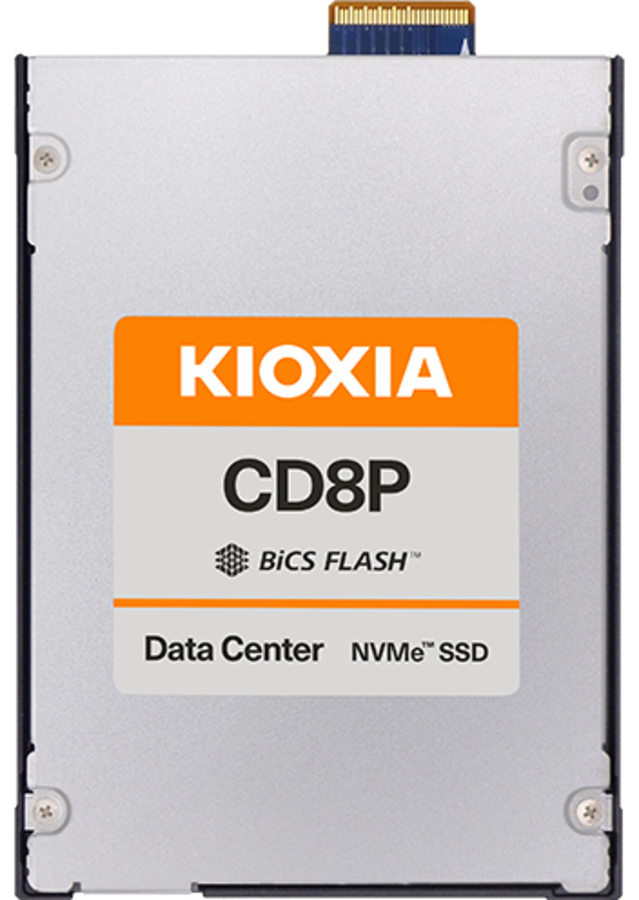

Kioxia KCD81PJE1T92 1.92TB E3.S PCIe5 CD8P-R SDF4305GEA 1DWPD Non-SED Bare SSD
|
|
Price: $611.00
Manufacturer:
Kioxia
1920 GB, E3.S CIe 5.0, NVMe 2.0, BiCS FLASH TLC, 12000 MB/s, 19 W
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59789253
|
KCD81PJE1T92
|
- |
Active
|
Details
|
General Information |
|
Summary |
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series 2.5-inch).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R E3.S form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB, making them well-suited for hyperscale data center applications. |
|
Features |
|
SSD capacity |
1.92 TB |
|
SSD form factor |
E3.S |
|
Interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
PC |
|
Hardware encryption |
Yes |
|
NVMe version |
2.0 |
|
Data transfer rate |
128 Gbit/s |
|
Random read (4KB) |
1600000 IOPS |
|
Random write (4KB) |
150000 IOPS |
|
Sequential read speed (ATTO) |
12000 MB/s |
|
Sequential write speed (ATTO) |
3500 MB/s |
|
Mean time between failures (MTBF) |
2500000 h |
|
Drive writes per day (DWPD) |
1 |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (max) |
18 W |
|
Weight & dimensions |
|
Width |
76 mm |
|
Depth |
112 mm |
|
Height |
7 mm |
|
Weight |
110 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 76 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1000 G |
|
Other features |
|
Warranty period |
5 year(s) |
|
