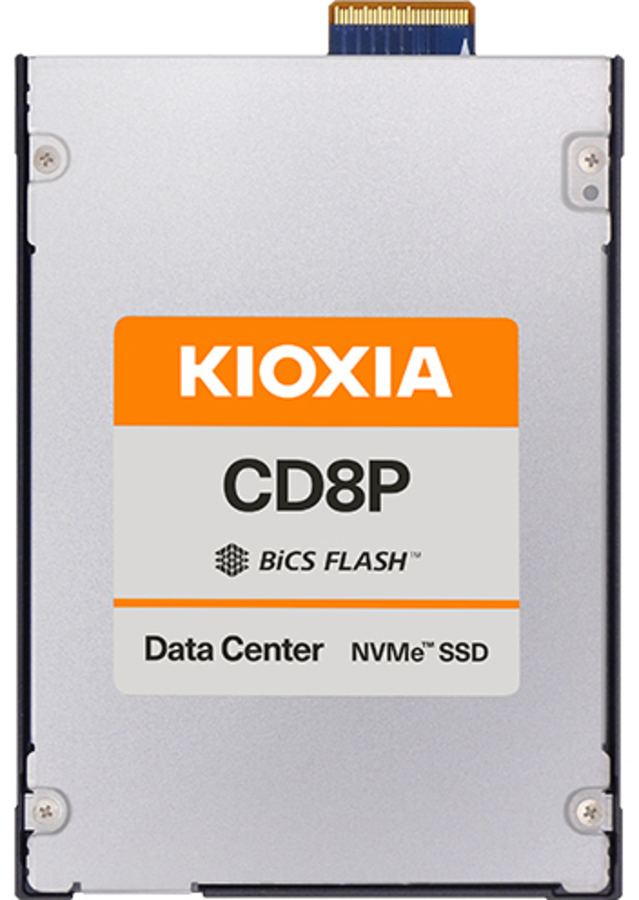

Kioxia KCD8XPJE1T60 1.6TB E3.S PCIe5 CD8P-R SDF4585GEB 3DWPD SIE Bare SSD
|
|
Price: $3286.00
Manufacturer:
Kioxia
1.6TB, E3.S, PCIe 5.0, NVMe 2.0, BiCS FLASH TLC
|
|
Availability
|
Ottawa Store: Inquire Online Here
National Warehouse (Shipping Availability):
Usually Ships in 24-48 Hours
|
|
|
|
| Product # |
Manufacturer # |
UPC # |
Status |
|
59789267
|
KCD8XPJE1T60
|
8592978521103 |
Active
|
Details
|
General Information |
|
Summary |
Data Center NVMe™ Mixed Use SSD
KIOXIA CD8P-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-V Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 400K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-V Series 2.5-inch).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-V E3.S form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB, making them well-suited for hyperscale data center applications. |
|
Features |
|
SSD capacity |
1.6 TB |
|
SSD form factor |
E3.S |
|
Interface |
PCI Express 5.0 |
|
NVMe |
Yes |
|
Memory type |
BiCS FLASH TLC |
|
Component for |
Server/workstation |
|
NVMe version |
2.0 |
|
Target workload |
Mixed Use (MU) |
|
Random read (4KB) |
1600000 IOPS |
|
Random write (4KB) |
300000 IOPS |
|
H/W PLP function |
Yes |
|
End-to-End Data Protection |
Yes |
|
Mean time between failures (MTBF) |
2500000 h |
|
Drive writes per day (DWPD) |
3 |
|
Protection features |
Shock resistant, Vibration proof |
|
Power |
|
Operating voltage |
12 V |
|
Power consumption (max) |
18 W |
|
Power consumption (standby) |
5 W |
|
Weight & dimensions |
|
Width |
69.8 mm |
|
Depth |
15 mm |
|
Height |
100.5 mm |
|
Weight |
130 g |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 76 °C |
|
Storage temperature (T-T) |
-40 - 85 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Operating vibration |
2.17 G |
|
Operating shock |
1000 G |
|
Other features |
|
Warranty period |
5 year(s) |
|
