Processor |
|
Processor manufacturer |
AMD |
|
Processor socket |
Socket SP6 |
|
Compatible processor series |
AMD EPYC |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
8 |
|
Memory slots type |
DIMM |
|
Memory voltage |
1.1 V |
|
Supported memory clock speeds |
4800 MHz |
|
Supported memory clock speed (max) |
4800 MHz |
|
Supported memory module capacities |
96GB |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, PCI Express 5.0, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Graphics |
|
Graphics card family |
ASPEED |
|
Graphics card |
AST2600 |
|
Internal I/O |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
Number of SATA III connectors |
16 |
|
Audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
Chassis intrusion connector |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
12V power connector |
Yes |
|

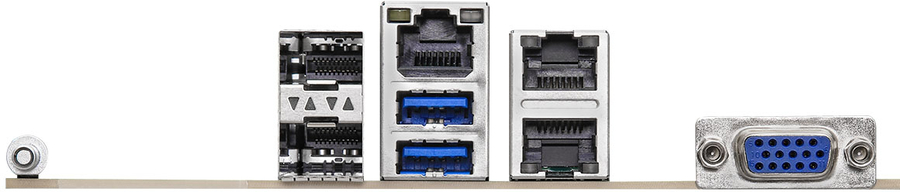

Rear panel I/O ports |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
VGA (D-Sub) ports quantity |
1 |
|
IPMI LAN (RJ-45) port |
Yes |
|
Network |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
25 Gigabit Ethernet, Gigabit Ethernet |
|
LAN controller |
Broadcom BCM57414, Intel I210 |
|
Features |
|
Component for |
Server |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
AMD |
|
Expansion slots |
|
PCI Express x8 (Gen 5.x) slots |
1 |
|
PCI Express x16 (Gen 5.x) slots |
2 |
|
Number of M.2 (M) slots |
2 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
ACPI version |
6.4 |
|
System Management BIOS (SMBIOS) version |
3.5 |
|
Operational conditions |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
243.8 mm |
|
Depth |
266.7 mm |
