General Information |
|
Summary |

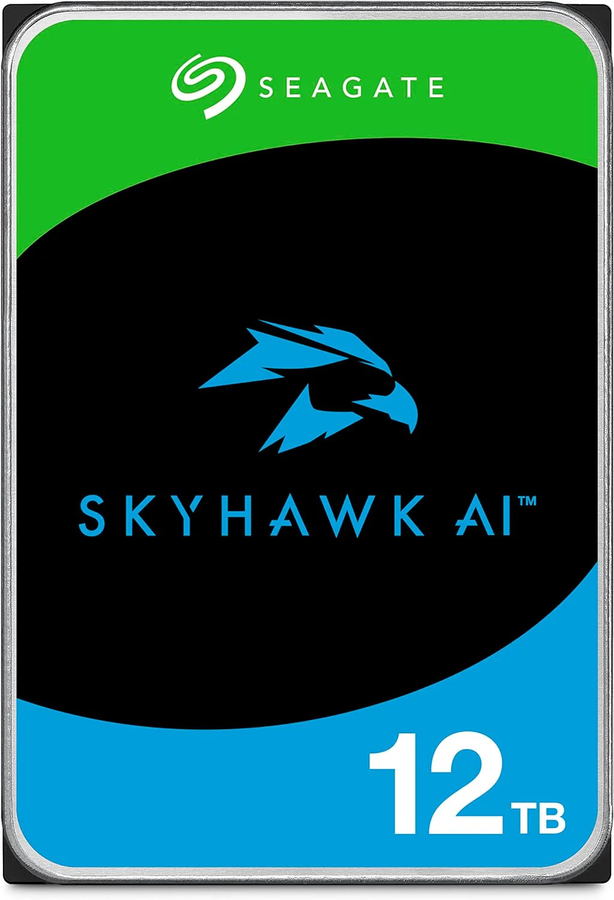

The Seagate SkyHawk AI ST12000VE003 hard drive is a reliable storage solution designed to meet the demands of continuous surveillance recording. With a 12 TB capacity, it provides ample space for largescale data storage, from video archives to critical backups. |
|
Features |
|
HDD capacity |
12 TB |
|
HDD speed |
7200 RPM |
|
HDD size |
3.5" |
|
Interface |
Serial ATA III |
|
Type |
HDD |
|
Component for |
Surveillance system |
|
Storage drive buffer size |
512 MB |
|
HDD interface transfer rate |
6 Gbit/s |
|
HDD sustained transfer rate |
260 MiB/s |
|
Uncorrectable Bit Error Rate (UBER) |
< 1 per 10^15 bits read |
|
Rotational Vibration (RV) sensors |
Yes |
|
Number of AI channels |
32 |
|
Start/stop cycles |
600000 |
|
Mean time between failures (MTBF) |
2000000 h |
|
Power |
|
Power consumption (typical) |
7.72 W |
|
Power consumption (standby) |
1 W |
|
Power consumption (idle) |
3.5 W |
|
Operating voltage |
5 / 12 V |
|
Start-up current |
2 A |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 65 °C |
|
Weight & dimensions |
|
Width |
101.8 mm |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Weight |
680 g |
|
Logistics data |
|
Products per pallet layer |
8 pc(s) |
|
Harmonized System (HS) code |
84717050 |
|
Master (outer) cases per pallet |
40 pc(s) |
|
Products per master (outer) case |
20 pc(s) |
|
Other features |
|
Maximum number of cameras supported |
64 |
