General Information |
|
Summary |
2x Fans. 2x Fun.

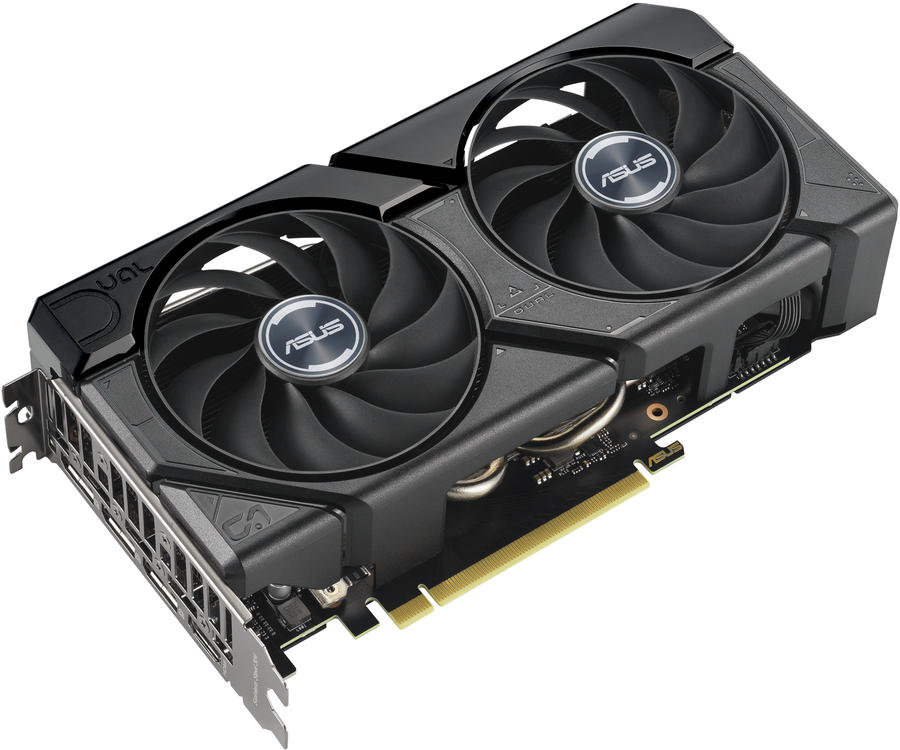

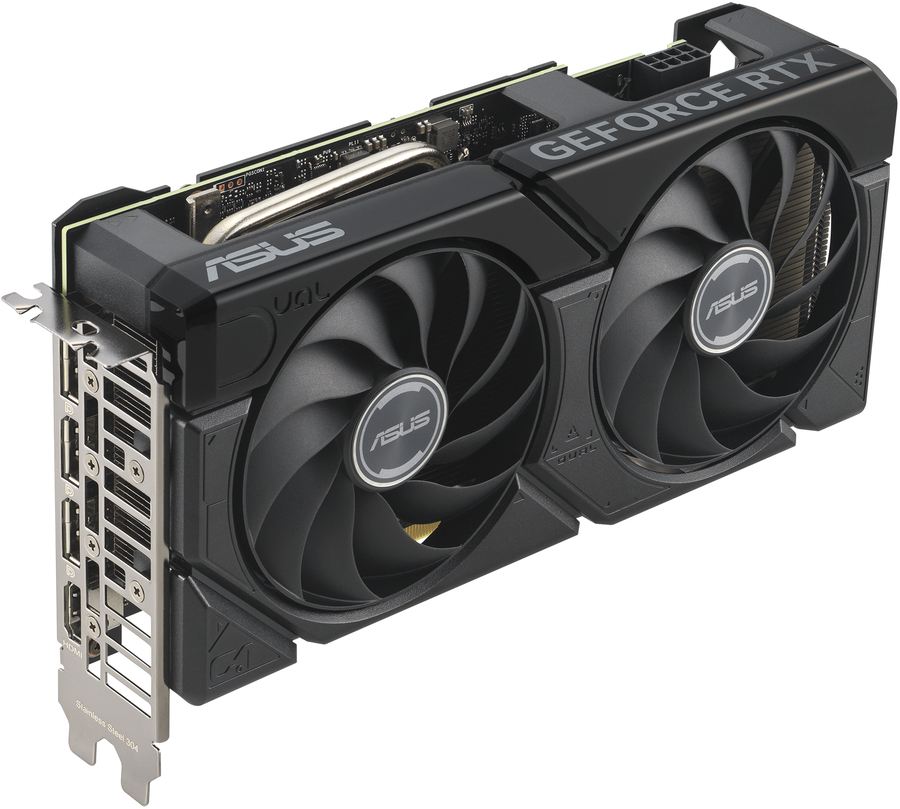

ASUS Dual GeForce RTX™ 4070 EVO fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 22.7 cm long, 2.5-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

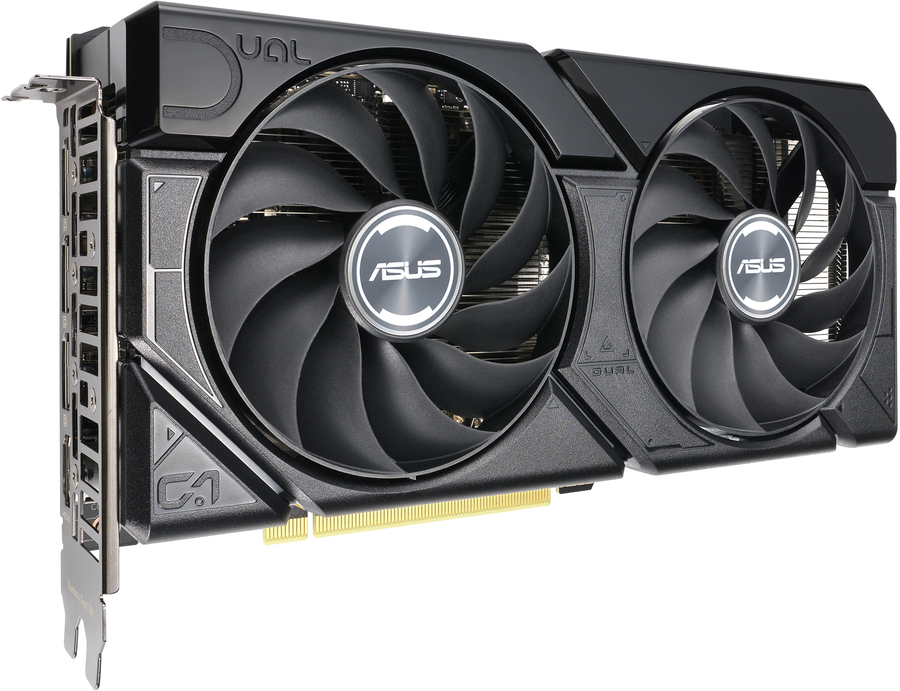

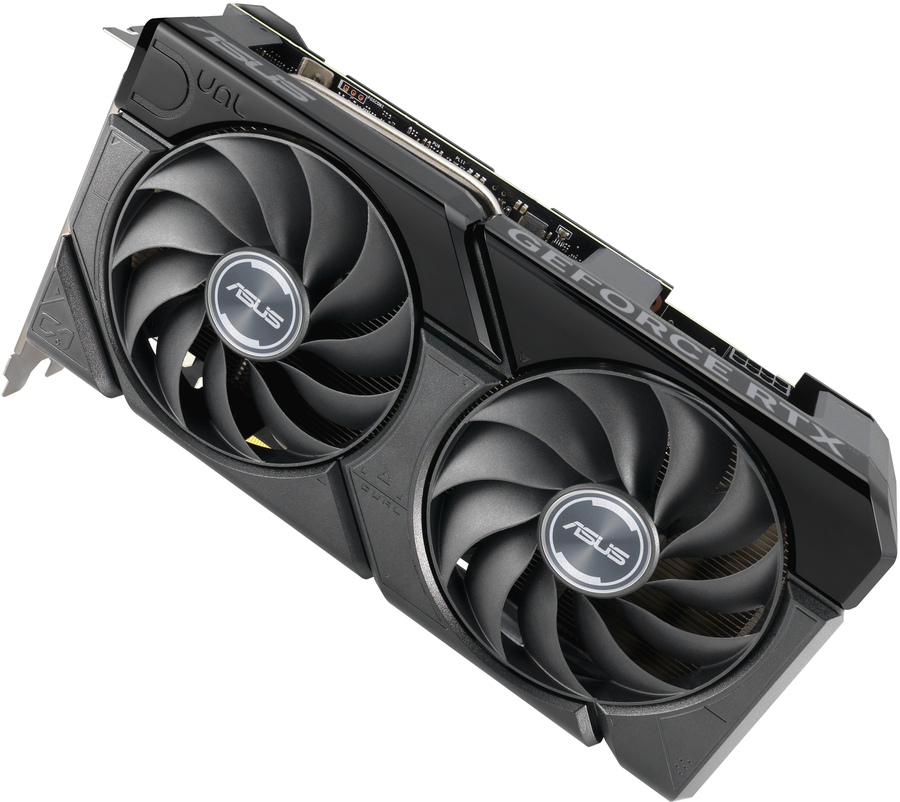

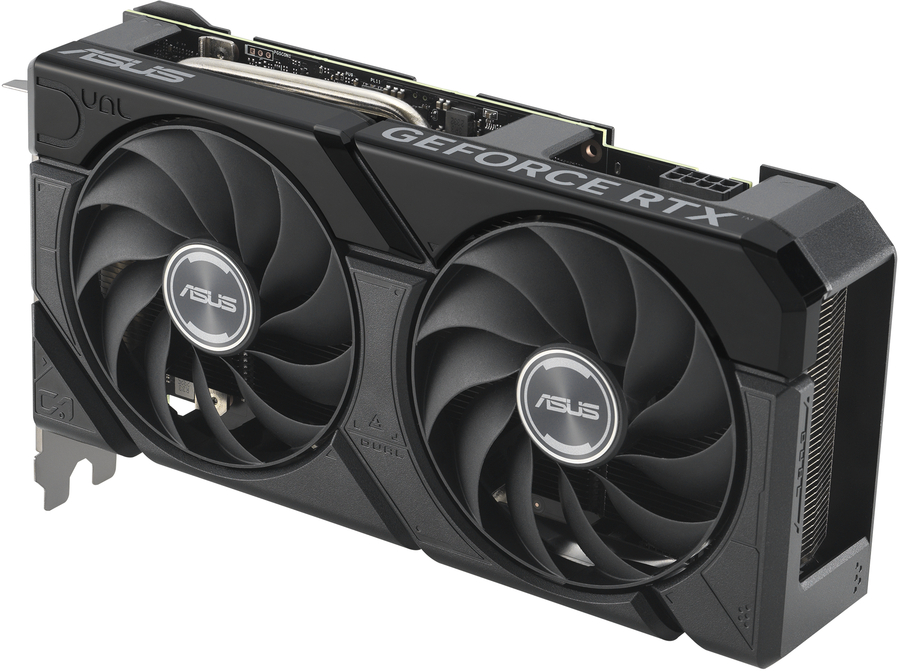

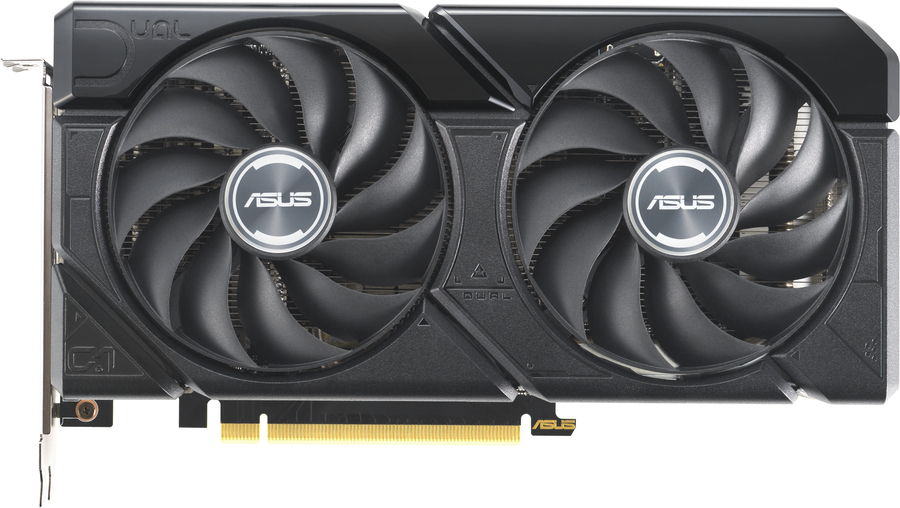

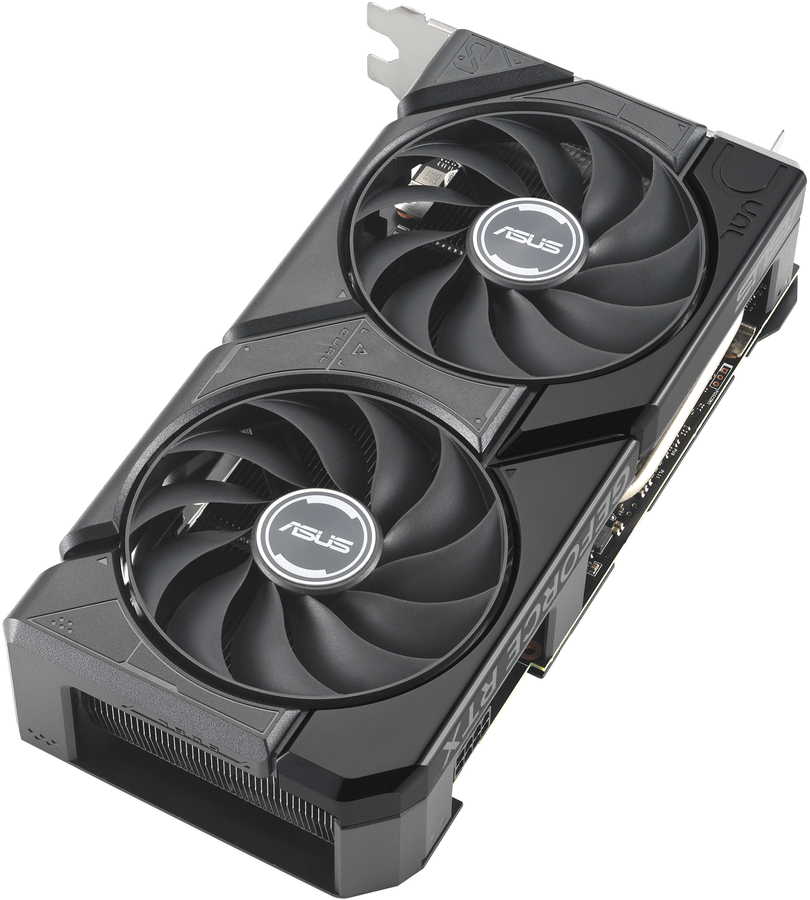

Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
GPU Tweak III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
PAIR WITH A PSU
Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki, ROG Strix AURA, TUF Gaming or ASUS Prime power supply for ultimate performance. |
|
Processor |
|
Graphics processor family |
NVIDIA |
|
Graphics processor |
GeForce RTX 4070 |
|
Maximum resolution |
7680 x 4320 pixels |
|
CUDA |
Yes |
|
Parallel processing technology support |
Not supported |
|
CUDA cores |
5888 |
|
Processor boost clock speed |
2520 MHz |
|
Processor frequency (OC mode) |
2550 MHz |
|
Maximum displays per videocard |
4 |
|
Memory |
|
Discrete graphics card memory |
12 GB |
|
Graphics card memory type |
GDDR6 |
|
Memory bus |
192 bit |
|
Ports & interfaces |
|
Interface type |
PCI Express 4.0 |
|

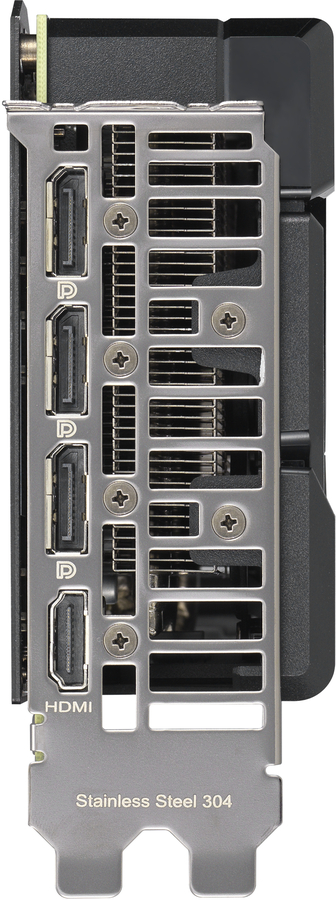

HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
DVI-I ports quantity |
0 |
|
DisplayPorts quantity |
3 |
|
Thunderbolt 3 ports quantity |
0 |
|
Mini HDMI ports quantity |
0 |
|
HDMI version |
2.1a |
|
Mini DisplayPorts quantity |
0 |
|
DisplayPort version |
1.4a |
|
Performance |
|
OpenGL version |
4.6 |
|
HDCP |
Yes |
|
HDCP version |
2.3 |
|
NVIDIA G-SYNC |
Yes |
|
Design |
|
Cooling type |
Active |
|
Cooling technology |
ASUS Axial-tech |
|
Number of fans |
2 fan(s) |
|
Form factor |
Full-Height/Half-Length (FH/HL) |
|
Number of slots |
2.5 |
|
Product colour |
Black |
|
Power |
|
Minimum system power supply |
650 W |
|

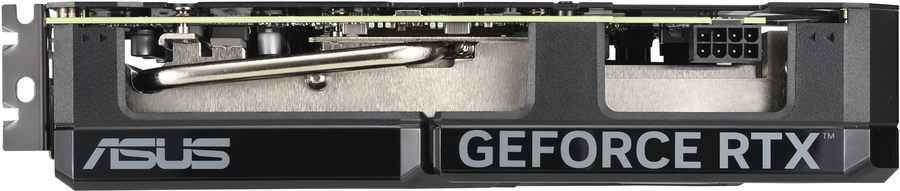

Supplementary power connectors |
1x 8-pin |
|
Weight & dimensions |
|
Weight |
684 g |
|
Length |
227.2 mm |
|
Depth |
49.6 mm |
|
Height |
123.2 mm |
|
Packaging data |
|
Package width |
368 mm |
|
Package depth |
220.5 mm |
|
Package height |
68 mm |
|
Package weight |
1.13 kg |
|

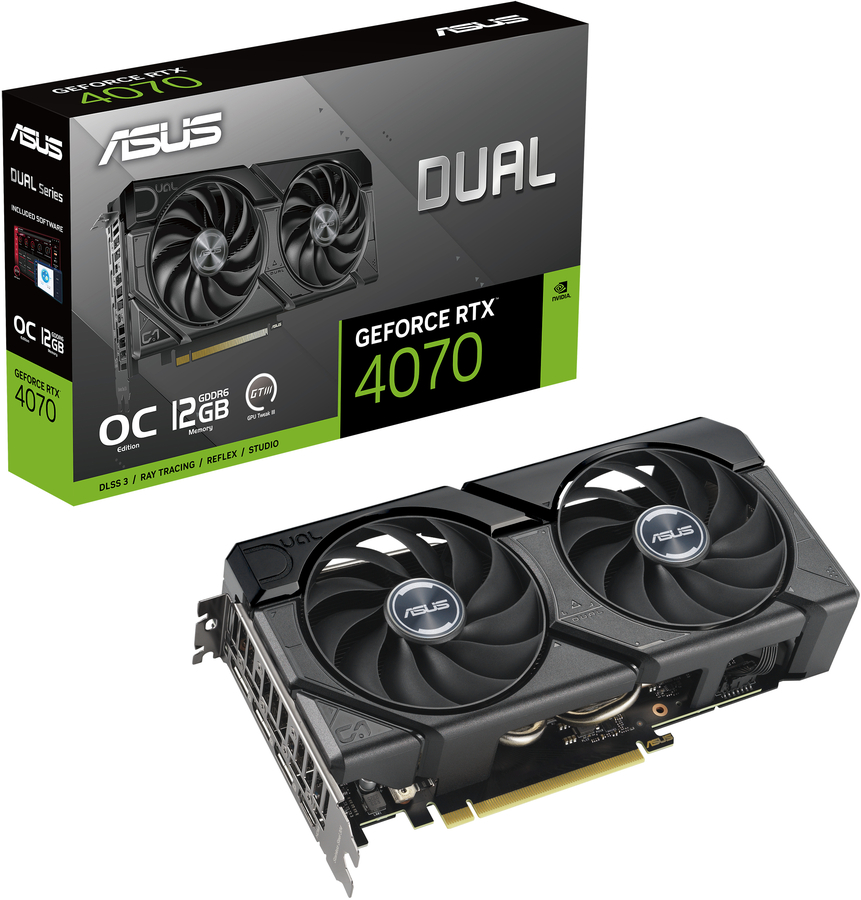

Package type |
Box |
|
Packaging content |
|
Manual |
Yes |
