General Information |
|
Summary |

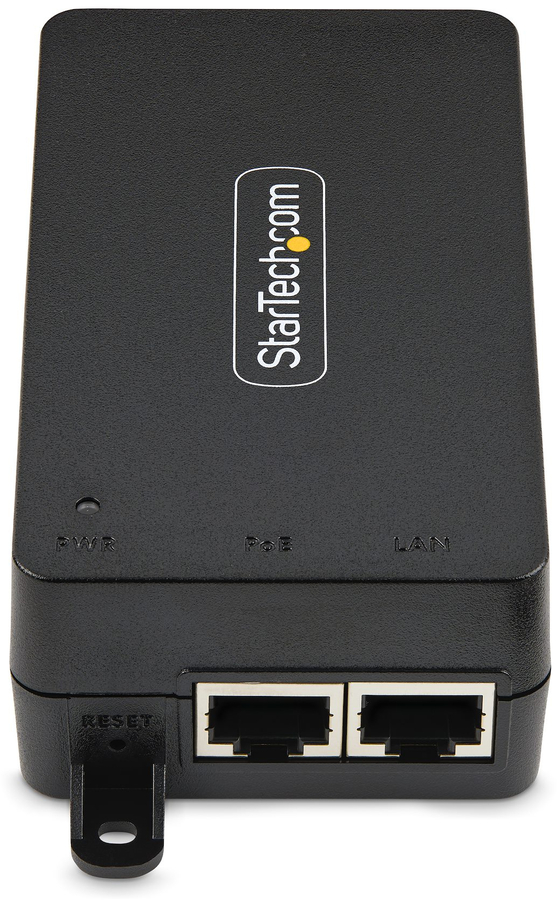

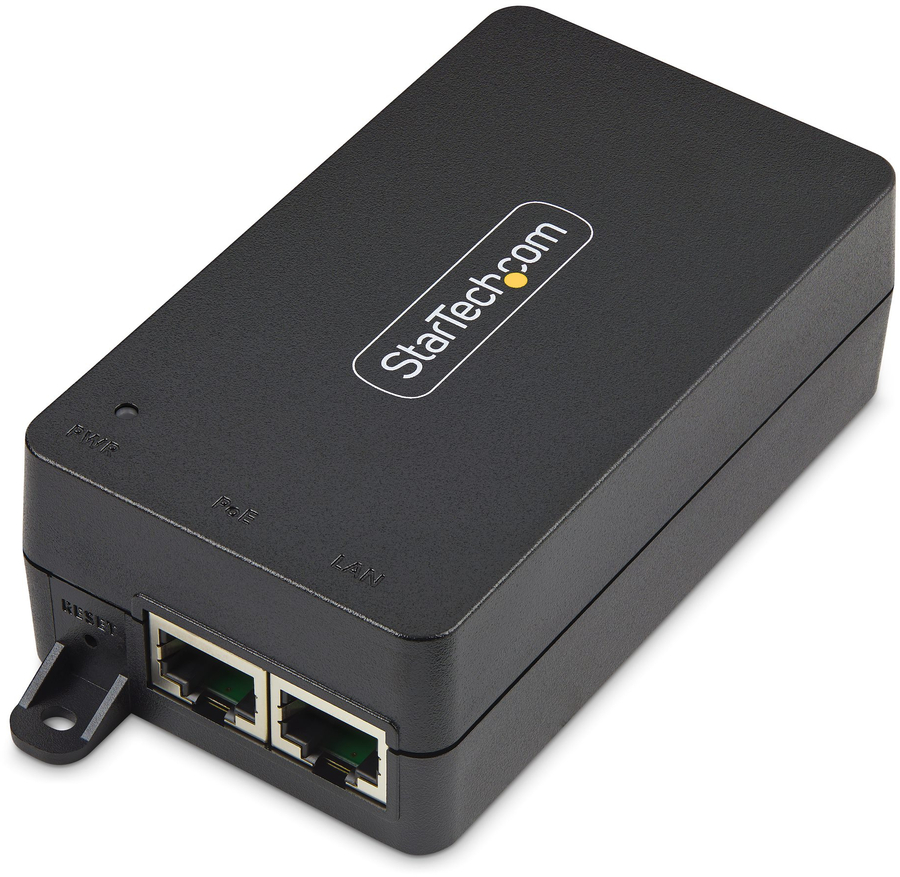

Supply power and data to a PoE device over standard Ethernet cabling
This 1-Port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 60W output (54V, 1.11A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.
Streamlined Cable Management

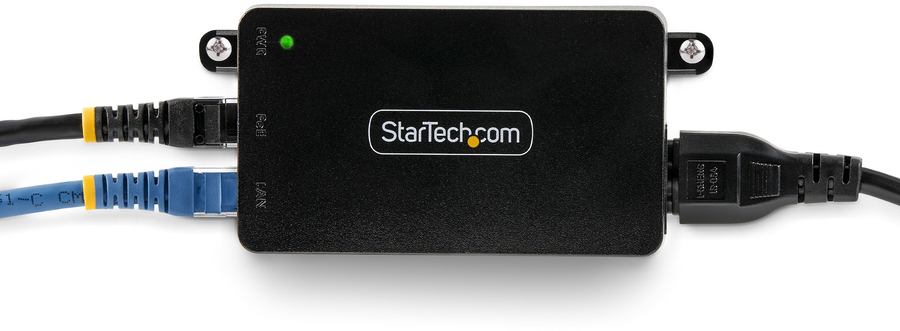

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
|
|
Network |
|
Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
|
Cabling technology |
1000/10000 |
|
Power over Ethernet (PoE) |
Yes |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
|
Auto MDI/MDI-X |
Yes |
|
Web-based management |
No |
|
Chipset |
SkyWorks - Si3471A-A01 |
|
Features |
|
Product colour |
Black |
|
Housing material |
Plastic |
|

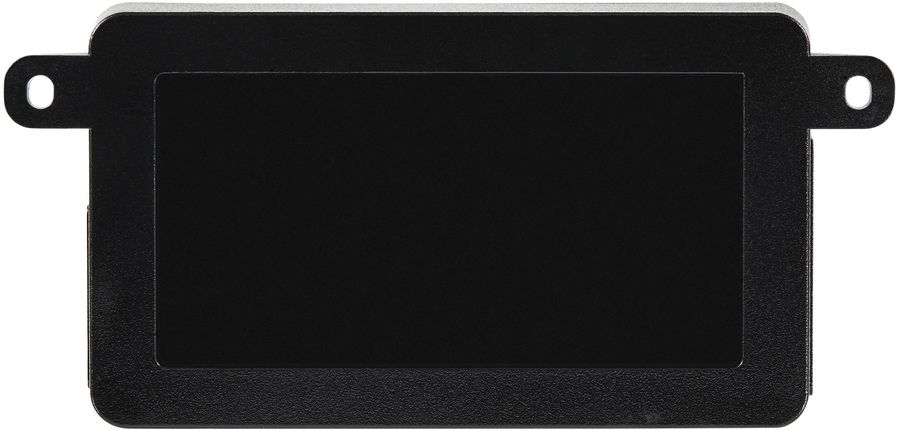

Wall mountable |
Yes |
|
Maximum operating distance |
100 m |
|
LED indicators |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Power protection features |
Over current, Over voltage, Short circuit |
|
Auto-negotiation |
Yes |
|
Ports & interfaces |
|
Ethernet LAN (RJ-45) ports |
2 |
|
RJ-45 input ports |
1 |
|
RJ-45 output ports |
1 |
|
Power |
|

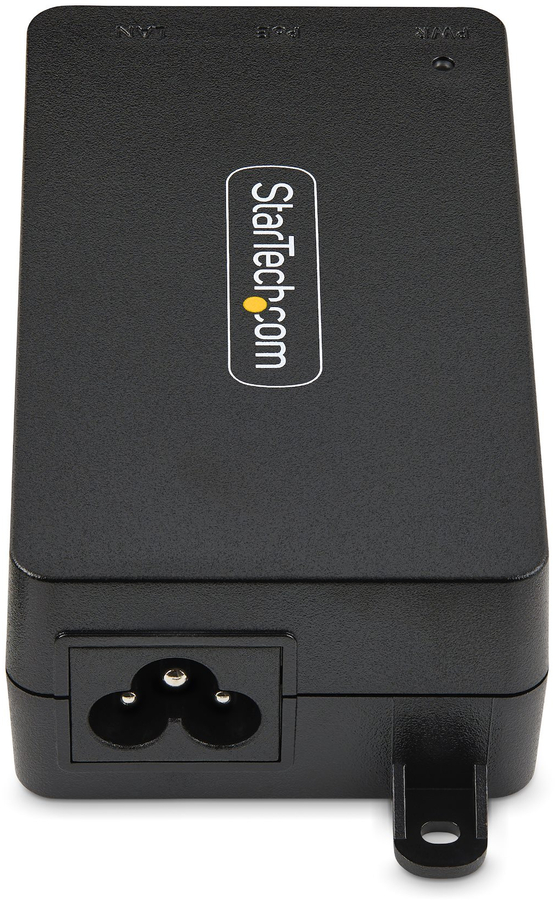

AC adapter input voltage |
100 - 240 V |
|
Input current |
1.5 A |
|
AC adapter output voltage |
54 V |
|
Output current |
1.11 A |
|
Total Power over Ethernet (PoE) budget |
60 W |
|
Suitable for use in country/location |
United States |
|
Certificates |
|
Compliance certificates |
Trade Agreements Act (TAA), UL |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage temperature (T-T) |
-30 - 80 °C |
|
Weight & dimensions |
|
Width |
58 mm |
|
Depth |
122 mm |
|
Height |
34 mm |
|
Weight |
198 g |
|
Packaging content |
|

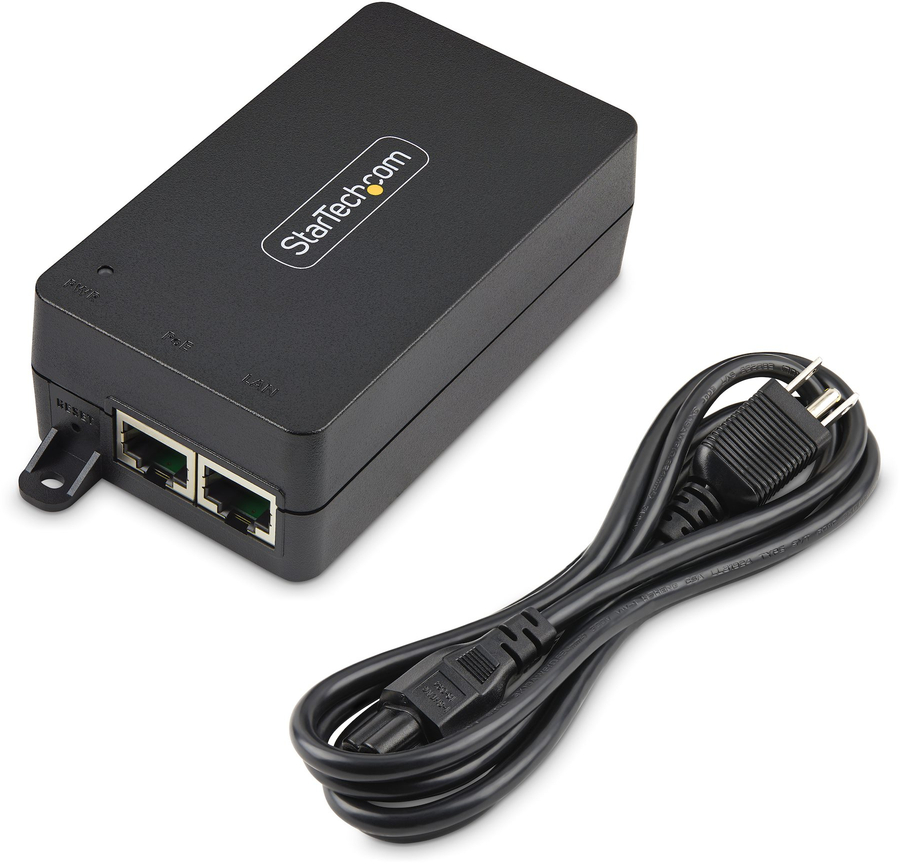

Power cord included |
Yes |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Package width |
210 mm |
|
Package depth |
124 mm |
|
Package height |
51 mm |
|
Package weight |
500 g |
|
Logistics data |
|
Master (outer) case width |
522 mm |
|
Master (outer) case length |
286 mm |
|
Master (outer) case height |
455 mm |
|
Products per master (outer) case |
40 pc(s) |
