General Information |
|
Summary |
Supply power and data to two PoE devices over standard Ethernet cabling

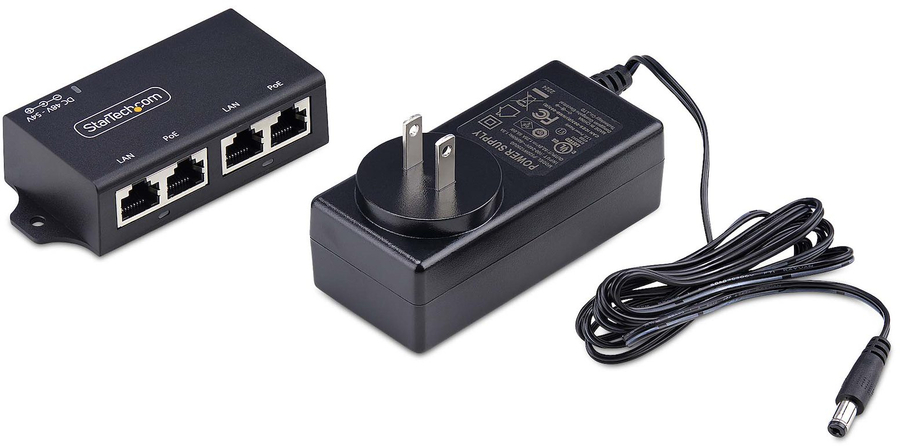

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).
Versatile PoE Injector
Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.
Streamlined Cable Management

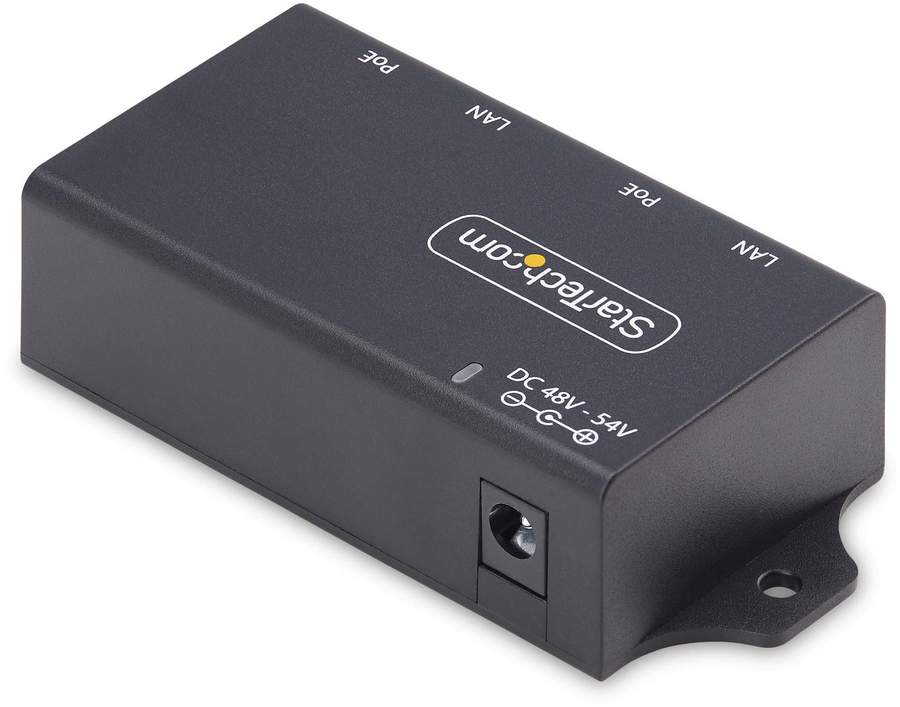

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
The StarTech.com Advantage
|
|
Network |
|
Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Cabling technology |
10/100/1000 |
|
Power over Ethernet (PoE) |
Yes |
|
Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
|
Auto MDI/MDI-X |
Yes |
|
Web-based management |
No |
|
Chipset |
IC Plus - IP802AR |
|
Features |
|
Product colour |
Black |
|
Housing material |
Plastic |
|

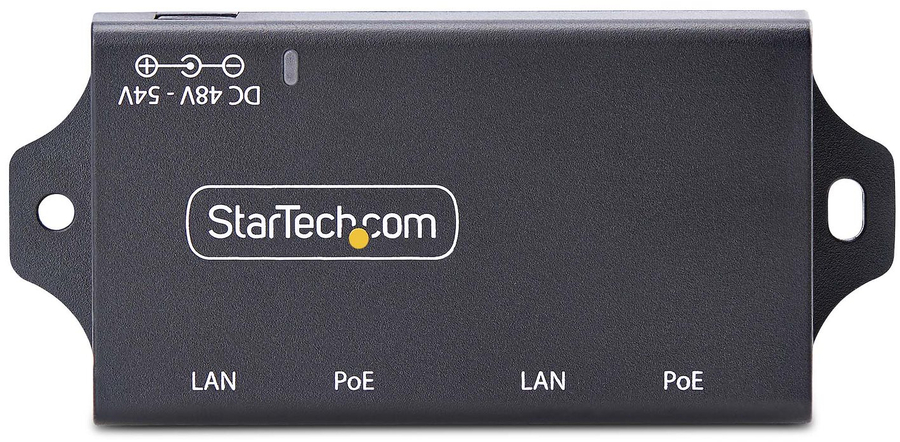

Wall mountable |
Yes |
|
Surge protection |
Yes |
|
Maximum operating distance |
100 m |
|
LED indicators |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
9000 |
|
Auto-negotiation |
Yes |
|
Ports & interfaces |
|

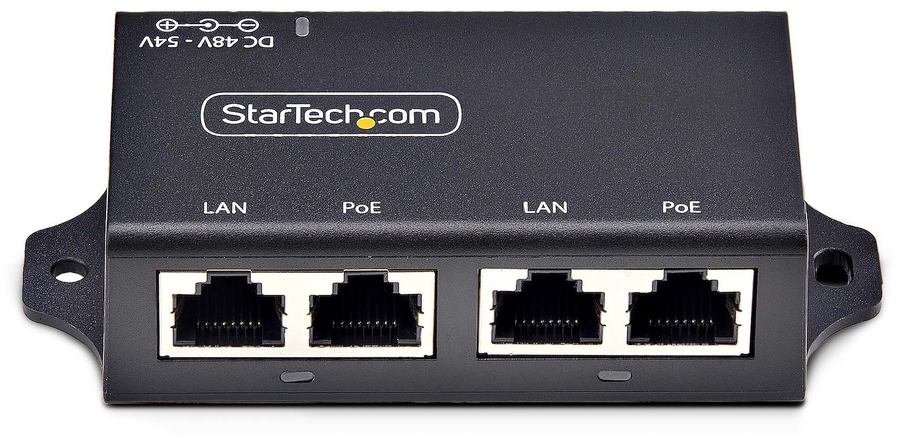

Ethernet LAN (RJ-45) ports |
4 |
|
RJ-45 input ports |
2 |
|
RJ-45 output ports |
2 |
|

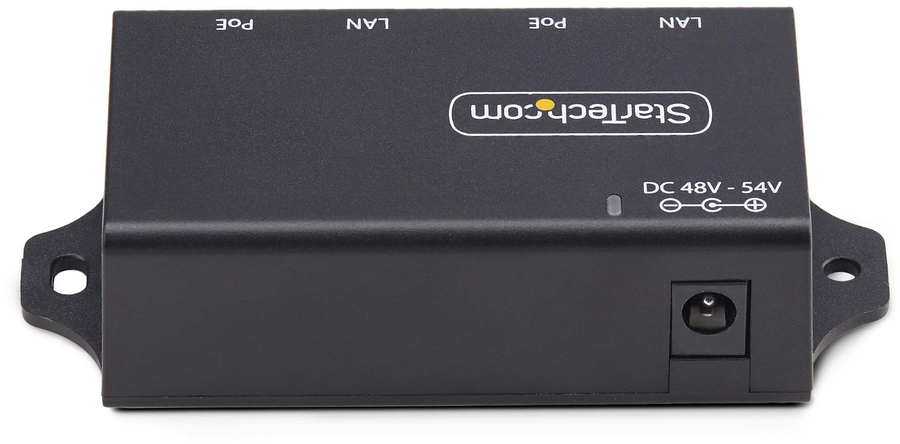

DC-in jack |
Yes |
|
Power |
|
Output power |
30 W |
|
AC adapter input voltage |
100 - 240 V |
|
Input current |
1.5 A |
|
AC adapter output voltage |
52 V |
|
Output current |
1.25 A |
|
Power consumption (max) |
65 W |
|
Total Power over Ethernet (PoE) budget |
30 W |
|
Surge protection voltage |
2 kV |
|
Power plug type |
Type M |
|
Suitable for use in country/location |
United States |
|
Certificates |
|
Compliance certificates |
RoHS |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 60 °C |
|
Operating relative humidity (H-H) |
5 - 90% |
|
Storage temperature (T-T) |
-10 - 70 °C |
|
Weight & dimensions |
|
Width |
46 mm |
|
Depth |
102 mm |
|
Height |
25 mm |
|
Weight |
60 g |
|
Packaging content |
|
Quick installation guide |
Yes |
|
Packaging data |
|
Package width |
170 mm |
|
Package depth |
142 mm |
|
Package height |
30 mm |
|
Package weight |
110 g |
|
Logistics data |
|
Master (outer) case width |
605 mm |
|
Master (outer) case length |
325 mm |
|
Master (outer) case height |
385 mm |
|
Products per master (outer) case |
80 pc(s) |
