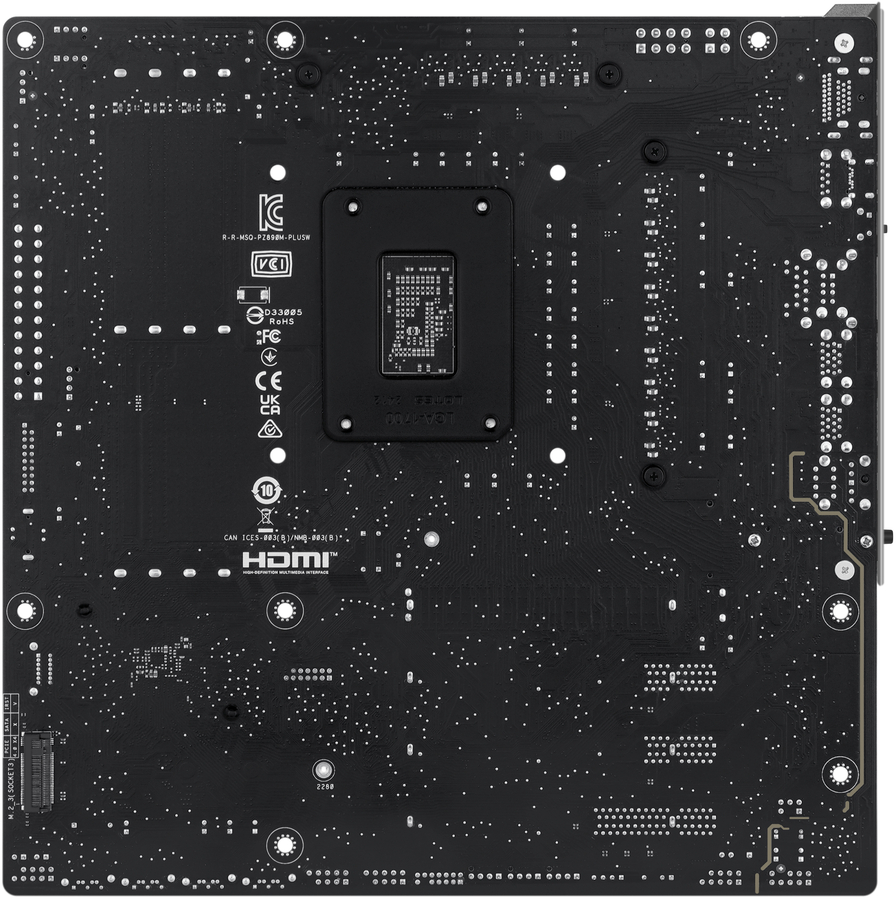

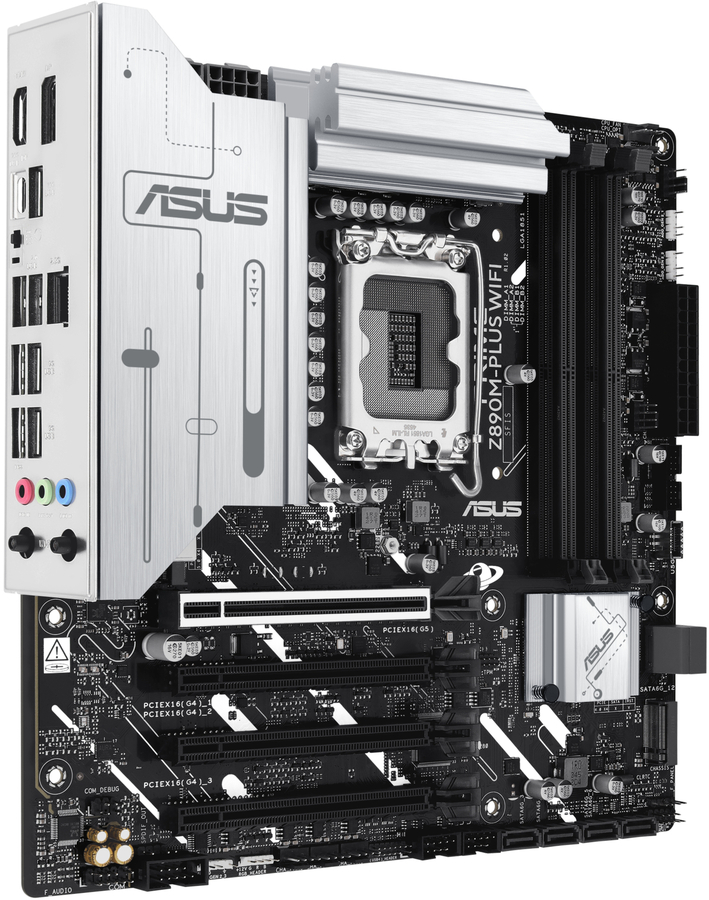

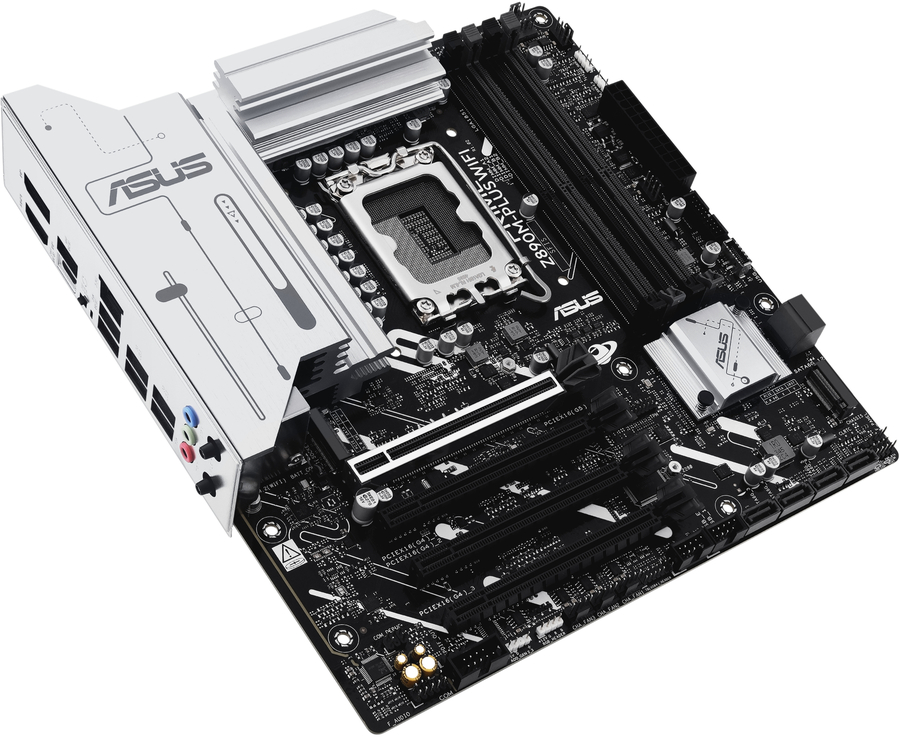

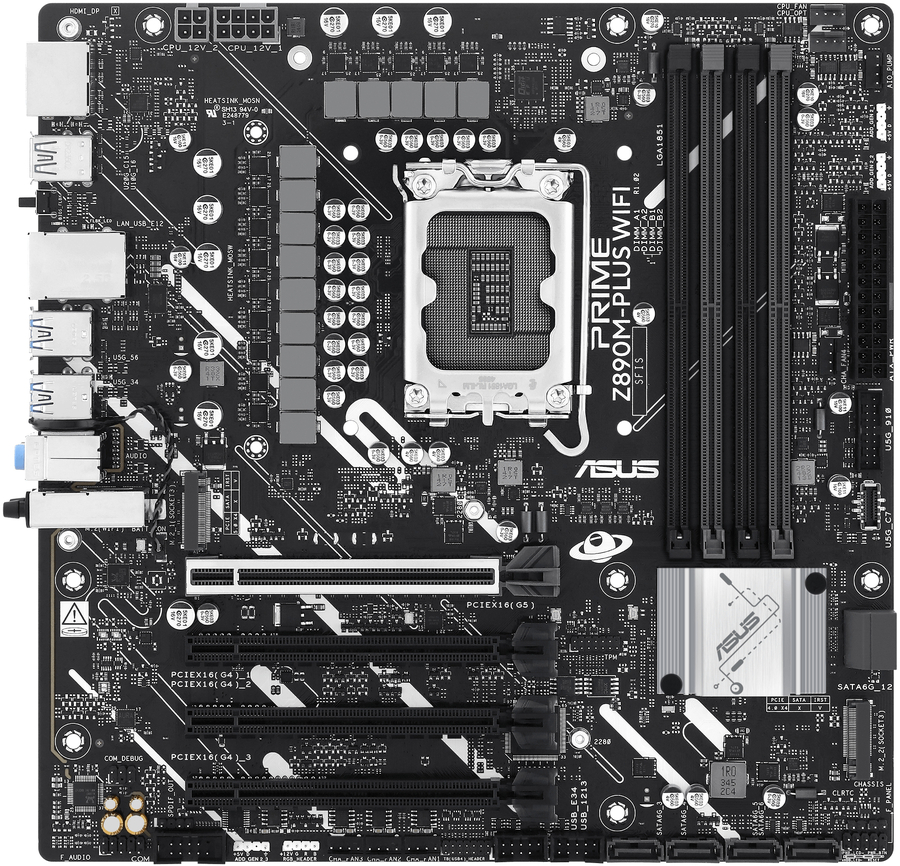

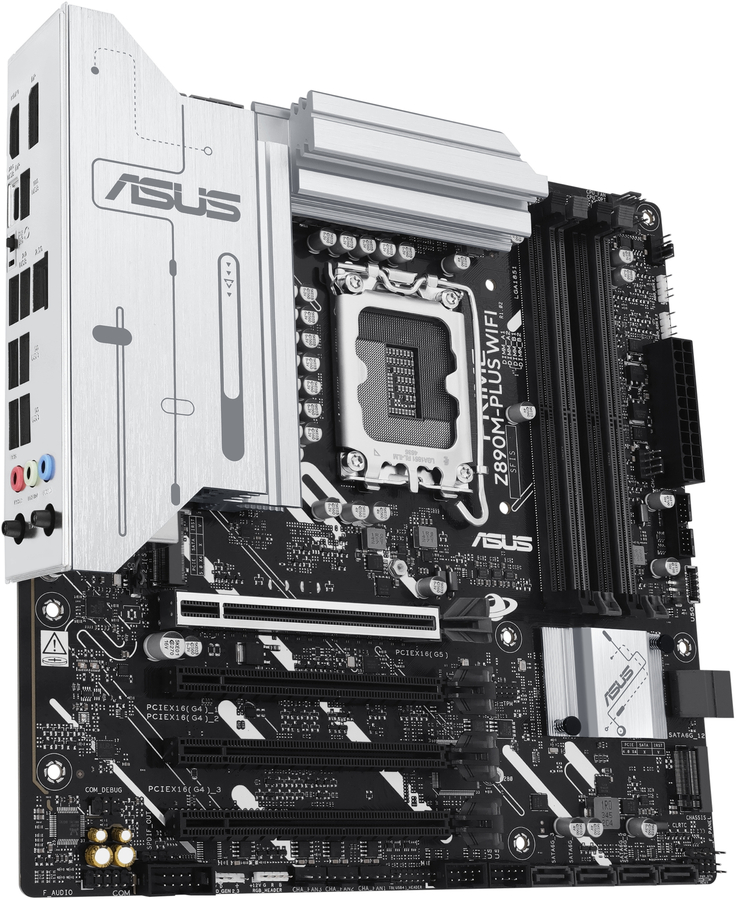

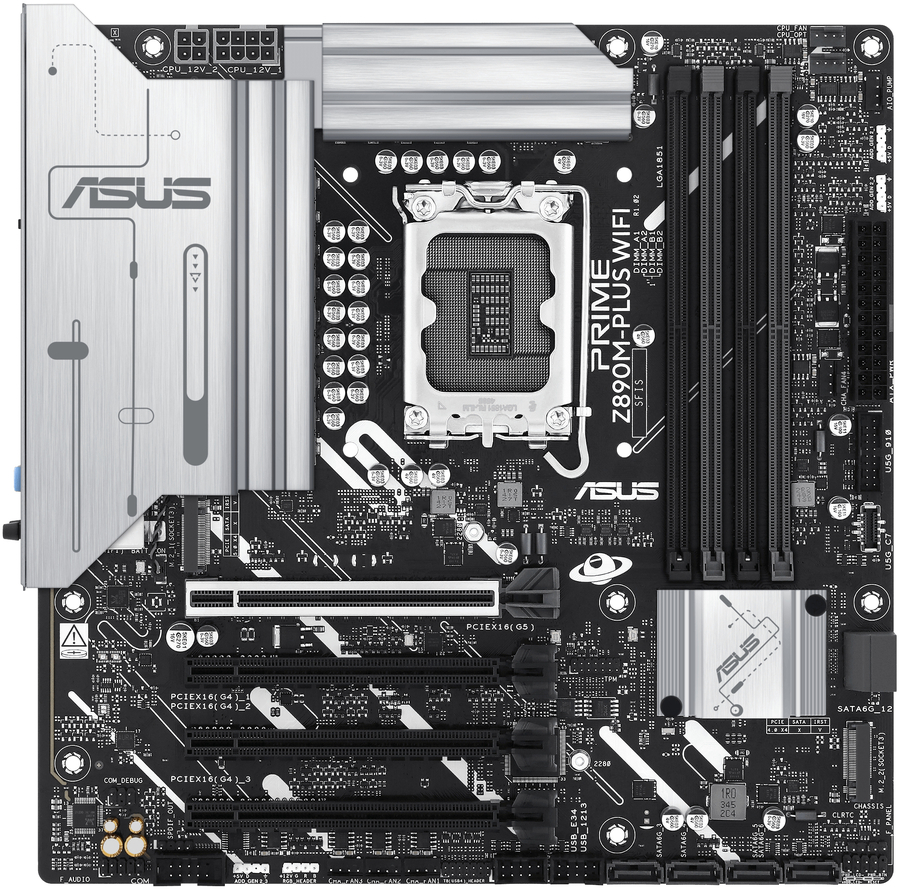

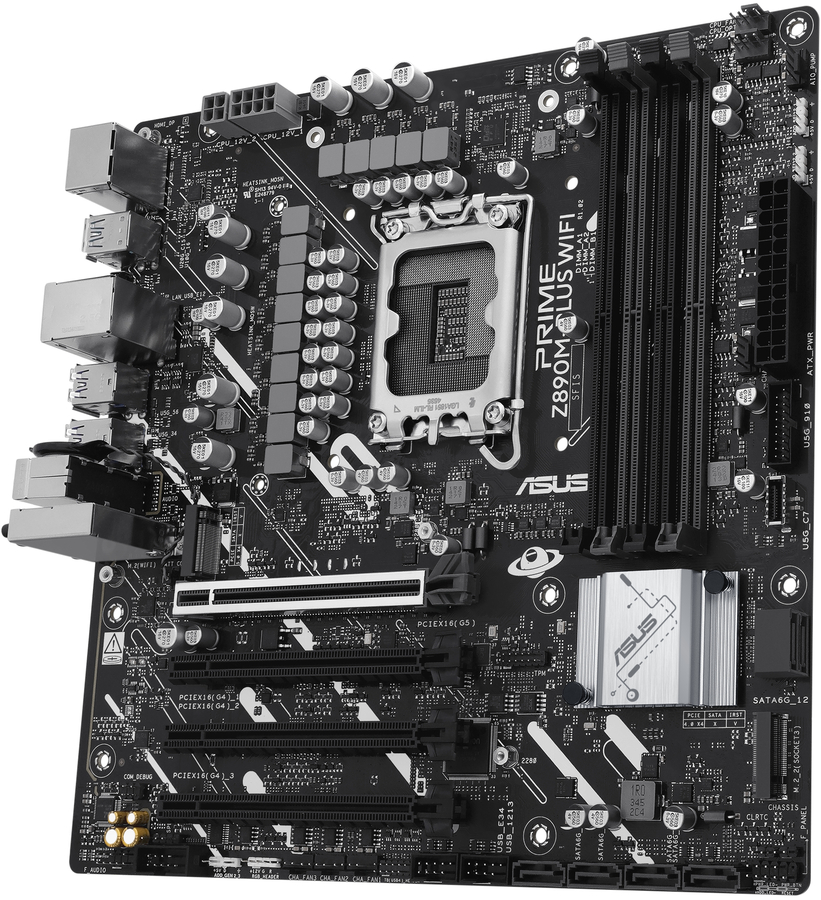

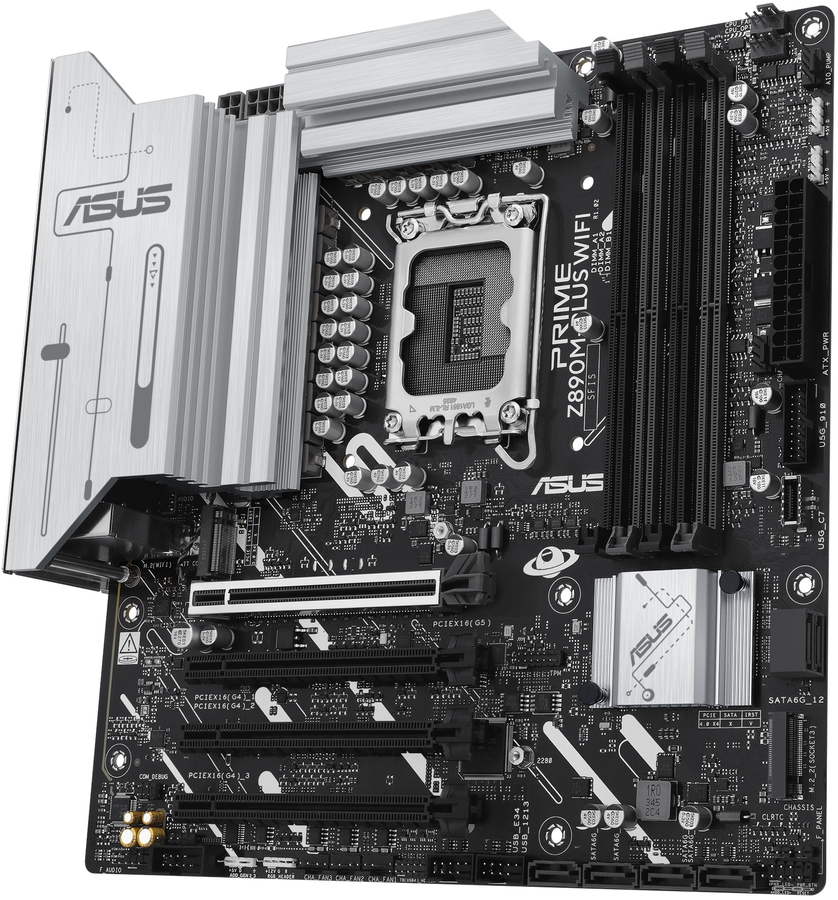

Z890M-PLUS WIFI
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. |
|
Processor |
|
Processor manufacturer |
Intel |
|
Processor socket |
LGA 1851 (Socket V1) |
|
Compatible processor series |
Intel Core Ultra (Series 2) |
|
Supported processor sockets |
LGA 1851 |
|
Memory |
|
Supported memory types |
DDR5-SDRAM |
|
Number of memory slots |
4 |
|
Maximum internal memory |
192 GB |
|
Memory slots type |
DIMM |
|
Memory channels |
Dual-channel |
|
ECC сompatibility |
Non-ECC |
|
Unbuffered memory |
Yes |
|
Storage controllers |
|
Supported storage drive interfaces |
M.2, SATA III |
|
Supported storage drive types |
HDD & SSD |
|
Number of HDDs supported |
6 |
|
Number of storage drives supported |
9 |
|
RAID support |
Yes |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
Parallel processing technology support |
Not supported |
|
On-board graphics card |
No |
|
Internal I/O |
|
USB 2.0 connectors |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
|
Number of SATA III connectors |
6 |
|
Number of SATA II connectors |
0 |
|
Number of SATA connectors |
0 |
|
S/PDIF out connector |
Yes |
|
Front panel audio connector |
Yes |
|
ATX Power connector (24-pin) |
Yes |
|
CPU fan connector |
Yes |
|
Number of chassis fan connectors |
4 |
|
Chassis intrusion connector |
Yes |
|
Number of COM connectors |
1 |
|
TPM connector |
Yes |
|
Thunderbolt headers |
1 |
|
12V power connector |
Yes |
|

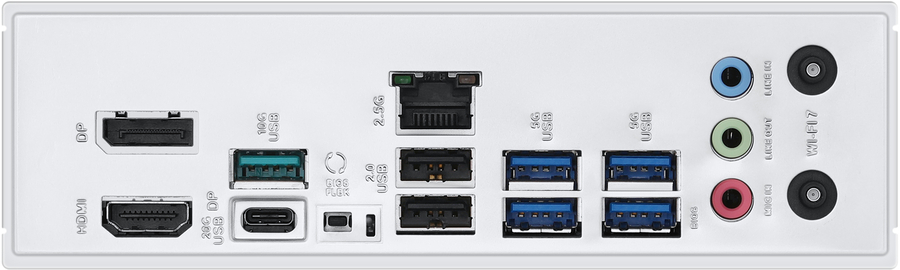

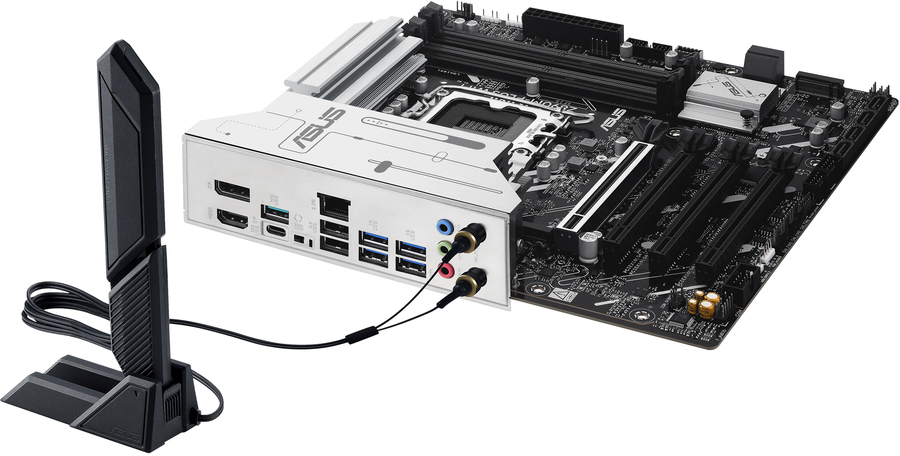

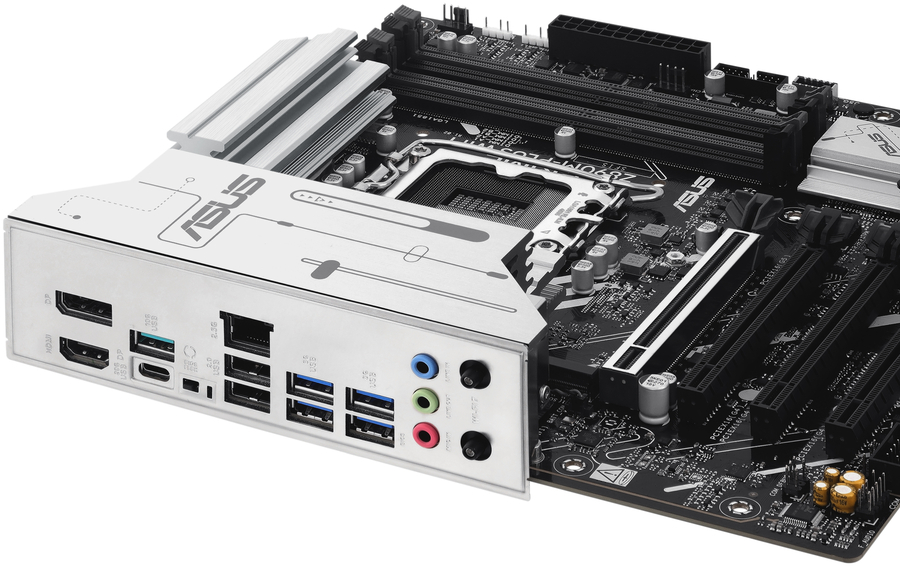

Rear panel I/O ports |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
VGA (D-Sub) ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
DVI-D ports quantity |
0 |
|
USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
|
DisplayPorts quantity |
1 |
|
Microphone in |
Yes |
|
WiFi-AP antenna jack |
1 |
|
Network |
|
Wi-Fi |
Yes |
|
Ethernet LAN |
Yes |
|
Ethernet interface type |
2.5 Gigabit Ethernet |
|
Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
|
Wi-Fi standards |
Wi-Fi 7 (802.11be) |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.4 |
|
Features |
|
Component for |
PC |
|
Motherboard form factor |
micro ATX |
|
Motherboard chipset family |
Intel |
|
Motherboard chipset |
Intel Z890 |
|
Audio output channels |
7.1 channels |
|
Product colour |
Aluminium, Black |
|
Windows operating systems supported |
Windows 11 |
|
Expansion slots |
|
PCI Express x16 (Gen 4.x) slots |
3 |
|
PCI Express x16 (Gen 5.x) slots |
1 |
|
Number of M.2 (M) slots |
3 |
|
BIOS |
|
BIOS type |
UEFI AMI |
|
BIOS memory size |
256 Mbit |
|
Packaging data |
|
Package width |
275 mm |
|
Package depth |
275 mm |
|
Package height |
67.5 mm |
|
Package weight |
1.64 kg |
|
Weight & dimensions |
|
Width |
244 mm |
|
Depth |
244 mm |
|

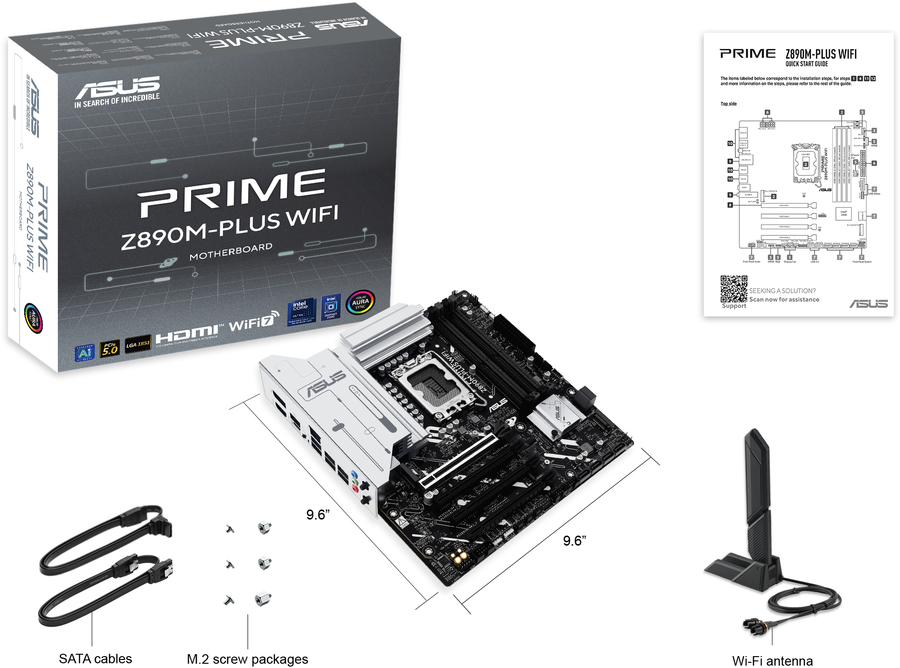

Packaging content |
|
Cables included |
SATA |
|
Screws included |
Yes |
|
Other features |
|
mSATA ports quantity |
0 |
