General Information |
|
Summary |

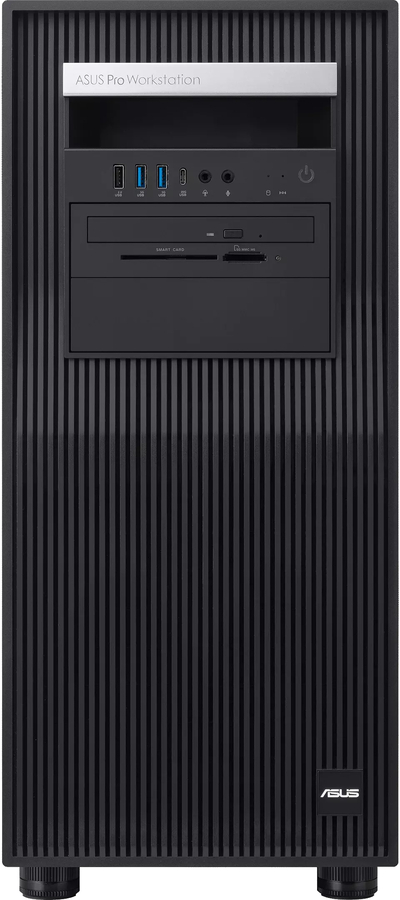

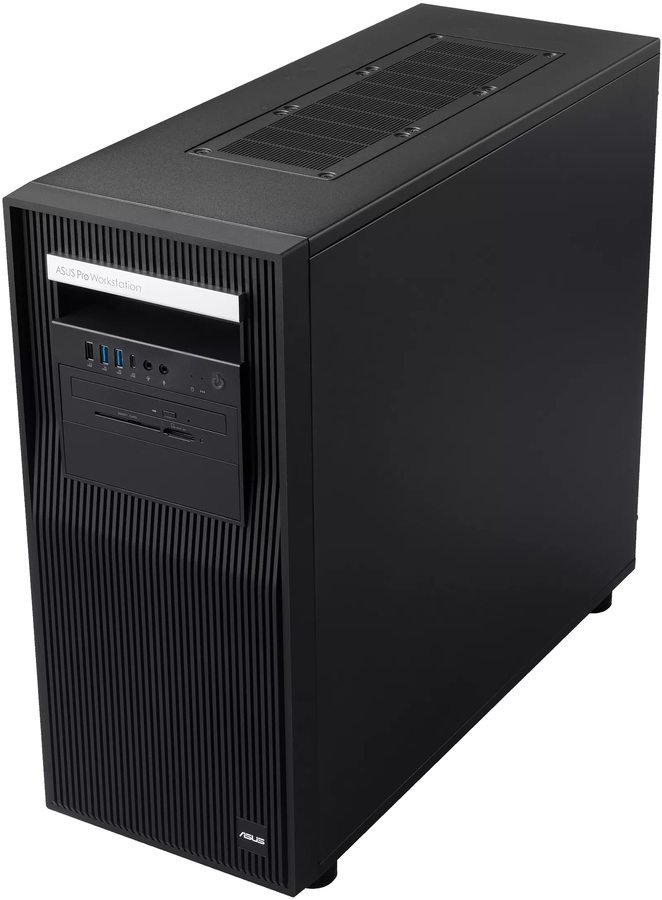

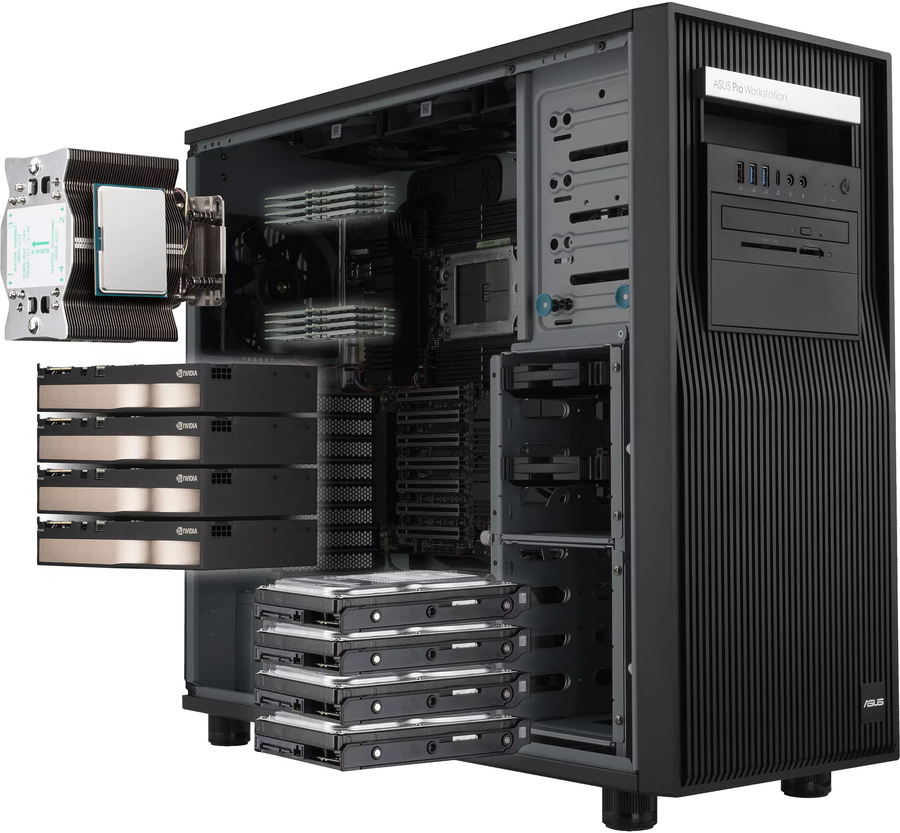

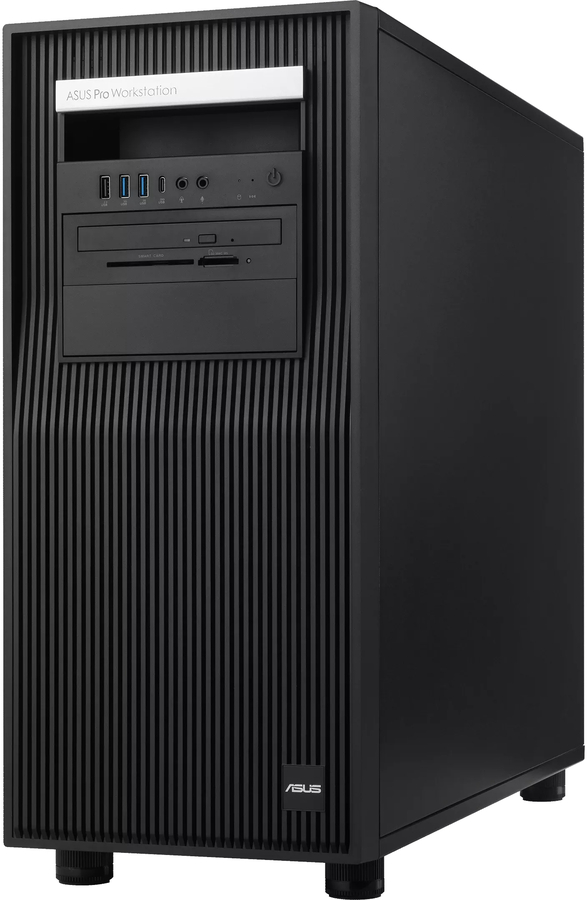

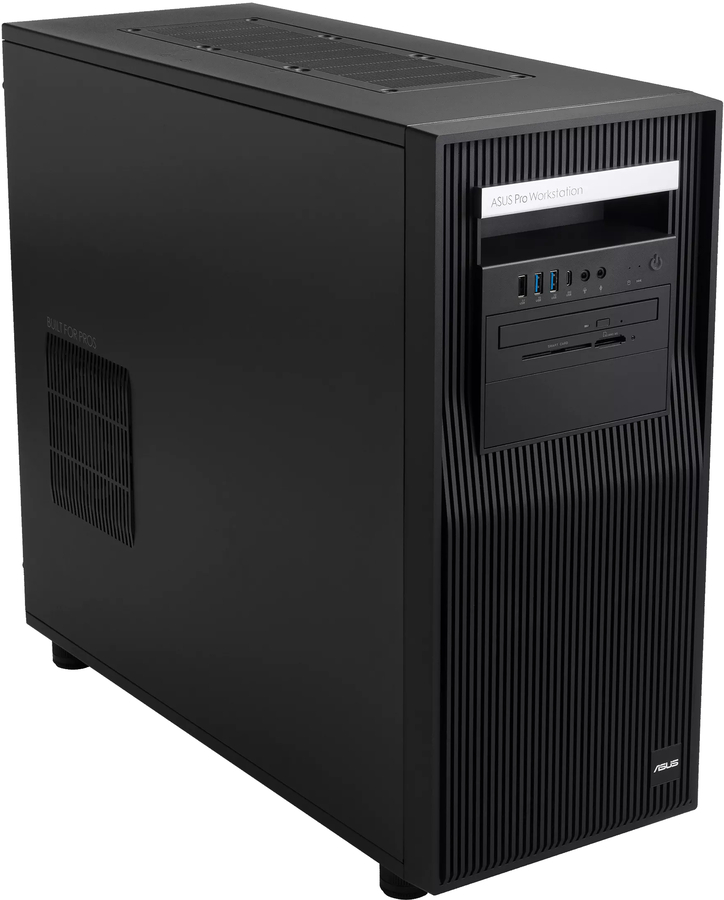

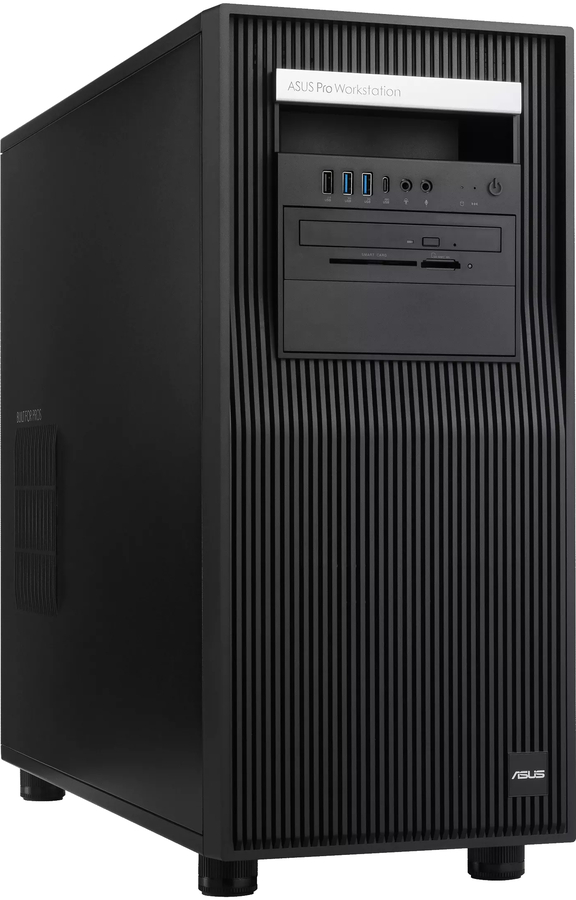

ASUS ExpertCenter Pro ET900A X9 is a professional-grade workstation catering to demanding applications. It is equipped with the latest AMD Ryzen™ Threadripper™ PRO CPU, delivering unparalleled performance. With support for up to four NVIDIA® Quadro RTX™ graphics cards, DDR5 ECC RDIMM memory, and dual 10Gb LAN, this powerful, versatile workstation is perfect for content creation, animation, 3D rendering and media production. It also excels in AI training and deep learning tasks. Additionally, it offers an efficient and cost-effective solution for data center environments.
|
|
Processor |
|
Built-in processor |
No |
|
Memory |
|
Memory slots type |
DIMM |
|
Number of memory slots |
8 |
|
Supported memory clock speeds |
4800,5600 MHz |
|
Supported memory types |
DDR5-SDRAM |
|
Memory channels |
Octa-channel |
|
ECC |
Yes |
|
Storage |
|
Supported storage drive types |
HDD & SSD |
|
Storage drive sizes supported |
2.5,3.5,M.2 |
|
SSD form factor |
M.2 |
|
Storage drive interface |
PCI Express, SAS, Serial ATA III |
|
NVMe |
Yes |
|
Number of storage drives supported |
10 |
|
RAID levels |
0, 1, 5, 10 |
|
Graphics |
|
On-board graphics card |
No |
|
Audio |
|
Built-in speaker(s) |
No |
|
Network |
|
Ethernet LAN |
Yes |
|
Wi-Fi |
No |
|

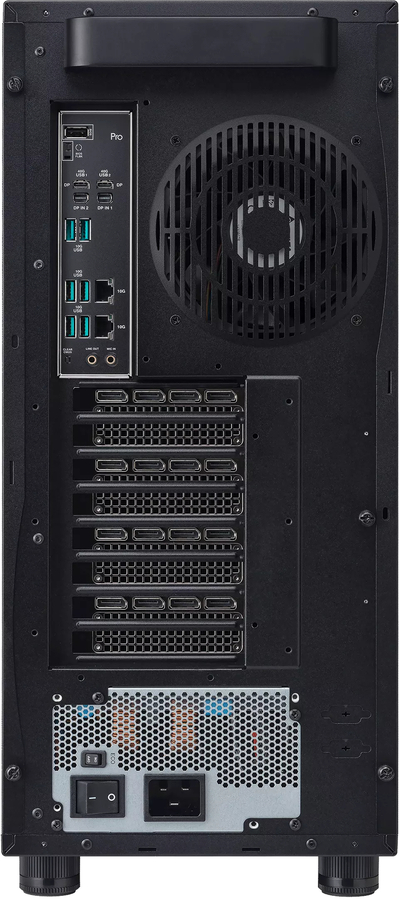

Ports & interfaces |
|
USB 2.0 ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
HDMI ports quantity |
0 |
|
VGA (D-Sub) ports quantity |
0 |
|
Ethernet LAN (RJ-45) ports |
2 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
6 |
|
USB4 Gen 2x2 ports quantity |
3 |
|
Mini DisplayPorts quantity |
2 |
|
Microphone in |
Yes |
|
Headphone outputs |
1 |
|

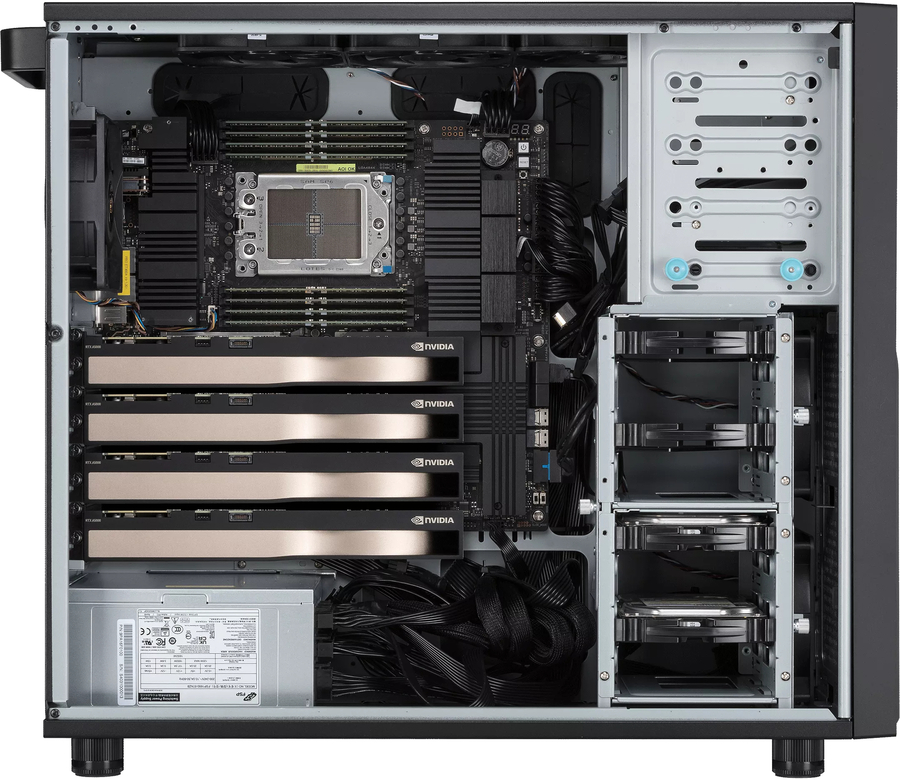

Expansion slots |
|
PCI Express x16 slots |
7 |
|
Number of M.2 (M) slots |
4 |
|
Design |
|
Chassis type |
Desktop |
|
Product colour |
Black |
|
Cooling type |
Active |
|
Product type |
Workstation barebone |
|
On/off switch |
Yes |
|
LED indicators |
HDD, Power |
|
Performance |
|
Motherboard chipset |
AMD WRX90 |
|
Processor socket |
Socket sTR5 |
|
Number of processors supported |
1 |
|
Compatible processor series |
AMD Ryzen Threadripper PRO 5000 WX-Series |
|
Technical details |
|
Compliance certificates |
BSMI, CE, Federal Communications Commission (FCC) |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR |
|
Power |
|
Power supply type |
Internal power supply unit |
|
Power supply |
2000 W |
|
Number of power supply units |
1 |
|
Operational conditions |
|
Operating temperature (T-T) |
10 - 35 °C |
|
Storage relative humidity (H-H) |
20 - 90% |
|
Weight & dimensions |
|
Width |
243 mm |
|
Depth |
582 mm |
|
Height |
532 mm |
|
Weight |
31.5 kg |
|
Package weight |
37.6 kg |
