General Information |
|
Summary |

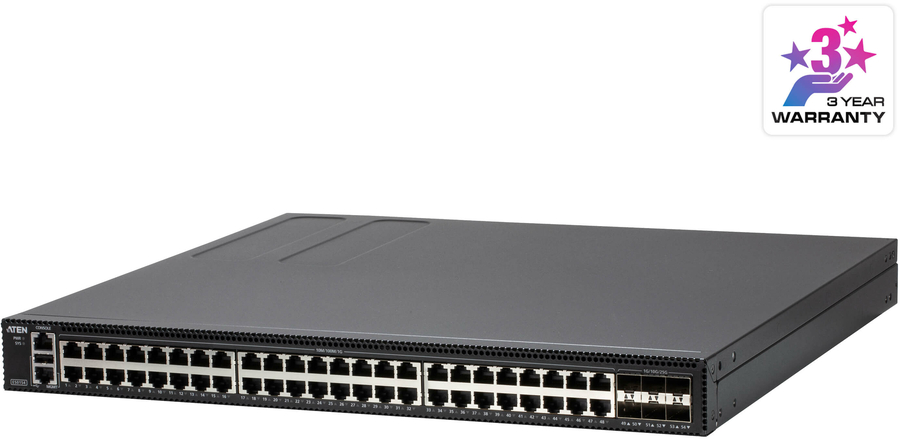

The ES0154 54-Port Layer 2+ Gigabit Ethernet Managed Switch is ideal for installation with ATEN KVM over IP products. It simplifies the process of building OT infrastructure with the ATEN KVM over IP series by eliminating the complexities of setup. It provides a high-performance 54-port configuration, a complete array of L2+ features, and advanced functionalities including Layer 3 static route, DHCP server, IPv6 support, and LLDP, making it a versatile solution for enhancing network performance. It offers a combination of SFP28 (fiber) and RJ-45 (copper) ports for servicing a range of network needs.
The ES0154 delivers 6 (1G/10G/25G) SFP28 and 48 (10M/100M/1G) RJ-45 ports.
Deploying the ES0154 is quick and hassle-free. Its plug-and-play design eliminates the need for software installation or device configuration. Just connect the transmitters and receivers to the ES0154 using Cat 5e/6 cables. With a full range of functions to help with optimizing network efficiency, manageability and reliability for their network environment, the ES0154 serves as an ideal network switch solution. It is particularly valuable in applications where connected devices play a critical role in network operation, including OT infrastructure for both SMBs and enterprises. |
|
Management features |
|
Switch type |
Managed |
|
Switch layer |
L2+ |
|
Quality of Service (QoS) support |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
48 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
SFP module slots quantity |
6 |
|
Fiber optic connector |
SFP28 |
|
Console port |
RJ-45 |
|
USB 2.0 ports quantity |
1 |
|
Network |
|
Networking standards |
IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
|
10G support |
Yes |
|
Flow control support |
Yes |
|
Auto-negotiation |
Yes |
|
Data transmission |
|
MAC address table |
32000 entries |
|
Switching capacity |
396 Gbit/s |
|
Forwarding rate |
295 Mpps |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
10000 |
|
Security |
|
IGMP snooping |
Yes |
|
Protocols |
|
Supported network protocols |
IGMP v1/v2/v3, IGMP v1/v2 |
|
Design |
|
Rack mounting |
Yes |
|
Product colour |
Black |
|
Housing material |
Metal |
|
Performance |
|
Internal memory |
1000 MB |
|
Flash memory |
256 MB |
|
Power |
|
Power source |
AC |
|
AC input voltage |
100 - 240 V |
|
AC input frequency |
50/60 Hz |
|
Power consumption (max) |
54 W |
|
Operational conditions |
|
Operating temperature (T-T) |
-5 - 45 °C |
|
Storage temperature (T-T) |
-20 - 70 °C |
|
Operating relative humidity (H-H) |
5 - 95% |
|
Weight & dimensions |
|
Width |
420 mm |
|
Depth |
442 mm |
|
Height |
43.6 mm |
|
Weight |
4.68 kg |
|
Packaging data |
|
Package width |
550 mm |
|
Package depth |
650 mm |
|
Package height |
150 mm |
|
Package weight |
7.18 kg |
|
Logistics data |
|
Country of origin |
Taiwan |
