General Information |
|
Summary |

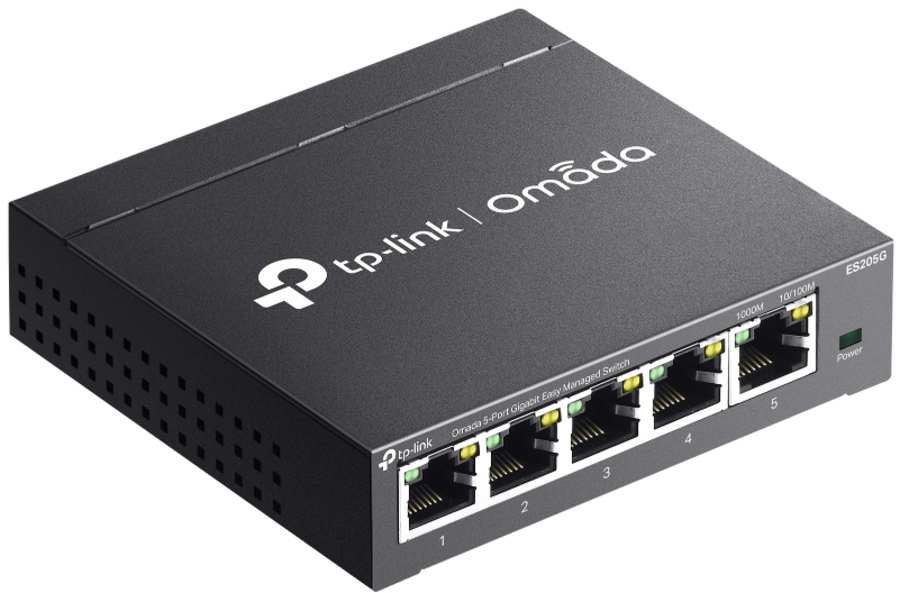

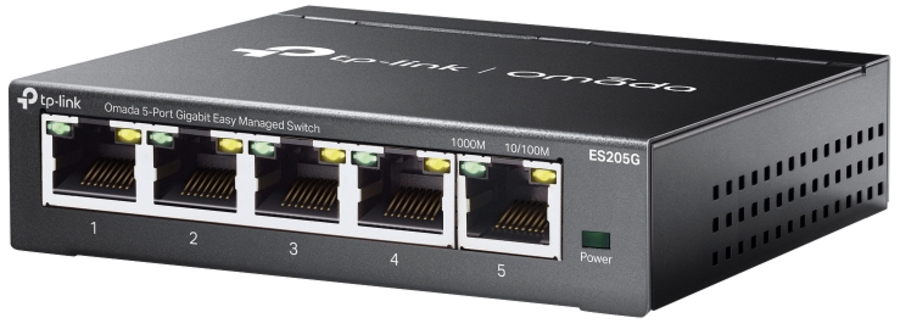

Omada 5-Port Gigabit Easy Managed Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design |
|
Management features |
|
Switch type |
Managed |
|
Quality of Service (QoS) support |
Yes |
|
Cloud-managed |
Yes |
|
Ports & interfaces |
|
Basic switching RJ-45 Ethernet ports quantity |
5 |
|
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
|
Network |
|
Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x |
|
10G support |
No |
|
Port mirroring |
Yes |
|
Flow control support |
Yes |
|
Link aggregation |
Yes |
|
Auto MDI/MDI-X |
Yes |
|
Auto-negotiation |
Yes |
|
VLAN support |
Yes |
|
Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
|
Data transmission |
|
MAC address table |
8000 entries |
|
Switching capacity |
10 Gbit/s |
|
Forwarding rate |
7.4 Mpps |
|
Store-and-forward |
Yes |
|
Jumbo frames support |
Yes |
|
Jumbo frames |
15 |
|
Packet buffer memory |
4 MB |
|
Security |
|
DHCP features |
DHCP client |
|
IGMP snooping |
Yes |
|
Loop protection |
Yes |
|
Design |
|
Product colour |
Black |
|

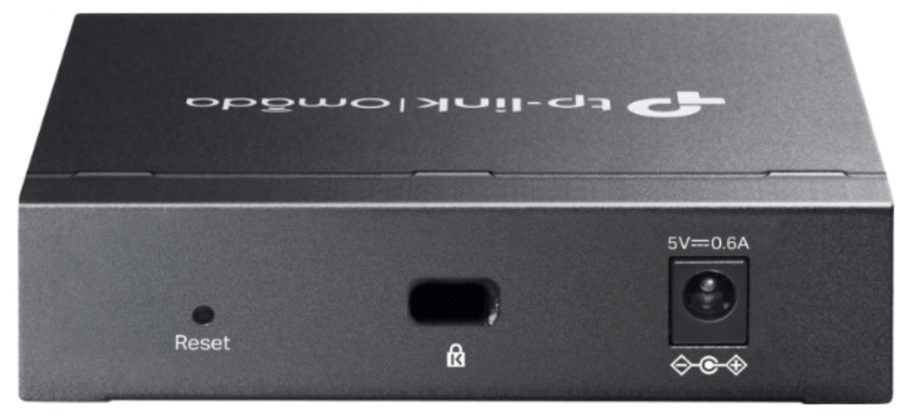

Reset button |
Yes |
|
LED indicators |
Yes |
|

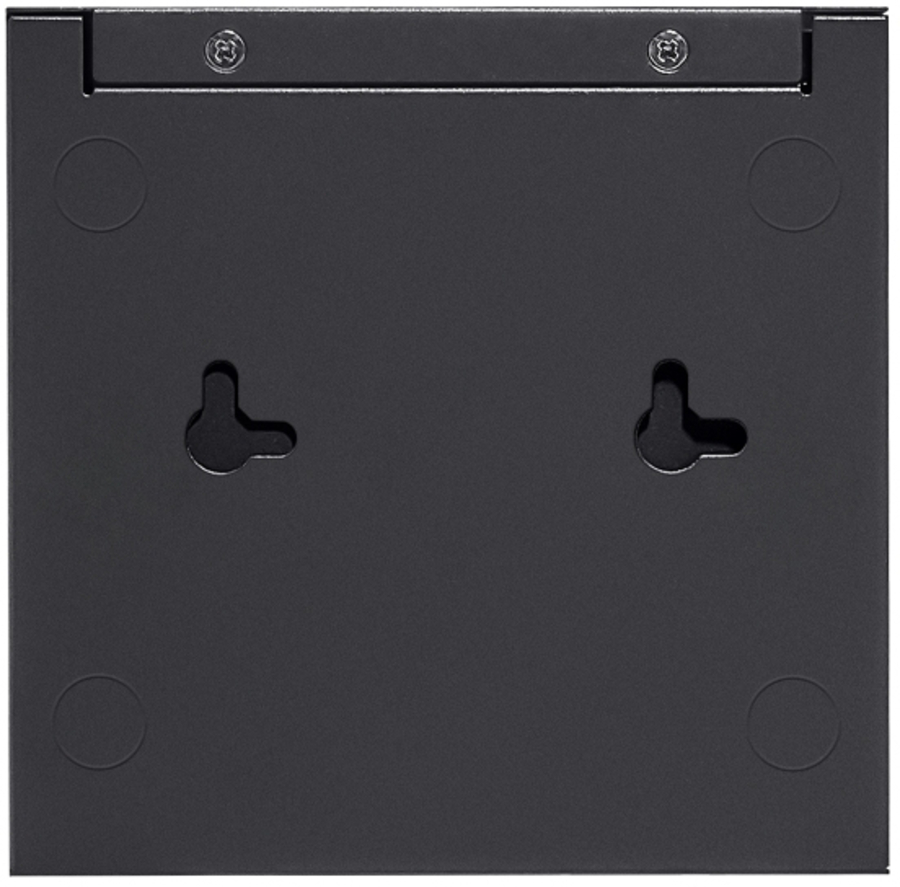

Wall mountable |
Yes |
|
Performance |
|
Fanless |
Yes |
|
Power |
|
Power source |
AC/DC |
|
Power supply included |
Yes |
|
DC input voltage |
5 V |
|
Operational conditions |
|
Operating temperature (T-T) |
0 - 40 °C |
|
Storage temperature (T-T) |
-40 - 70 °C |
|
Operating relative humidity (H-H) |
10 - 90% |
|
Storage relative humidity (H-H) |
5 - 90% |
|
Weight & dimensions |
|
Width |
100 mm |
|
Depth |
98 mm |
|
Height |
25 mm |
|
Packaging content |
|
User guide |
Yes |
|
Packaging data |
|
Package type |
Box |
|
Certificates |
|
Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
