General Information |
|
Summary |
BRAND NEW DESIGN

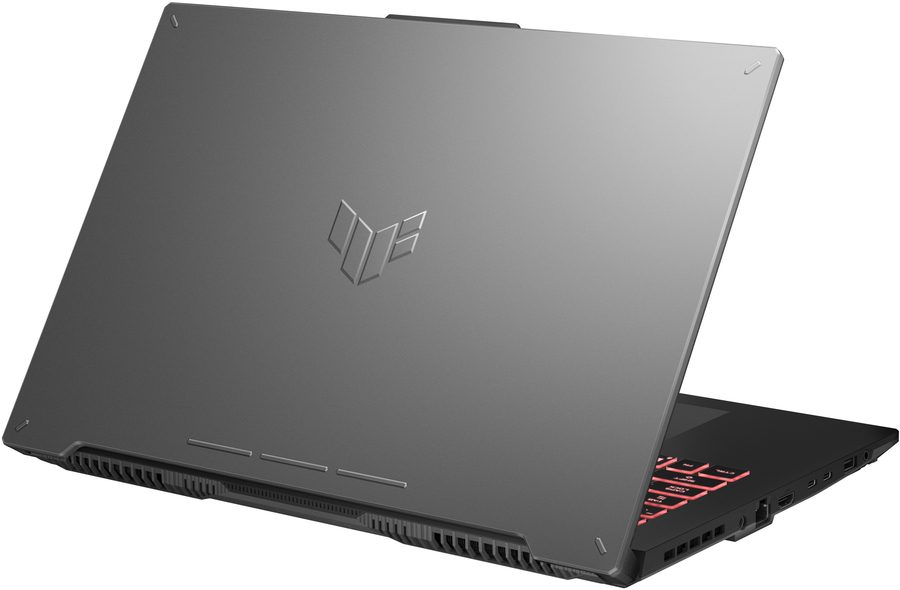

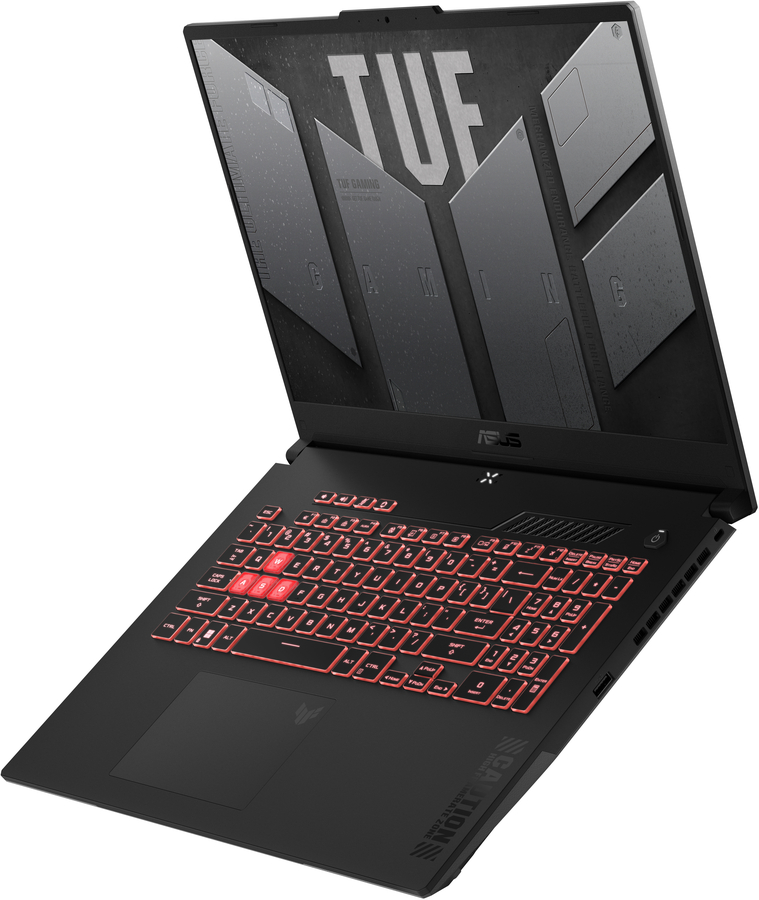

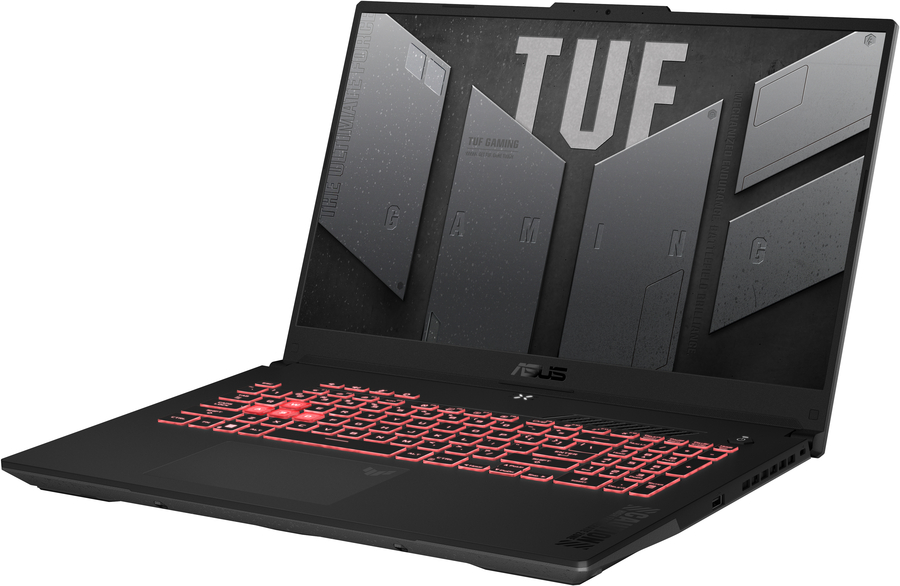

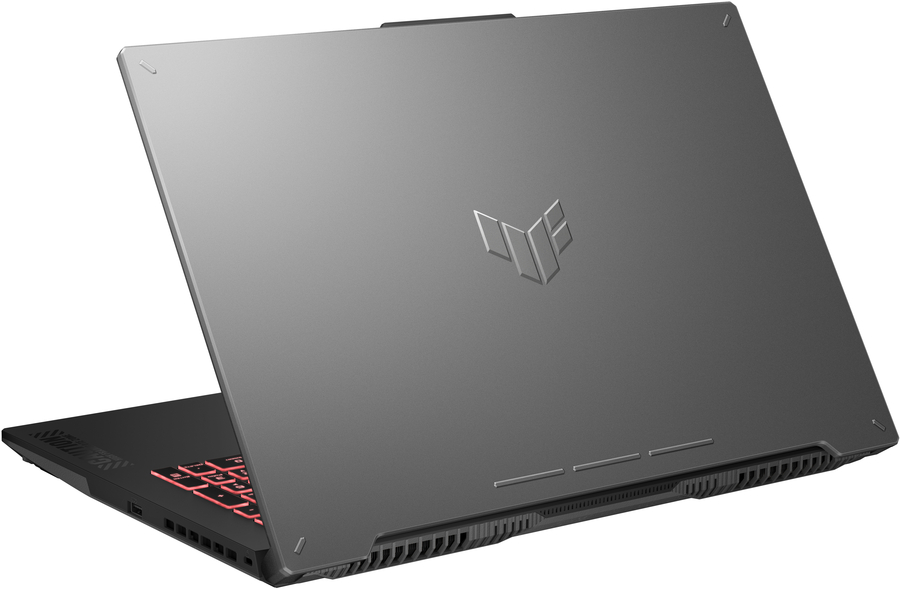

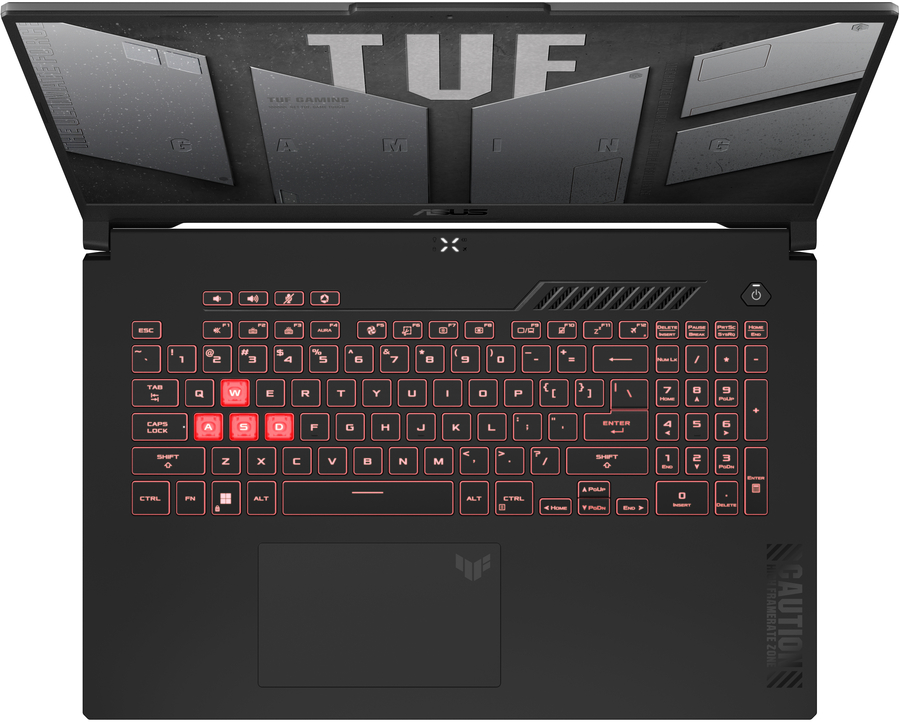

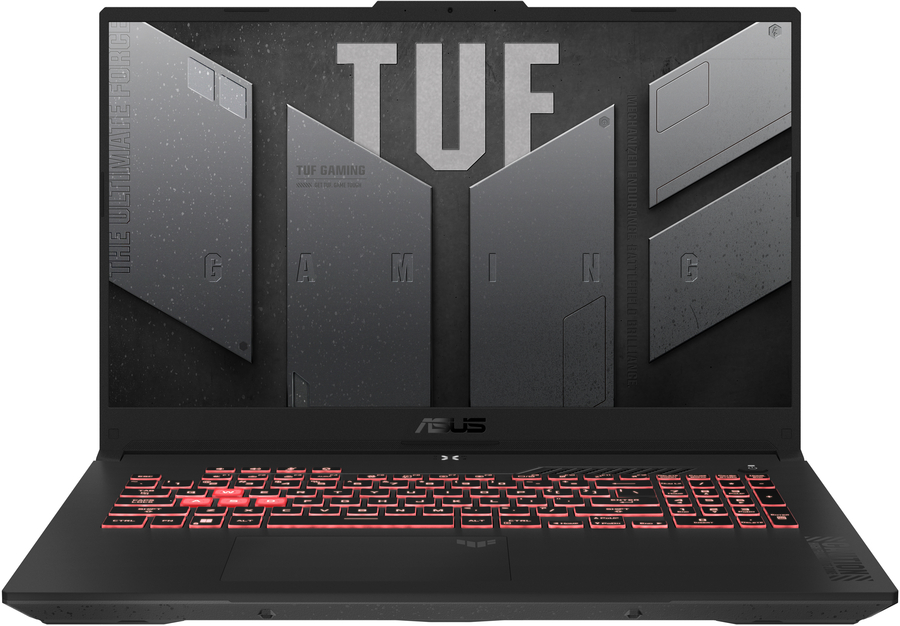

The chassis has been redesigned for 2023, now 4.5% smaller than the previous design. The two color options each have a different logo location, with the Jaeger Gray edition featuring a large laser-sculpted design, and the Mecha Gray edition showing off an embossed logo on the lid. The four-way indicators can be seen even while the clamshell is closed, and the touchpad features a mech-inspired TUF logo in the corner. |
|
Design |
|
Product type |
Laptop |
|
Product colour |
Black, Grey |
|
Form factor |
Clamshell |
|
Colour name |
Mecha Gray |
|
Housing material |
Plastic |
|
Market positioning |
Gaming |
|

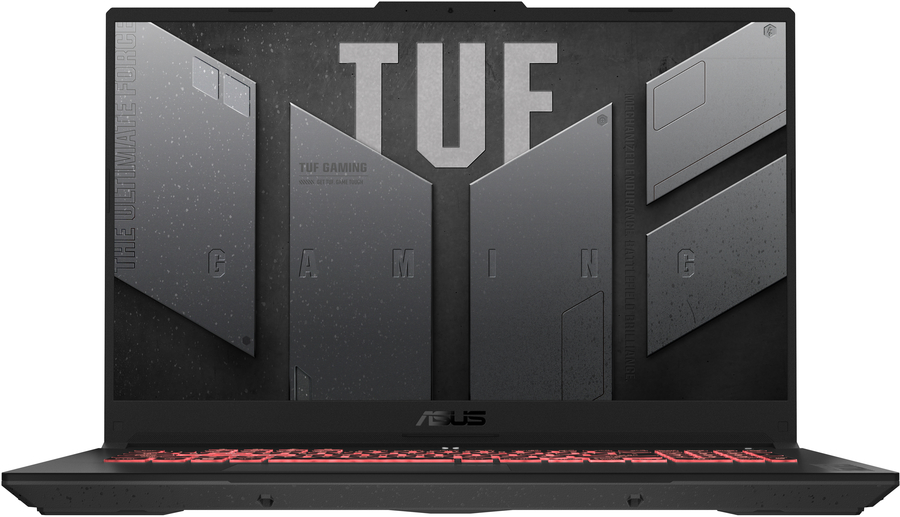

Display |
|
Display diagonal |
43.9 cm (17.3") |
|
Display resolution |
1920 x 1080 pixels |
|
Touchscreen |
No |
|
HD type |
Full HD |
|
Panel type |
IPS-Level |
|
Native aspect ratio |
16:9 |
|
Anti-glare screen |
Yes |
|
Display brightness |
250 cd/m² |
|
RGB colour space |
sRGB |
|
Colour gamut |
62.5% |
|
Maximum refresh rate |
144 Hz |
|
Processor |
|
Processor family |
AMD Ryzen™ 5 |
|
Processor manufacturer |
AMD |
|
Processor model |
7535HS |
|
Processor frequency |
3.3 GHz |
|
Processor generation |
AMD Ryzen 7000 Series |
|
Processor cores |
6 |
|
Processor threads |
12 |
|
Processor boost frequency |
4.55 GHz |
|
Processor cache type |
L2 & L3 |
|
L3 cache |
16 MB |
|
L2 cache |
3 MB |
|
Memory |
|
Internal memory |
16 GB |
|
Maximum internal memory |
64 GB |
|
Internal memory type |
DDR5-SDRAM |
|
Memory clock speed |
4800 MHz |
|
Memory form factor |
SO-DIMM |
|
Memory layout (slots x size) |
2 x 8 GB |
|
Memory slots |
2x SO-DIMM |
|
Memory channels |
Dual-channel |
|
Storage |
|
Total storage capacity |
512 GB |
|
Storage media |
SSD |
|
Optical drive type |
No |
|
Total SSDs capacity |
512 GB |
|
Number of SSDs installed |
1 |
|
SSD capacity |
512 GB |
|
SSD interface |
PCI Express 4.0 |
|
NVMe |
Yes |
|
SSD form factor |
M.2 |
|
Card reader integrated |
No |
|
Graphics |
|
On-board graphics card |
Yes |
|
Discrete graphics card |
Yes |
|
Discrete graphics card model |
NVIDIA GeForce RTX 4050 |
|
On-board graphics card model |
AMD Radeon 660M |
|
Discrete GPU manufacturer |
NVIDIA |
|
Discrete graphics card memory |
6 GB |
|
Discrete graphics memory type |
GDDR6 |
|
On-board GPU manufacturer |
AMD |
|
On-board graphics card family |
AMD Radeon |
|
NVIDIA G-SYNC |
Yes |
|
Audio |
|
Audio system |
Dolby Atmos |
|
Number of built-in speakers |
2 |
|
Built-in microphone |
Yes |
|
Camera |
|
Front camera |
Yes |
|
Front camera HD type |
HD |
|
Network |
|
Mobile network connection |
No |
|
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
|
Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
|
Antenna type |
2x2 |
|
Ethernet LAN |
Yes |
|
Ethernet LAN data rates |
10,100,1000 Mbit/s |
|
Bluetooth |
Yes |
|
Bluetooth version |
5.3 |
|
Ports & interfaces |
|
USB 2.0 ports quantity |
0 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
|
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
|
HDMI ports quantity |
1 |
|
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
|
USB4 Gen 3x2 ports quantity |
1 |
|
Ethernet LAN (RJ-45) ports |
1 |
|
HDMI version |
2.1 |
|
Combo headphone/mic port |
Yes |
|
USB Type-C DisplayPort Alternate Mode |
Yes |
|
Keyboard |
|
Numeric keypad |
Yes |
|
Pointing device |
Touchpad |
|
Keyboard backlit |
Yes |
|
Keyboard backlit colour |
RGB |
|
Keyboard backlit zone |
1-zone RGB |
|
Software |
|
Operating system installed |
Windows 11 Home |
|
Operating system architecture |
64-bit |
|
Trial software |
1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
|
Bundled software |
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
|
Battery |
|
Battery capacity |
90 Wh |
|
Battery technology |
Lithium-Ion (Li-Ion) |
|
Number of battery cells |
4 |
|
Power |
|
USB Type-C charging port |
Yes |
|
AC adapter power |
240 W |
|
AC adapter frequency |
50 - 60 Hz |
|
AC adapter input voltage |
100 - 240 V |
|
AC adapter output current |
12 A |
|
AC adapter output voltage |
20 V |
|
DC-in jack |
Yes |
|
USB Power Delivery (USB PD) |
Yes |
|
Security |
|
Cable lock slot |
Yes |
|
Cable lock slot type |
Kensington |
|
Trusted Platform Module (TPM) |
Yes |
|
Password protection |
Yes |
|
Password protection type |
BIOS, User |
|
Sustainability |
|
Sustainability certificates |
ENERGY STAR, EPEAT Bronze |
|
Weight & dimensions |
|
Weight |
2.6 kg |
|
Width |
395 mm |
|
Depth |
264 mm |
|
Height (front) |
2.29 cm |
|
Height (rear) |
2.54 cm |
|
Packaging content |
|
AC adapter included |
Yes |
